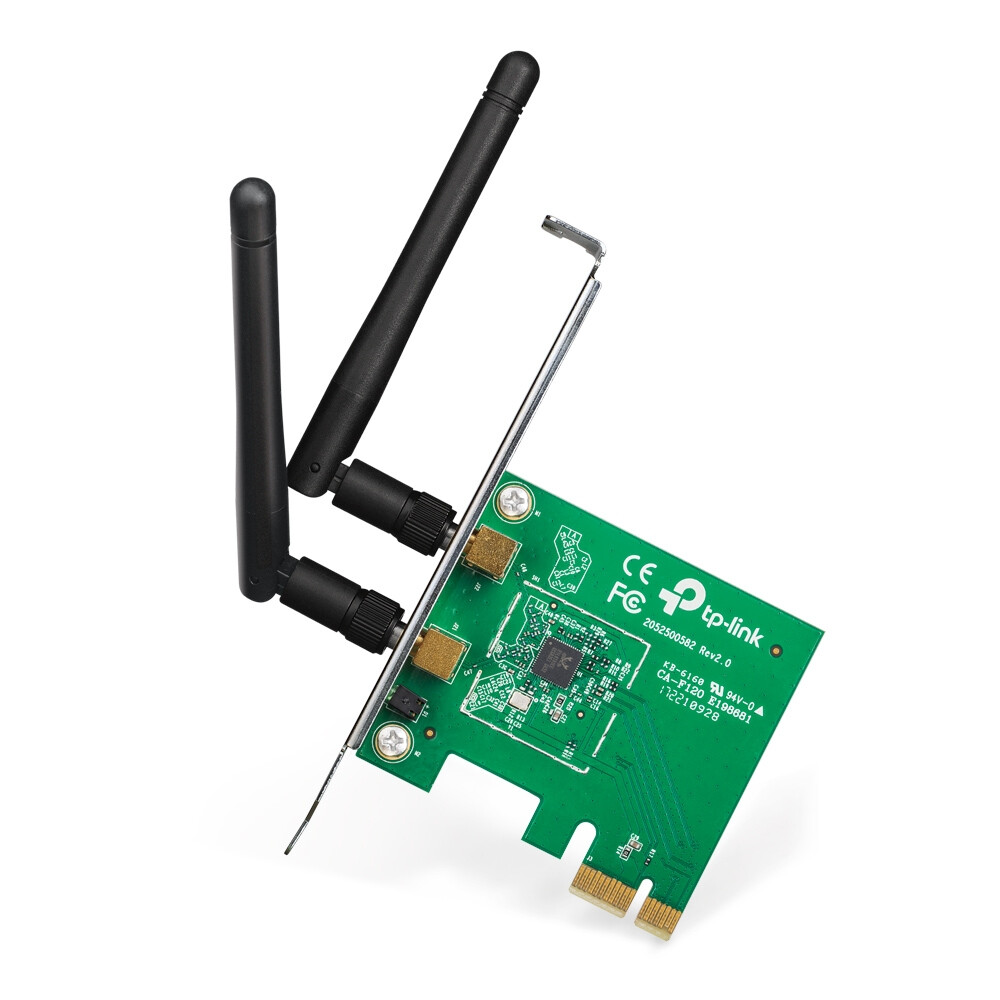

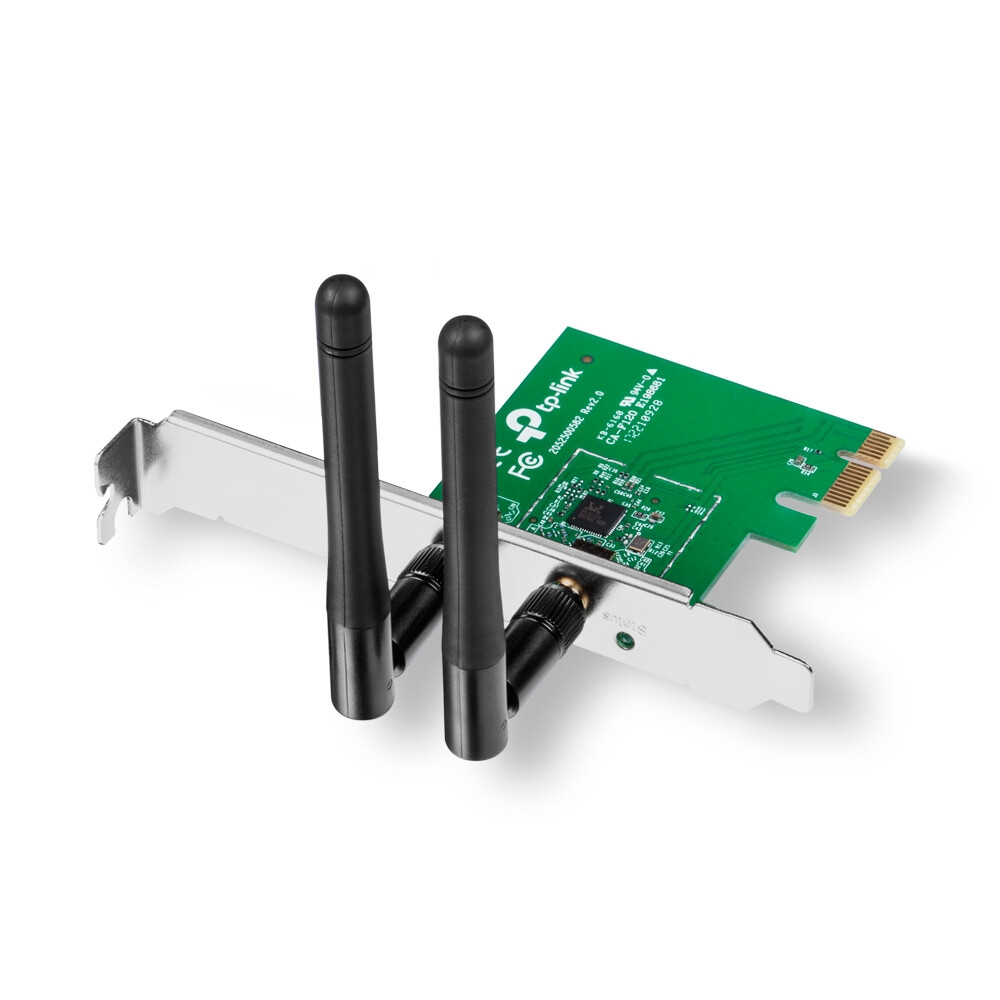

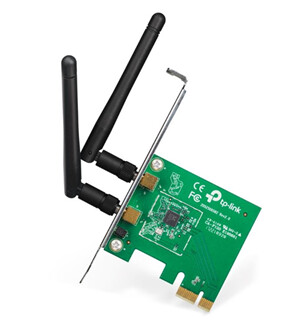

TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket

$35.48 (Incl. GST)

2.4GHz, PCI-E x1, 802.11b/g/n, 300Mb/s, 2 x 2dBi RP-SMA, WPA/WEP

Out of stock

SKU: TP-LINK_TL-WN881ND V1 Category:

Print

Description

TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). Product colour: Green

300Mbps Wireless N PCI Express Adapter
Highlights:
– Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls;
– MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability;
– Easily setup a highly secured wireless link with WPS™ (Wi-Fi Protected Setup).

What This Product Does
Wireless N PCI Express 2.0(x1) Adapter TL-WN881ND allows you to connect a desktop computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300Mbps, which is beneficial for the online gaming or even HD video streaming.

Wireless N – Speed & Range
MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

CCA Technology – Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.

WPA / WPA2 Encryptions – Advanced Security
As for the security of WI-FI connection, WEP encryption has been no longer the strongest and safest guards for outside intrusions. TL-WN881ND provides WPA/WPA2 encryptions that are created by the WI-FI Alliance industry group, promoting interpretabilities and security for WLAN, which could effectively and efficiently protect the wireless network.

Bundled CD for Easy Operation
TL-WN881ND comes with a CD with utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which is convenient for users, even for novice users.

Features:
– Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls;
– 2T2R MIMO™ delivers greater throughput at range versus conventional 1T1R;
– Easily setup a highly secured wireless link with QSS software embedded;
– Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X;
– Supports Windows 7 32/64bit, Windows XP 32/64bit, Vista 32/64bit, Windows 2000;
– Supports ad-hoc and infrastructure mode;
– Supports Sony PSP X-Link for joyful online gaming for Windows XP;
– Bundled utility provides quick & hassle free installation;
– Seamlessly compatible with 802.11n/b/g products.

Warranty: 3 year limited warranty

Additional information

Connectivity technology

Wireless

Brand

TP-LINK

Maximum data transfer rate

300 Mbit/s

Host interface

PCI Express

Interface

WLAN

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Internal

Y

Component for

PC

LED indicators

Y

Certification

CE, FCC

Windows operating systems supported

Y

Linux operating systems supported

Y

Operating relative humidity (H-H)

10 – 90%

Sustainability certificates

RoHS

Width

120.8 mm

Depth

78.5 mm

Height

21.5 mm

Package width

200 mm

Package depth

150 mm

Package height

39 mm

Package weight

170 g

Manual

Y

Compatible operating systems

Windows 7 (32/64-bits)
Windows Vista (32/64-bits)
Windows XP (32/64-bits)

Storage temperature (T-T)

-40 – 70 °C

Harmonized System (HS) code

85176990

Wi-Fi

Y

Wi-Fi band

Single-band (2.4 GHz)

Frequency range

2.4 – 2.4835 GHz

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Modulation

16-QAM, 64-QAM, DBPSK, DQPSK, OFDM

Product colour

Green

Receiver sensitivity

270M: -68dBm@10%
130M: -68dBm@10%
108M: -73dBm@10%
54M: -73dBm@10%
11M: -89dBm@8%
6M: -87dBm@10%
1M: -90dBm@8%

Storage relative humidity (H-H)

5 – 90%

Quick start guide

Y

Compliance industry standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Link/Act LED

Y

Security algorithms

128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS

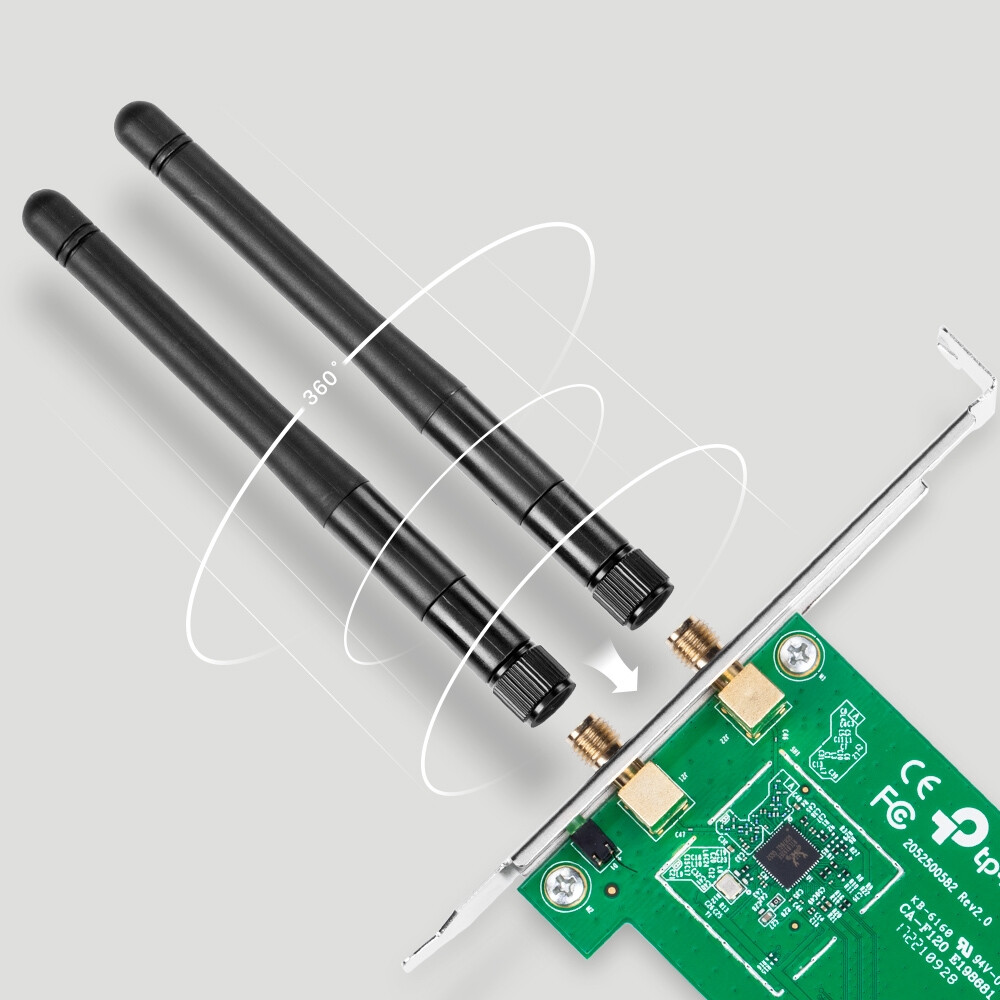

Antenna

Y

Antenna design

External

Antenna connector type

RP-SMA

Gain

2 dBi

Minimum system requirements

PCI-E x1

WLAN data transfer rates supported

11,54,150,300 Mbit/s

Antennas quantity

2

Operating temperature (T-T)

32 – 104 °F
