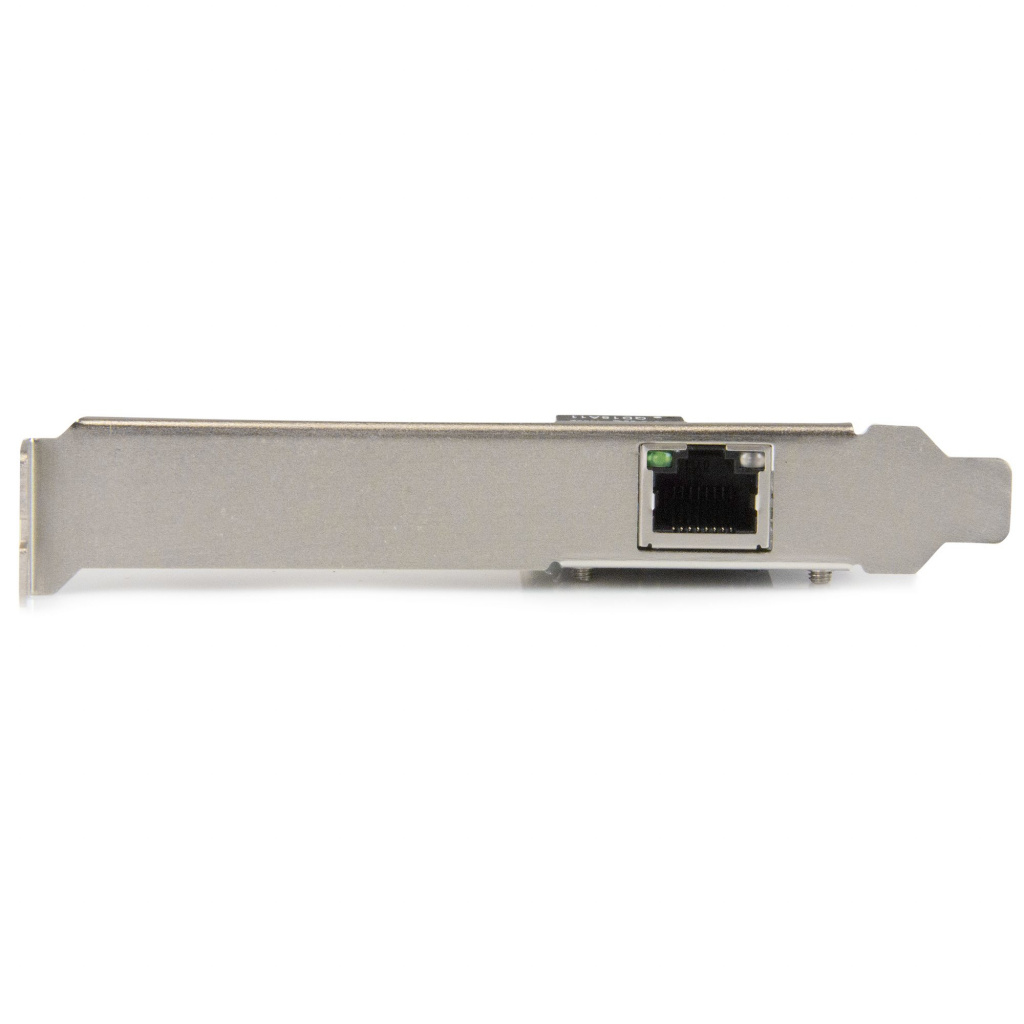

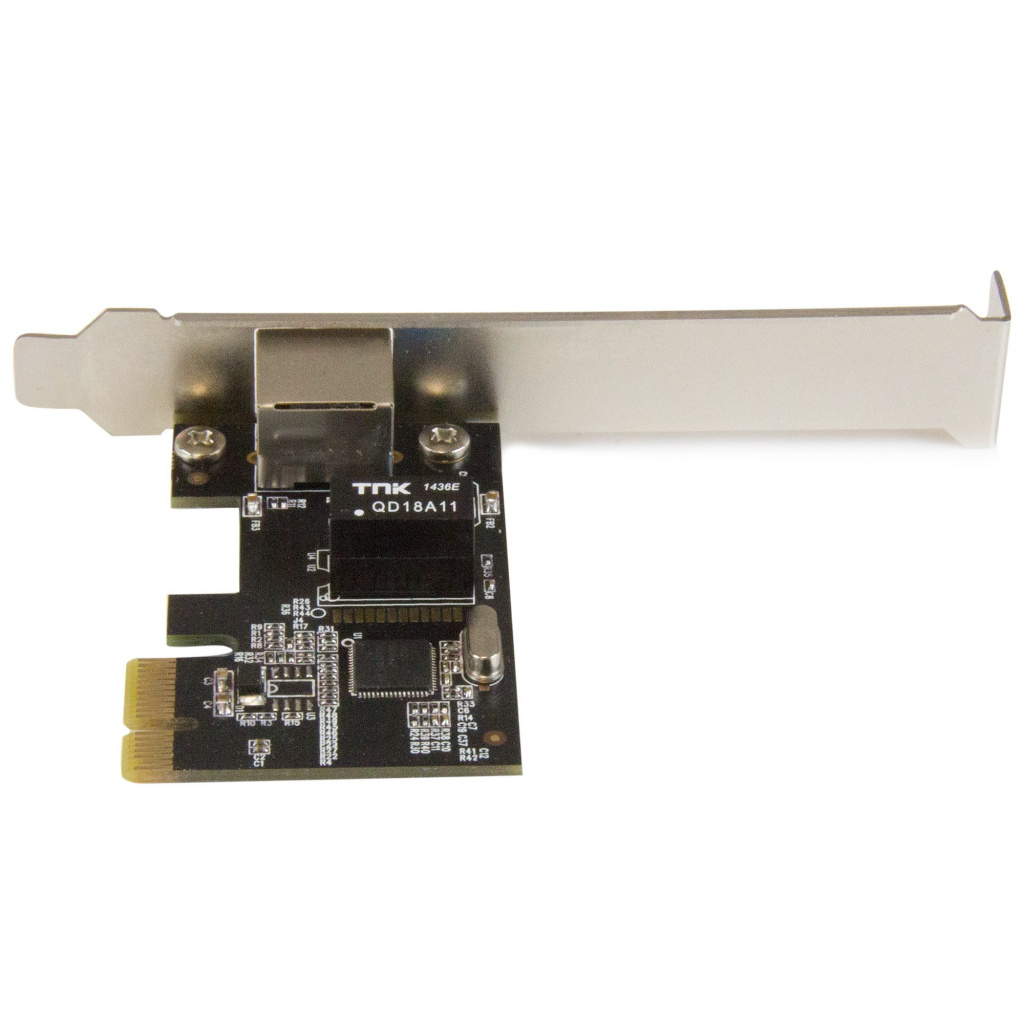

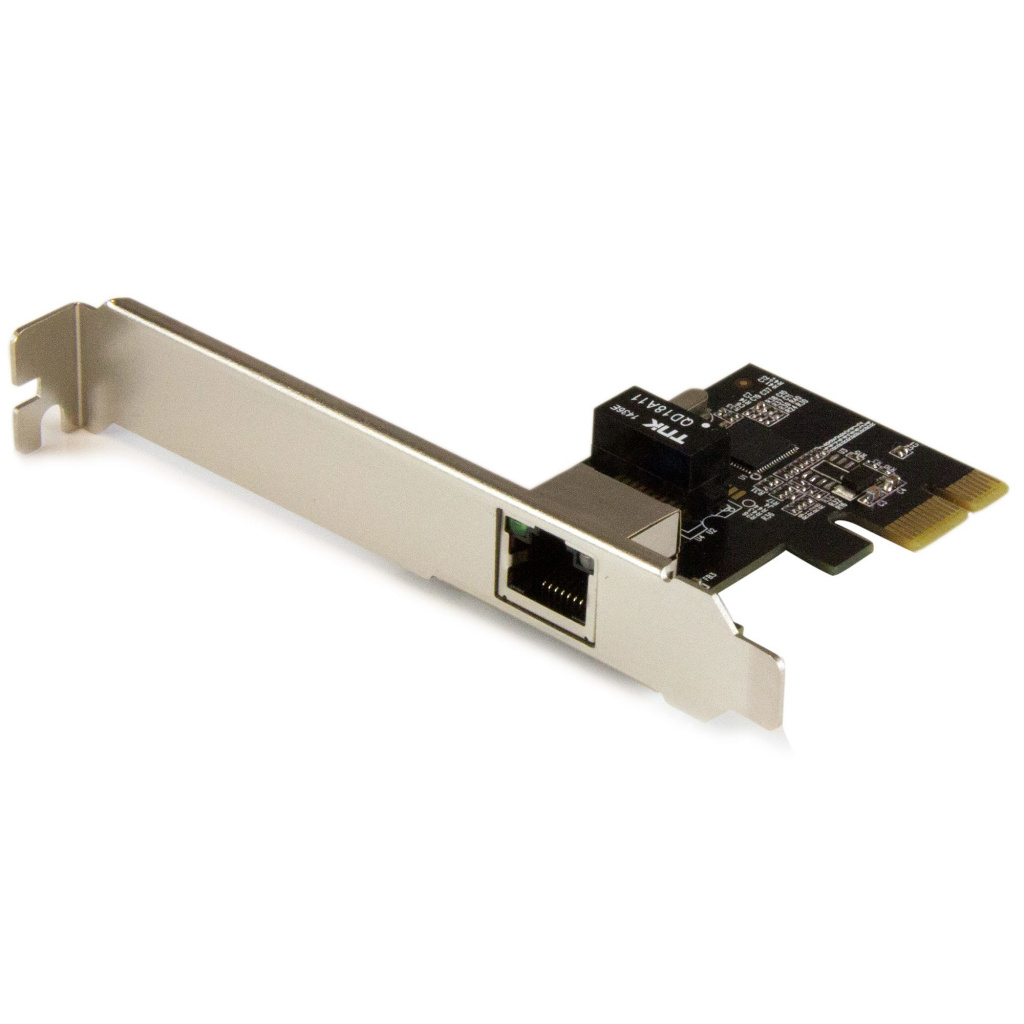

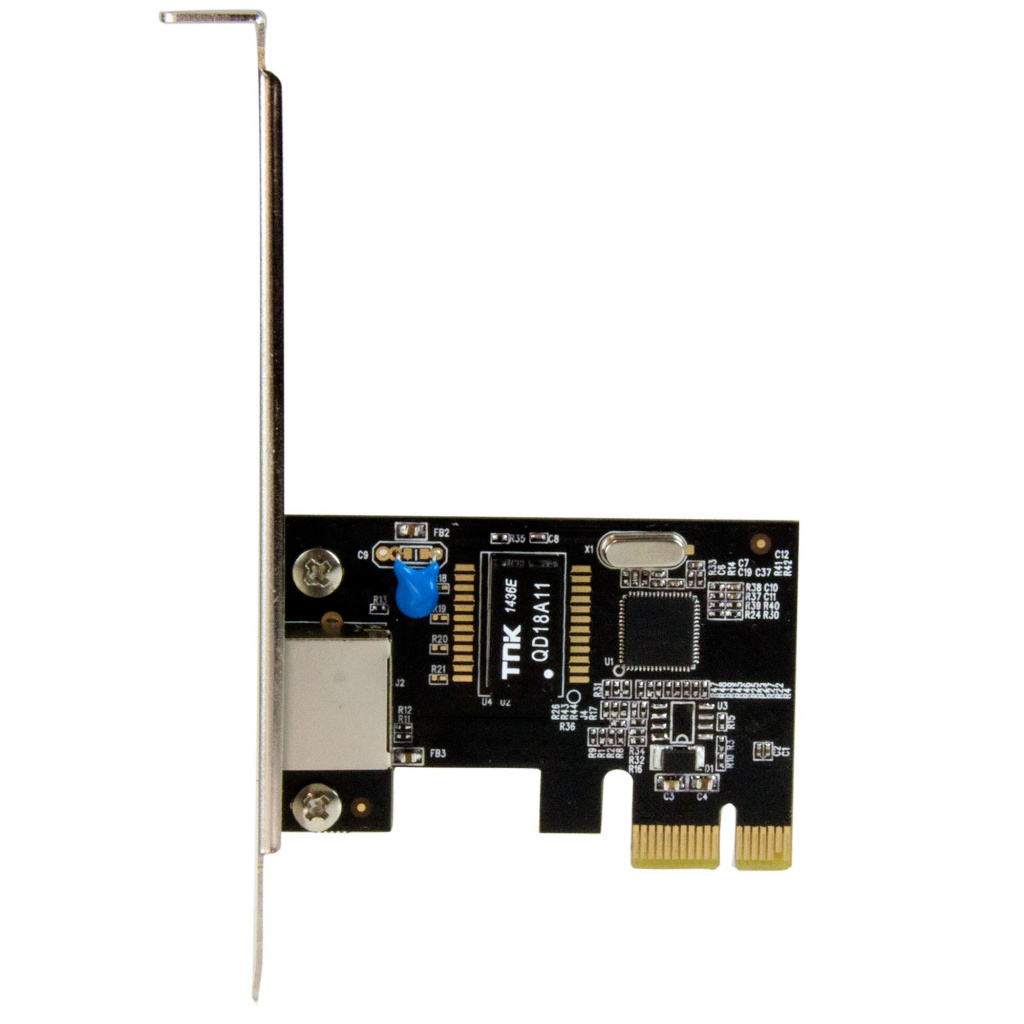

StarTech.com 1-Port Gigabit Ethernet Network Card – PCI Express, Intel I210 NIC

$73.14 (Incl. GST)

StarTech.com 1-Port Gigabit Ethernet Network Card – PCI Express, Intel I210 NIC – Single Port PCIe Network Adapter Card with Int

In stock

SKU: STARTECH.COM_ST1000SPEXI Category:

Print

Description

StarTech.com 1-Port Gigabit Ethernet Network Card – PCI Express, Intel I210 NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Black, Metallic

Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.

The performance and reliability you demand in network connectivity
This Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) – up to ten times faster than 10/100 Ethernet.

The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.

A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.

Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Warranty: 2 Years

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Maximum data transfer rate

2000 Mbit/s

Host interface

PCI Express

Interface

Ethernet

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Wake-on-LAN ready

Yes

Auto MDIX IEEE

Yes

Full duplex

Yes

VLAN tagging

Yes

Internal

Yes

Component for

PC/Server

Chipset

Intel® I210-AT

LED indicators

Activity

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operating temperature (T-T)

5 – 50 °C

Operating relative humidity (H-H)

20 – 80%

Sustainability certificates

CE, RoHS

Width

66 mm

Depth

120 mm

Height

18 mm

Weight

38 g

Package width

142 mm

Package depth

170 mm

Package height

28 mm

Package weight

100 g

Manual

Yes

Storage temperature (T-T)

-20 – 60 °C

Harmonized System (HS) code

85176990

Product colour

Black, Metallic

Cabling technology

10/100/1000BaseT(X)

Jumbo frames support

Yes

Mounting brackets included

Yes

Auto-negotiation

Yes

Master (outer) case width

304 mm

Master (outer) case length

592 mm

Master (outer) case height

357 mm

Products per master (outer) case

80 pc(s)

Sustainability compliance

Yes
