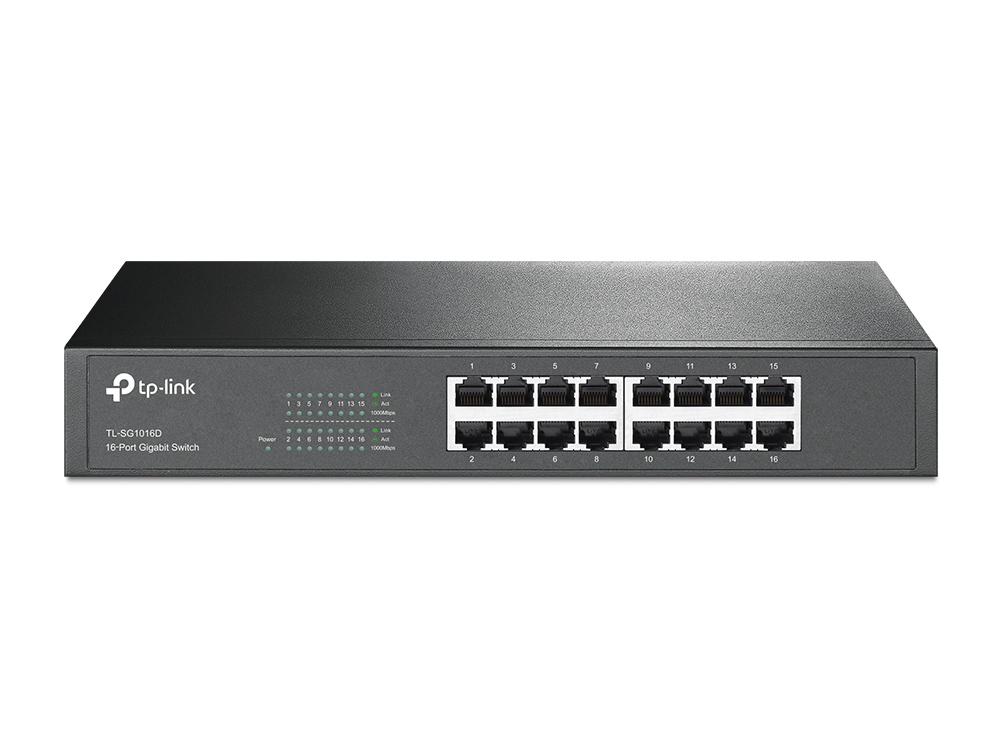

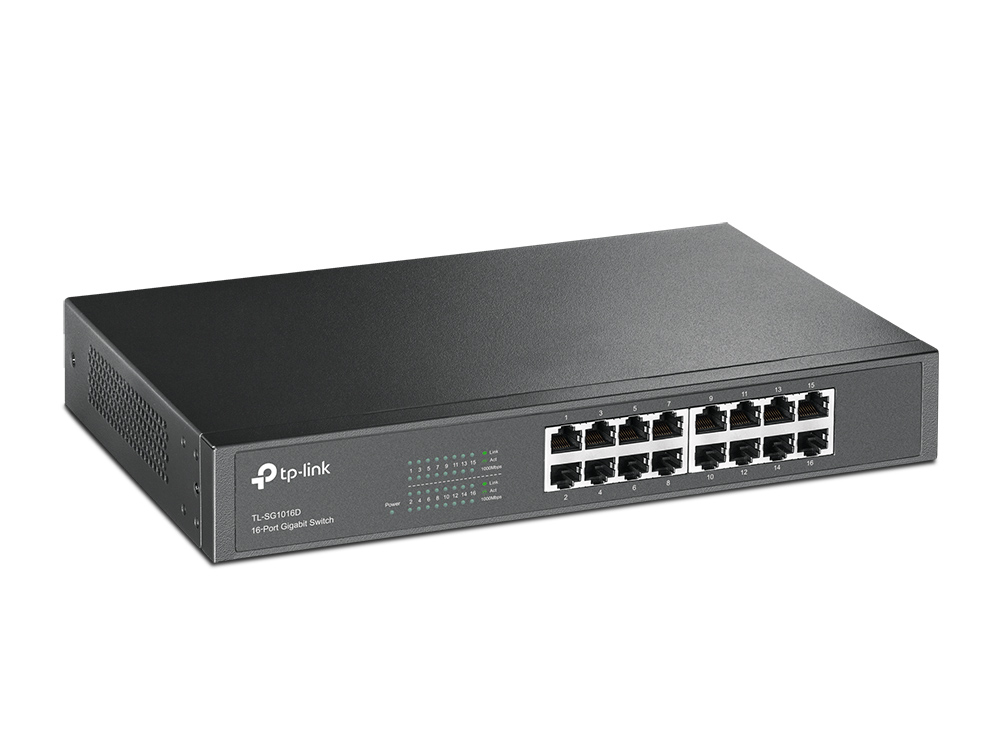

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch

$119.76 (Incl. GST)

16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, 294 x 180 x 44 mm, 100-240VAC, 50/60Hz

Out of stock

SKU: TP-LINK_TL-SG1016D V7 Category:

Print

Description

What This Product Does
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Additional information

Basic switching RJ-45 Ethernet ports quantity

16

Brand

TP-LINK

Full duplex

Yes

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-40 – 70 °C

Switch type

Unmanaged

Gigabit Ethernet (copper) ports quantity

16

Power connector

AC-in jack

Supported network protocols

CSMA/CD, TCP/IP

Stackable

Yes

Product colour

Black

Power over Ethernet (PoE)

No

Operating relative humidity (H-H)

10 – 90%

Heat dissipation

31.6 BTU/h

Jumbo frames support

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Networking standards

IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

10G support

No

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T

Cable types supported

Cat3, Cat4, Cat5, Cat5e

Flow control support

Yes

Auto MDI/MDI-X

Yes

MAC address table

8000 entries

Switching capacity

32 Gbit/s

Forwarding rate

23.8 Mpps

Store-and-forward

Yes

Rack mounting

Yes

LED indicators

Yes

Power consumption (max)

9.26 W

Storage relative humidity (H-H)
