StarTech.com 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch – 802.3af/at PoE+ Switch – Wall Mountable

$552.21 (Incl. GST)

StarTech.com 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch – 802.3af/at PoE+ Switch – Wall Mountable – PoE Netw

In stock

SKU: STARTECH.COM_IES81000POE Category:

Print

Description

StarTech.com 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch – 802.3af/at PoE+ Switch – Wall Mountable. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. Switching capacity: 2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output – Wall Mountable

The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.

Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.

A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.

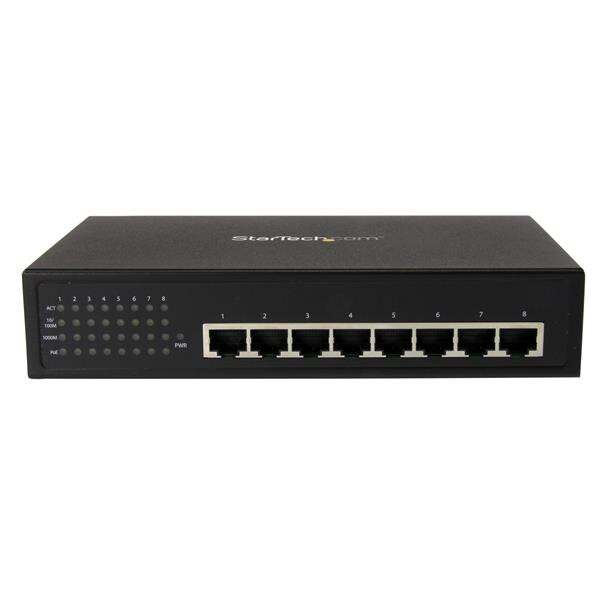

The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

– Position your network devices where power outlets aren’t available, with 30 Watts per-port from the switch
– Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
– Provides durable performance in harsh environments with a sturdy steel construction

2 Year Warranty

Additional information

Basic switching RJ-45 Ethernet ports quantity

8

Brand

StarTech.com

Full duplex

Y

Operating temperature (T-T)

0 – 55 °C

Storage temperature (T-T)

-20 – 90 °C

Switch type

Unmanaged

Power connector

DC-in jack

Power over Ethernet (PoE)

Y

Operating relative humidity (H-H)

10 – 90%

Cooler included

750 g

Power consumption (typical)

120 W

Packet buffer memory

0.128 MB

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

N

Auto MDI/MDI-X

Y

Switching capacity

2 Gbit/s

Rack mounting

N

LED indicators

Activity, Link, PoE

Width

188 mm

Depth

119 mm

Height

38 mm

Package width

197 mm

Package depth

371 mm

Package height

69 mm

Package weight

1.75 kg

Input current

2 A

AC input voltage

110 – 240 V

Manual

Y

Power over Ethernet plus (PoE+) ports quantity

8
