StarTech.com x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter

$57.29 (Incl. GST)

StarTech.com M2 PCIe SSD Adapter – x4 PCIe 3.0 NVMe / AHCI / NGFF / M-Key – Low Profile and Full Profile – SSD PCIe M.2 Adapter (PEX4M2E1)

Out of stock

SKU: STARTECH.COM_PEX4M2E1 Category:

Print

Description

Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access

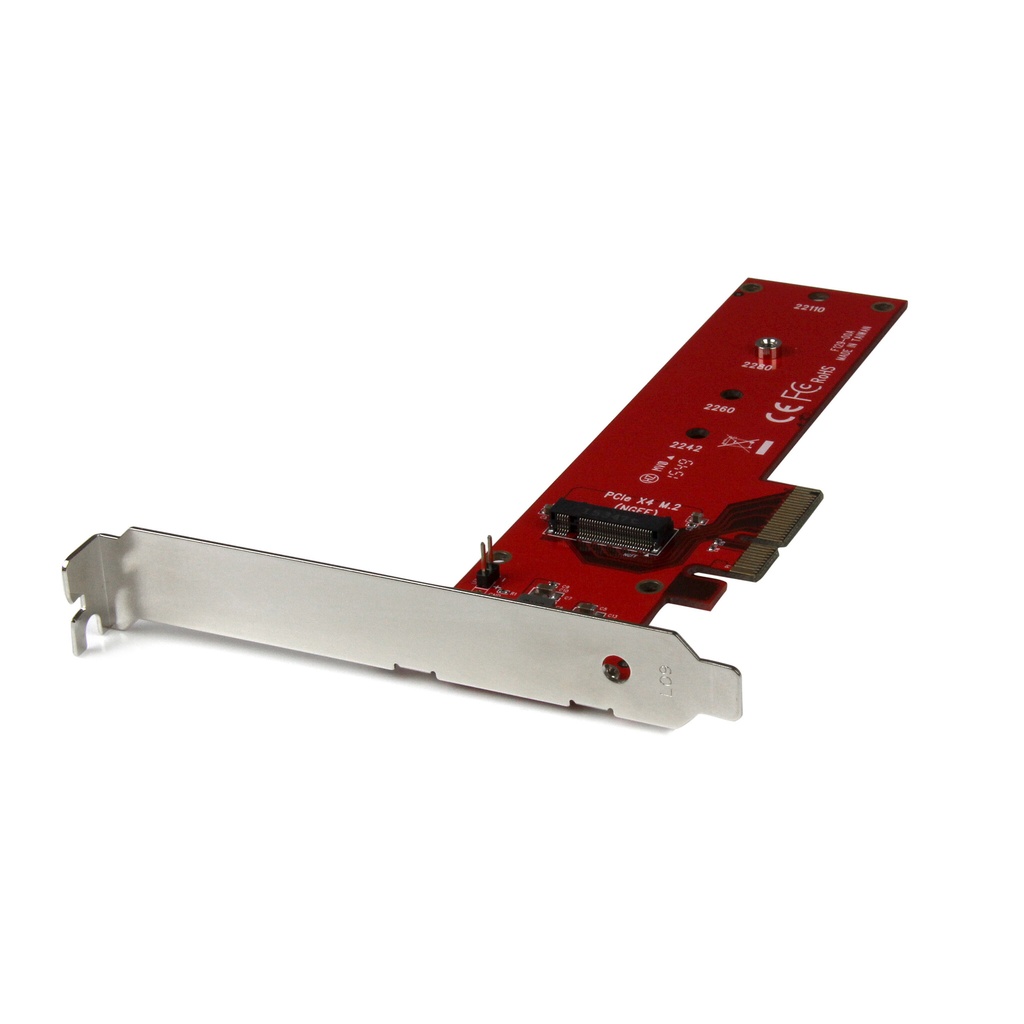

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

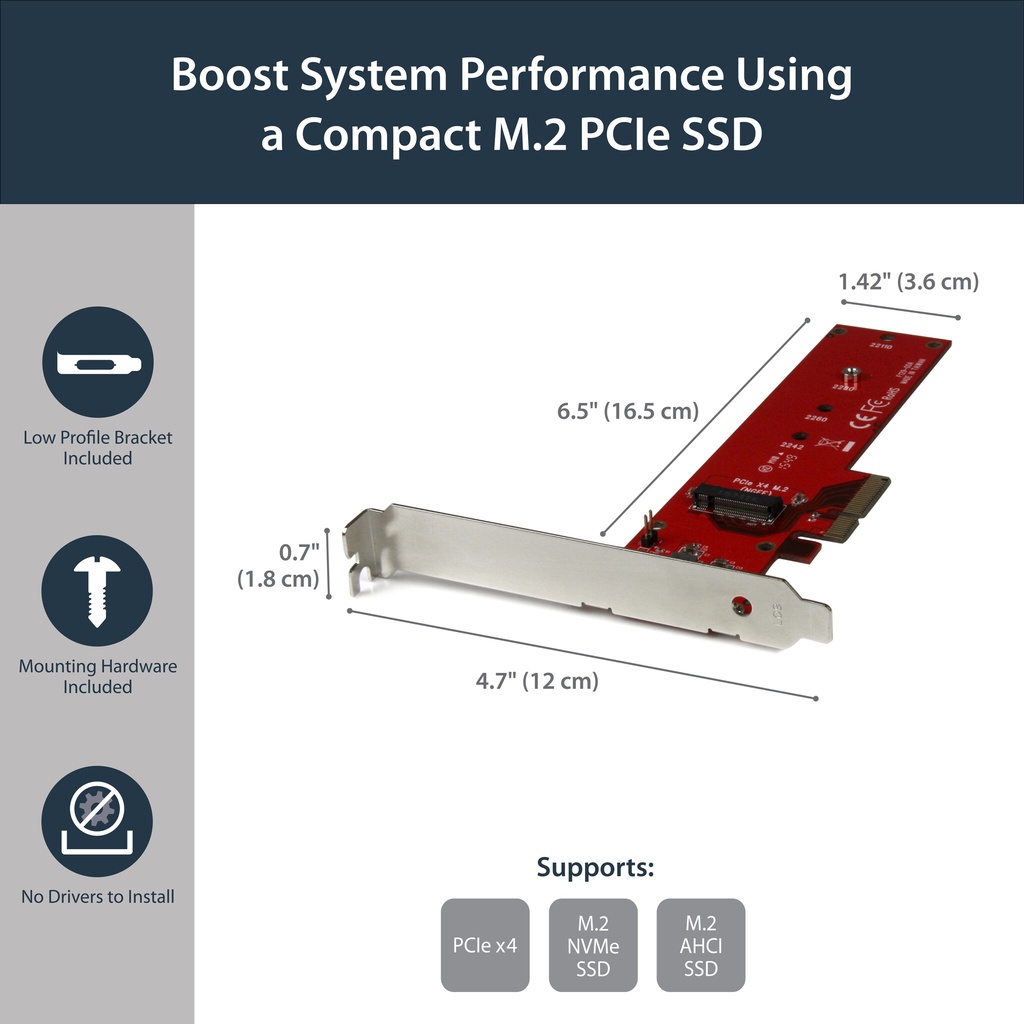

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

Supports PCIe M.2 SSDs

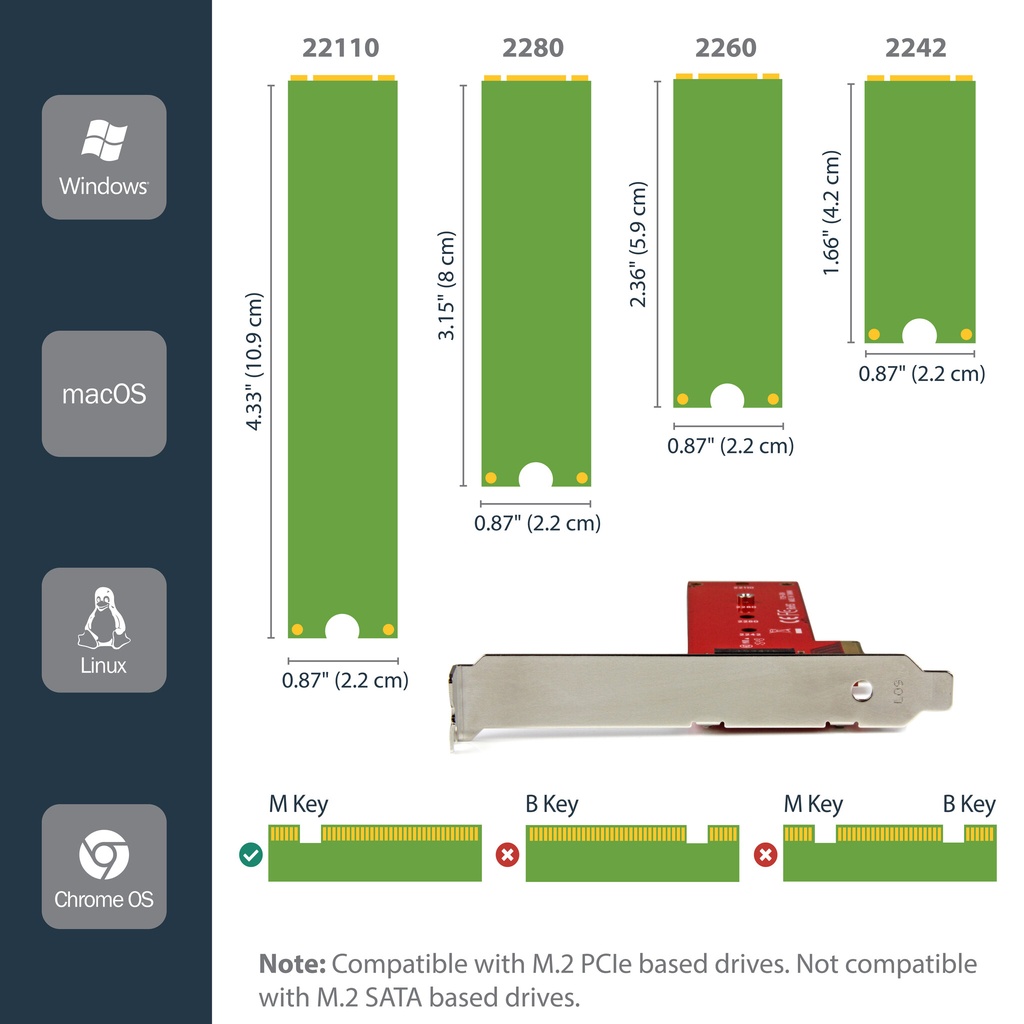

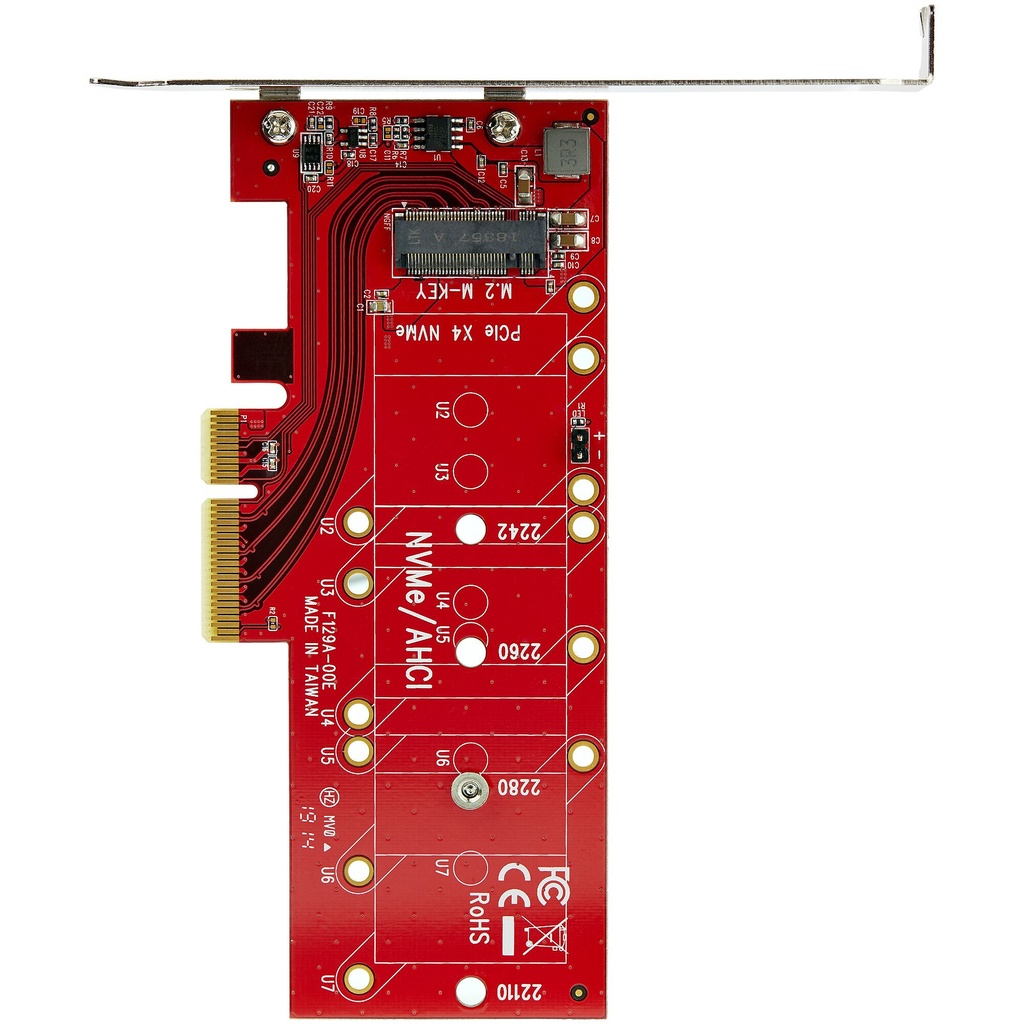

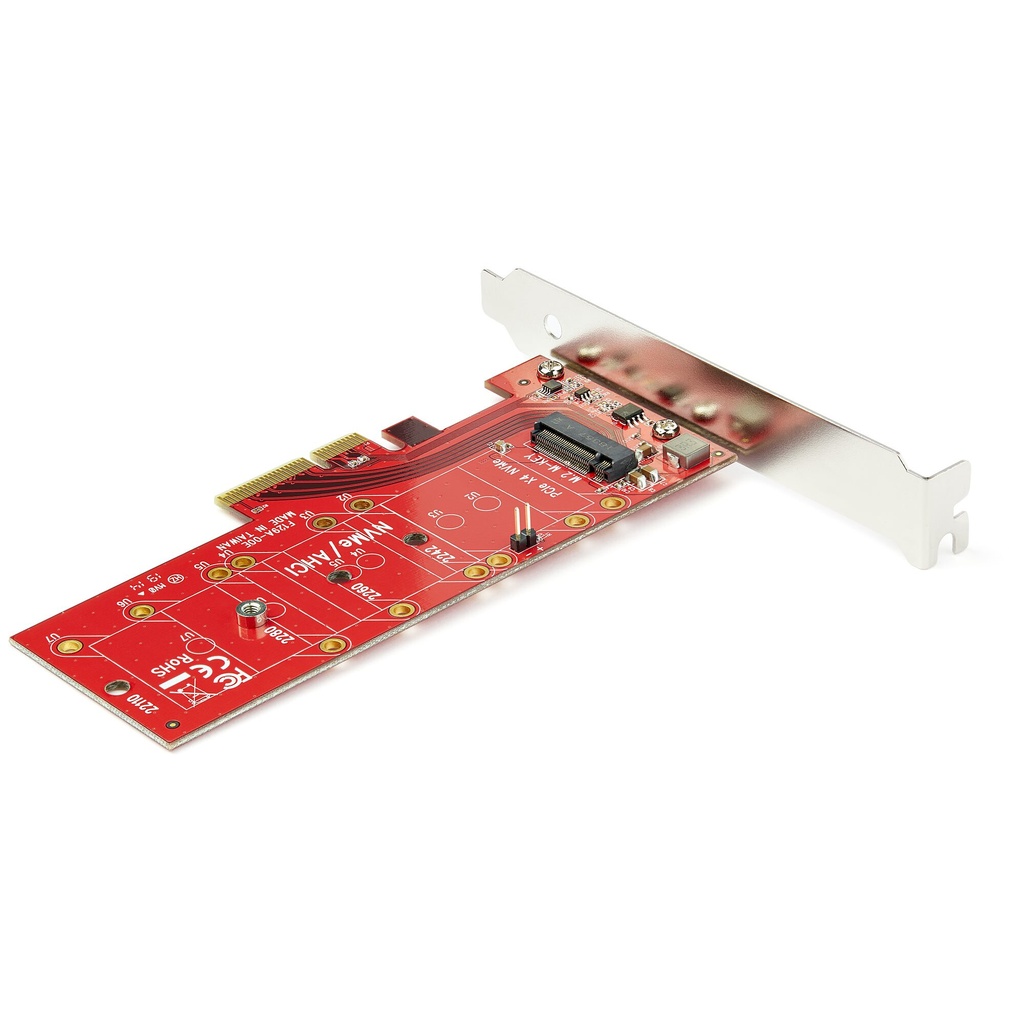

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

Easy to install

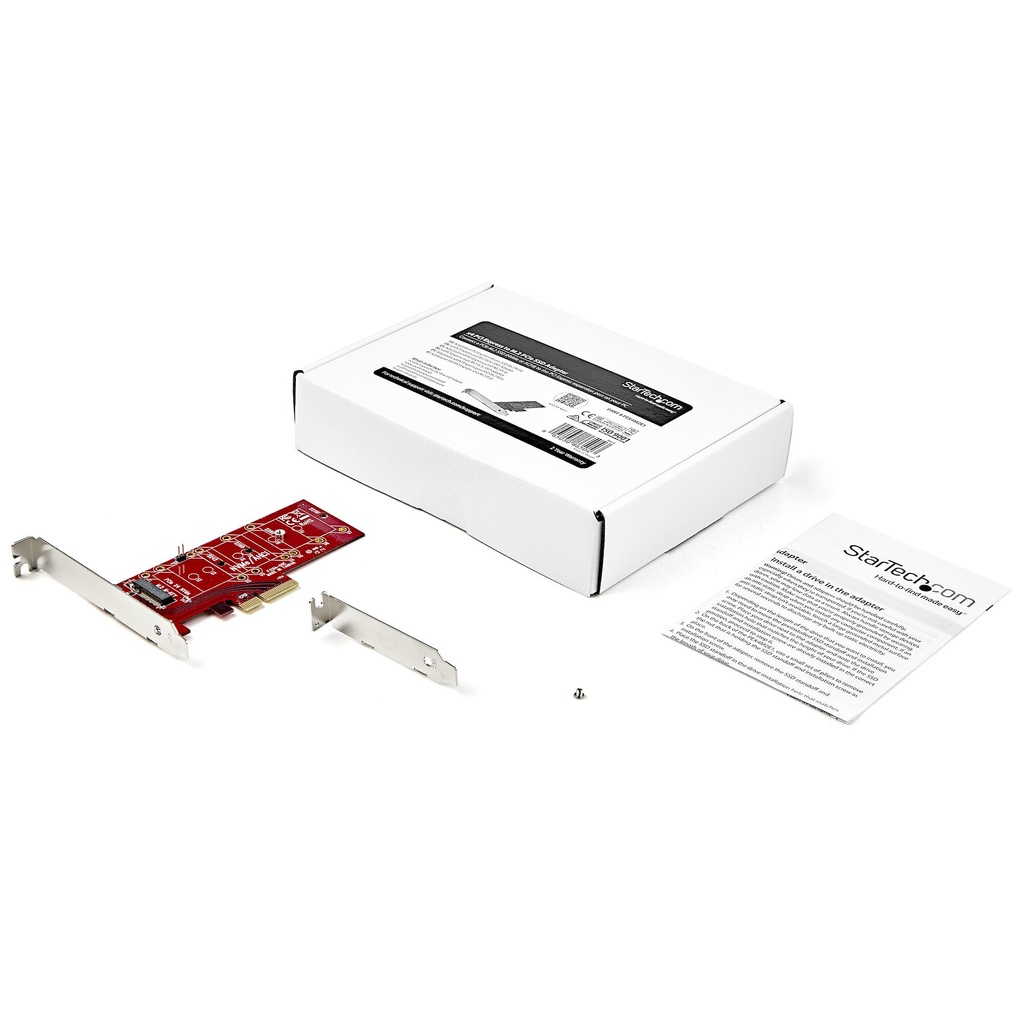

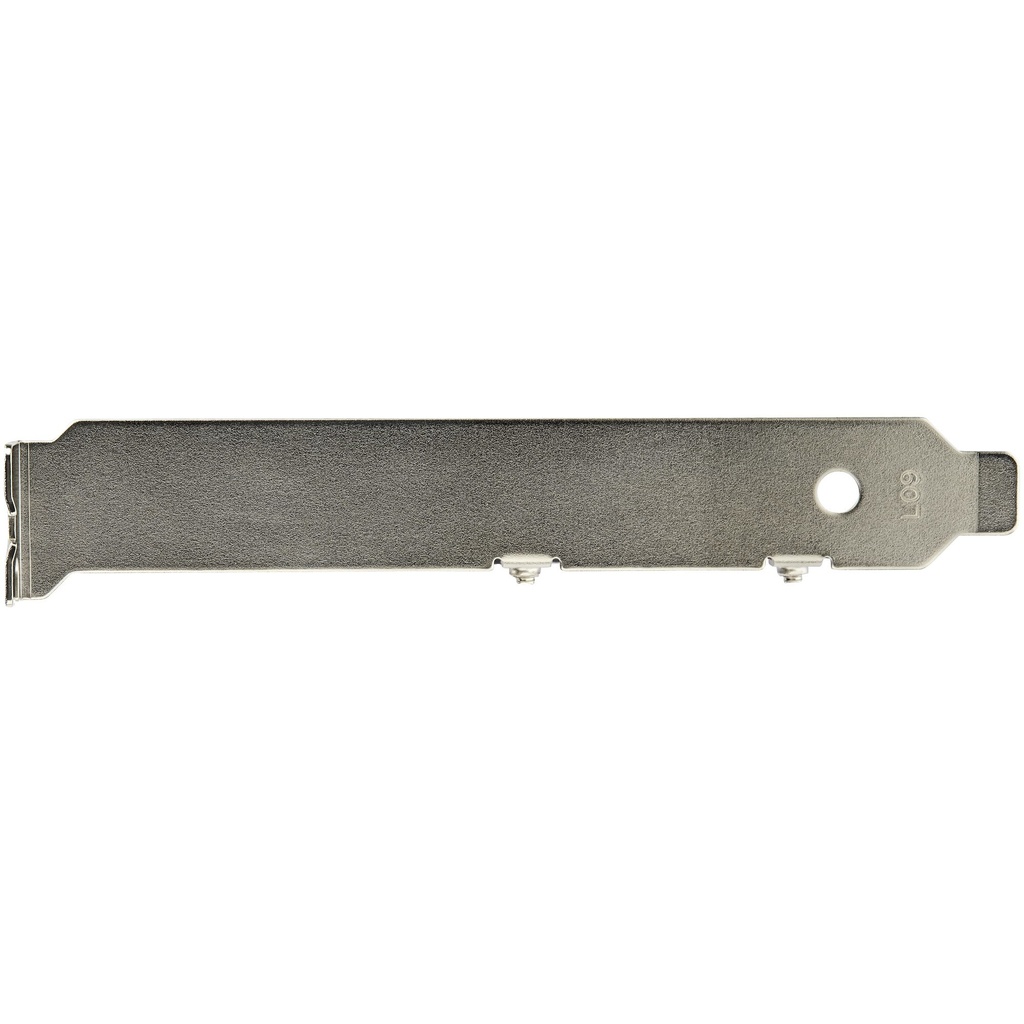

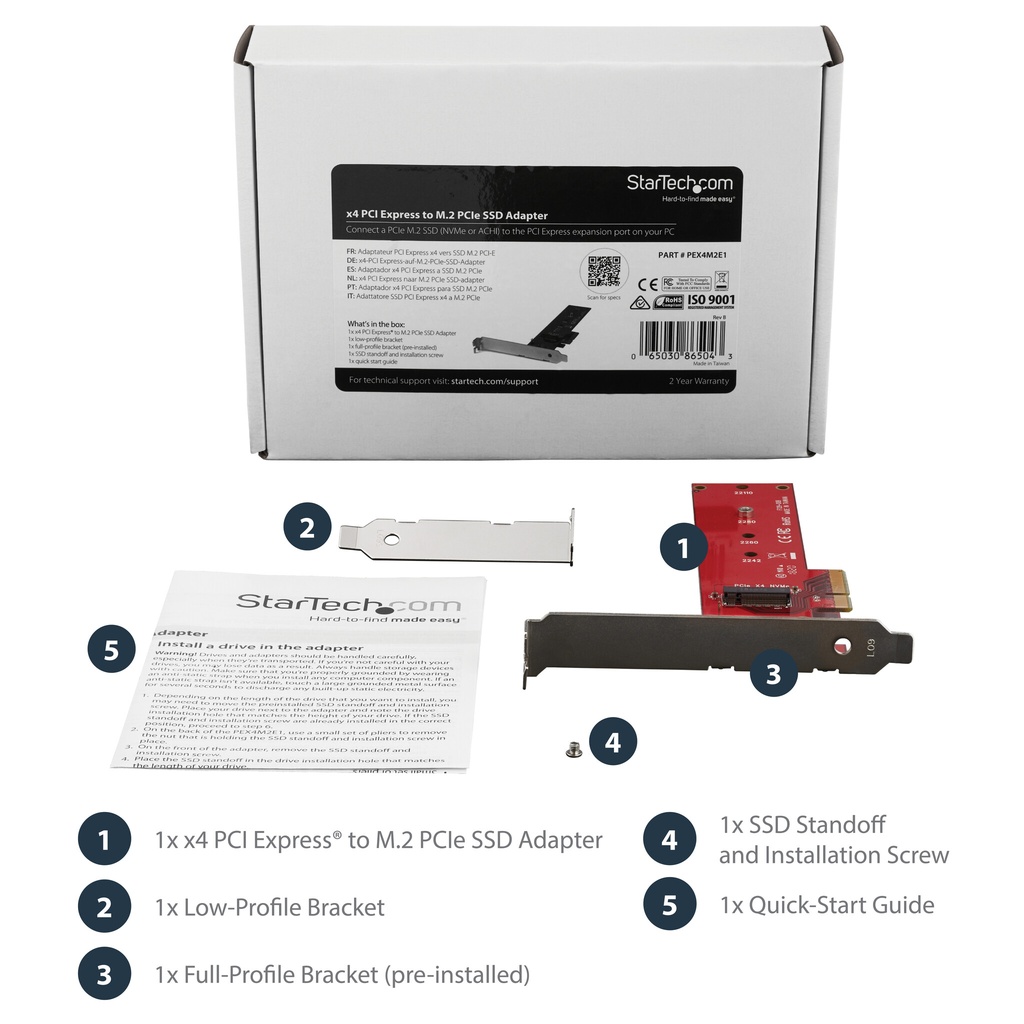

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.

The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Host interface

PCIe

Brand

StarTech.com

Output interface

M.2

Internal

Yes

Product colour

Red

Weight

47 g

Plug and Play

Yes

Width

121 mm

Depth

179 mm

Height

184 mm

Package width

219 mm

Package depth

159 mm

Package height

46 mm

Package weight

151 g

Expansion card form factor

Full-height / Low-profile

Operating temperature (T-T)

5 – 50 °C

Storage temperature (T-T)

-25 – 70 °C

Operating relative humidity (H-H)

15 – 90%

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mounting brackets included

Yes

Data transfer rate (max)

8 Gbit/s

LED indicators

Yes

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina

Products per master (outer) case

60 pc(s)

Master (outer) case width

380 mm

Master (outer) case length

500 mm

Master (outer) case height

310 mm

Hot-swap

No

Expansion card standard

PCI 3.0

Quick installation guide

Yes

Harmonized System (HS) code

84733020

Compliance certificates

CE, RoHS
