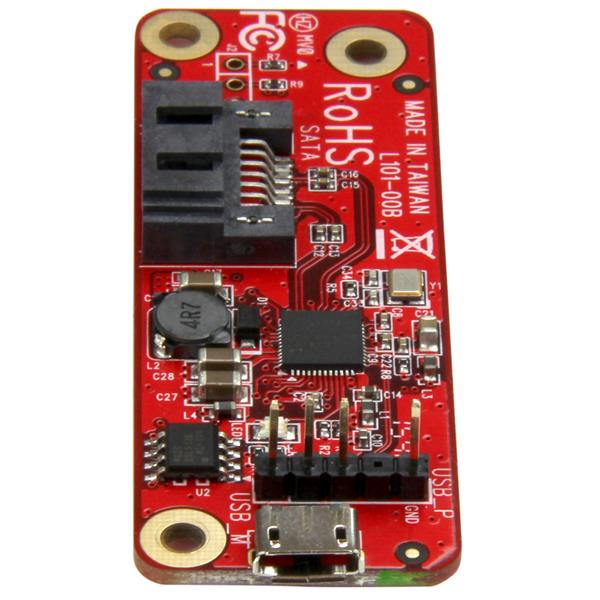

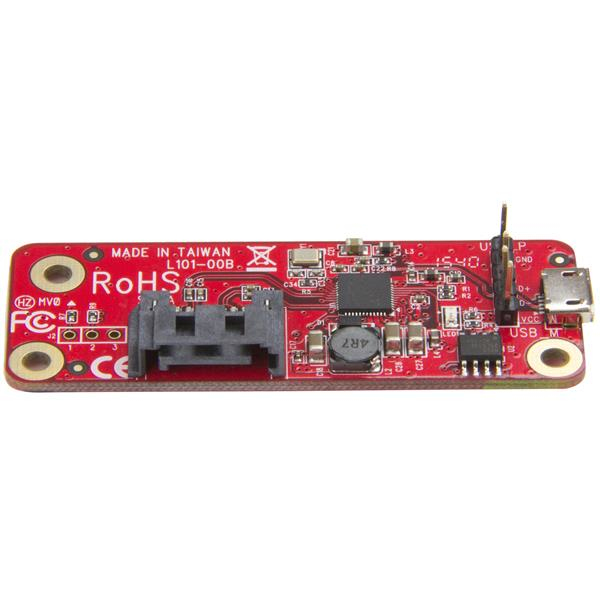

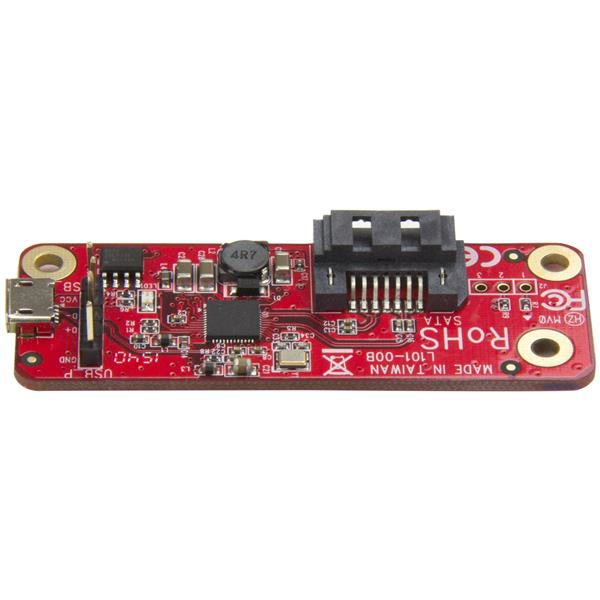

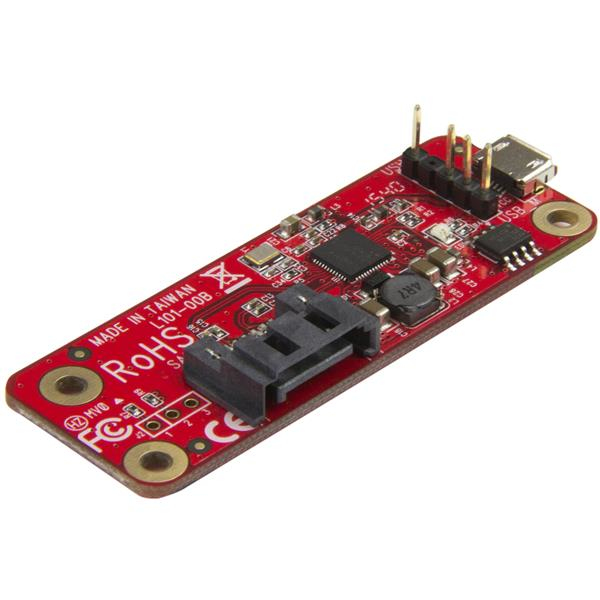

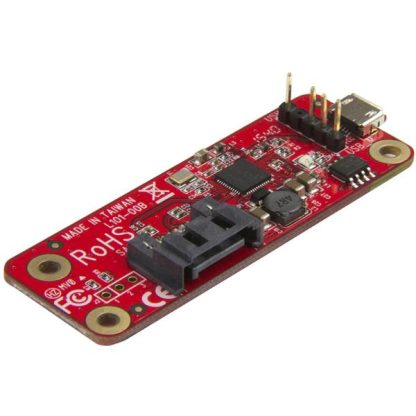

StarTech.com USB to SATA Converter for Raspberry Pi and Development Boards

$27.05 (Incl. GST)

StarTech.com USB to SATA Converter for Raspberry Pi and Development Boards – USB to SATA Adapter for Raspberry Pi

In stock

SKU: STARTECH.COM_PIB2S31 Category:

Print

Description

Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to a SATA-based drive. Perfect for custom projects and applications, this USB to SATA converter supports all models of Raspberry Pi as well as other development boards.

Add data storage and enhanced capabilities to your development board
This convenient USB 2.0 SATA converter lets you overcome data storage limitations by enabling you to connect a SATA drive or SATA optical drive through your board’s USB-A port. This enables you to access a wide variety of storage formats including solid-state drives or hard drives, DVD-ROM drives or CD-ROM drives.

A convenient integrated solution

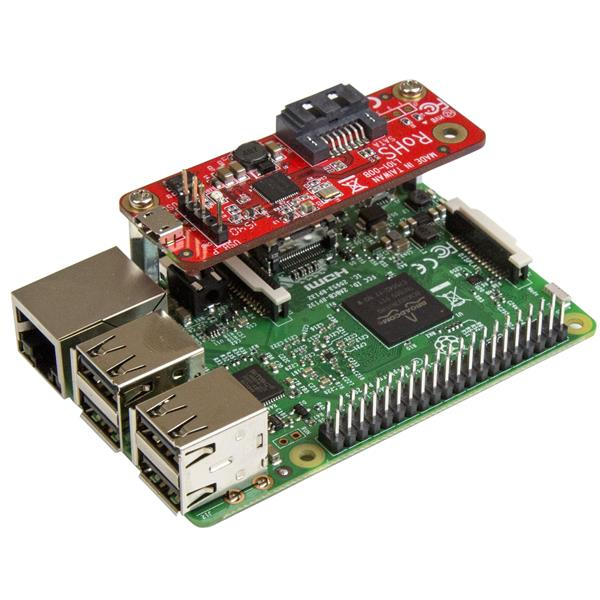

The USB to SATA converter integrates seamlessly with your existing development board. It’s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions.

Easy to install
Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install, and doesn’t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.

StarTech.com provides industry-leading support to get you up and running quickly. The PIB2S31 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Additional information

Host interface

Micro-USB

Brand

StarTech.com

Output interface

SATA

Internal

Yes

Product colour

Red

Weight

7.6 g

Certification

CE, FCC

Chipset

Renesas – µPD720231A

Width

23 mm

Depth

66 mm

Height

11 mm

Package width

143 mm

Package depth

178 mm

Package height

32 mm

Package weight

70.4 g

Operating temperature (T-T)

5 – 50 °C

Storage temperature (T-T)

-25 – 70 °C

Operating relative humidity (H-H)

15 – 90%

Cables included

USB

Country of origin

Taiwan

Mean time between failures (MTBF)

6481043 h

Data transfer rate (max)

6 Gbit/s

Quick installation guide

Yes

Compatibility

Raspberry Pi

Harmonized System (HS) code

84733020

SATA revision

3.0

USB powered

Yes

Compliance certificates

RoHS
