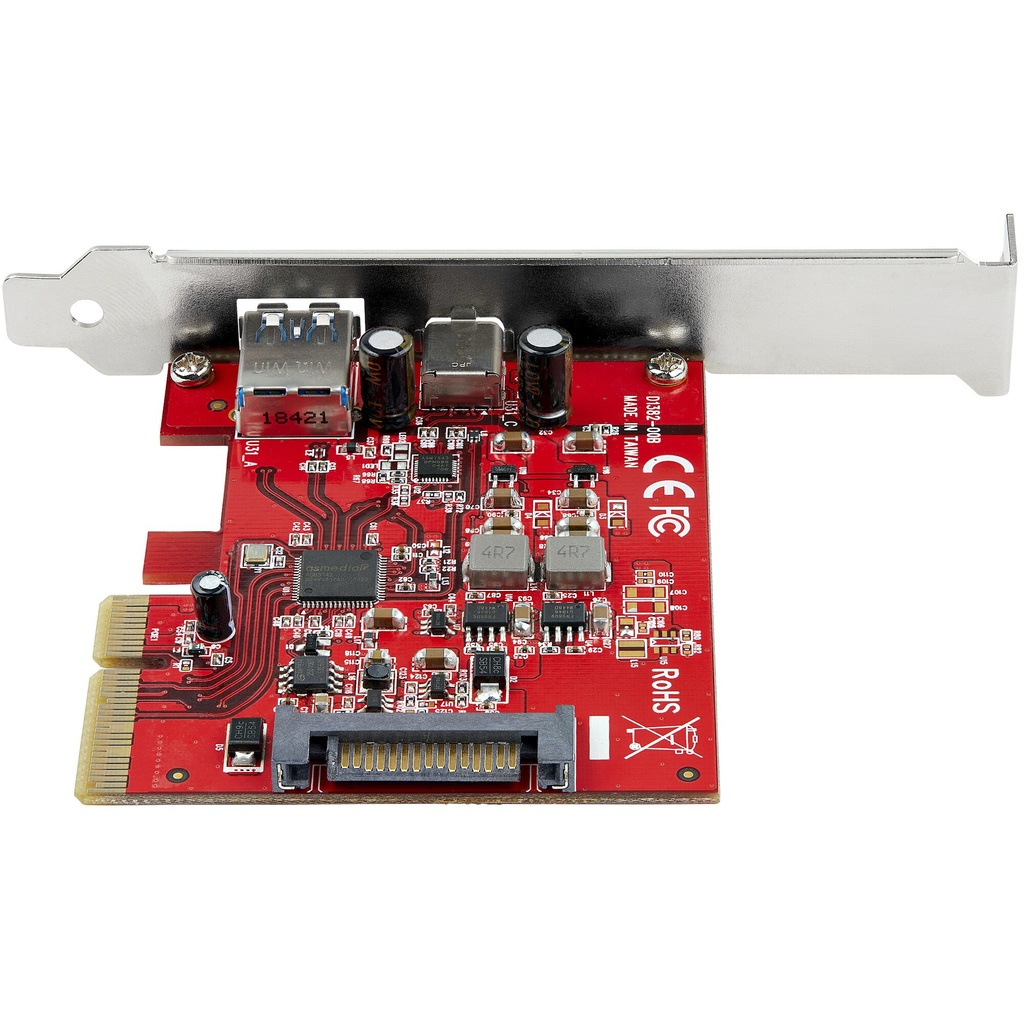

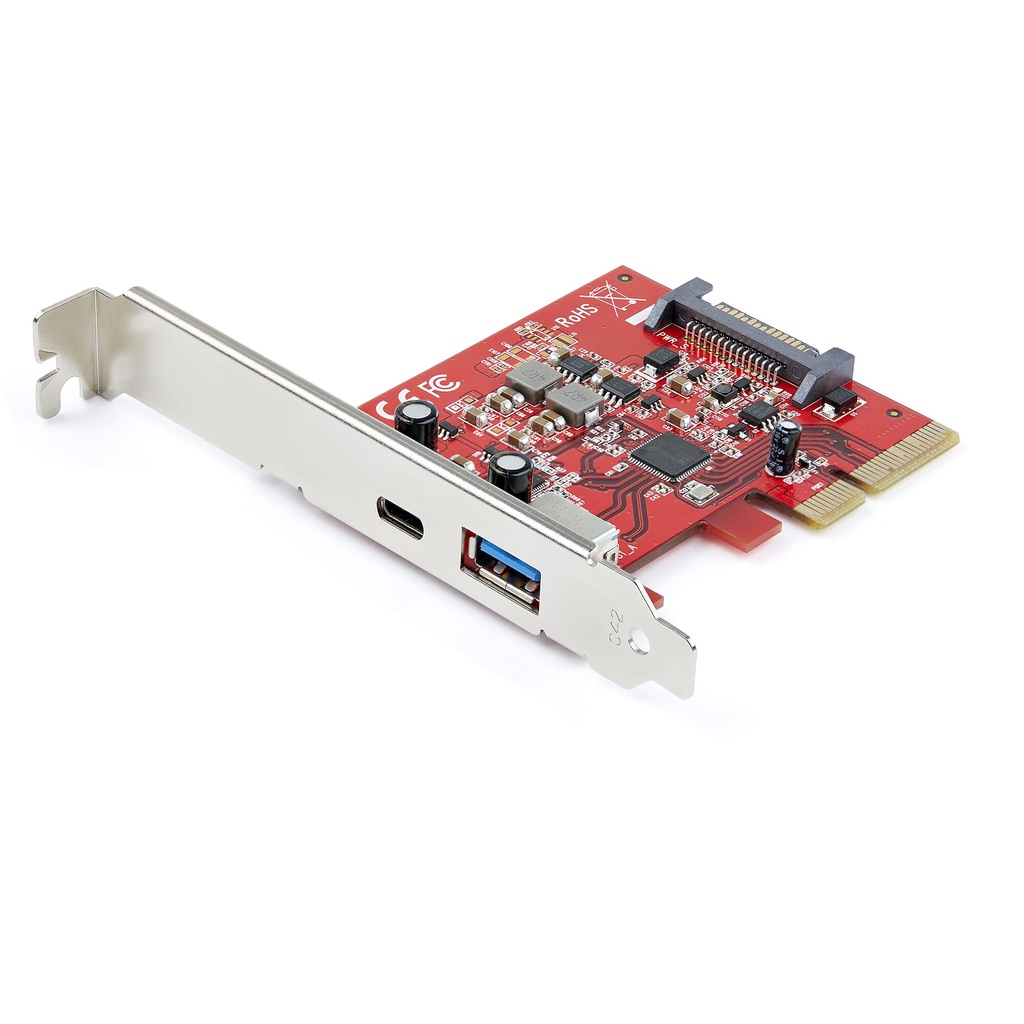

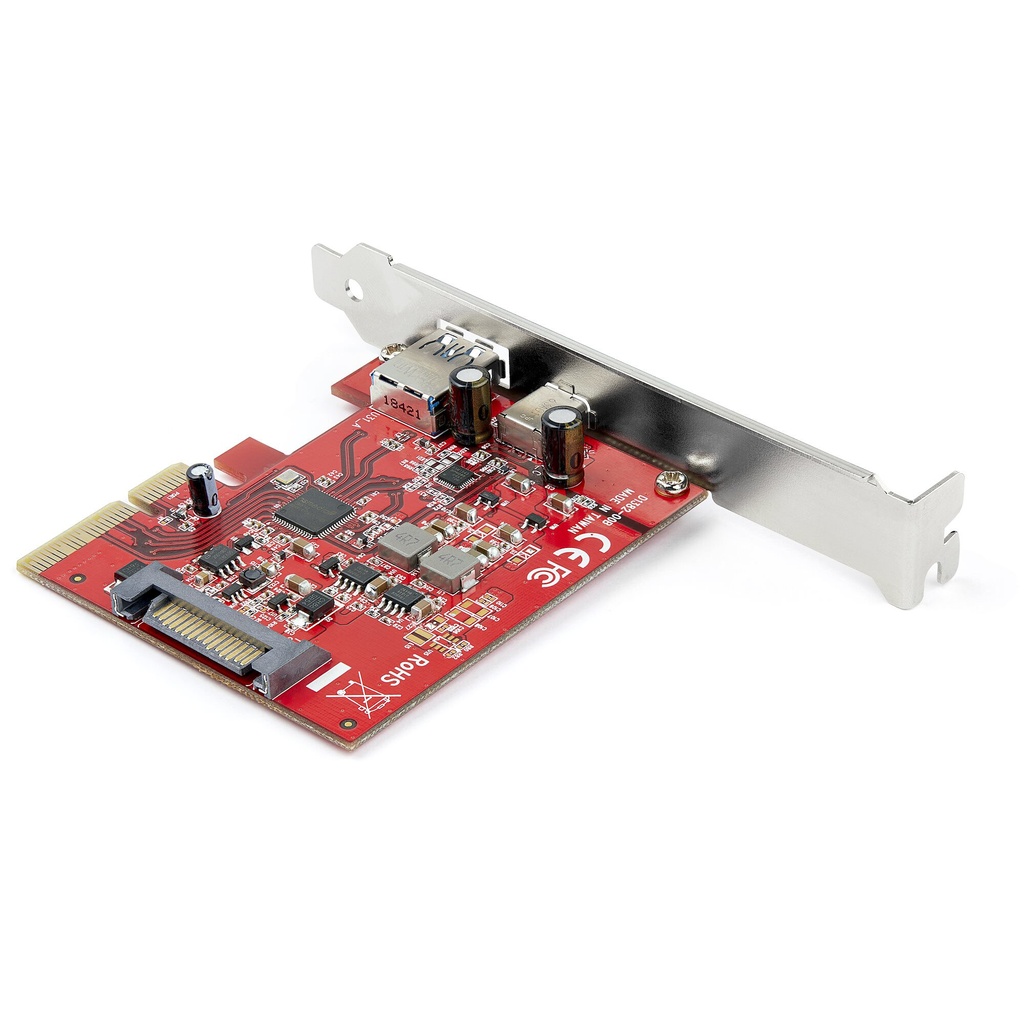

StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card – USB 3.1 Gen 2 PCI Express Type C/A Host Controller Card Adapter – USB 3.2 G

$101.21 (Incl. GST)

StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card – USB 3.1 Gen 2 PCI Express Type C/A Host Controller Card Adapter – USB 3.2 G

In stock

SKU: STARTECH.COM_PEXUSB311AC3 Category:

Print

Description

StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card – USB 3.1 Gen 2 PCI Express Type C/A Host Controller Card Adapter – USB 3.2 Gen 2×1 PCIe Expansion Add-On Card – Windows, macOS, Linux. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card form factor: Full-height / Low-profile. Product colour: Red, Mean time between failures (MTBF): 2684396 h. Chipset: ASMedia – ASM3142, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,…, Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019. Width: 81 mm, Depth: 120 mm, Height: 19 mm

PCIe 3.0 | USB Type-C & USB Type-A | 5V 3A/15W via USB-C | 5V 0.9A/4.5W via USB-A | UASP

This USB 3.1 Gen 2 card lets you add one USB-C port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.1 Gen 2 (also known as USB 3.2 Gen 2×1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected.Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.USB 3.1 Gen 2 PerformanceBy adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you’re ready for both current and future high-bandwidth USB-A and USB-C devices.With higher data throughput support, this USB 3.1 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions.Compatible with Older USB DevicesConnecting older peripherals isn’t a problem. This versatile dual-port USB 3.1 card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C port using a variety of USB-C cables and adapters.Easy InstallationThe USB 3.1 card is compatible with a broad range of Windows, macOS and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.Faster Transfer Speeds with UASPThe card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, macOS (10.8 or above), and Linux.In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.1 Gen 2 at peak performance.At the same peak in testing, UASP also shows an 80% reduction in required processor resources.The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

– HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2×1 PCIe Add-On card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 10Gbps per port; 1x USB-A & 1x USB-C
– POWER: Expansion card w/ SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port & 5V 0.9A/4.5W via the USB-A port
– MAX PERFORMANCE WITH USB DEVICES: 2-port USB-A & USB-C PCIe card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives

Warranty: 2 Years

Additional information

Host interface

PCIe

Brand

StarTech.com

Output interface

USB 3.2 Gen 2 (3.1 Gen 2)

Internal

Yes

Product colour

Red

Weight

48 g

Chipset

ASMedia – ASM3142

Sustainability certificates

CE, RoHS

Width

81 mm

Depth

120 mm

Height

19 mm

Package width

170 mm

Package depth

142 mm

Package height

30 mm

Package weight

123 g

Expansion card form factor

Full-height / Low-profile

Operating temperature (T-T)

5 – 50 °C

Storage temperature (T-T)

-20 – 85 °C

Operating relative humidity (H-H)

20 – 80%

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Mounting brackets included

Yes

Mean time between failures (MTBF)

2684396 h

Data transfer rate (max)

10 Gbit/s

Mac operating systems supported

Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Products per master (outer) case

60 pc(s)

Master (outer) case width

370 mm

Master (outer) case length

365 mm

Master (outer) case height

500 mm

Expansion card standard

PCIe 3.0

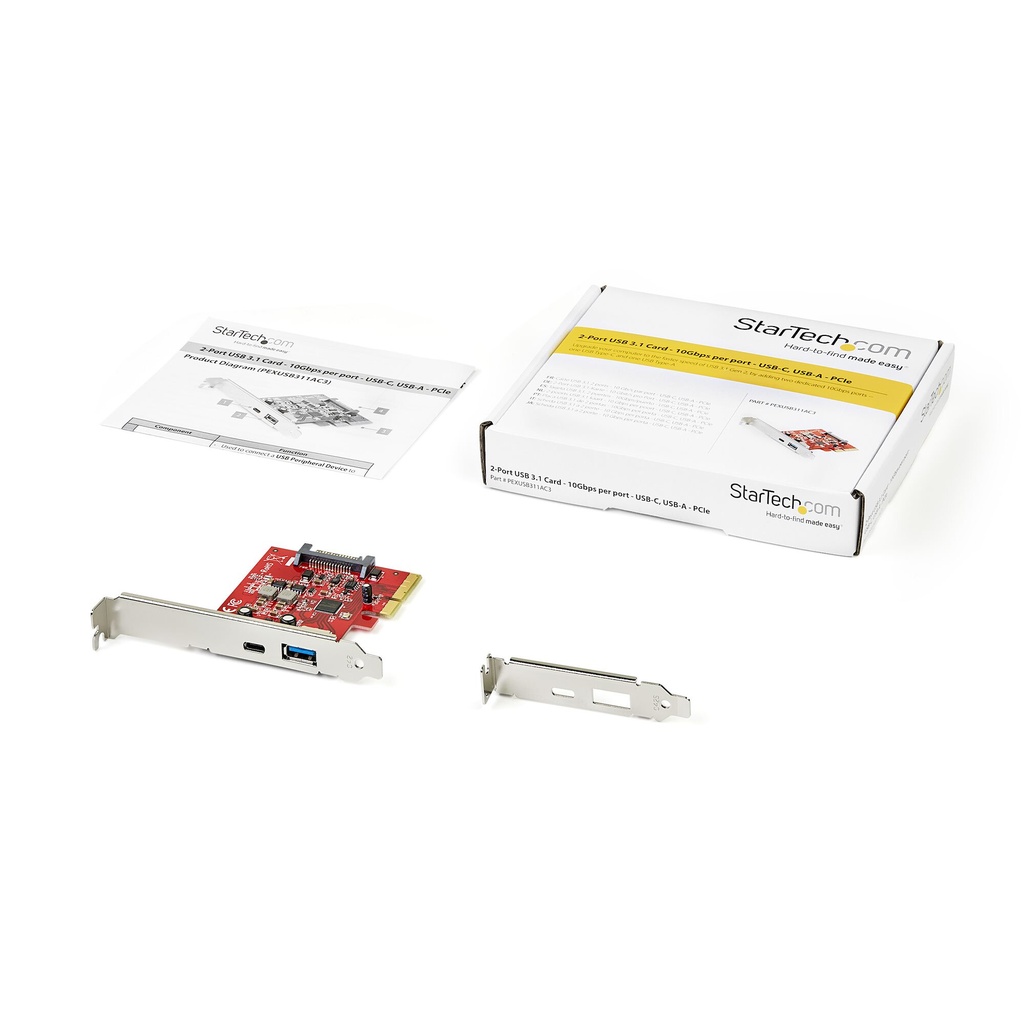

Quick installation guide

Yes

Harmonized System (HS) code

84733020

UASP support

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Sustainability compliance

Yes
