StarTech.com USB-C to Dual Gigabit Ethernet Adapter with USB (Type-A) Port

$141.74 (Incl. GST)

StarTech.com USB-C to Dual Gigabit Ethernet Adapter with USB 3.0 (Type-A) Port – USB Type-C Gigabit Network Adapter

In stock

SKU: STARTECH.COM_US1GC301AU2R Category:

Print

Description

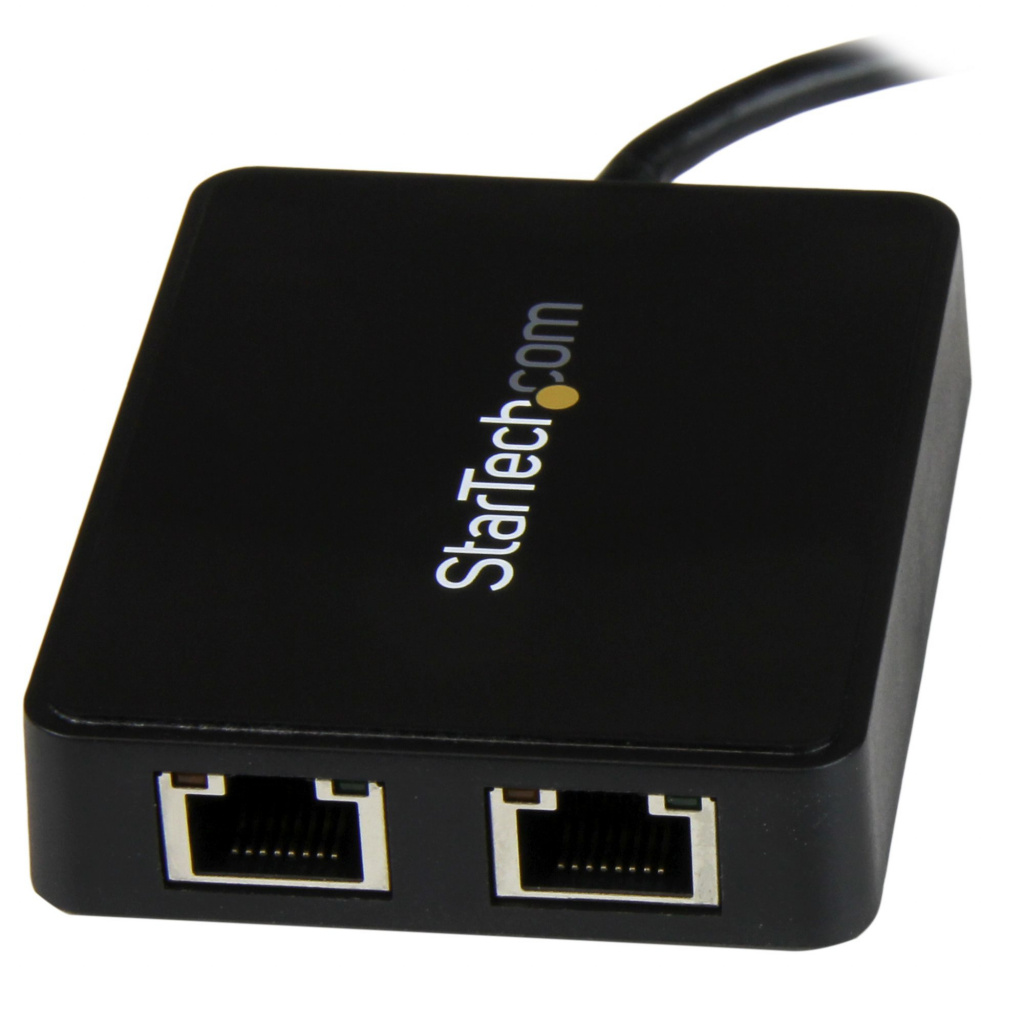

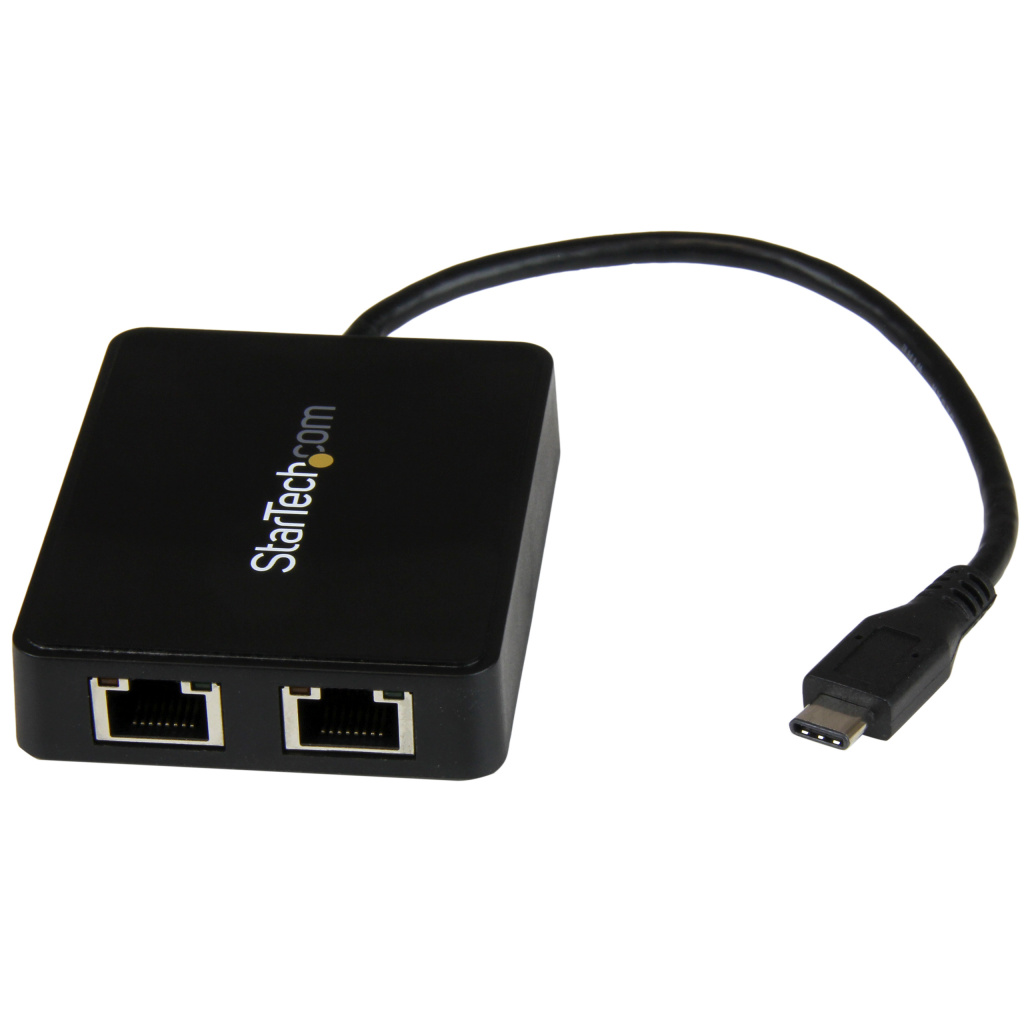

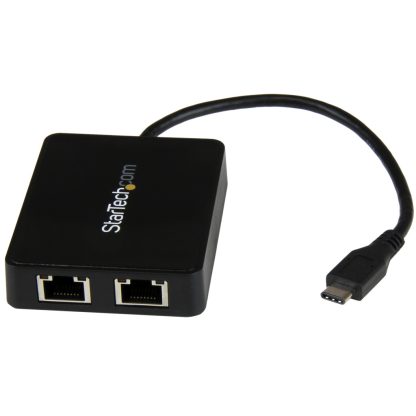

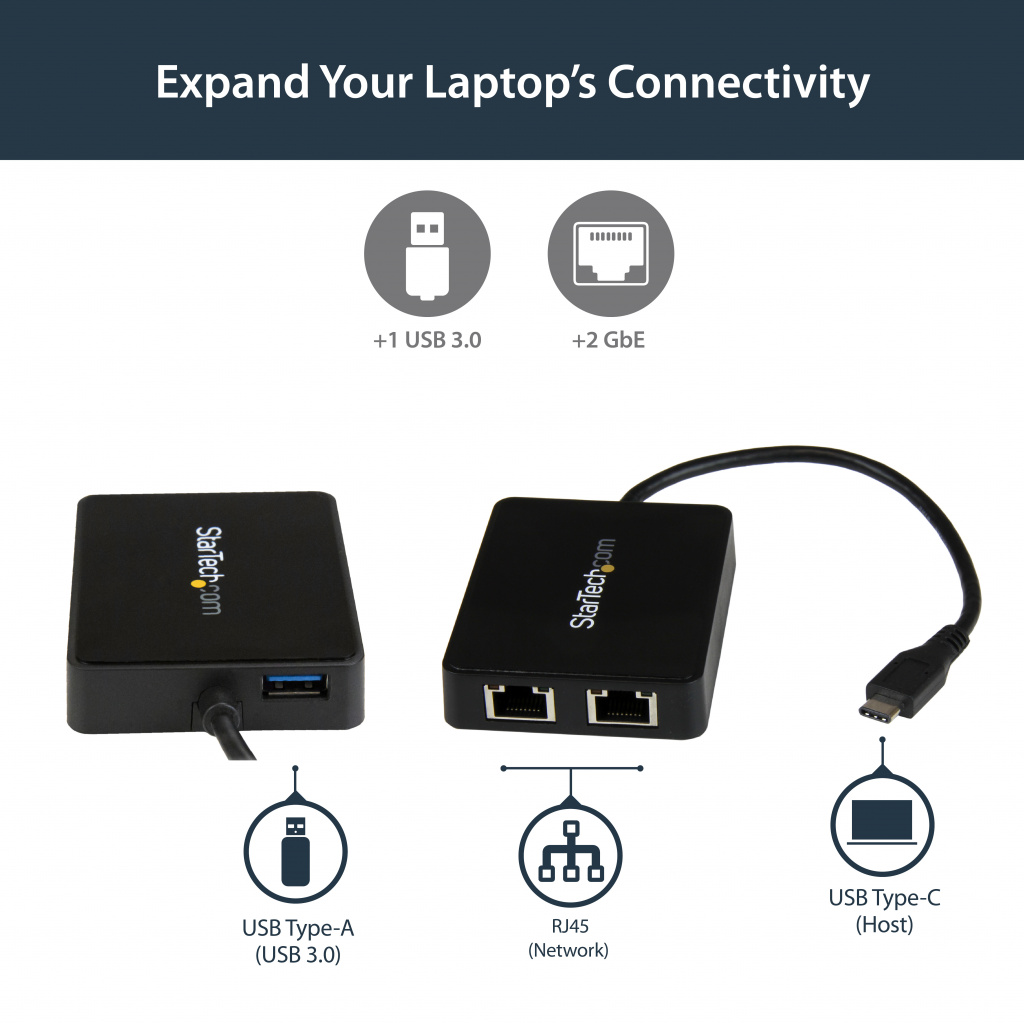

Use the USB-C port on your laptop to add LAN access with two Gigabit Ethernet ports and a USB 3.0 (Type-A) port

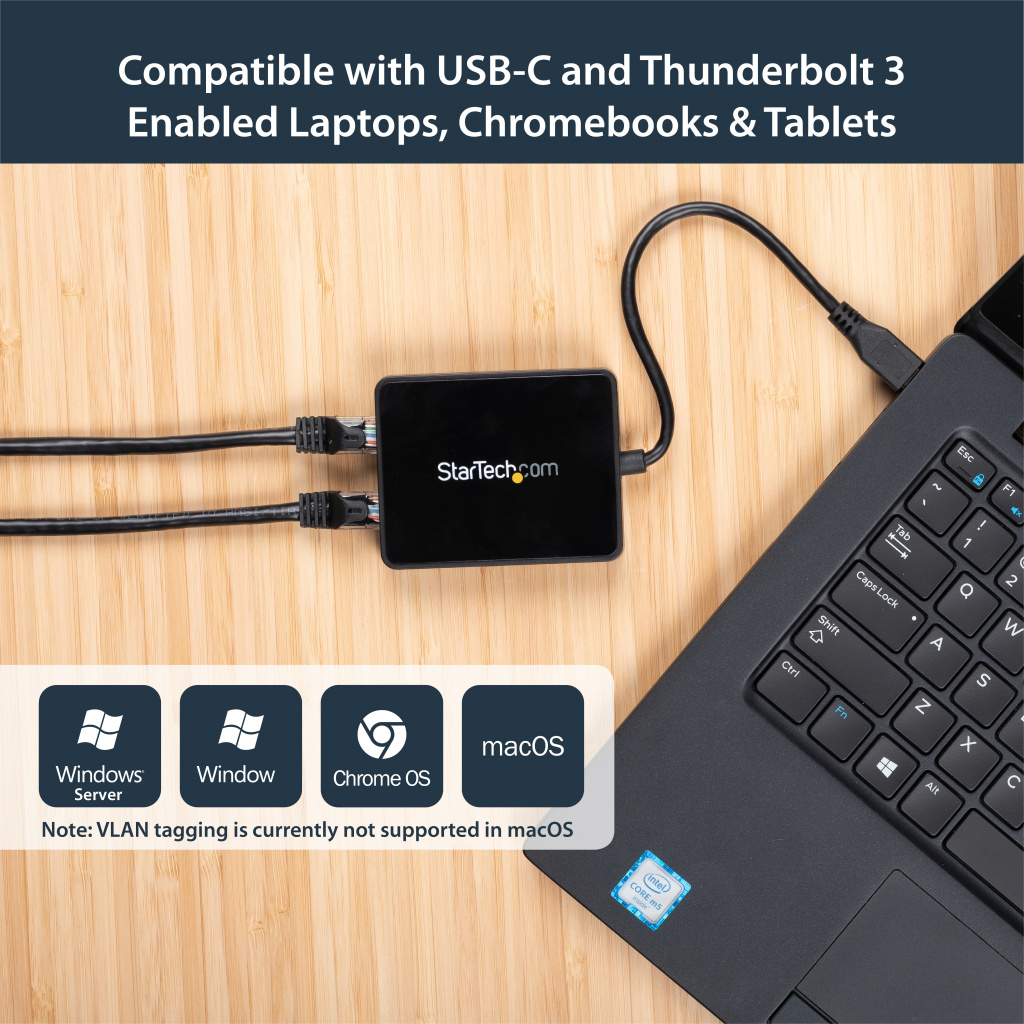

Now, you can add wired network access through the USB-C™ or Thunderbolt™ 3 port on your laptop or desktop computer, and connect to your USB 3.0 (Type A) devices with ease. This Gigabit Ethernet network adapter gives you access to two reliable GbE ports, and without having to install drivers. It’s a great companion for your MacBook, Chromebook Pixel™, Dell™ XPS™ 12, Dell Latitude™ 12 7000 Series 2-in-1 or another device that has a USB Type-C™ port.

Powerful Gigabit network connections

The network adapter leverages the 5Gbps speed of USB 3.0 (also known as USB 3.1 Gen 1) to deliver the full bandwidth of your Gigabit network connection, without bottlenecks. This saves you time by making it easier to access very large files over your network at Gigabit speed.

For added versatility, the network adapter supports a range of convenient features, such as Wake-On-LAN, VLAN Tagging, Crossover Detection and Auto-Correction (Auto MDIX), Checksum Offload (IPv4, IPv6, TCP, UDP), and Large Send Offload.

Add connectivity to your USB devices

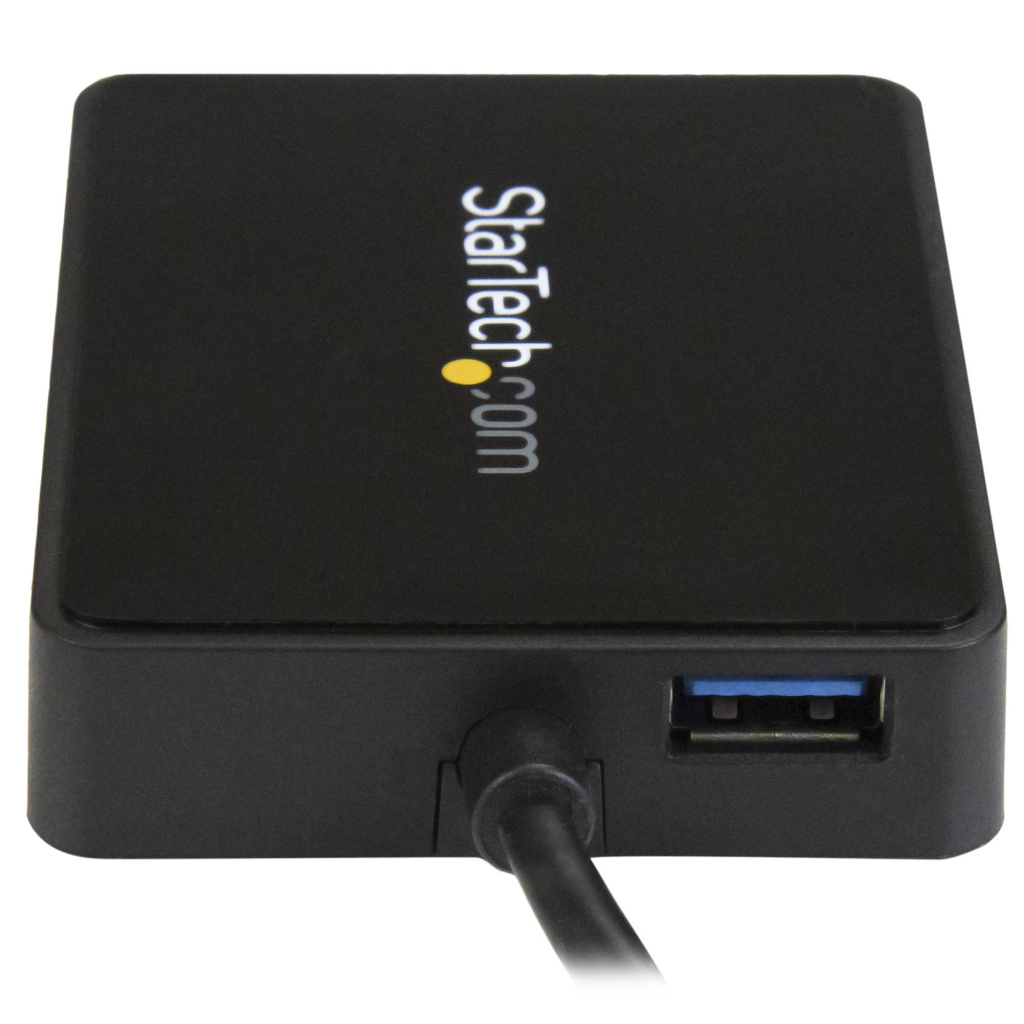

Some computers with USB Type-C only offer one USB-C port for external connectivity, which will not connect with your existing USB Type-A devices. This Gigabit adapter features an integrated USB 3.0 Type-A port, so while the adapter is connected to your computer to provide network access, you can also connect to USB peripherals that need a USB Type-A connector. The network adapter is also backward compatible with USB 2.0 systems.

Native driver support makes installation easy

Get up and running quickly. The network adapter provides native driver support to ensure a quick setup. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset offers native driver support in Chrome OS™ and Windows® 8.1, and supports Mac OSX (10.10) with driver installation.

Trouble-free connections through USB-Type-C

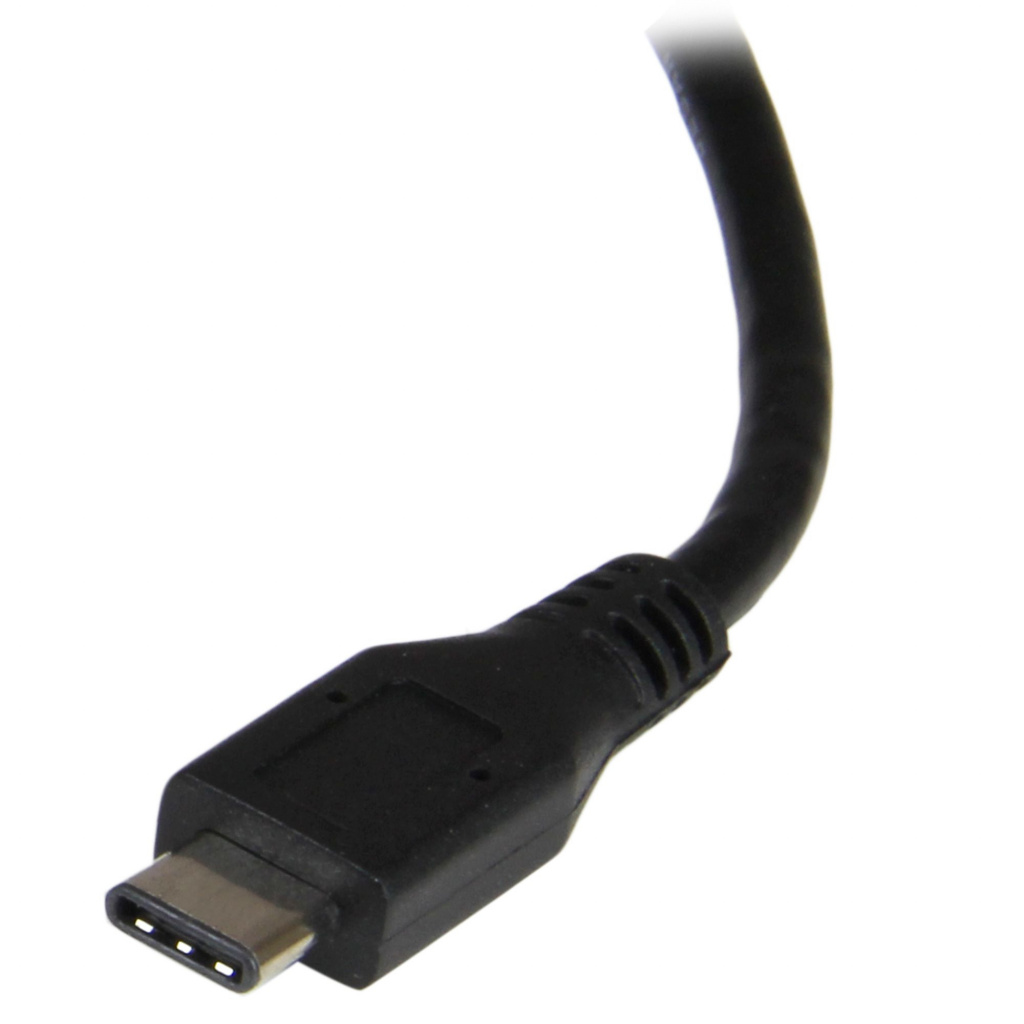

The USB Type-C connector is smaller and easier to use than previous USB connectors. It’s a reversible plug, so you can connect to your devices with either side facing up. You can insert the cable the right way every time, without frustration or the risk of port damage.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

Mac Address Pass-Through Utility : To improve network security.

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The US1GC301AU2R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Maximum data transfer rate

5000 Mbit/s

Host interface

RJ-45

Interface

USB

Ethernet LAN (RJ-45) ports

2

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Auto MDIX IEEE

Yes

Full duplex

Yes

Internal

No

Chipset

VIA VL812 + ASIX AX88179

LED indicators

Activity, Link

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Operating temperature (T-T)

5 – 50 °C

Operating relative humidity (H-H)

20 – 80%

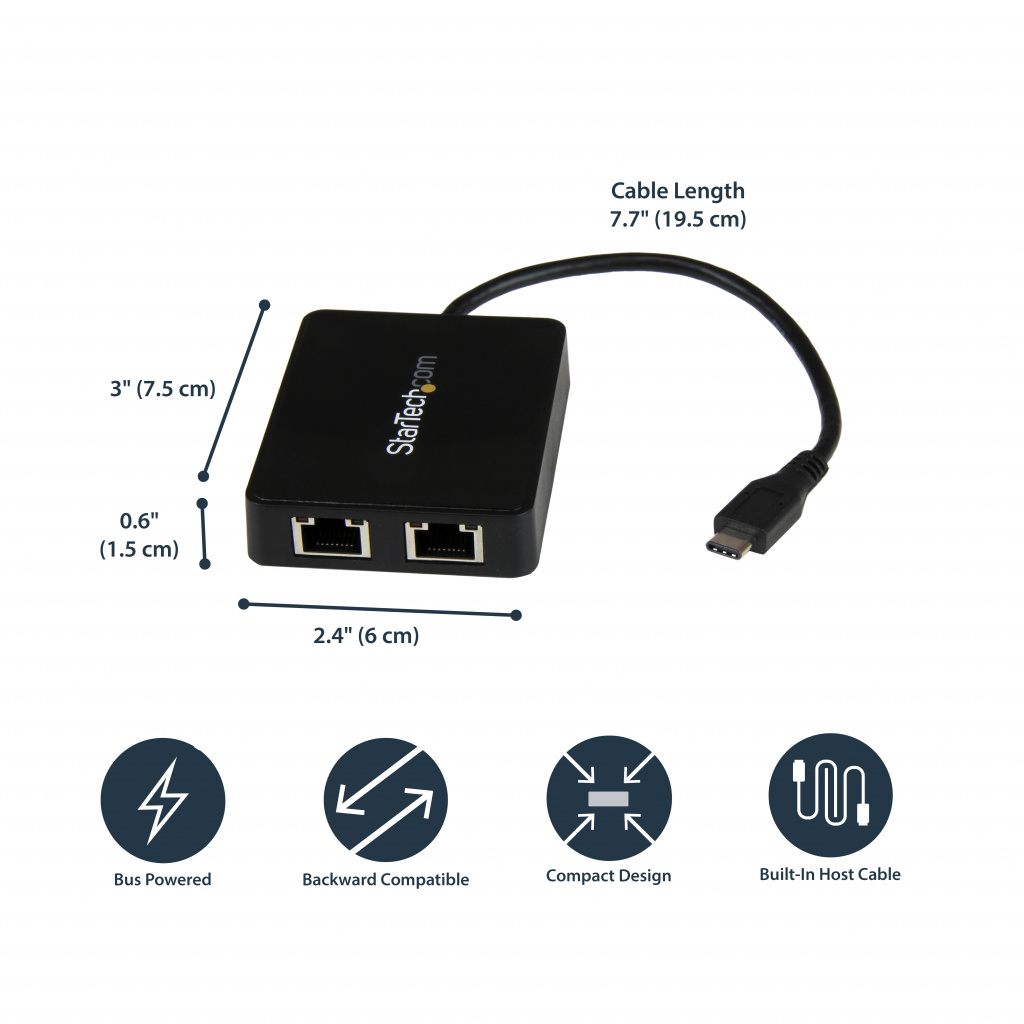

Width

60 mm

Depth

75 mm

Height

16 mm

Weight

54 g

Package width

172 mm

Package depth

144 mm

Package height

30 mm

Package weight

100 g

Storage temperature (T-T)

-20 – 60 °C

Harmonized System (HS) code

85176990

Product colour

Black

USB powered

Yes

USB ports quantity

1

USB version

3.2 Gen 1 (3.1 Gen 1)

Cabling technology

10/100/1000BaseT(X)

Jumbo frames support

Yes

Jumbo frames

4000

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Housing material

Plastic

Cable length

0.1 m

Ethernet interface type

Gigabit Ethernet

USB pass-through

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

1

Master (outer) case width

364 mm

Master (outer) case length

586 mm

Master (outer) case height

304 mm

Products per master (outer) case

80 pc(s)

Sustainability compliance

Yes

Compliance certificates

CE, RoHS
