StarTech.com USB C to DisplayPort Adapter – 4K 60Hz/8K 30Hz – USB Type-C to DP 1.4 HBR2 Adapter Dongle – Compact USB-C (DP Alt M

$54.80 (Incl. GST)

StarTech.com USB C to DisplayPort Adapter – 4K 60Hz/8K 30Hz, USB Type-C DP 1.4 HBR2 Dongle, Compact USB-C (DP Alt Mode) Monitor

In stock

SKU: STARTECH.COM_CDP2DP Category:

Print

Description

4K 60Hz & 8K 30Hz | DP 1.4 | HBR2 | Thunderbolt 3 Compatible

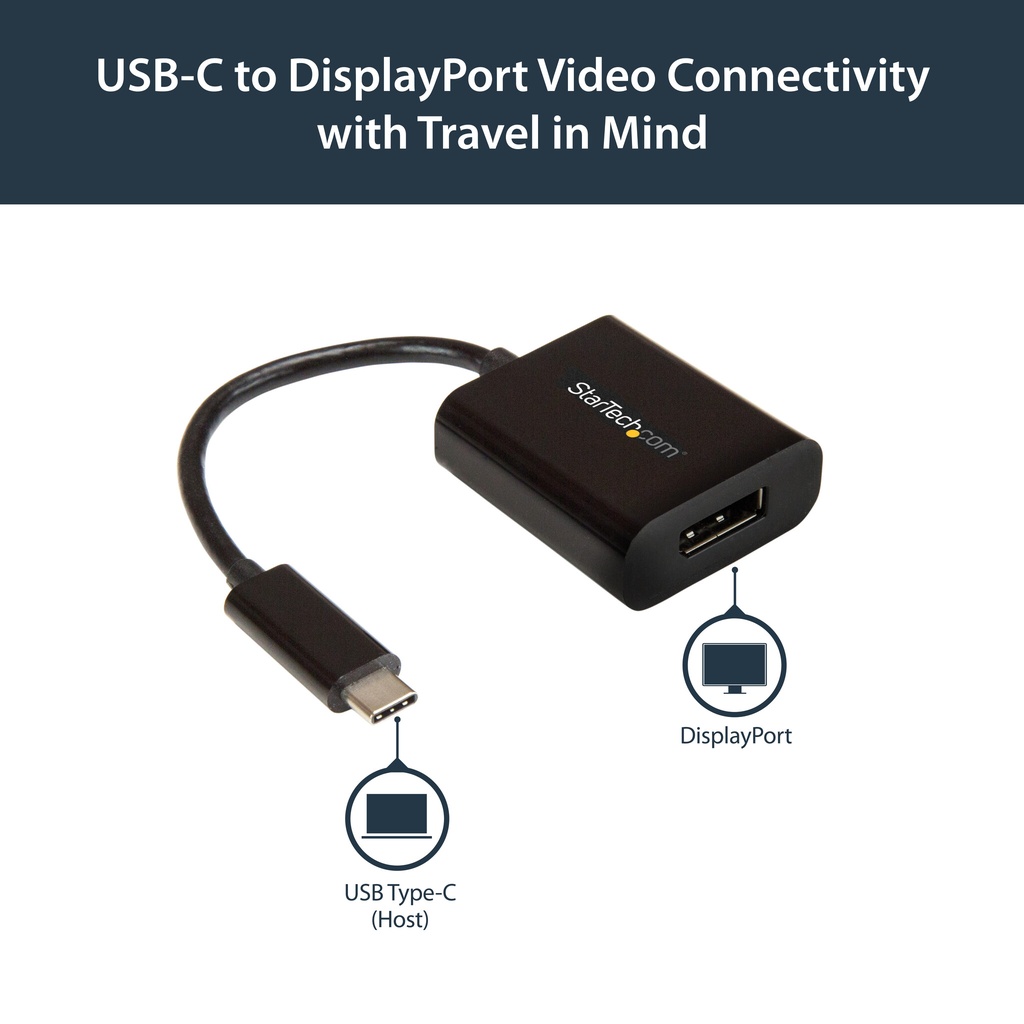

This USB-C™ to DisplayPort adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop or other device. The DP 1.4 adapter works with USB-C devices that pass a DisplayPort (DP) video signal, such as your MacBook Pro, Chromebook™ or 2018 iPad Pro. This enables you to connect your DisplayPort display to your USB-C computer using a DisplayPort cable.

IT Pro Performance

This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.

Ultra HD 4K & 8K Resolution

The adapter lets you harness the video capabilities that are built into your computer’s USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.

With this adapter, you can also achieve an output resolution of up to 7680×4320 at 30Hz, which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.

Ultimate Portability

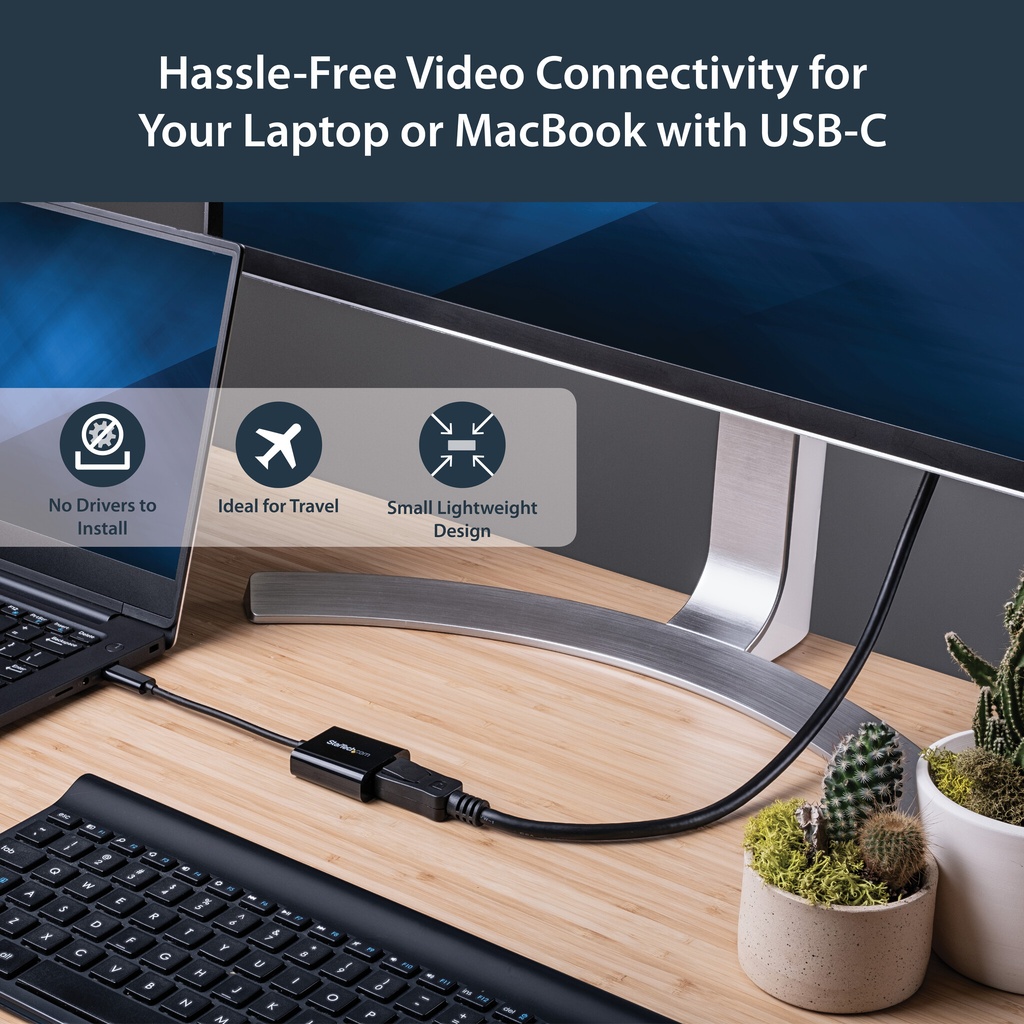

This USB Type-C video adapter is highly portable with a small footprint and lightweight design that’s easy to tuck into your laptop bag. The adapter is the perfect accessory for connecting your MacBook Pro or Dell XPS™ to a DisplayPort monitor or display in BYOD (Bring Your Own Device) applications at the office.

Hassle-Free Connection with USB Type-C

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so it doesn’t matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of adjusting your device when you’re trying to deliver a presentation.

The CDP2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Notes:

• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
• This adapter outputs a single-mode DisplayPort signal and will not work with additional video adapters such as DisplayPort to HDMI, DisplayPort to VGA or DisplayPort to DVI adapters

The StarTech.com Advantage

Additional information

DVI output

No

Brand

StarTech.com

HDMI output

No

DisplayPort output

Yes

Number of displays supported

1

USB connector type

USB Type-C

USB connector gender

Male

Maximum resolution

3840 x 2160 pixels

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Chipset

PERICOM – PI3DPX1203, NXP – PTN5100

Certification

CE, FCC, REACH

Product colour

Black

Integrated USB cable

Yes

USB cable length

0.14 m

Width

37 mm

Depth

180 mm

Height

14 mm

Weight

17 g

Package width

125 mm

Package depth

225 mm

Package height

16 mm

Package weight

26 g

Refresh rate at maximum resolution

60 Hz

Audio output channels

7.1 channels

USB connector form factor

Straight

Products per master (outer) case

200 pc(s)

Master (outer) case width

327 mm

Master (outer) case length

504 mm

Master (outer) case height

222 mm

Harmonized System (HS) code

84733020

Compliance certificates

RoHS
