StarTech.com USB C Dock – 4K Dual Monitor DisplayPort – Mini Laptop Docking Station – 100W Power Delivery Passthrough – GbE, 2-

$139.00 (Incl. GST)

or 6 weekly interest-free payments from $23.16 with Laybuy

StarTech.com USB C Dock – 4K Dual Monitor DisplayPort – Mini Laptop Docking Station – 100W Power Delivery Passthrough – GbE, 2-Port USB-A Hub – USB Type-C Multiport Adapter – 3.3′ Cable (DK30C2DAGPD)

In stock

SKU: STARTECH.COM_DK30C2DAGPD Category:

Print

Description

StarTech.com USB C Dock – 4K Dual Monitor DisplayPort – Mini Laptop Docking Station – 100W Power Delivery Passthrough – GbE, 2-Port USB-A Hub – USB Type-C Multiport Adapter – 3.3′ Cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB, Power supply: 100 W, Power consumption (typical): 15 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…

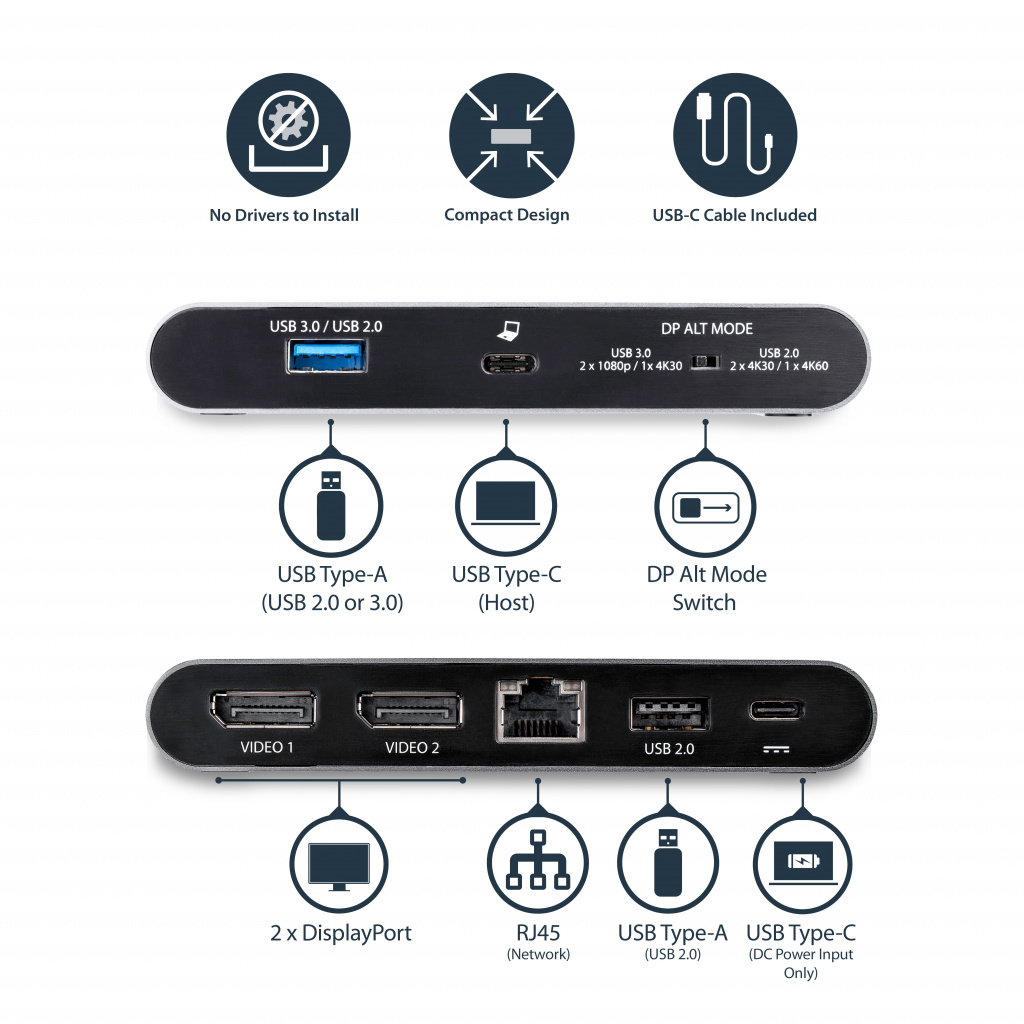

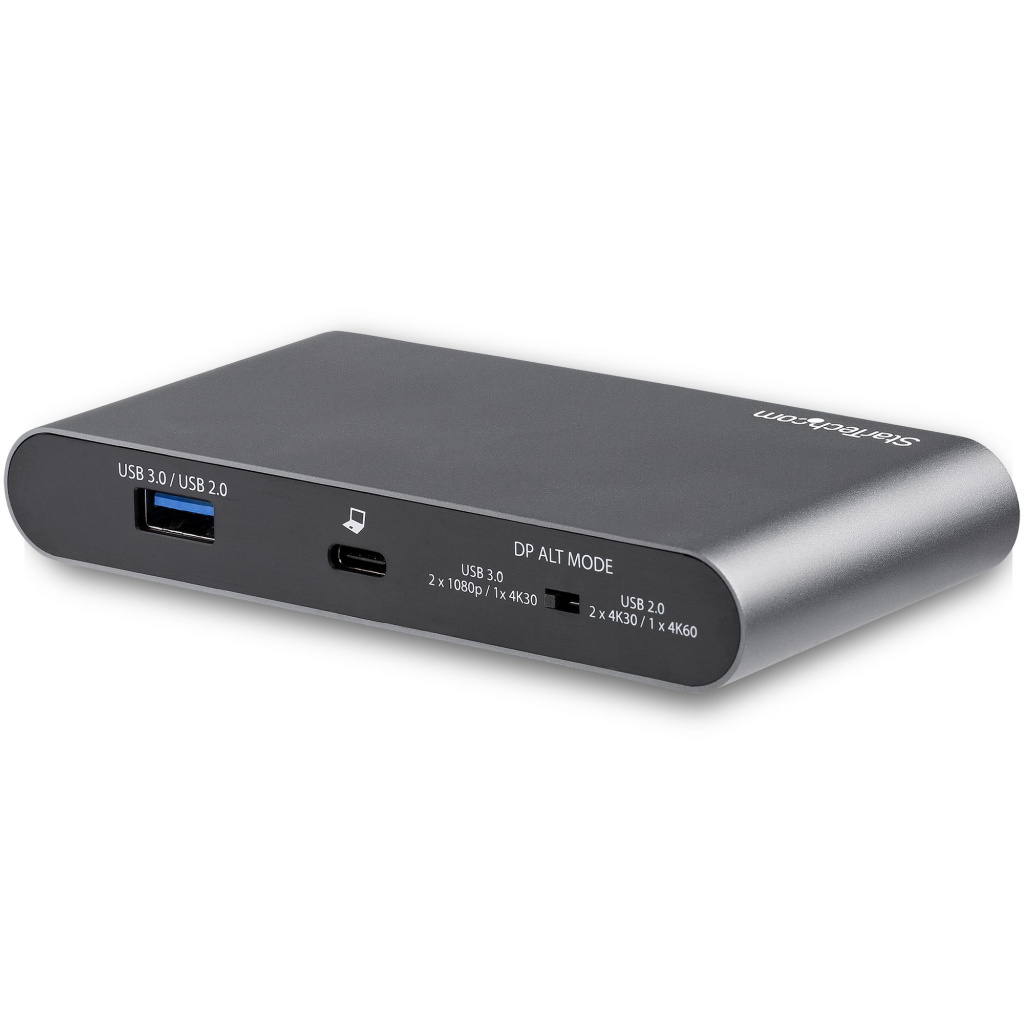

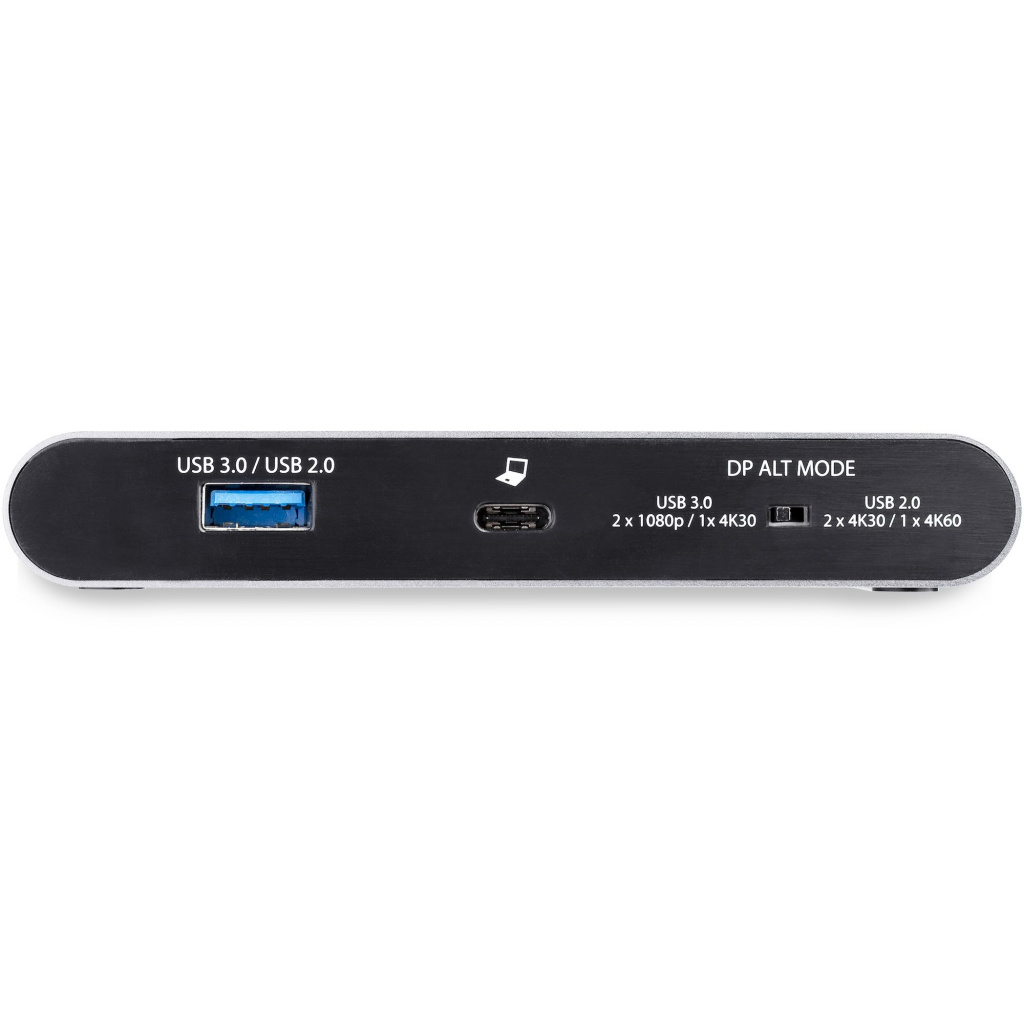

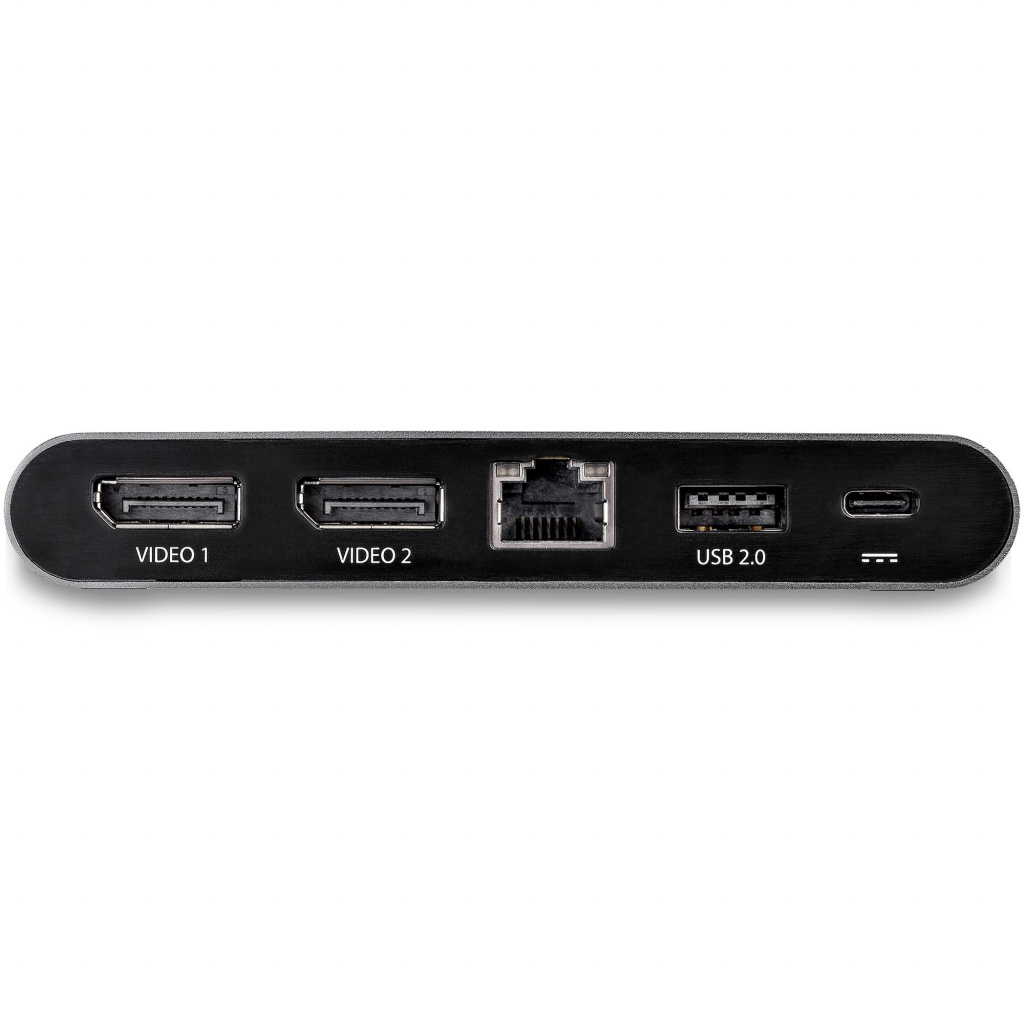

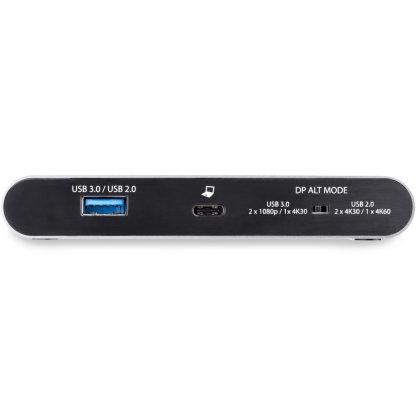

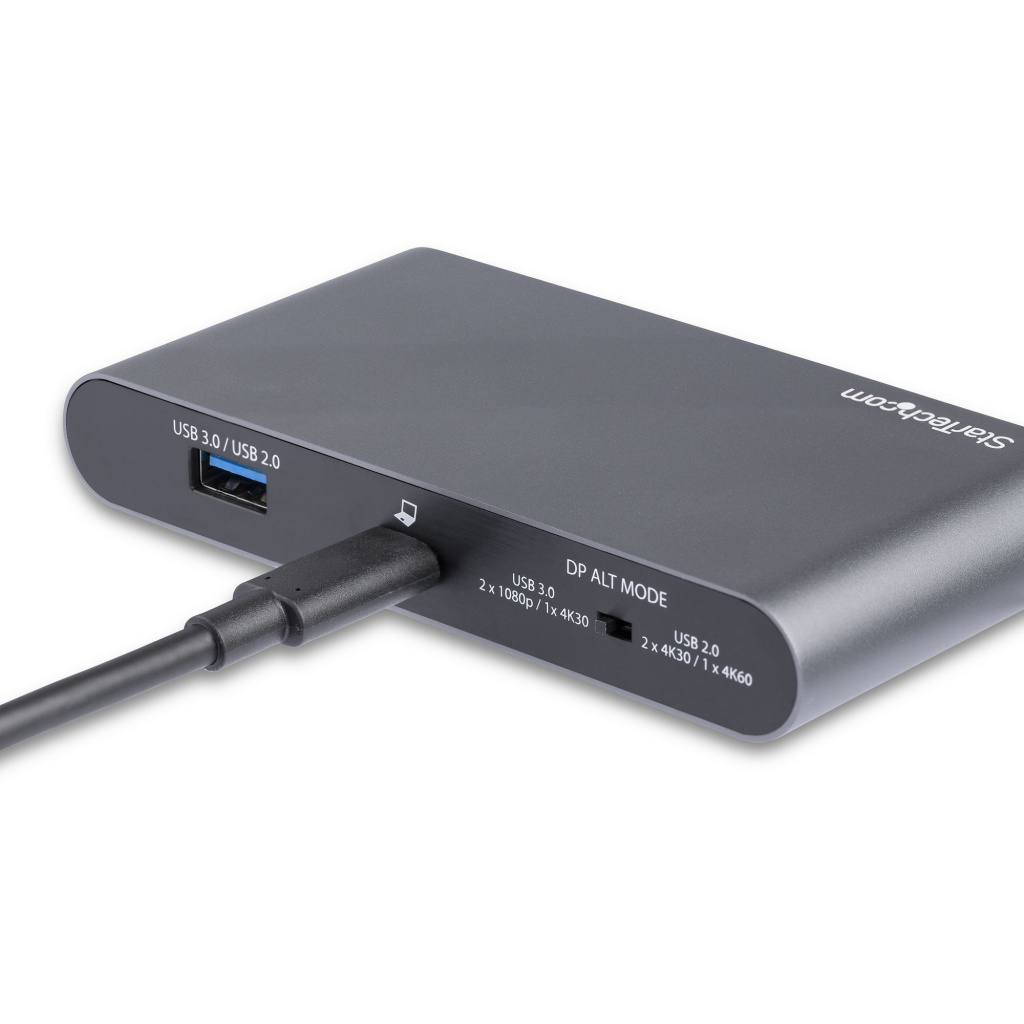

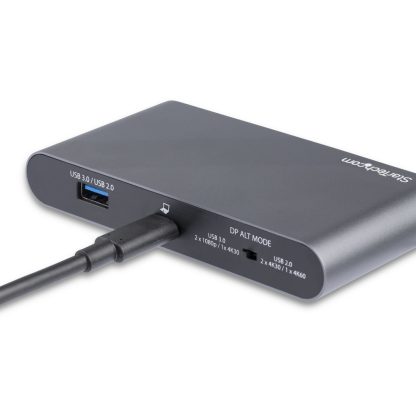

USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode SwitchTransform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.DisplayPort™ Alternate Mode to Choose Your Video Display OutputAchieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.Switch LeftSwitch Right2 Lane DP Alt- Mode4 Lane DP Alt ModeUSB 3.0(5Gbps)USB 2.0(480 Mbps)Dual 1080p MonitorsorSingle 4K 30Hz MonitorDual 4K 30Hz MonitorsorSingle 4K 60Hz MonitorReliable 100W Power Delivery PassthroughThe USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.Multi-Stream Transport for Driverless DisplaysThe multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsComprehensive Product Testing & Expert Technical SupportStarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.The StarTech.com Advantage

Warranty: 3 Years

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Microphone in

No

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Auto MDI/MDI-X

Yes

Full duplex

Yes

Product colour

Black

Card reader integrated

No

Data transfer rate

5 Gbit/s

Maximum digital resolution

4096 x 2160 pixels

Housing material

Plastic

Printing

Any brand

Certification

CE, FCC, REACH

Power consumption (typical)

15 W

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Sustainability certificates

RoHS

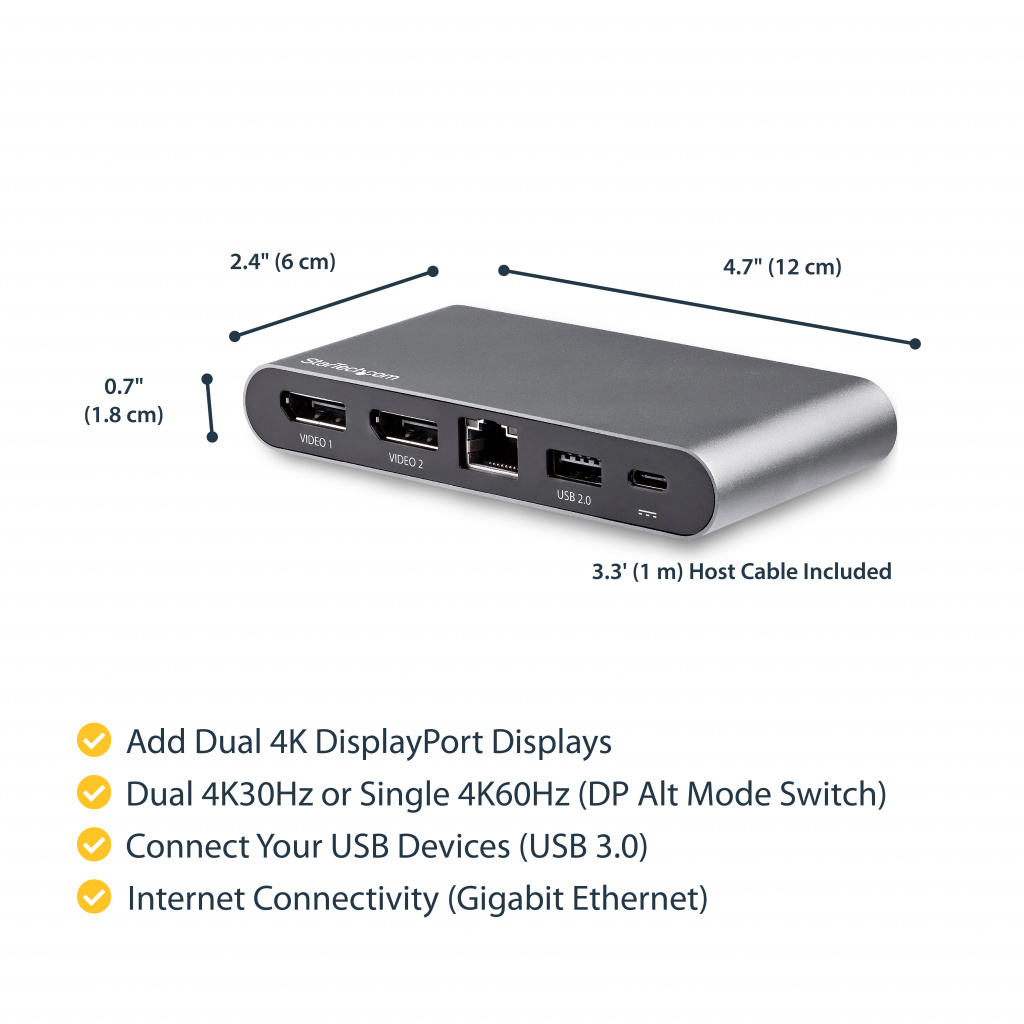

Width

60 mm

Depth

120 mm

Height

18.8 mm

Weight

150 g

Package width

145 mm

Package depth

208 mm

Package height

42 mm

Package weight

300 g

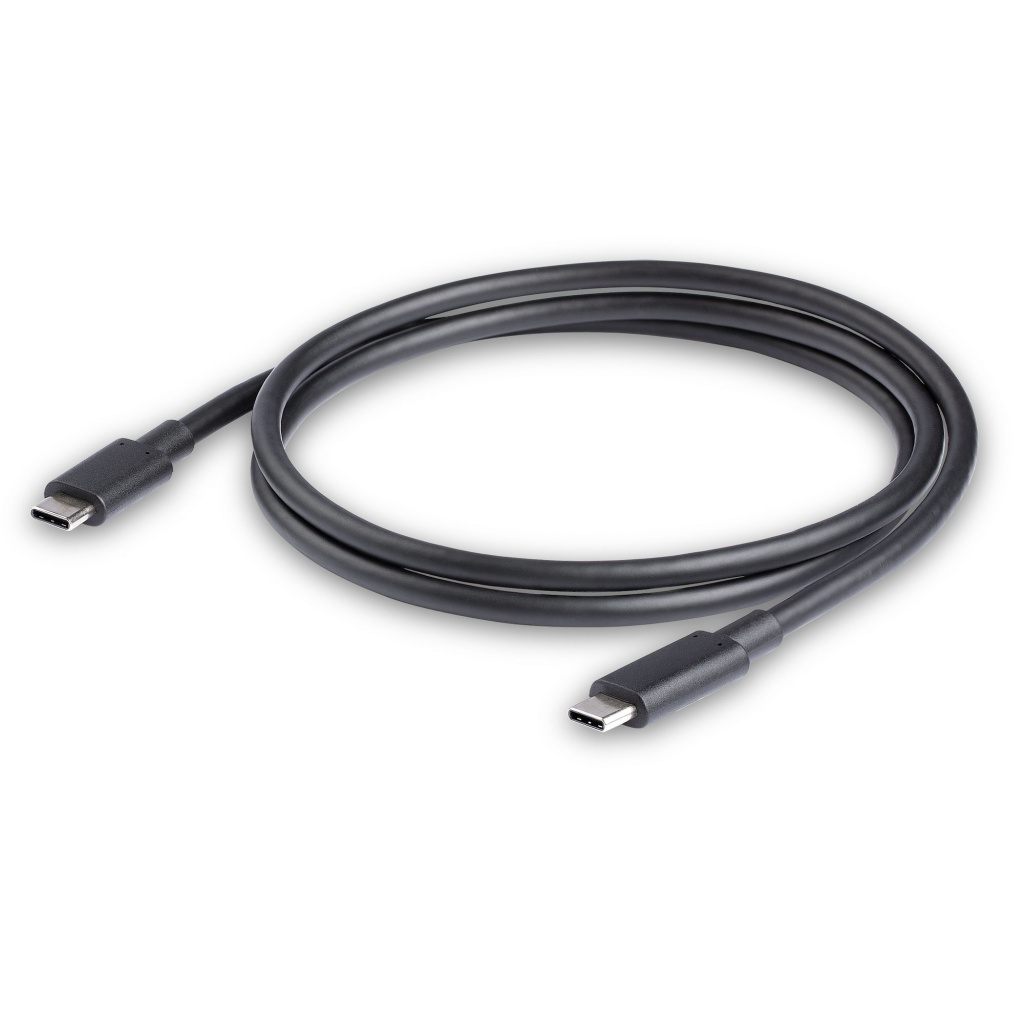

Cables included

USB Type-C

Chipset

VIA/VLI – VL102, VIA/VLI – VL170, VIA/VLI – VL817, MegaChips – STDP4320, RealTek – RTL8153

Operating relative humidity (H-H)

0 – 95%

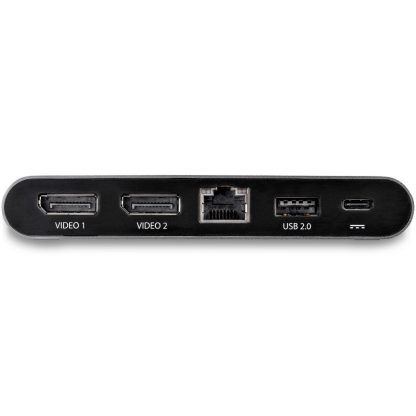

DisplayPorts quantity

2

USB Power Delivery

Yes

UASP support

Yes

Power source type

USB

Products per master (outer) case

24 pc(s)

Master (outer) case width

310 mm

Master (outer) case length

450 mm
