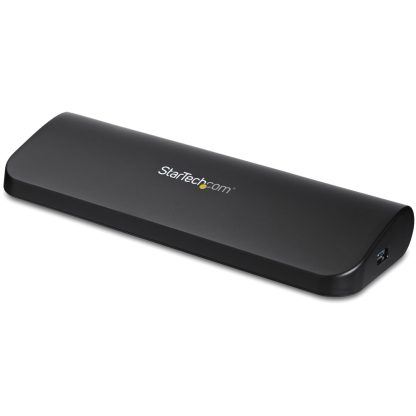

StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA~Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/

$187.73 (Incl. GST)

StarTech.com USB 3.0 Docking Station with HDMI and DVI/VGA – Dual Monitor – Universal Laptop Dock – Mac and Windows Compatible (

Out of stock

SKU: STARTECH.COM_USB3SDOCKHDV Category:

Print

Description

StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA~Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS – TAA Compliant. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 1920 x 1200 pixels. AC input voltage: 100-240 V, Input current: 0.9 A, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur,…, Other operating systems supported: ChromeOS

Laptop Docking Station | USB 3.0 | TAA Compliant | Mac & Windows

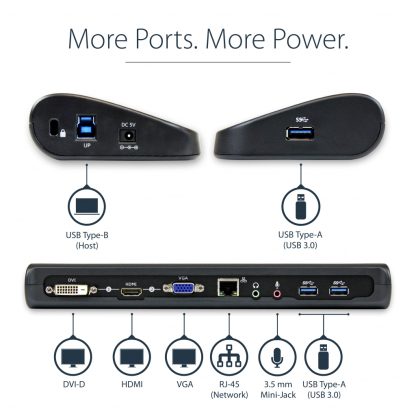

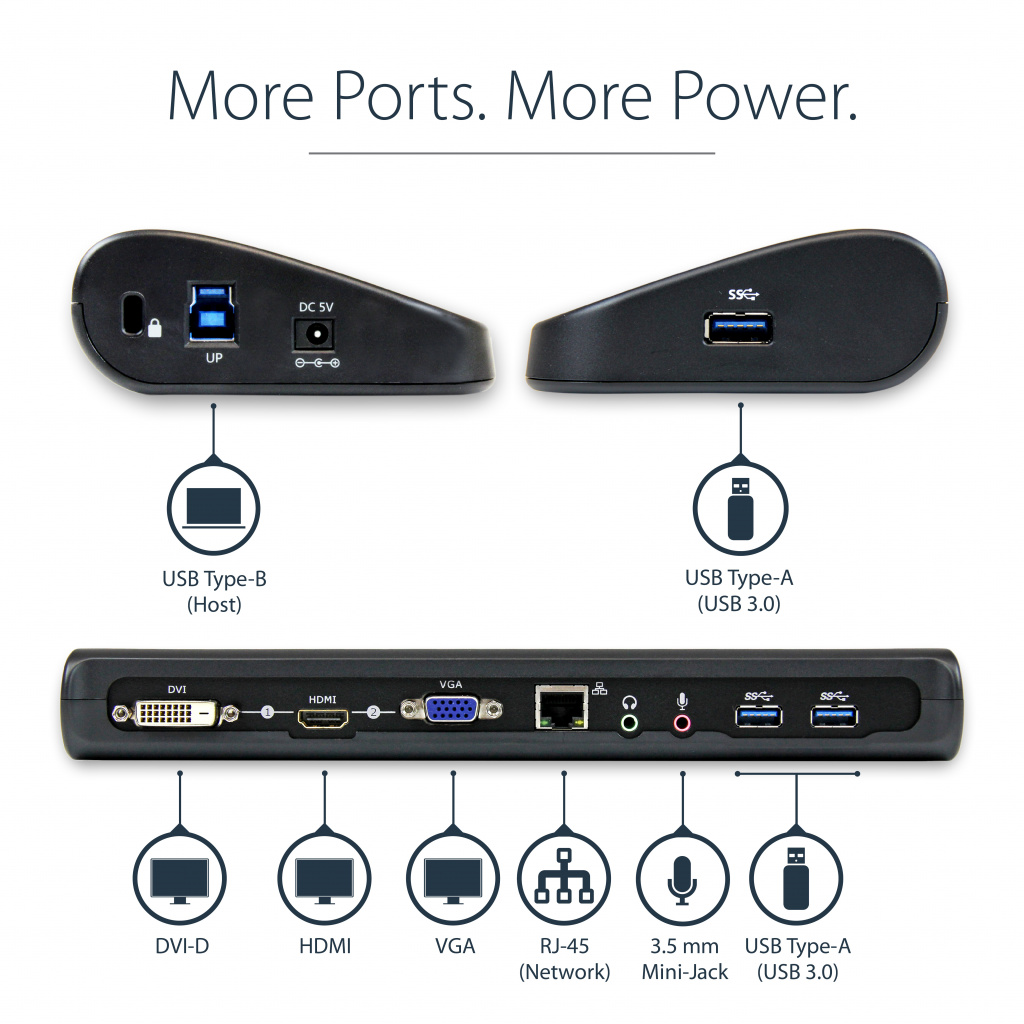

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

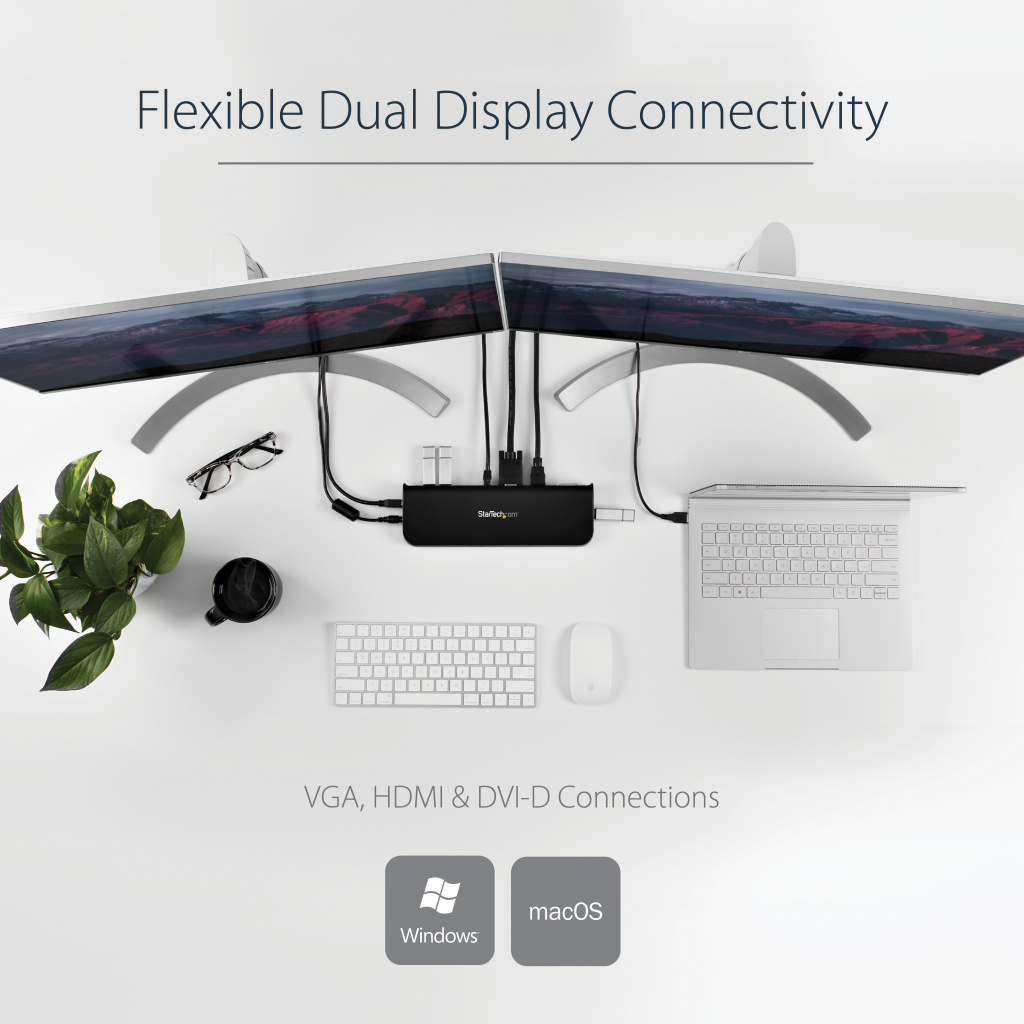

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048×1152 max) and HD video playback for an ideal solution to expanding your notebook’s video capability.

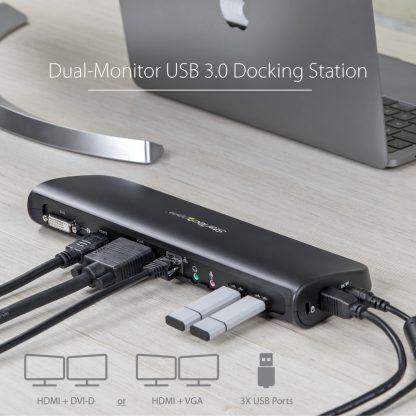

Available display combinations:

HDMI + VGA

HDMI + DVI

Integrated USB Hub

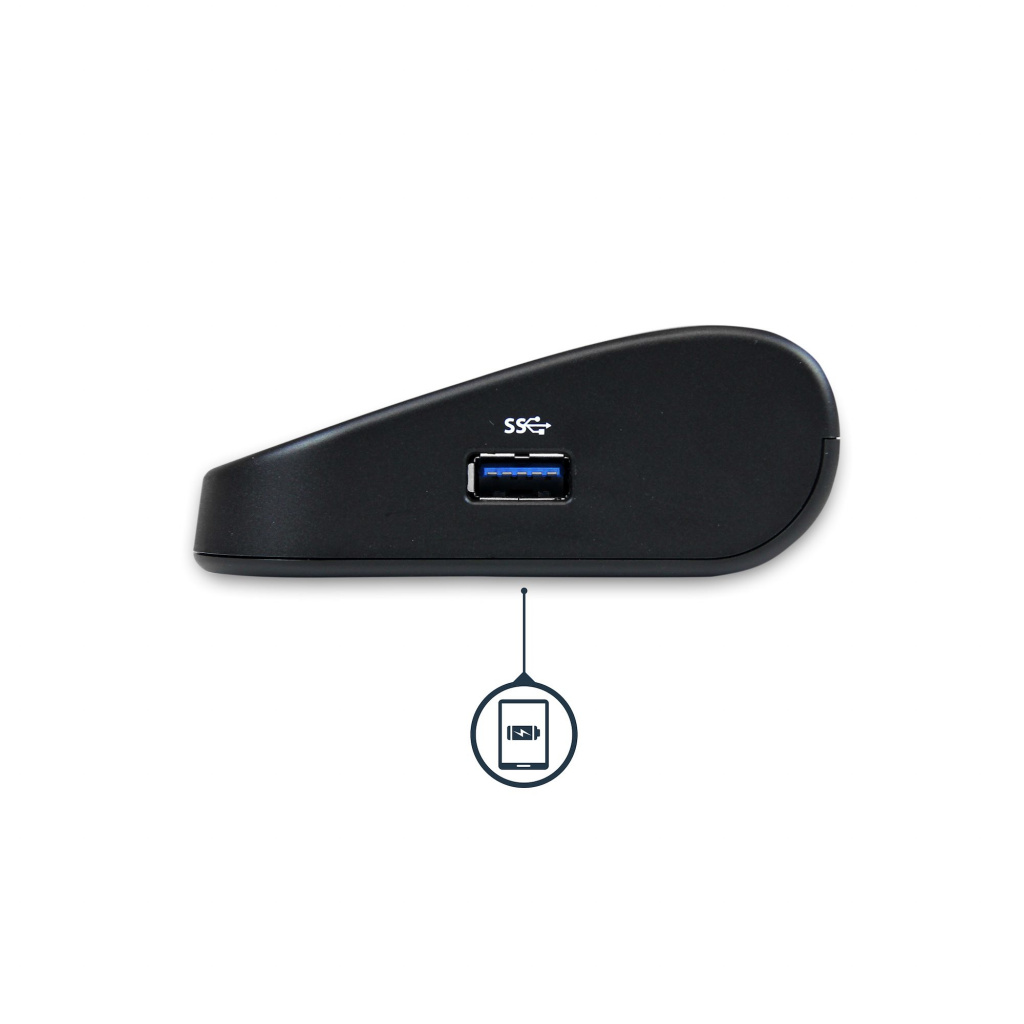

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.

The StarTech.com Advantage

– Save time by connecting multiple peripherals through a single cable
– Increase available screen space with dual independent HD video outputs
– Expand connectivity with additional USB 3.0 ports

Warranty: 3 Years

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI ports quantity

1

Microphone in

Yes

Headphone outputs

1

DC-in jack

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Auto MDI/MDI-X

Yes

Full duplex

Yes

Product colour

Black

Card reader integrated

No

Data transfer rate

5 Gbit/s

Maximum digital resolution

1920 x 1200 pixels

Housing material

Plastic

Certification

FCC, CE, TAA, REACH

AC input voltage

100-240 V

Input current

0.9 A

Output voltage

5 V

Output current

4 A

Power consumption (typical)

20 W

Power plug type

Type B

Compatible power plug types

AU, EU, UK, US

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Mac compatibility

Yes

Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Other operating systems supported

ChromeOS

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-10 – 60 °C

Sustainability certificates

RoHS

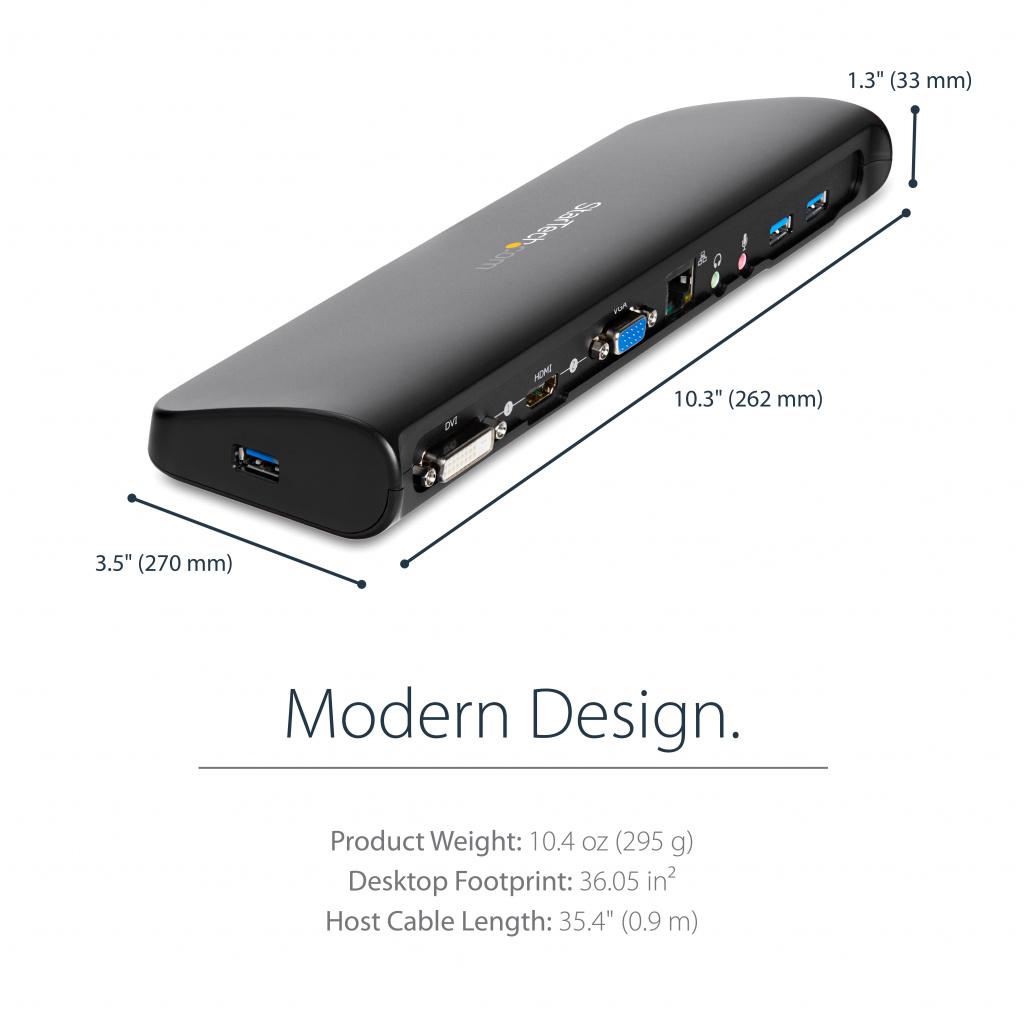

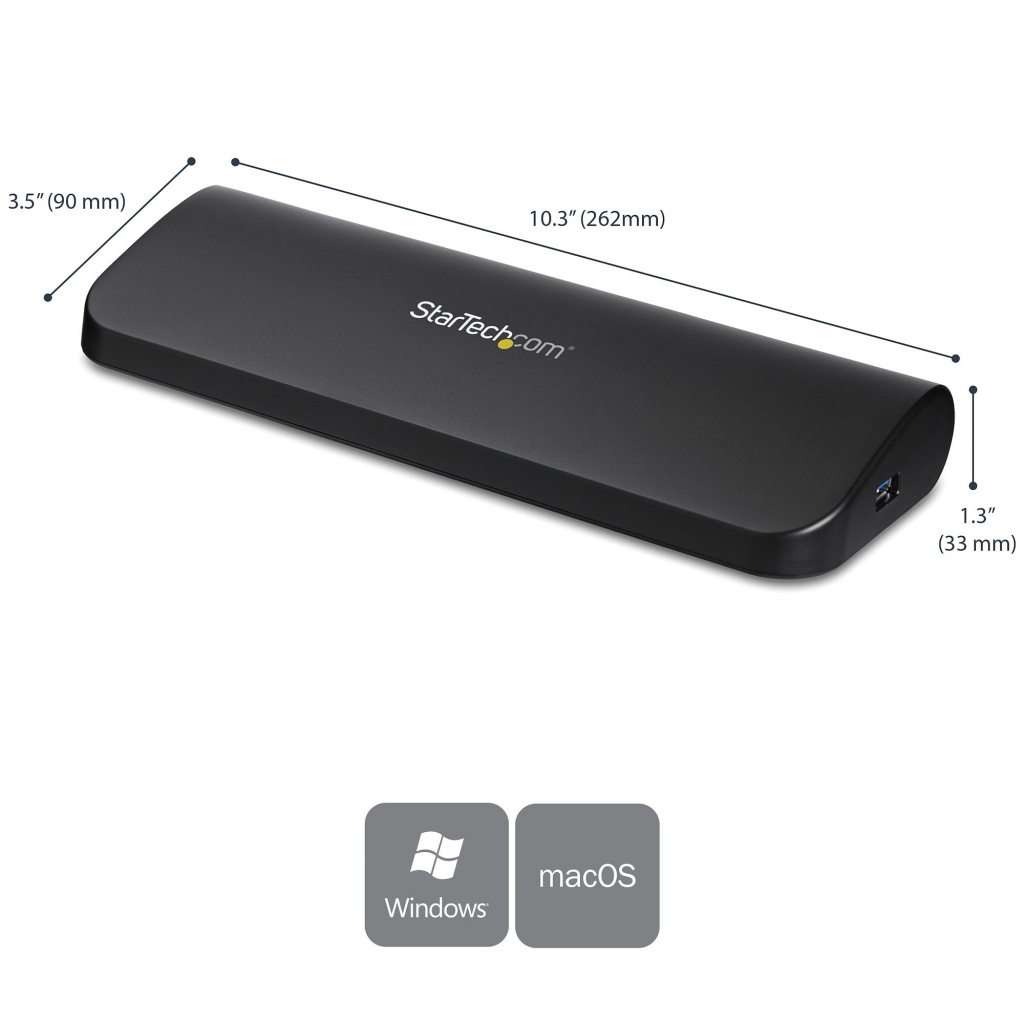

Width

178 mm

Depth

304 mm

Height

44 mm

Weight

295 g

Package width

195 mm

Package depth

296 mm

Package height

66 mm

Package weight

878 g

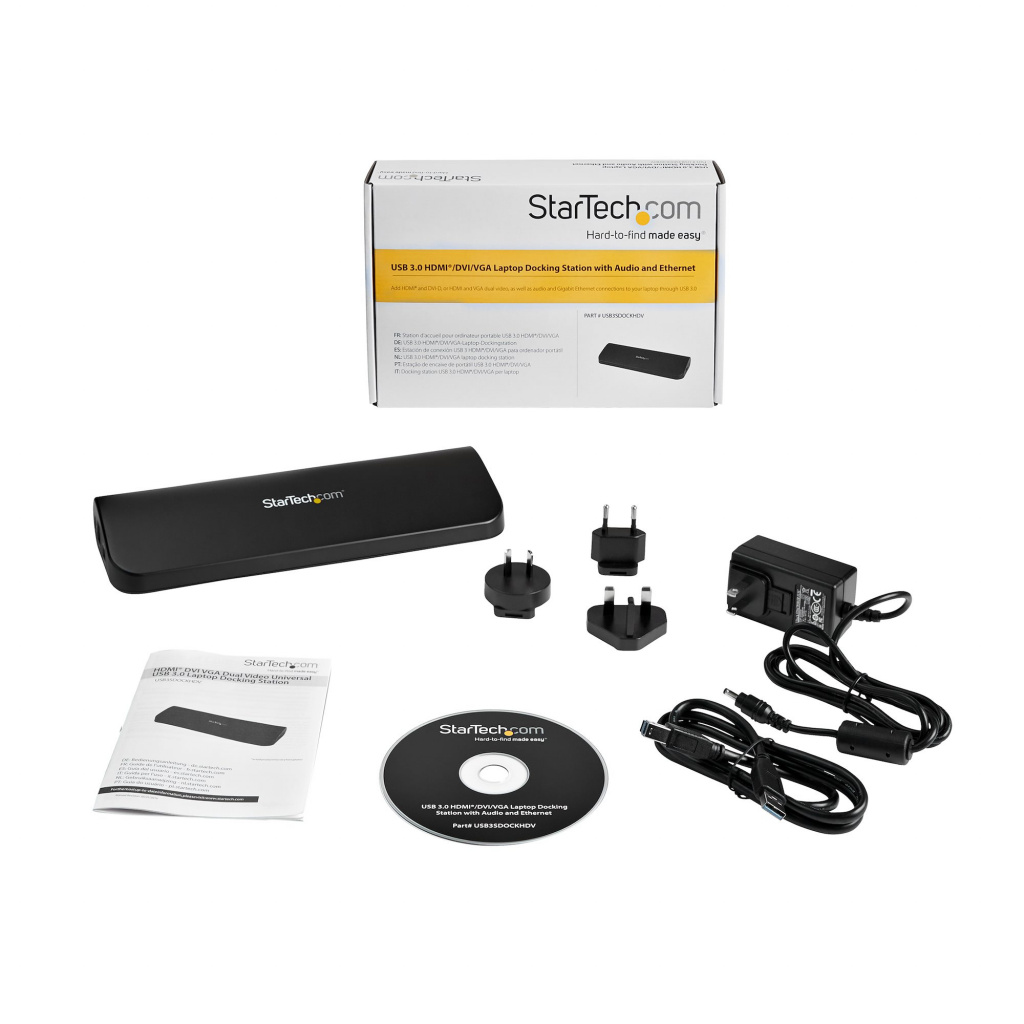

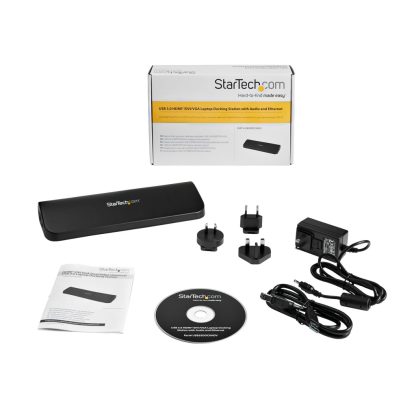

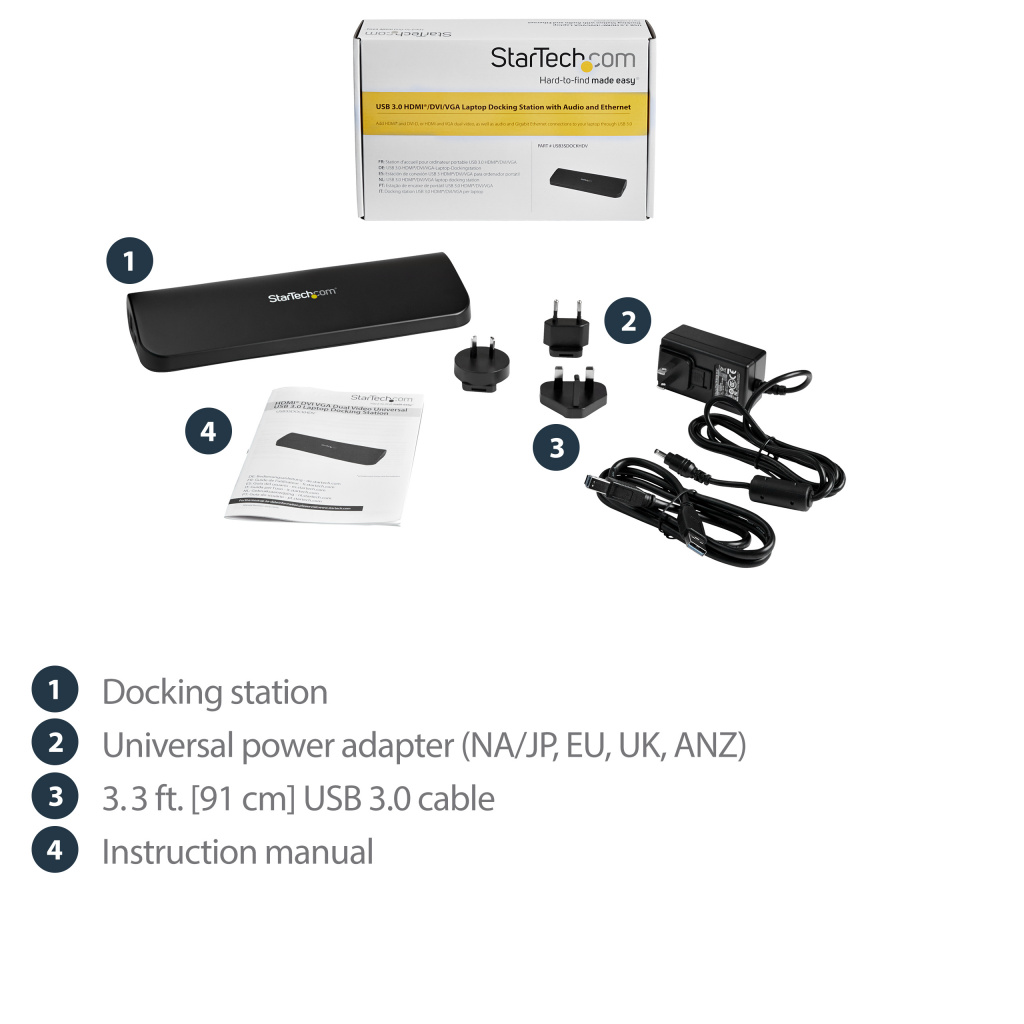

Cables included

USB

AC adapter included

Yes

Manual

Yes

Drivers included

Yes

Chipset

DisplayLink – DL-3900, Genesys Logic – GL3520, Realtek – RTL8211E

VGA (D-Sub) ports quantity

1

DVI-D ports quantity

1

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

Maximum analog resolution

2048 x 1152 pixels

Cable lock slot

Yes

Cable lock slot type

Kensington

Operating relative humidity (H-H)

0 – 90%

USB data transfer rates

12,480,5000 Mbit/s

Products per master (outer) case

6 pc(s)

Master (outer) case width

215 mm

Master (outer) case length

435 mm

Master (outer) case height

345 mm

Harmonized System (HS) code

84733020
