StarTech.com HDMI to VGA Adapter, Active Video Converter For Laptop/Desktop, 1920×1080 (1080p), HDMI Source to VGA Monitor/Disp

$29.08 (Incl. GST)

StarTech.com HDMI to VGA Adapter, Active Video Converter For Laptop/Desktop, 1920×1080 (1080p), HDMI Source to VGA Monitor

Out of stock

SKU: STARTECH.COM_HD2VGAE3 Category:

Print

Description

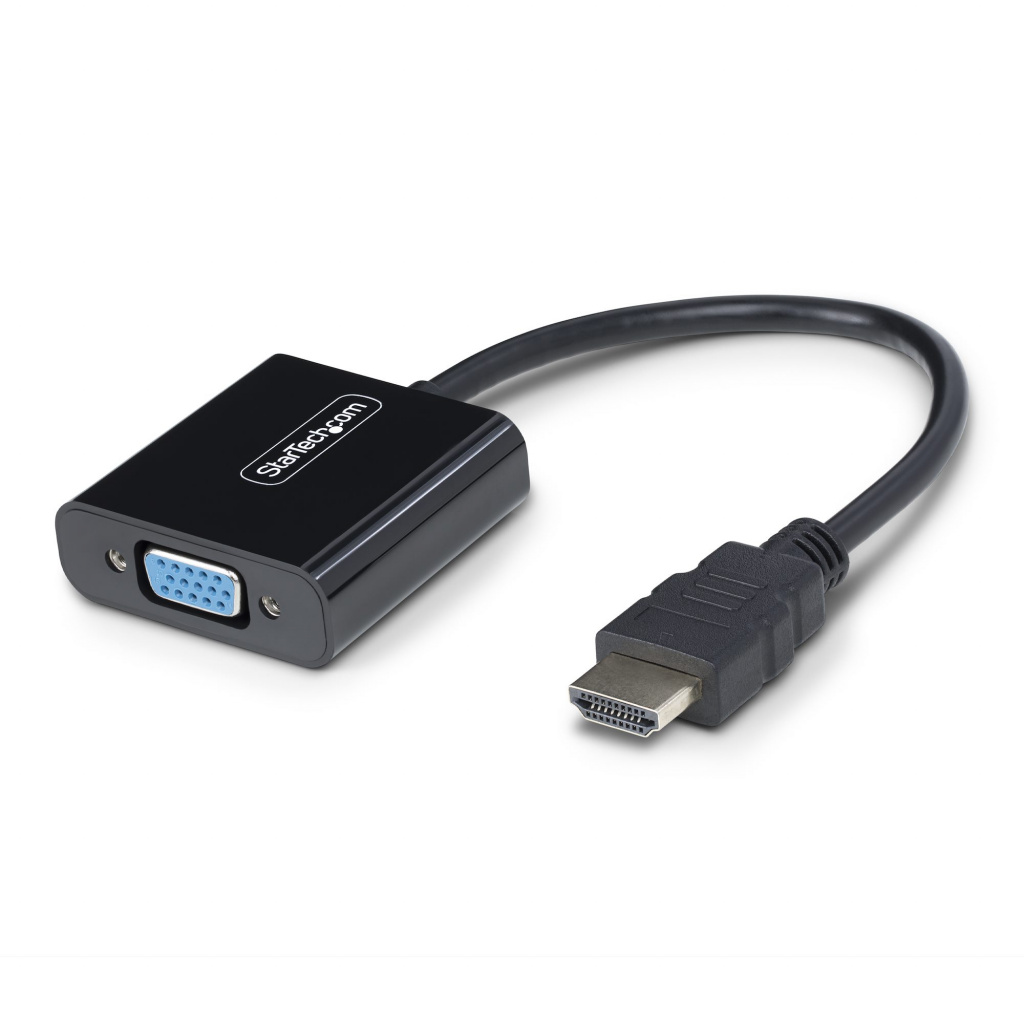

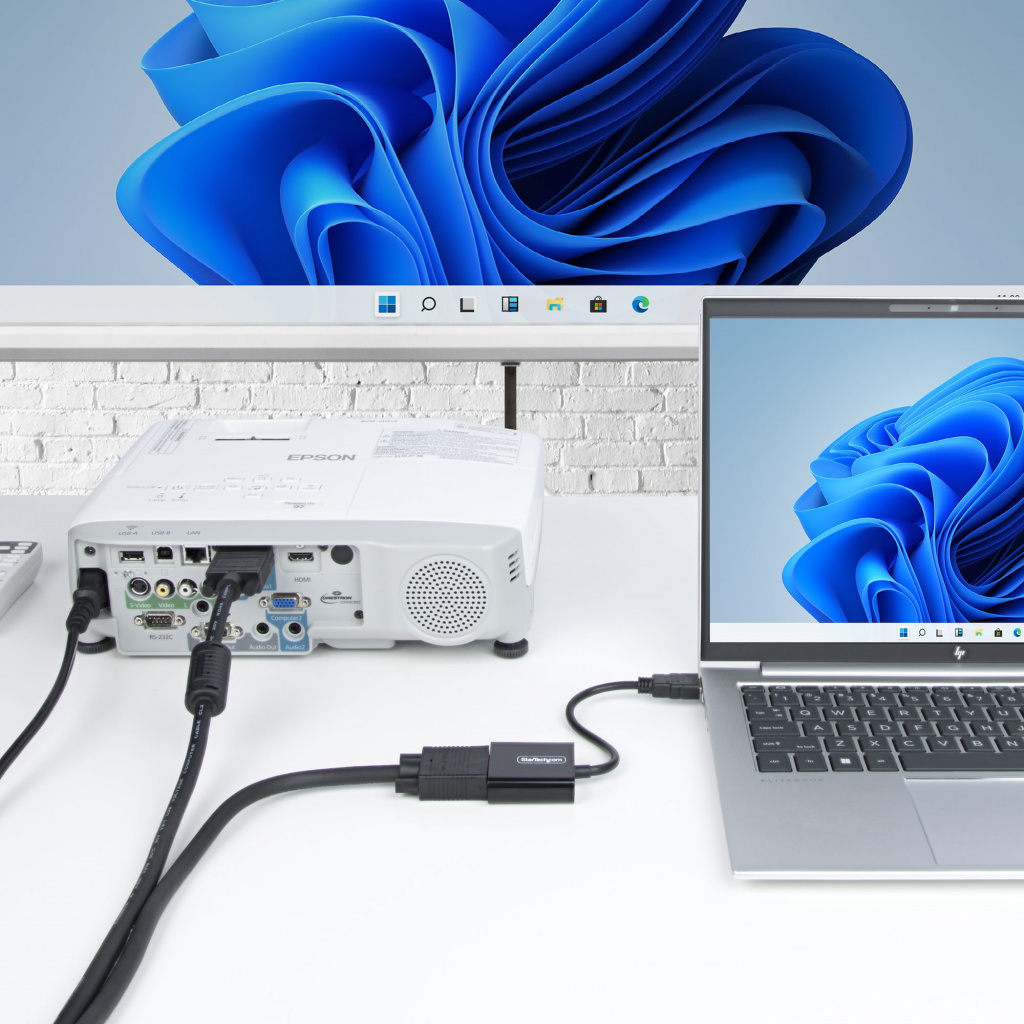

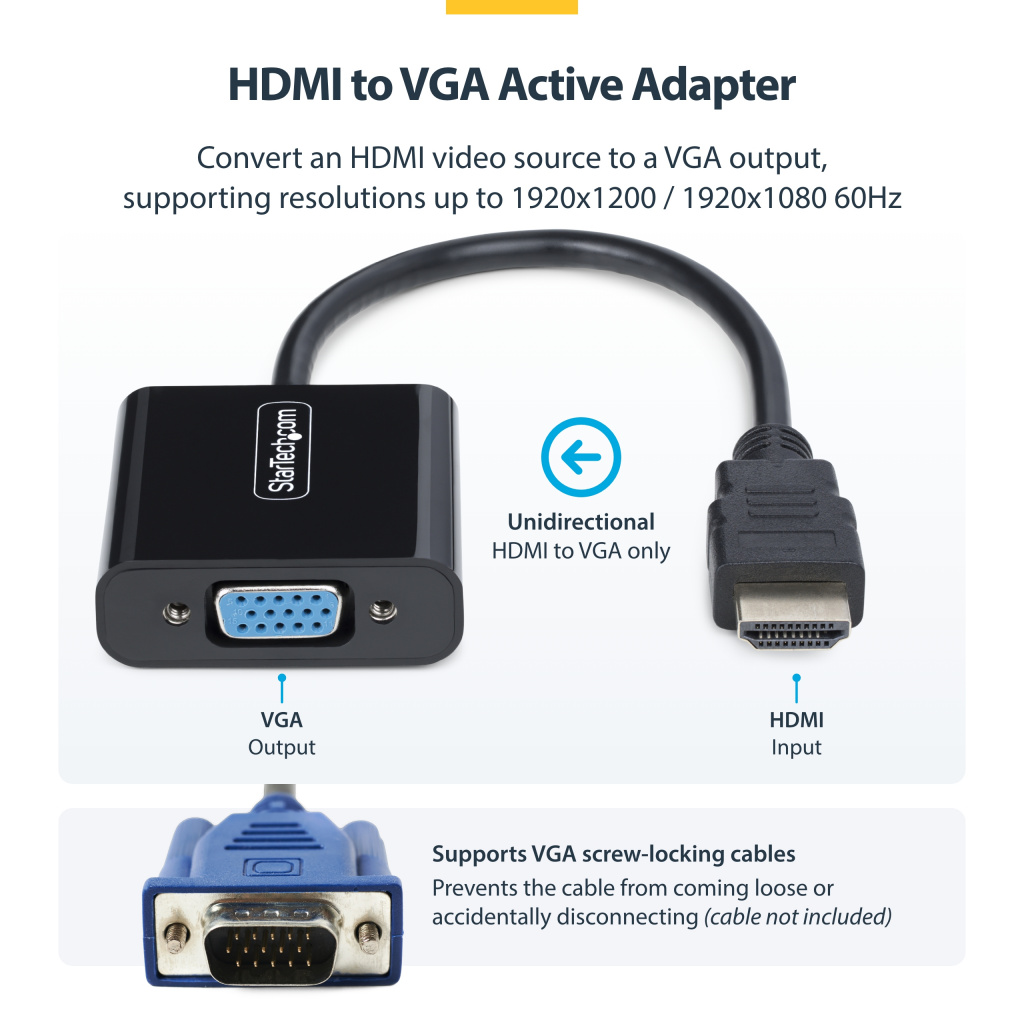

Connect an HDMI-enabled laptop or desktop to a VGA display or projector

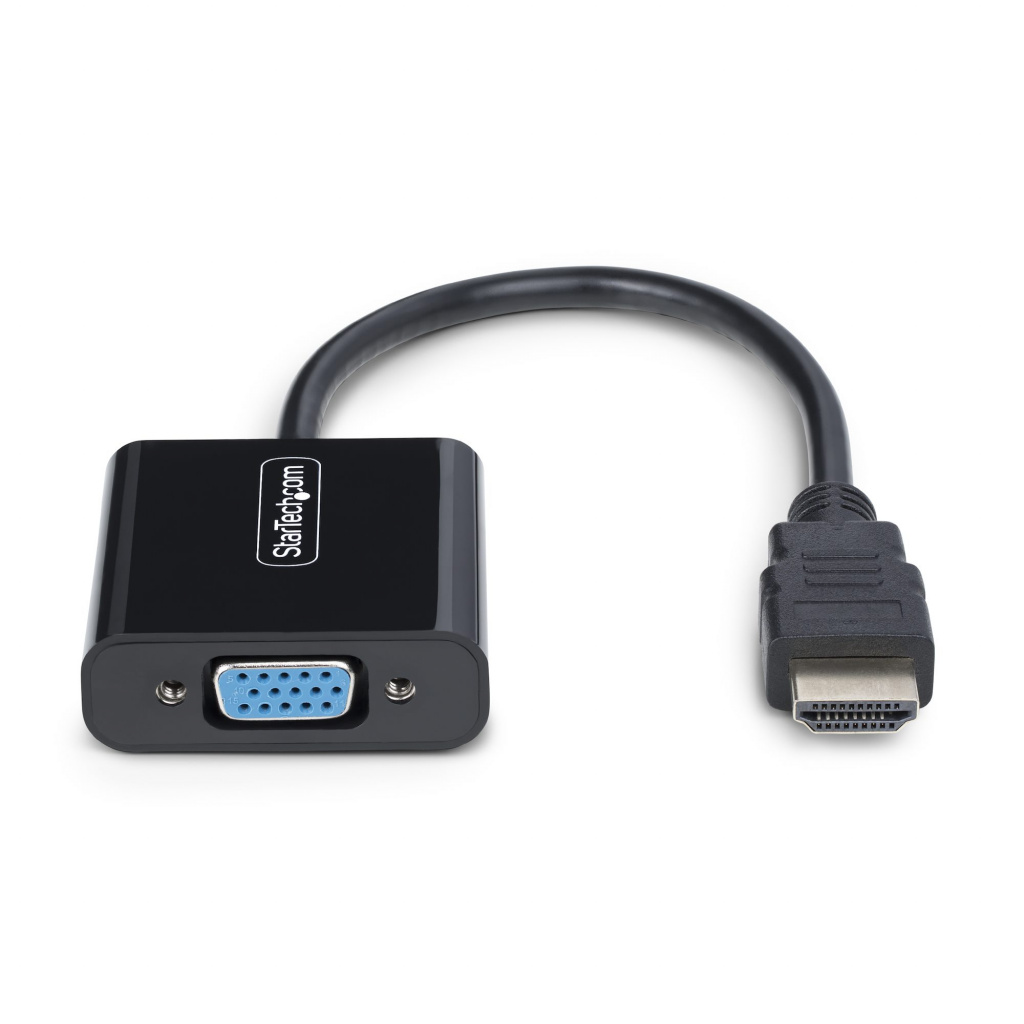

This active HDMI to VGA adapter converts an HDMI video source to a VGA output, allowing connection to legacy VGA monitors, displays, and projectors.

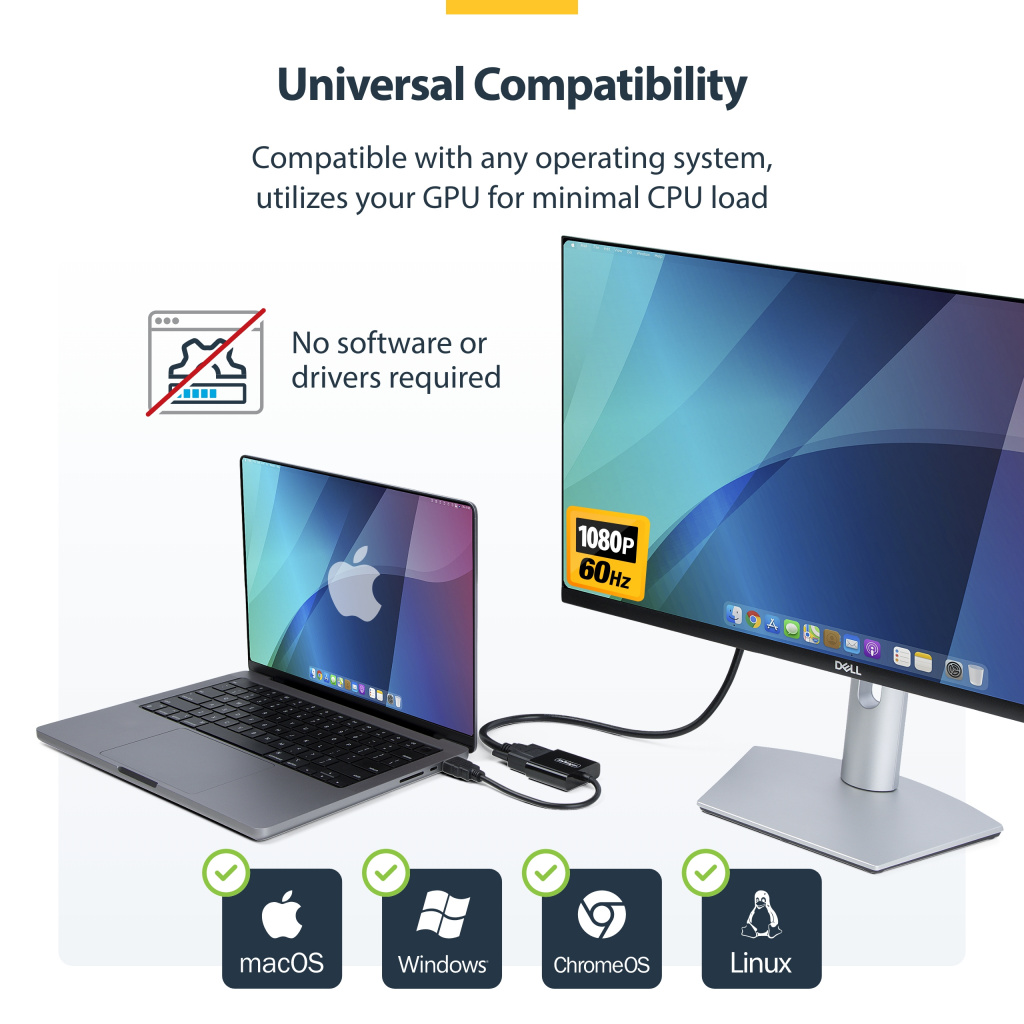

No Drivers or Software

This universal video converter requires no drivers or software and is compatible with any operating system, including Windows, macOS, ChromeOS, and Linux. It works with HDMI-enabled laptops, desktops, tablets, and Chromebooks from all hardware platforms, such as Intel, Nvidia, and AMD. It supports resolutions up to 1920×1200 or 1920×1080 at 60Hz, utilizing the integrated or dedicated GPU for minimal CPU usage.

No External Power Required

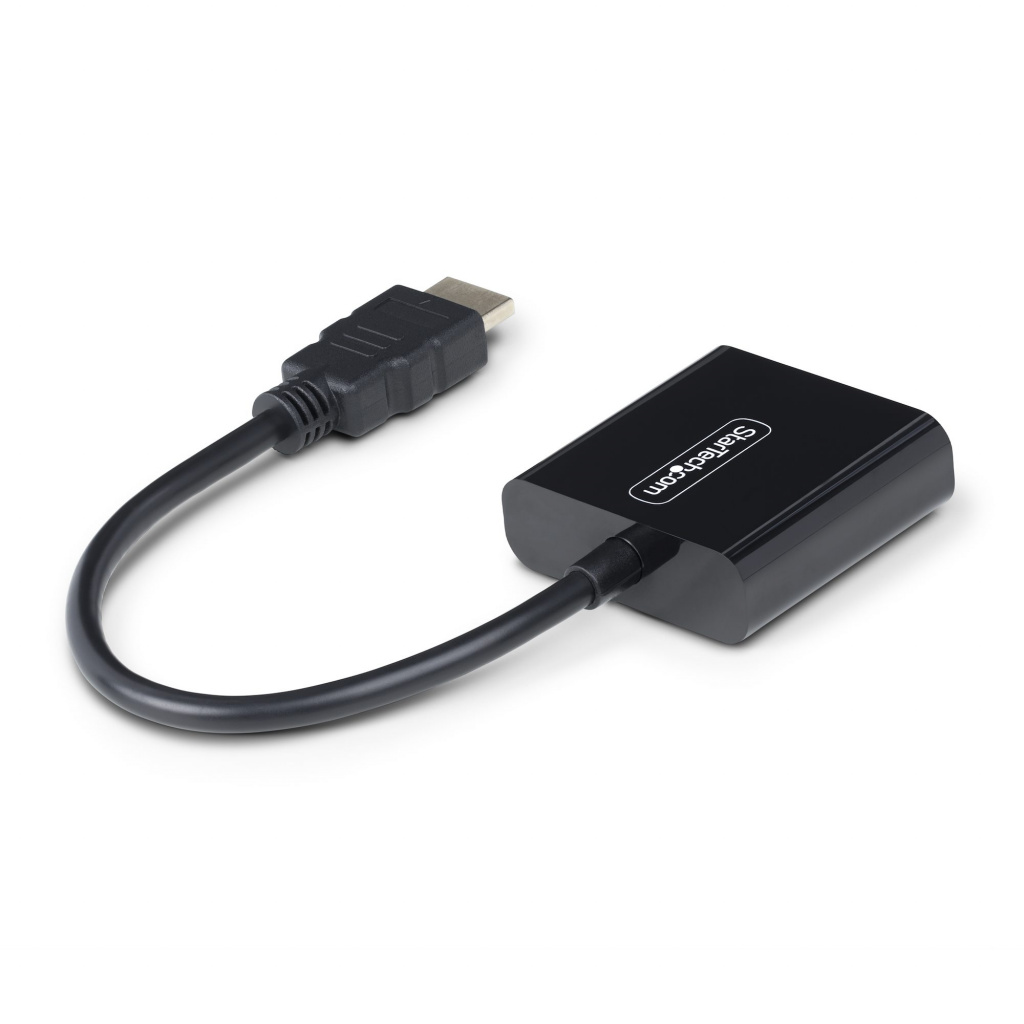

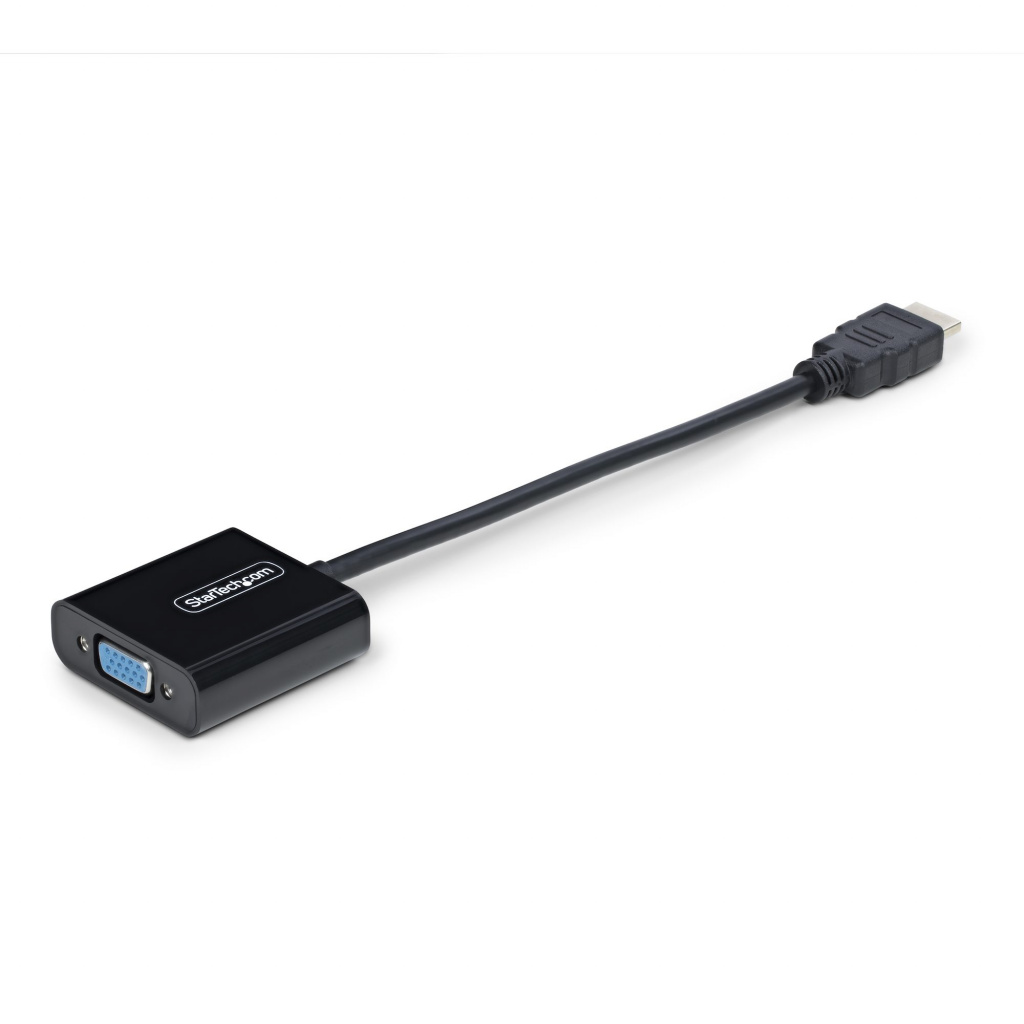

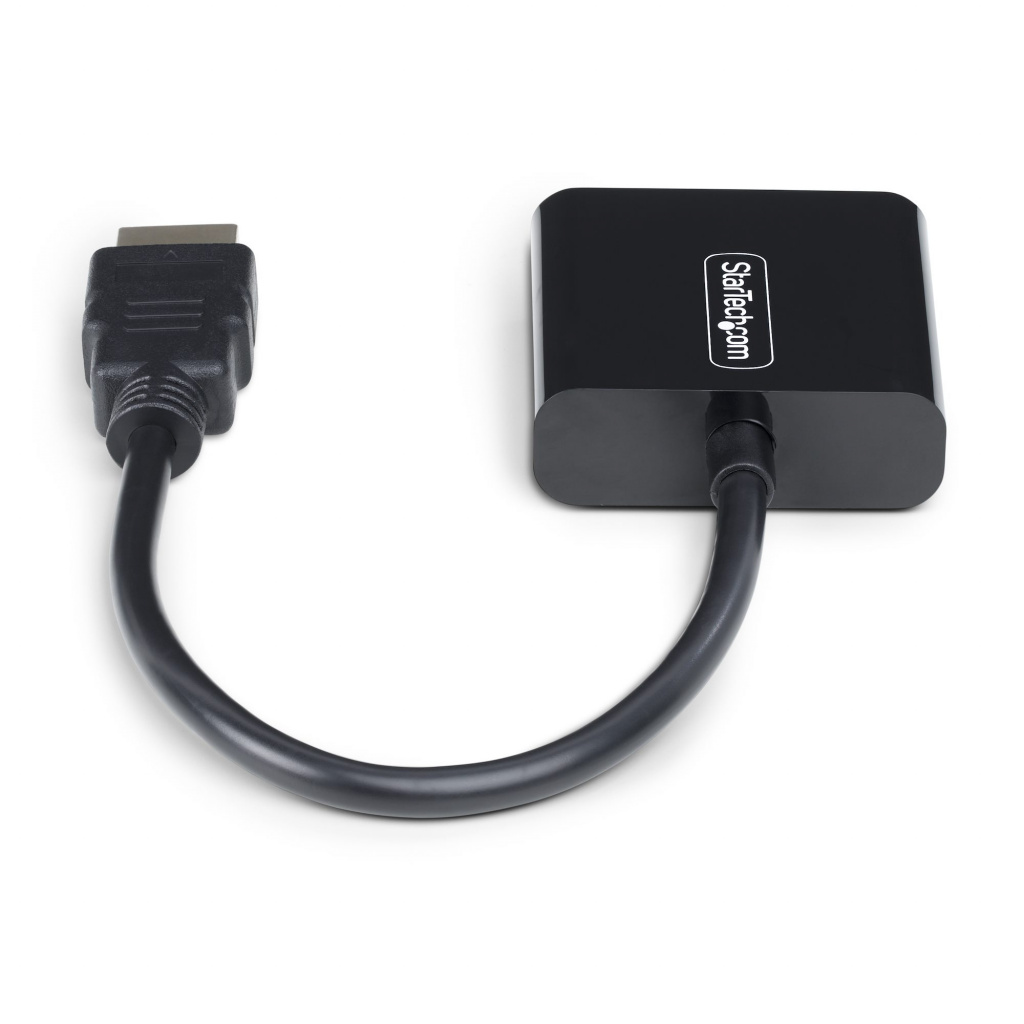

The adapter reduces clutter and simplifies setup by eliminating the need for an external power adapter or USB power connection. The Adapter has a compact and lightweight design, making it ideal for travel or on-the-go use. This black video adapter features a 5mm cable outer diameter, and a cable length of 5.8 inches (14.7 cm).

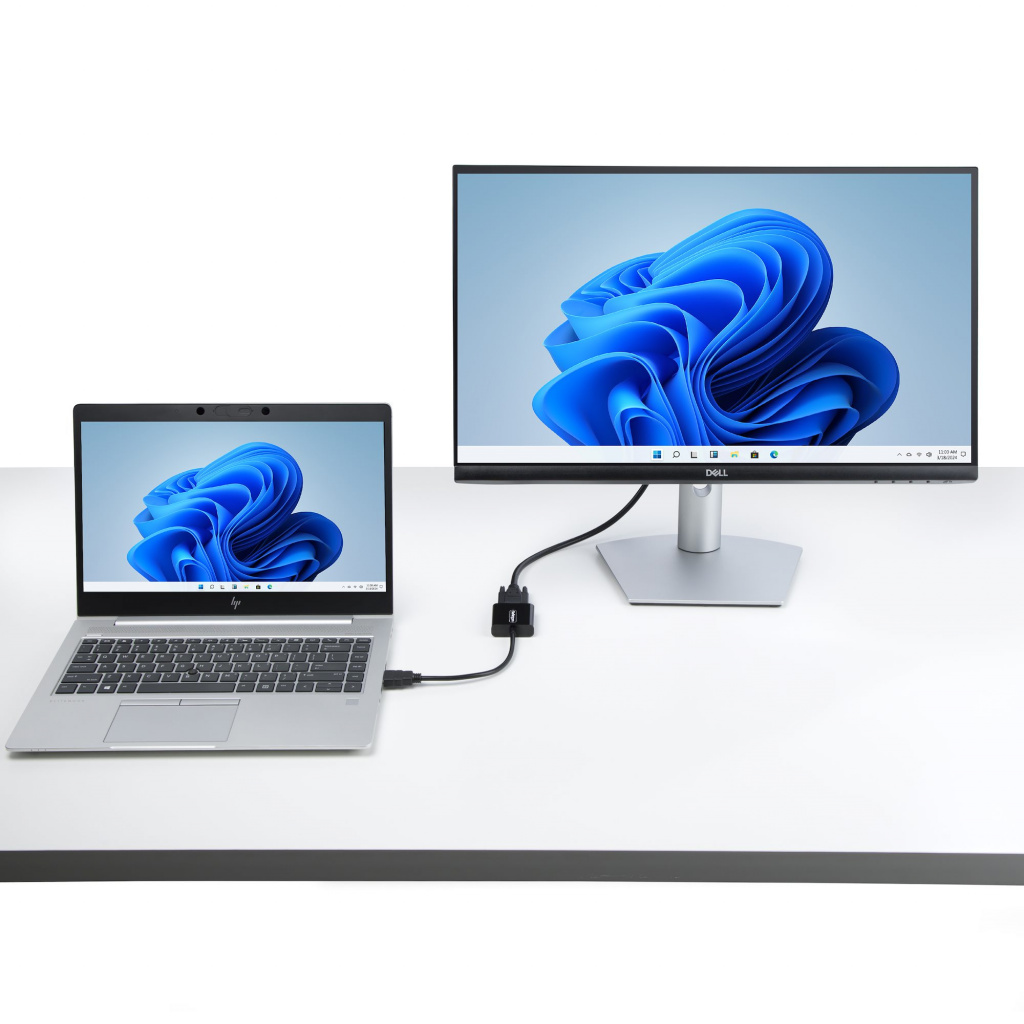

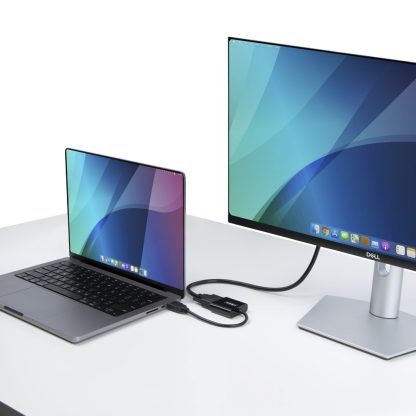

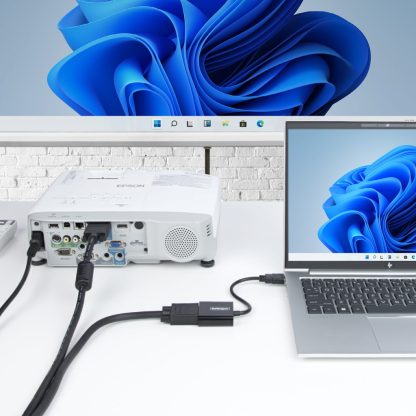

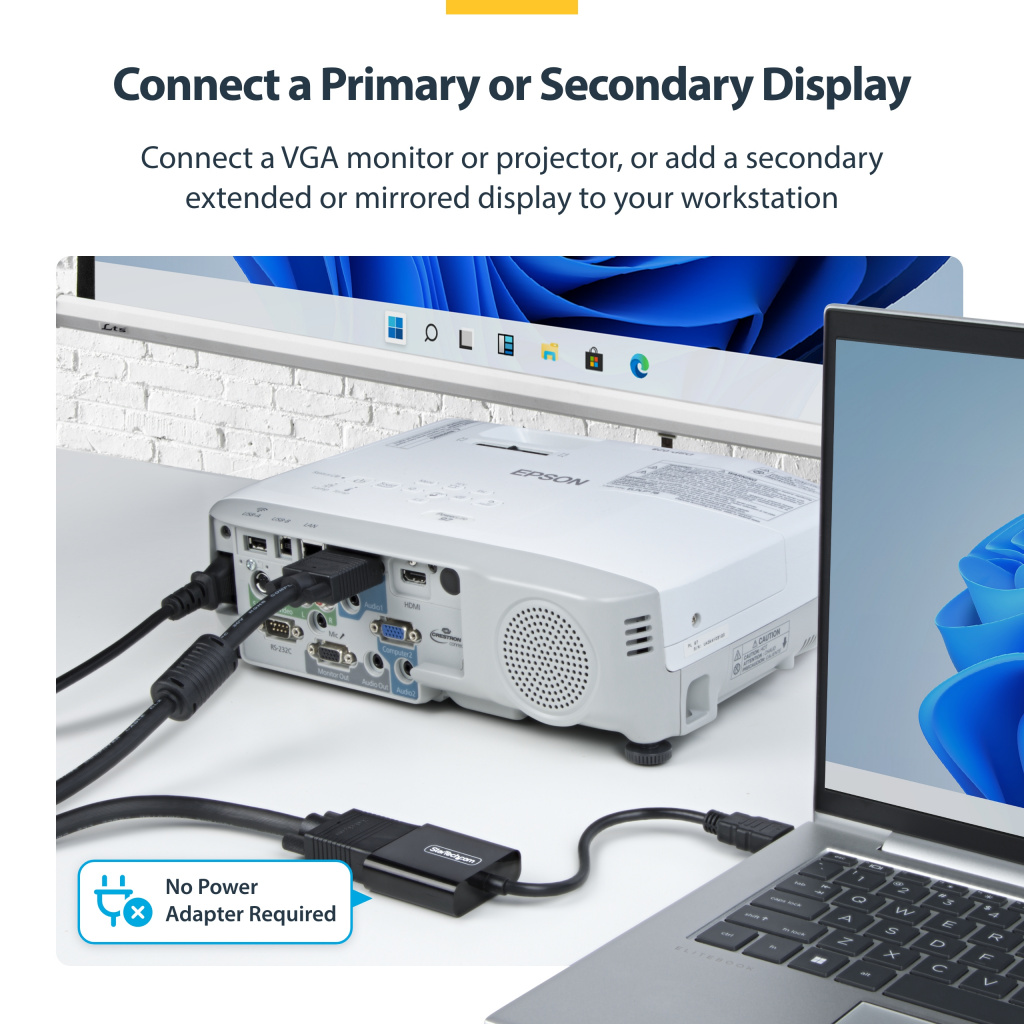

Connect a Primary or Secondary Display

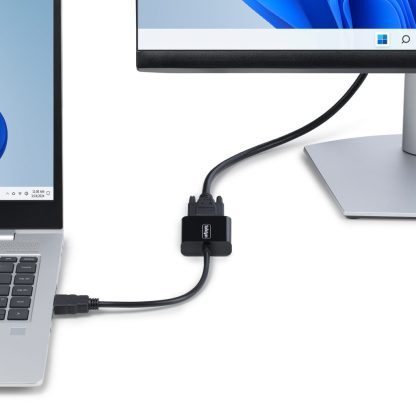

Connect a primary VGA monitor to the host, or add a secondary extended or mirrored display to a workstation. It supports VGA screw-locking cables to prevent the cable from coming loose or accidentally disconnecting.

Note: This video adapter is unidirectional, converting only from an HDMI source to a VGA monitor or display.

The StarTech.com Advantage

Additional information

Supported video modes

1080p

Brand

StarTech.com

Output interface

VGA

External power adapter

No

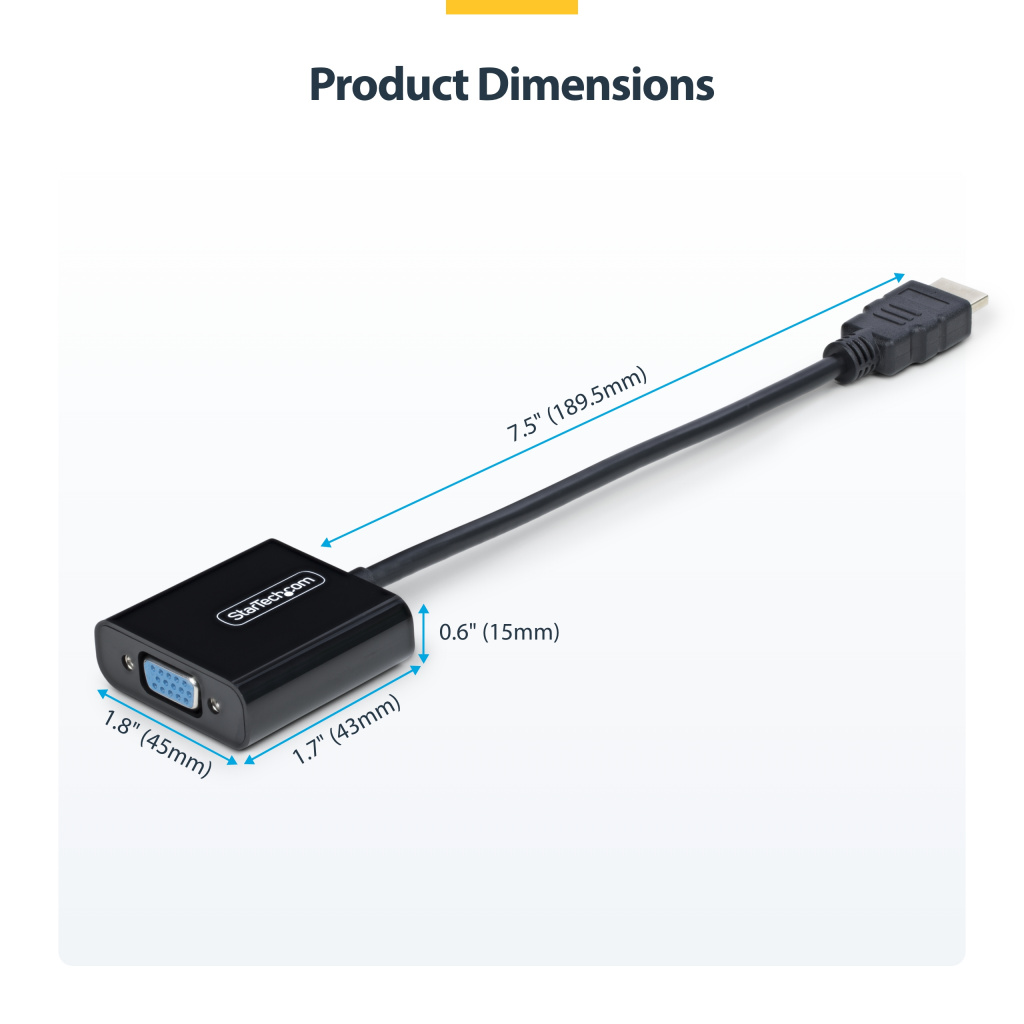

Width

45 mm

Depth

234 mm

Height

15 mm

Weight

33 g

Package width

50 mm

Package depth

50 mm

Package height

18 mm

Package weight

53 g

Maximum video resolution

1920 x 1200 pixels

Host interface

HDMI

Converter type

Active video converter

Housing material

Plastic

Maximum refresh rate

75 Hz

Operating temperature (T-T)

0 – 70 °C

Storage temperature (T-T)

-10 – 80 °C

Operating relative humidity (H-H)

0 – 75%

Video resolutions

800 x 600,1024 x 768,1280 x 720,1280 x 800,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200

Chipset

AG6203

Master (outer) case width

216 mm

Master (outer) case length

110 mm

Master (outer) case height

60 mm

Products per master (outer) case

24 pc(s)

Cable length

0.189 m

Compliance certificates

RoHS

Internal

No

Plug and Play

Yes

Colour depth

8 bit
