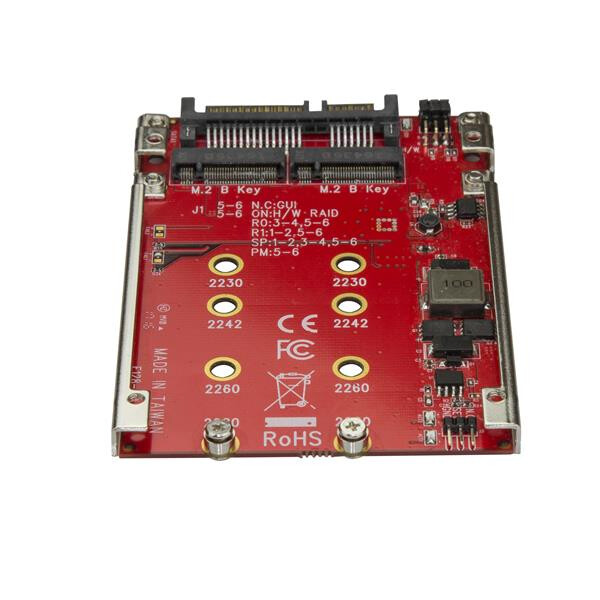

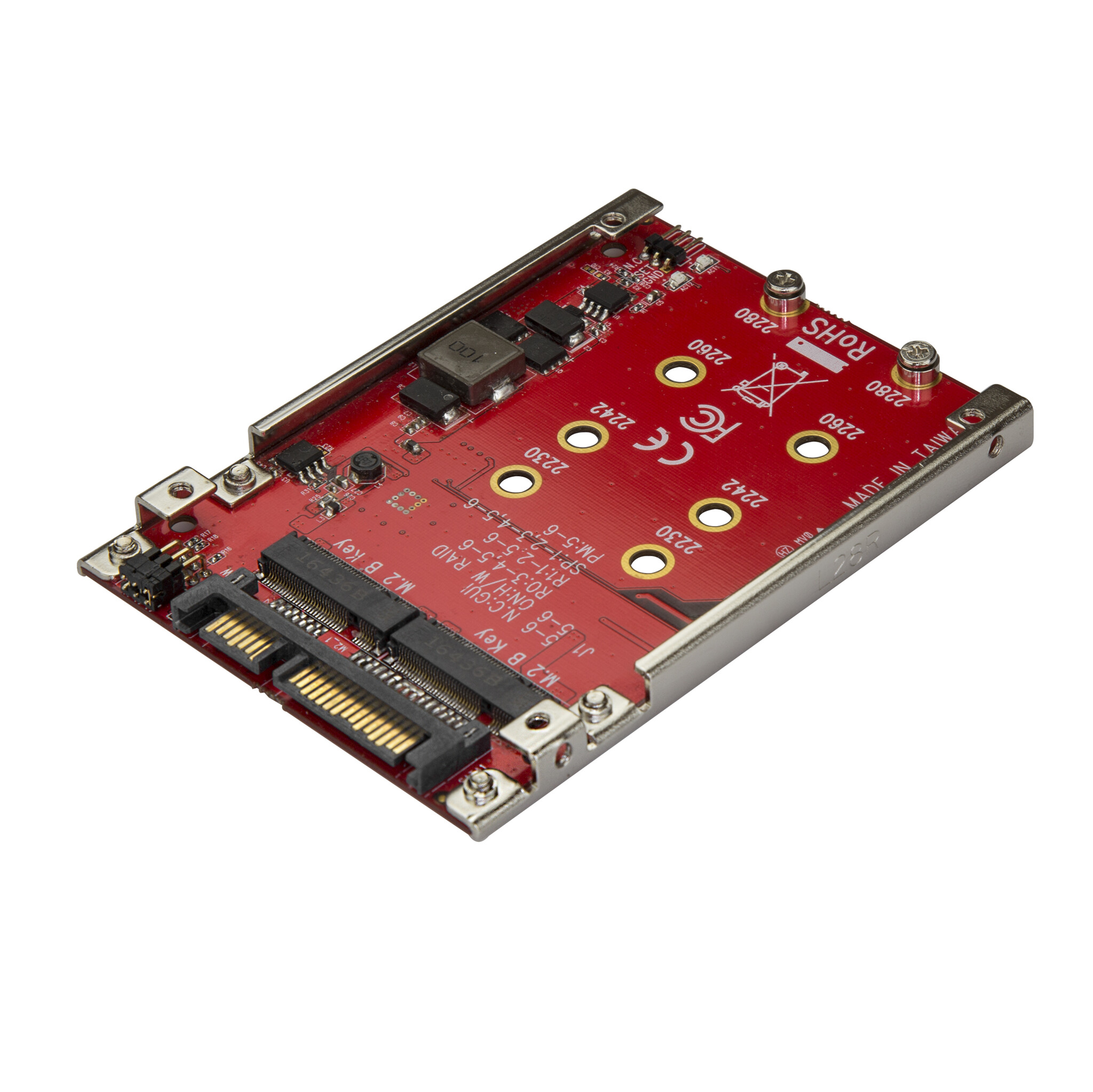

StarTech.com Dual-Slot M.2 Drive to SATA Adapter for 2.5″ Drive Bay – RAID

$91.26 (Incl. GST)

StarTech.com M.2 to SATA Adapter – Dual Slot – for 2.5in Drive Bay – RAID – M.2 NGFF SSD – M.2 Adapter – M.2 SSD Adapter

In stock

SKU: STARTECH.COM_S322M225R Category:

Print

Description

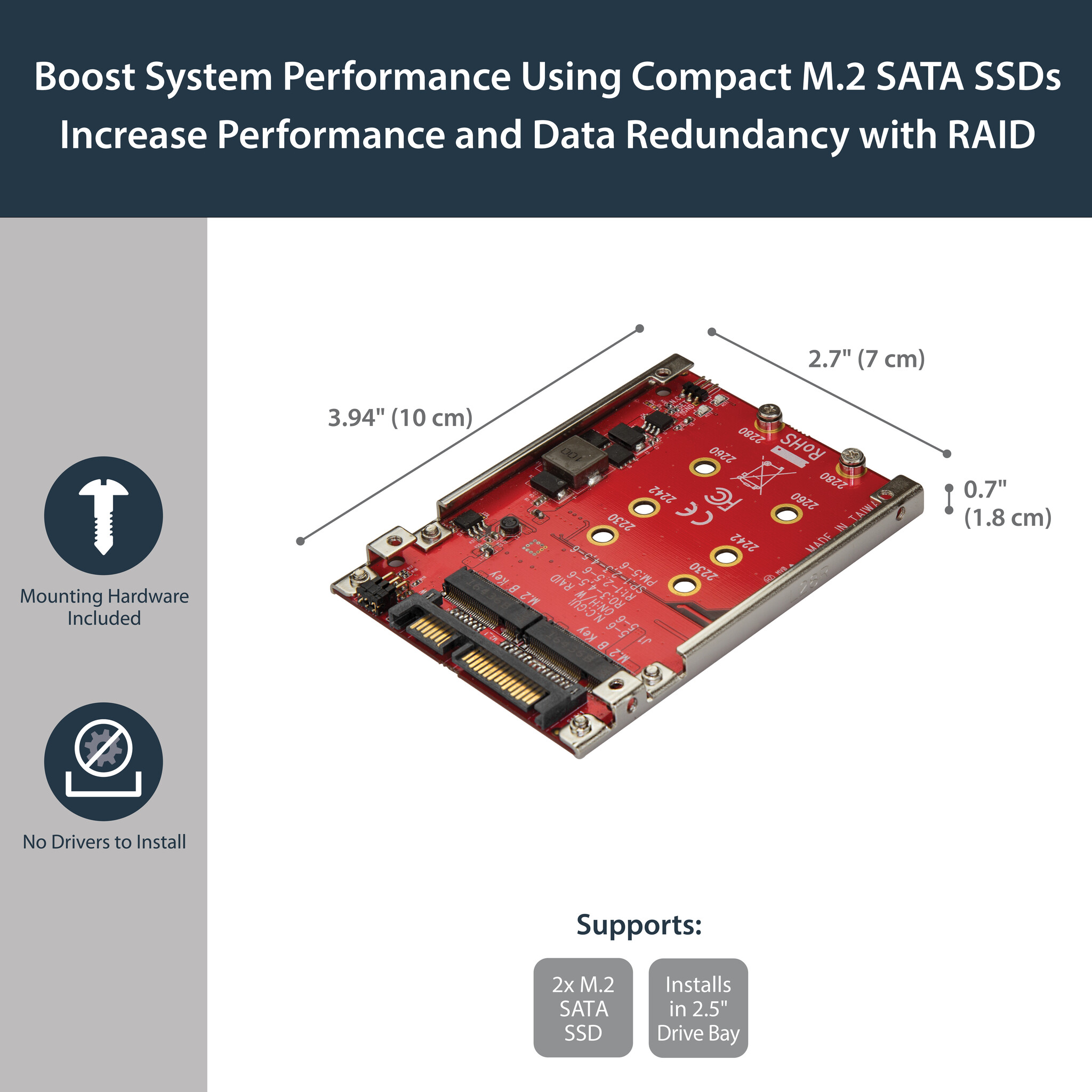

StarTech.com Dual-Slot M.2 Drive to SATA Adapter for 2.5″ Drive Bay – RAID. Host interface: SATA, Output interface: M.2. Product colour: Red, Certification: CE, FCC, REACH, TAA. Chipset: ASMedia – ASM1092R, Data transfer rate (max): 6 Gbit/s, RAID levels: 0, 1, BIG, JBOD. Width: 70 mm, Depth: 100 mm, Height: 7 mm. Package width: 172 mm, Package depth: 142 mm, Package height: 30 mm

Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interface

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.

Maximize file transfer speeds

The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

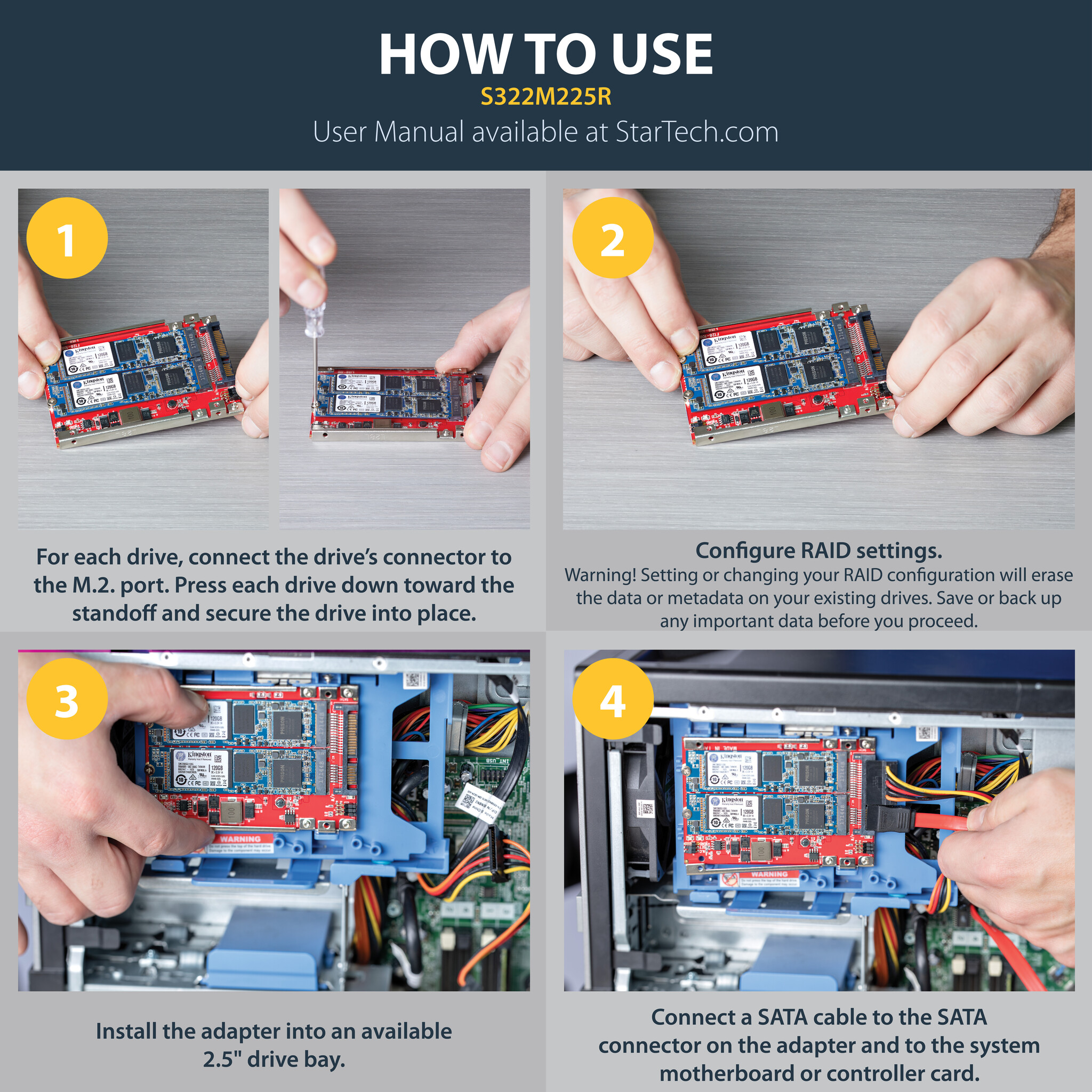

Easy installation

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.

The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

– Install two M.2 SSD drives into a single 2.5” drive bay
– Multiple RAID modes supported: RAID 0, 1, spanning, or JBOD
– Open-frame steel mounting bracket with 2.5” SATA form factor housing

Warranty: 2 Years

Additional information

Host interface

SATA

Brand

StarTech.com

Output interface

M.2

Internal

Yes

Product colour

Red

Weight

41 g

Certification

CE, FCC, REACH, TAA

Chipset

ASMedia – ASM1092R

Plug and Play

Yes

Sustainability certificates

RoHS

Width

70 mm

Depth

100 mm

Height

7 mm

Package width

172 mm

Package depth

142 mm

Package height

30 mm

Package weight

110 g

Operating temperature (T-T)

5 – 50 °C

Storage temperature (T-T)

-25 – 70 °C

Operating relative humidity (H-H)

15 – 90%

Mounting brackets included

Yes

Screws included

Yes

Data transfer rate (max)

6 Gbit/s

Hot-swap

No

Port multiplier

Yes

RAID levels

0, 1, BIG, JBOD

Quick installation guide

Yes

Harmonized System (HS) code

84733020

SATA revision

3.0

Easy to install

Yes

Number of M.2 (B) slots

2

Number of SSDs supported

2

S.M.A.R.T. support

Yes

TRIM support

Yes
