StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand

$212.98 (Incl. GST)

StarTech.com Dual Monitor USB 3.0 Docking Station w/ DVI to VGA & HDMI Adapters, 5x USB 3.0 & Audio – Vertical DVI Dock for Mac

In stock

SKU: STARTECH.COM_USB3SDOCKDD Category:

Print

Description

Laptop Docking Station | Mac & Windows® | DVI to VGA & HDMI® Adapters | 2x Charge Ports

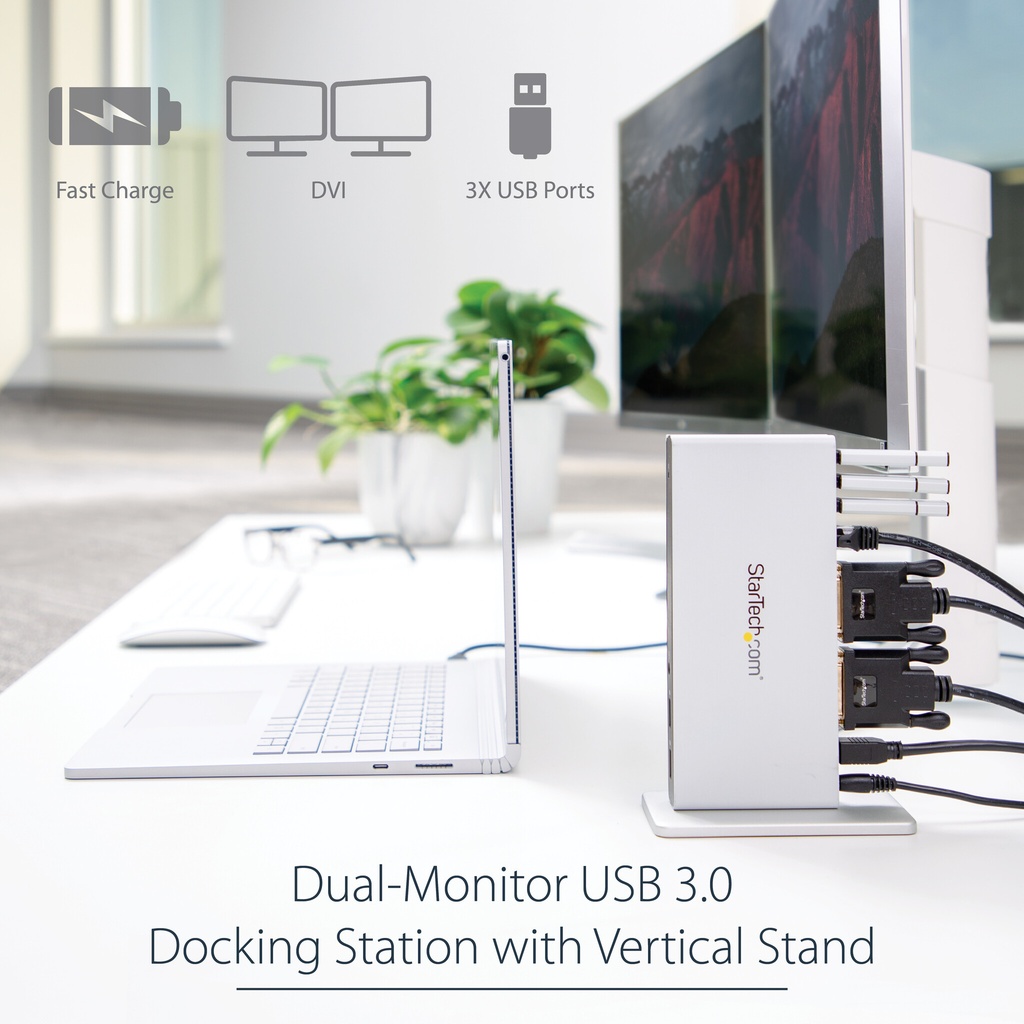

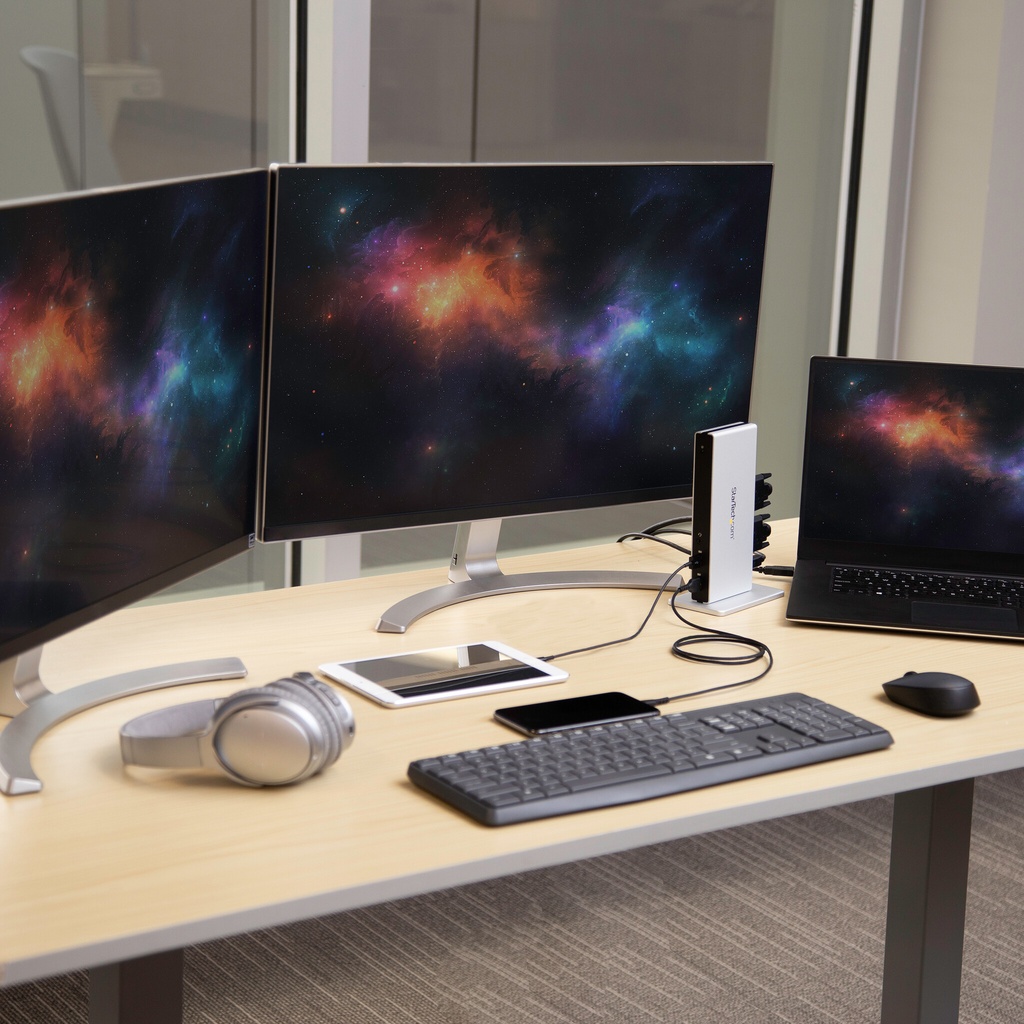

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

Display Flexibility

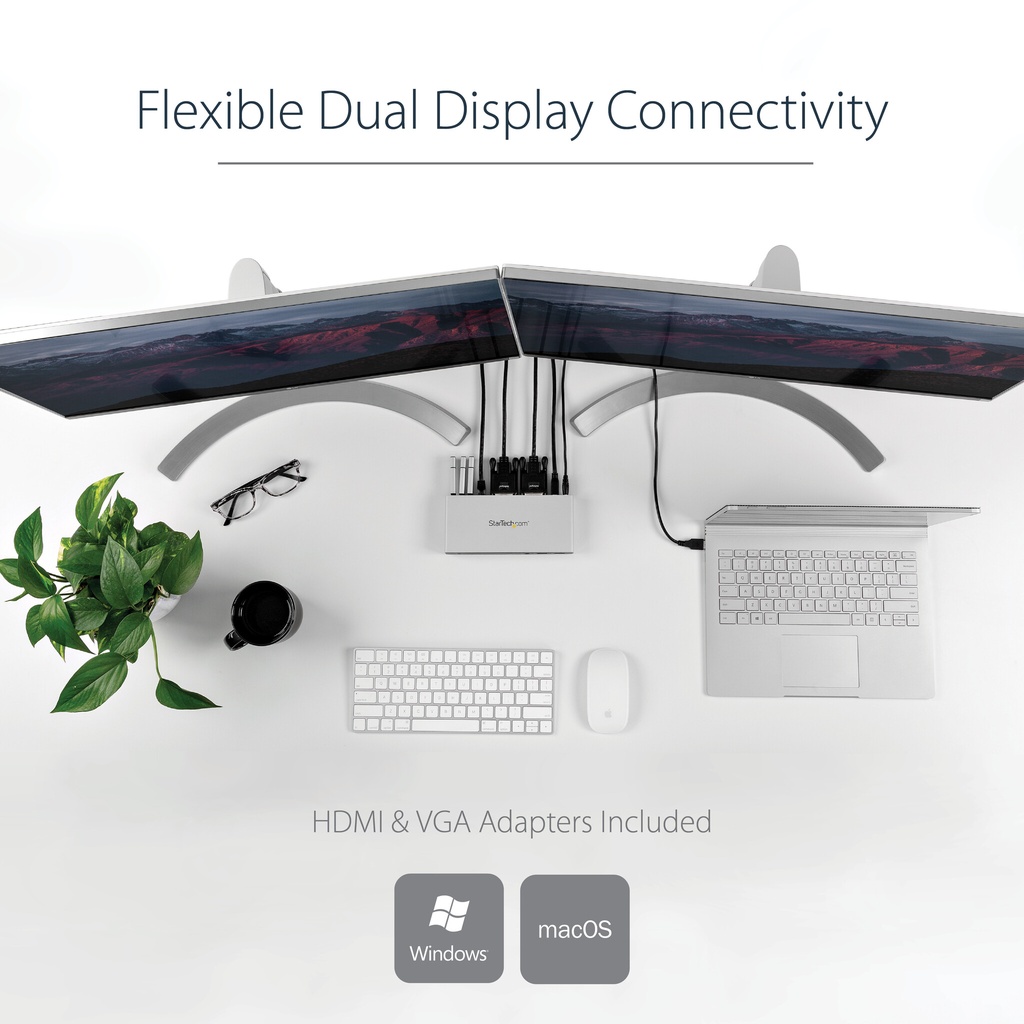

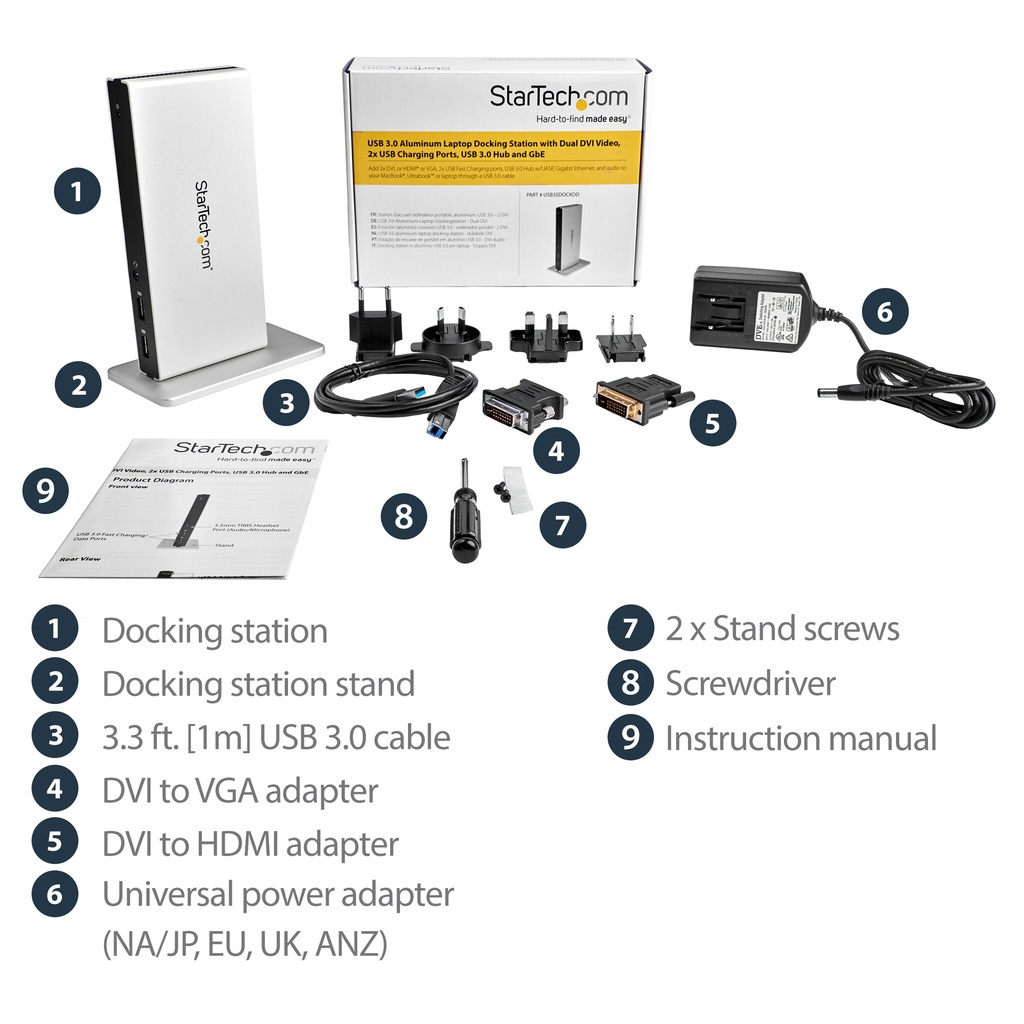

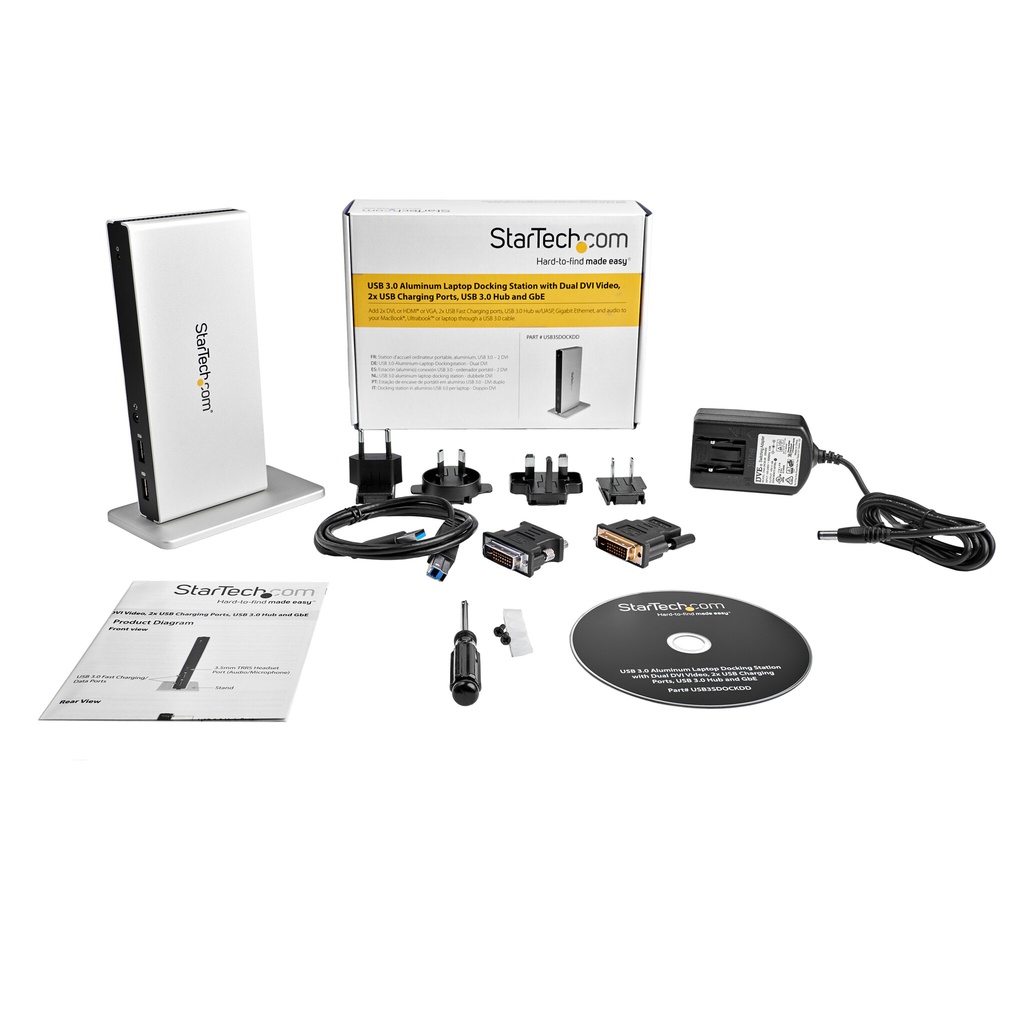

The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048×1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.

Powerful Connections and Fast Device Charging

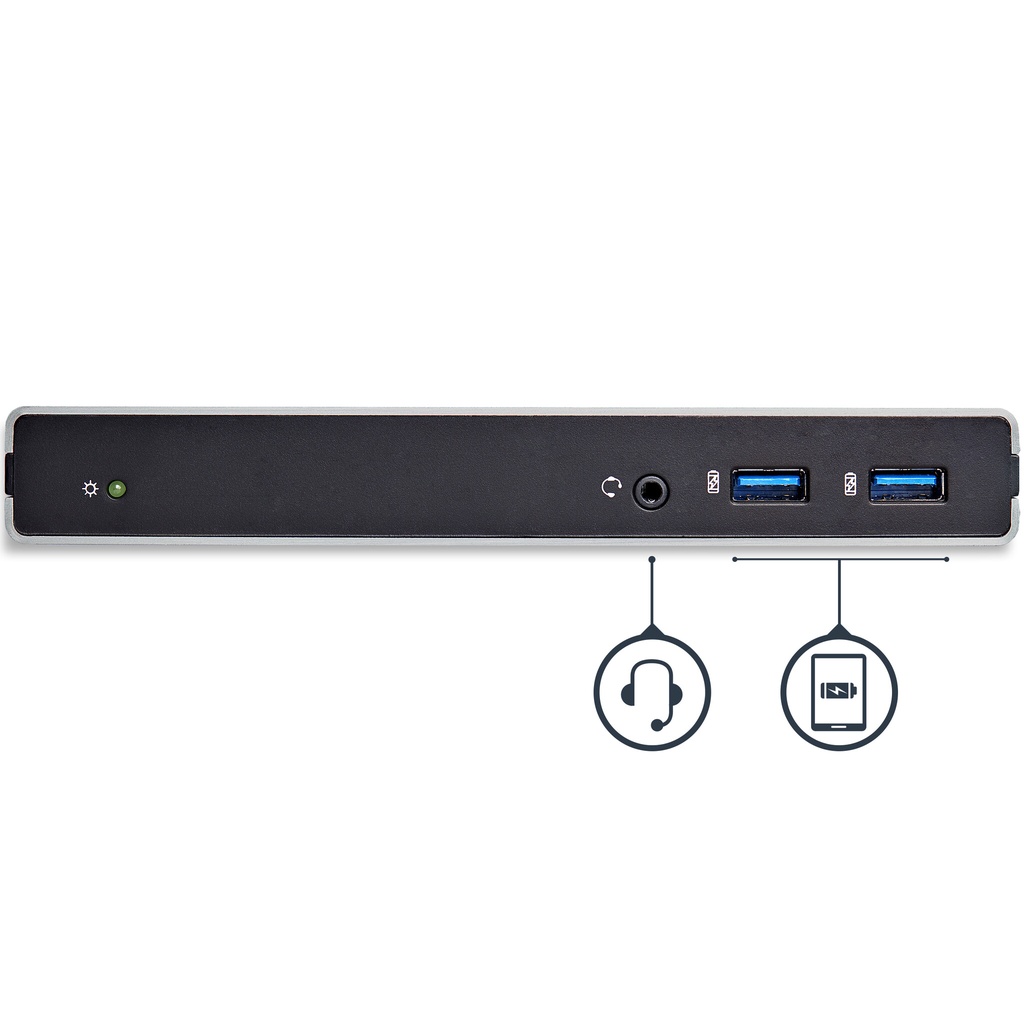

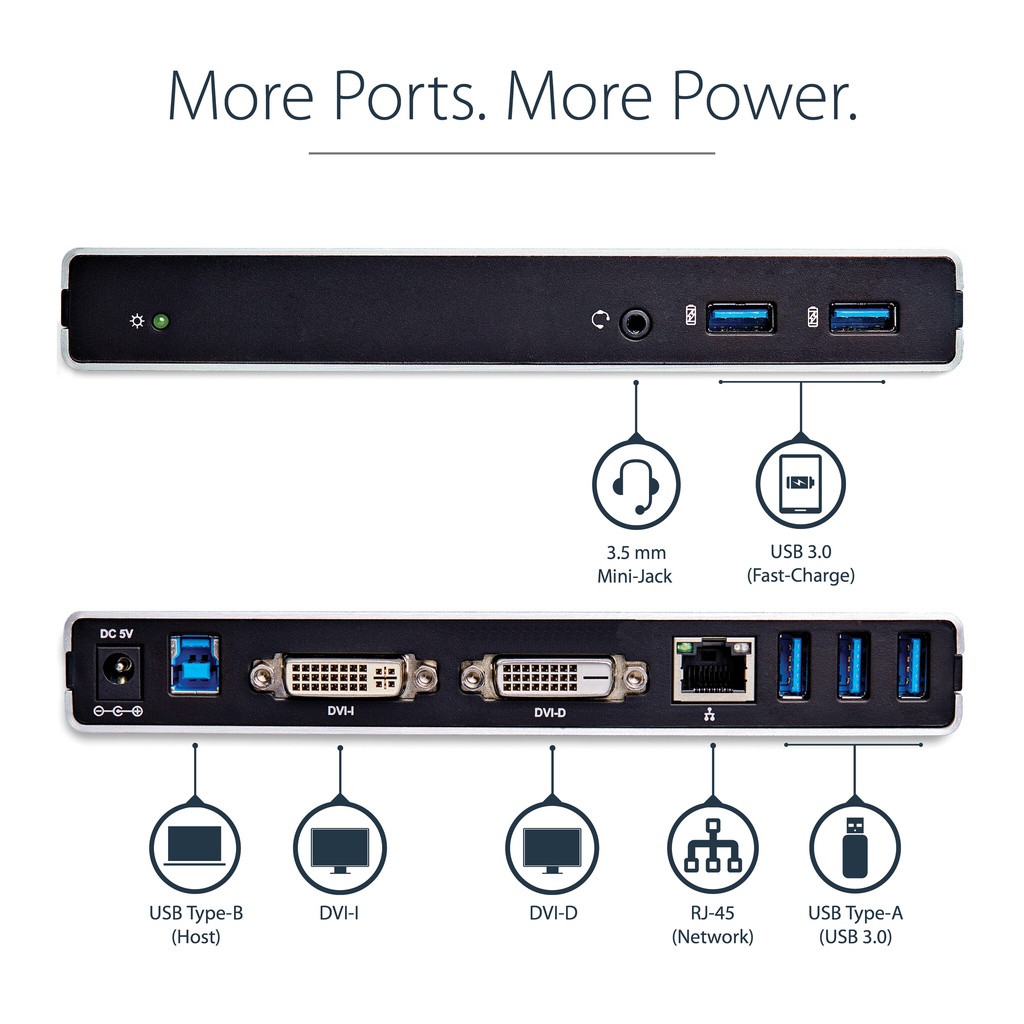

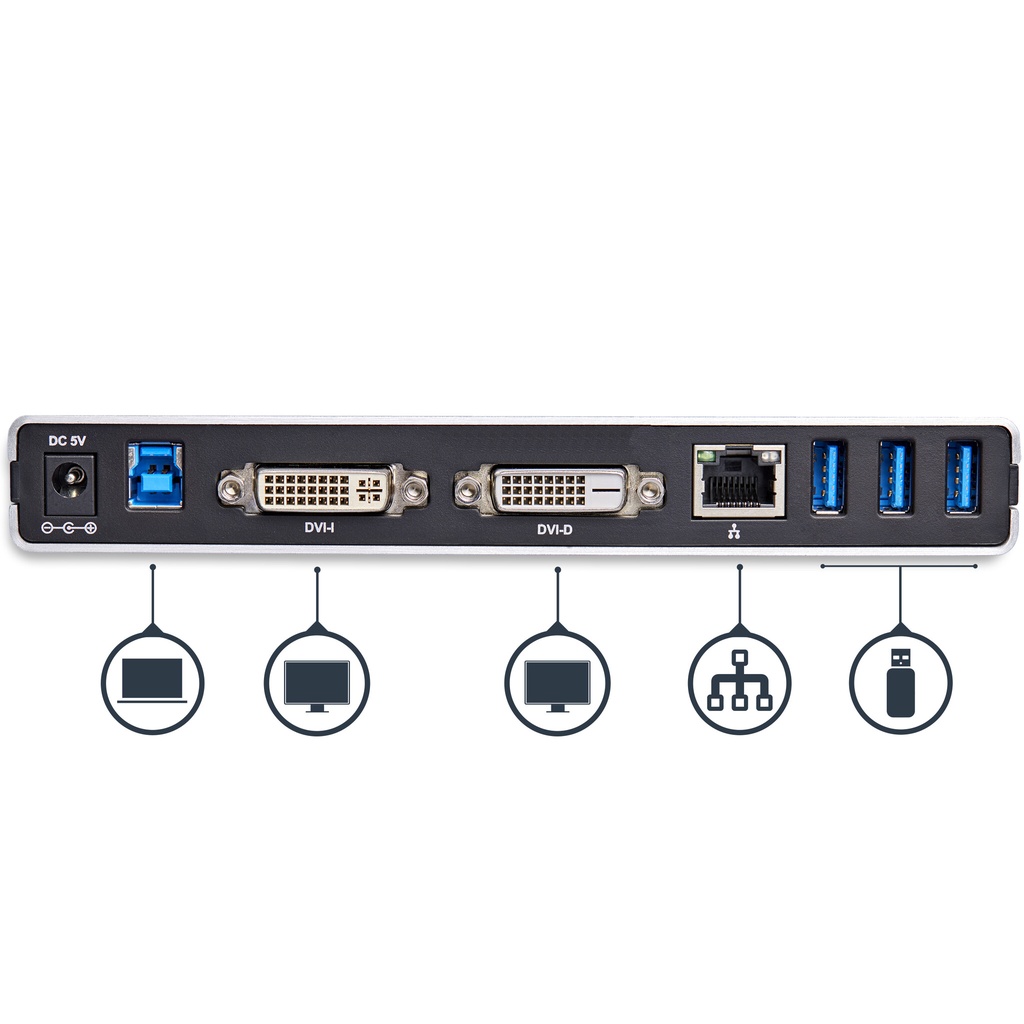

Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.

Save Desktop Space

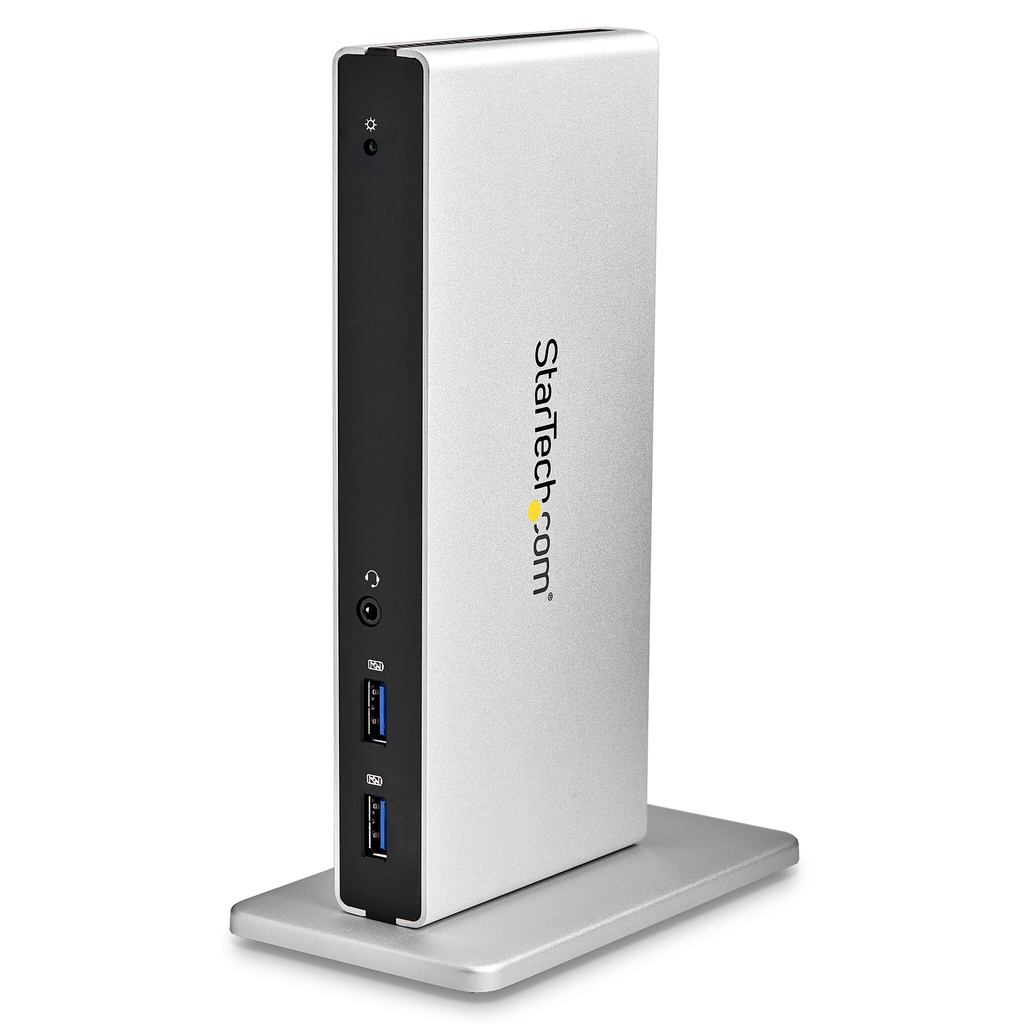

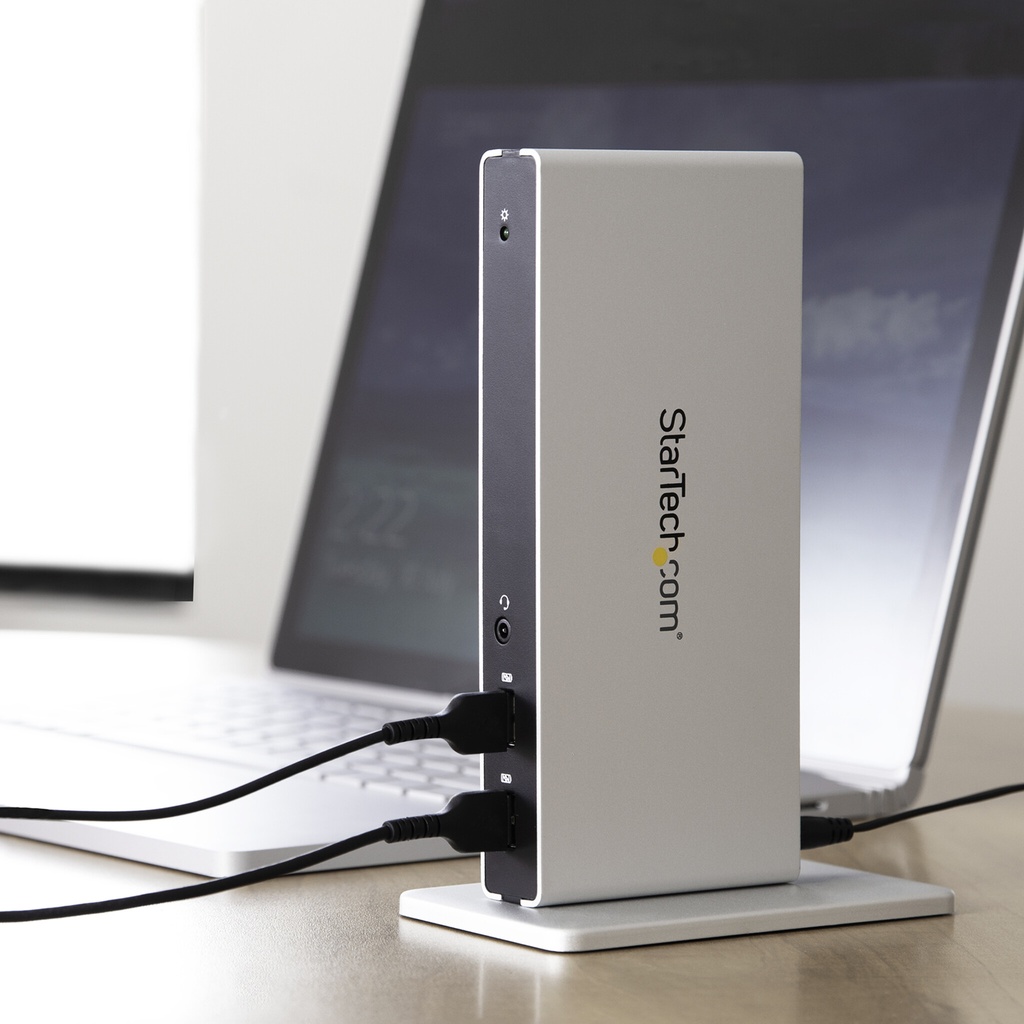

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.

The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

Headphone outputs

1

DVI-I ports quantity

1

Combo headphone/mic port

Yes

Headphone connectivity

3.5 mm

DC-in jack

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Auto MDI/MDI-X

Yes

Full duplex

Yes

Product colour

Black, Silver

Card reader integrated

No

Data transfer rate

5 Gbit/s

LED indicators

Power

Housing material

Aluminium, Plastic

Brand compatibility

Any brand

Certification

CE, FCC, REACH

AC input voltage

100 – 240 V

Input current

0.8 A

Output voltage

5 V

Output current

4 A

Power consumption (typical)

20 W

Power plug type

Type M

Compatible power plug types

AU, EU, UK, US

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Mac compatibility

Yes

Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Other operating systems supported

ChromeOS

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-20 – 60 °C

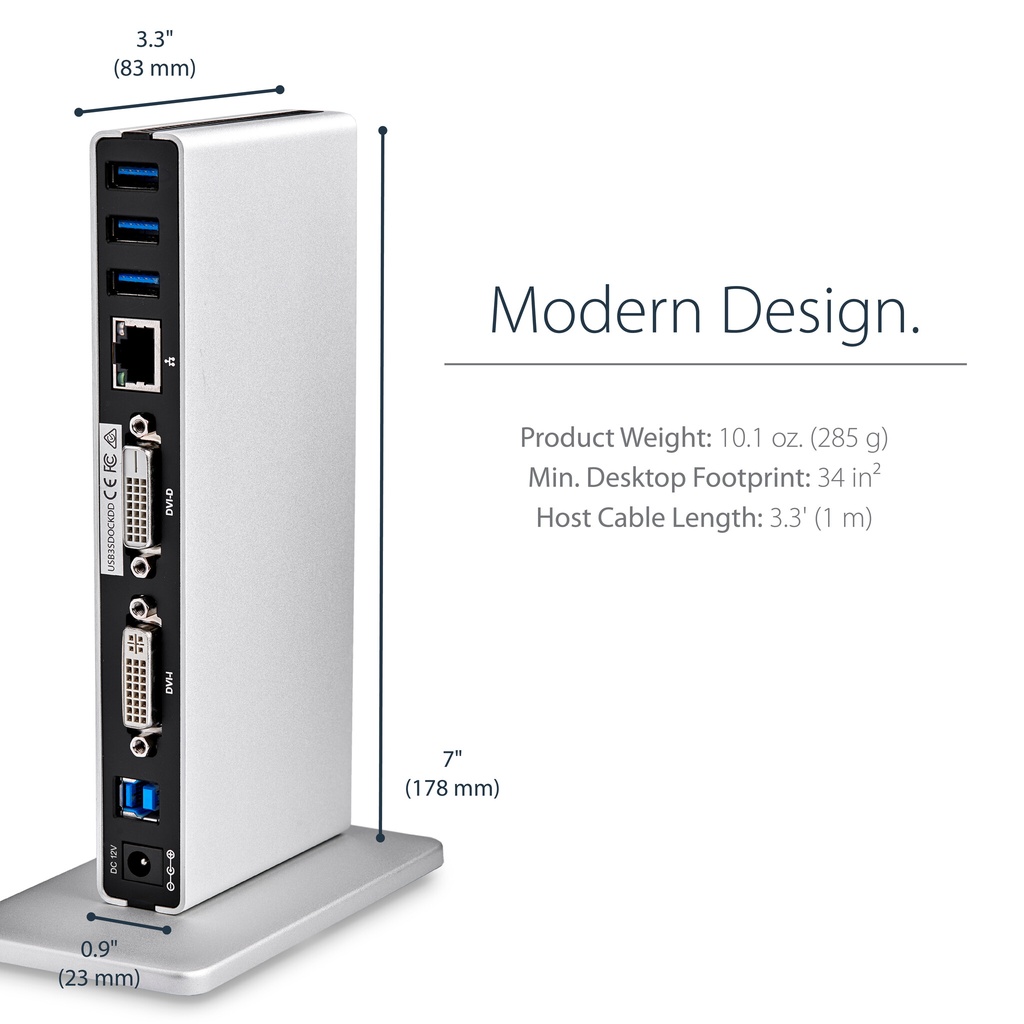

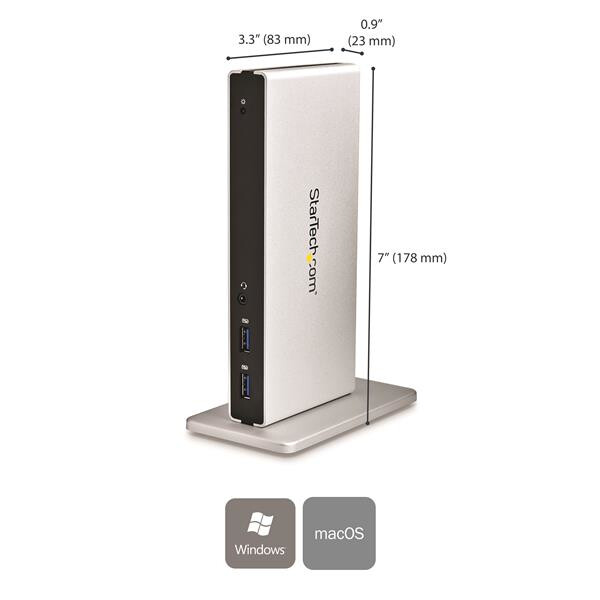

Width

23 mm

Depth

83 mm

Height

178 mm

Weight

285 g

Package width

255 mm

Package depth

186 mm

Package height

95 mm

Package weight

1.02 kg

Cables included

USB

AC adapter included

Yes

Manual

Yes

Drivers included

Yes

Interface adapters included

DVI-I male – HDMI female, DVI-I male – VGA female

Chipset

DisplayLink – DL-3900, Genesys Logic – GL3520

DVI-D ports quantity

1

Maximum analog resolution

2048 x 1152 pixels

Operating relative humidity (H-H)

5 – 85%

USB data transfer rates

12,480,5000 Mbit/s

Wake-on-LAN ready

Yes

Charging function

Yes

UASP support

Yes

Rubber feet

Yes

Power source type

AC

Stand included

Yes

Cable length

1 m
