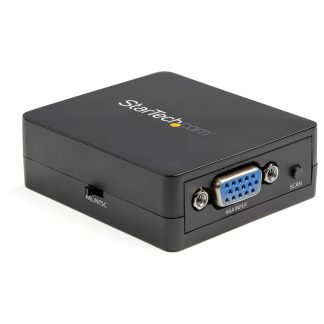

StarTech.com Composite to VGA Video Converter – NTSC and PAL – 1920×1200 – Composite Video Scaler – S Video to VGA Adapter

$90.88 (Incl. GST)

StarTech.com Composite to VGA Video Converter – NTSC and PAL – 1920×1200 – Composite Video Scaler – S Video to VGA Adapter (VID2

In stock

SKU: STARTECH.COM_VID2VGATV3 Category:

Print

Description

StarTech.com Composite to VGA Video Converter – NTSC and PAL – 1920×1200 – Composite Video Scaler – S Video to VGA Adapter. Converter type: Active video converter, Product colour: Black, Housing material: Plastic. Maximum video resolution: 1920 x 1200 pixels, Video resolutions: 800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200, Maximum refresh rate: 60 Hz. Host interface: Composite + S-Video, Output interface: VGA. Width: 58 mm, Depth: 66 mm, Height: 20 mm. Cables included: USB, Package width: 113 mm, Package depth: 150 mm

Composite Video Scaler | On-Screen Display

This composite to VGA video converter provides a simple way to convert and scale composite and S-Video signals to VGA output, for use with computer monitors, projectors or HDTV sets.

Hassle-Free Setup and Easy to Use

Equipped with an on-screen display (OSD) menu and a toggle switch for simple configuration and selection of your video output settings, this compact S-Video to VGA video converter installs quickly and easily, for a true plug-and-play experience.

Save on Upgrade Costs

By using this AV to VGA adapter you’ll be able to continue using your legacy equipment (VCR, DVD player, etc.) with your VGA display or monitor, ultimately saving the costs of upgrading your equipment. It’s ideal for boardroom settings, medical imaging and watching old home videos on your VGA display or new HDTV.

Crystal-Clear Picture Quality

The AV to VGA converter features an integrated video scaler circuit that dynamically converts the S-Video or composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. It supports resolutions up to 1920×1200 @ 60Hz, so you can enjoy high-definition video without having to sacrifice picture quality.

VID2VGATV3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

– Convert and scale S-Video and composite input to VGA output
– Features on-screen display for simple output setting selection
– Supports high-definition resolutions up to 1920×1200 @ 60Hz

Warranty: 2 Years

Additional information

Brand

StarTech.com

Certification

CE, FCC, REACH

Output interface

VGA

Width

58 mm

Depth

66 mm

Height

20 mm

Cooler included

48 g

Cables included

USB

Package width

113 mm

Package depth

150 mm

Package height

28 mm

Package weight

100 g

Maximum video resolution

1920 x 1200 pixels

Host interface

Composite + S-Video

Converter type

Active video converter

Housing material

Plastic

Maximum refresh rate

60 Hz

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-10 – 80 °C

Operating relative humidity (H-H)

5 – 90%

Video resolutions

800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200

Sustainability certificates

RoHS

USB powered

Y

Quick installation guide

Y

Master (outer) case width

327 mm

Master (outer) case length

400 mm

Master (outer) case height

450 mm

Products per master (outer) case

100 pc(s)

Harmonized System (HS) code

85176990
