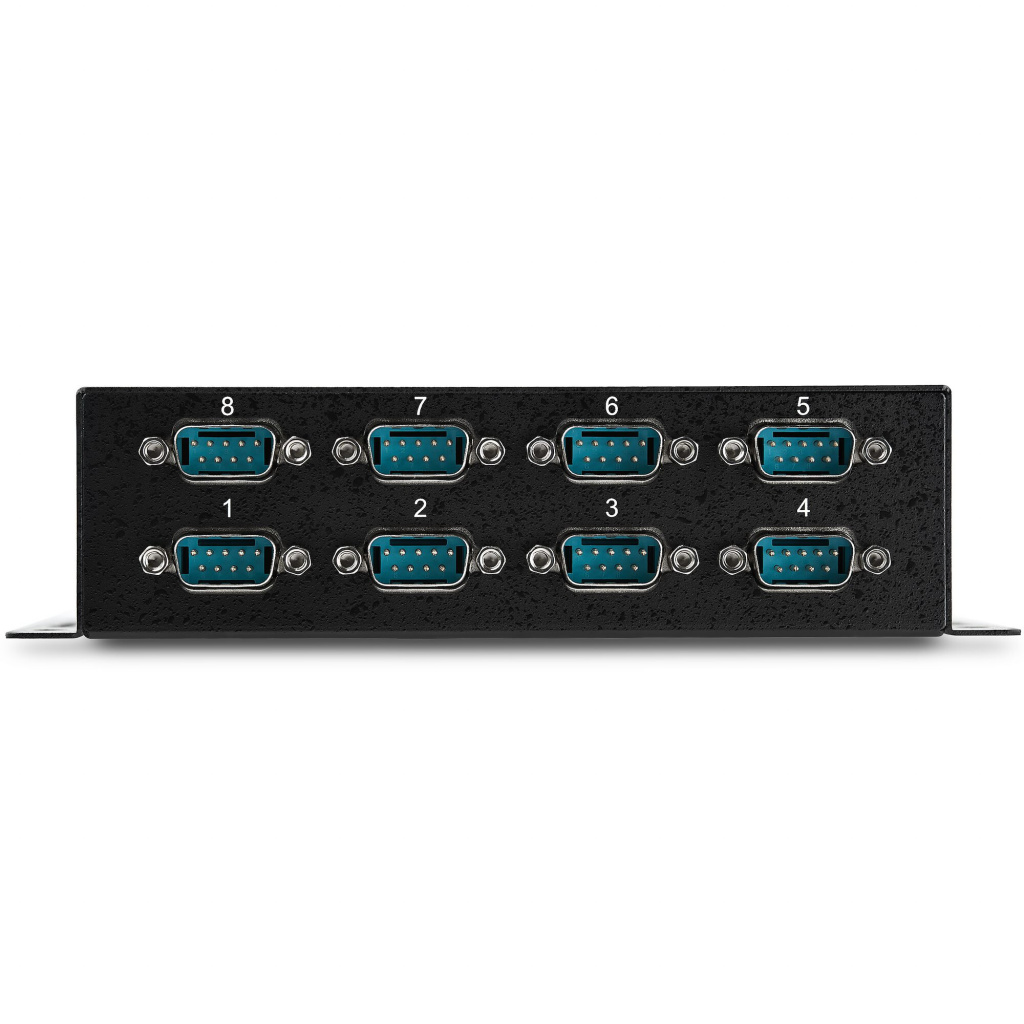

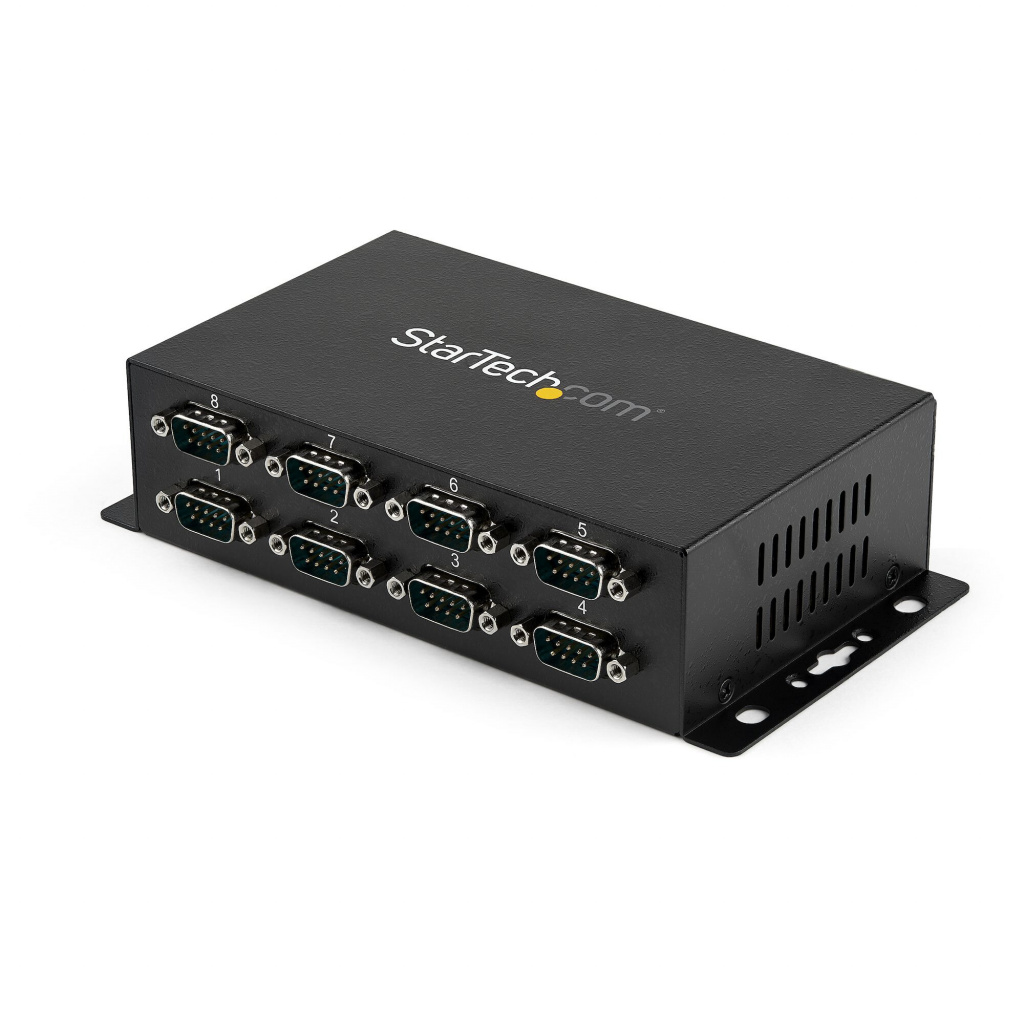

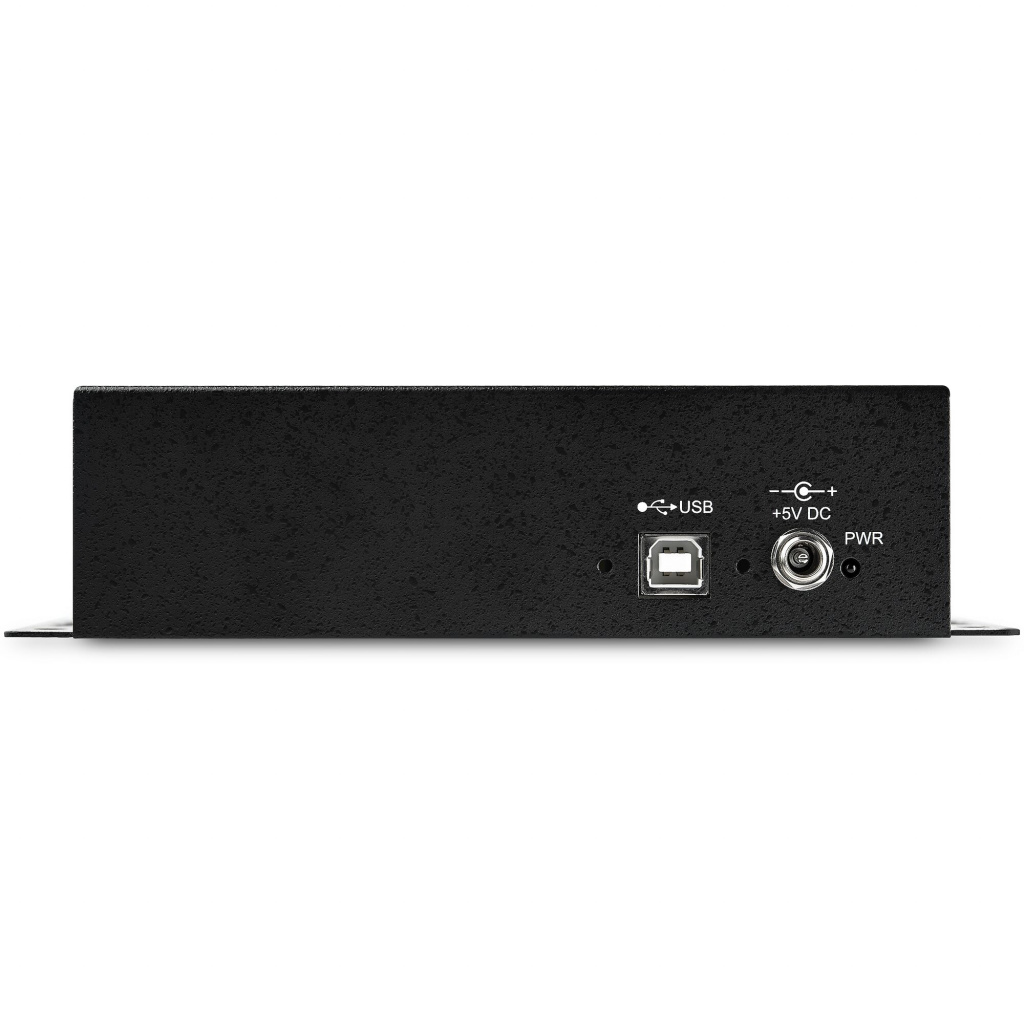

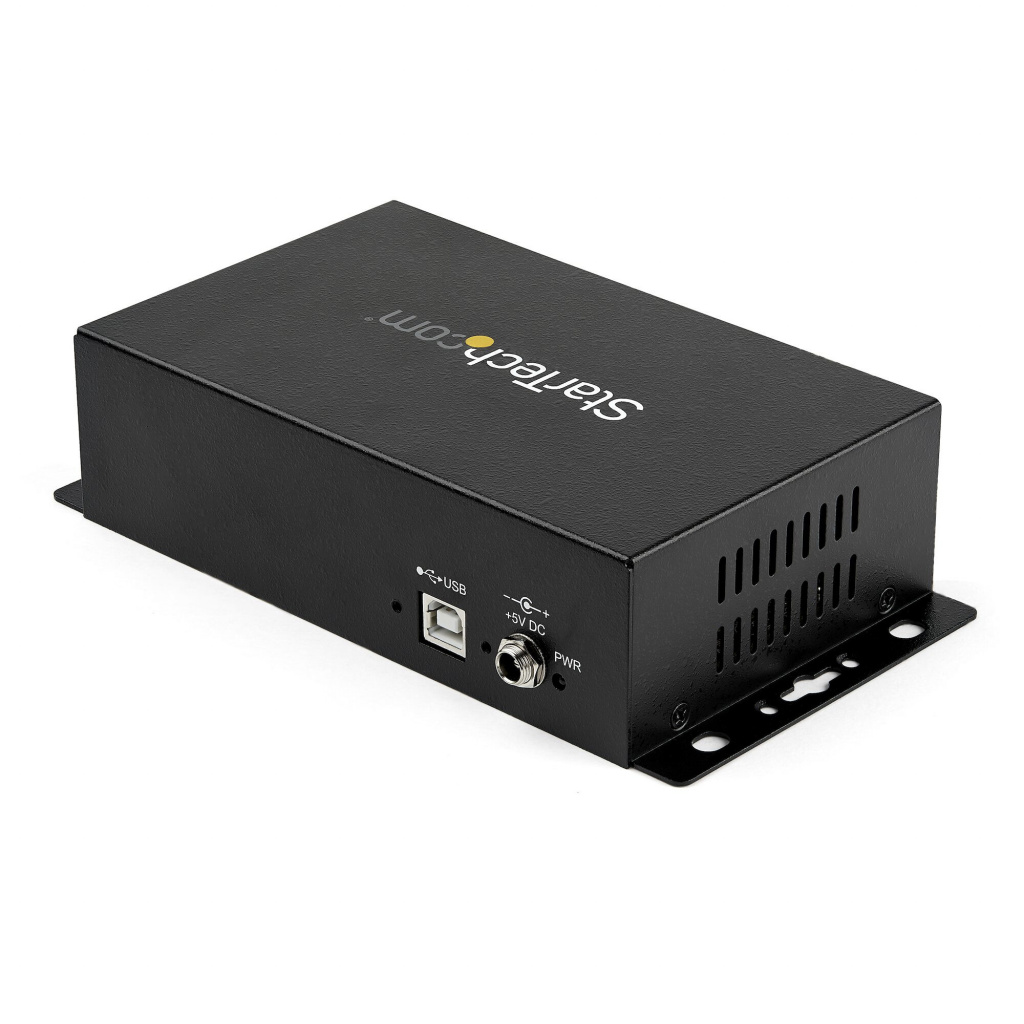

StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable

$380.33 (Incl. GST)

StarTech.com 8-Port USB to RS232 Hub with DIN Rail – DB9 – Industrial USB Serial Adapter – Wall-Mountable USB to Serial RS232 Ad

In stock

SKU: STARTECH.COM_ICUSB2328I Category:

Print

Description

Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB

The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Ports quantity

8
Brand

StarTech.com
Host interface

USB 2.0 Type-B
Hub interfaces

Serial
Product colour

Black
Housing material

Steel
Input voltage

5 V
Input current

0.25 A
Power plug type

Type M
Width

100 mm
Depth

180 mm
Height

43.2 mm
Weight

544 g
Package width

296 mm
Package depth

191 mm
Package height

71 mm
Package weight

862 g
Cables included

USB
Manual

Yes
Operating temperature (T-T)

0 – 55 °C
Mean time between failures (MTBF)

146300 h
Chipset

FTDI – FT232RL
LED indicators

Activity
DIN rail kit included

Yes
Storage temperature (T-T)

-20 – 85 °C
Operating relative humidity (H-H)

5 – 95%
Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
RS-232 ports

8
Linux operating systems supported

Yes
Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Other operating systems supported

Windows XP Embedded
Drivers included

Yes
Data bits

7, 8
Stop bits

1, 2
Parity bit

Even, Mark, No, Odd, Space
FIFO (First In, First Out)

4048 B
Baud rate

921.6 Kbit/s
Card reader integrated

No
USB powered

Yes
Master (outer) case width

405 mm
Master (outer) case length

510 mm
Master (outer) case height

320 mm
Products per master (outer) case

14 pc(s)
Harmonized System (HS) code

84719000
Sustainability compliance

Yes
Compliance certificates

CE, RoHS
