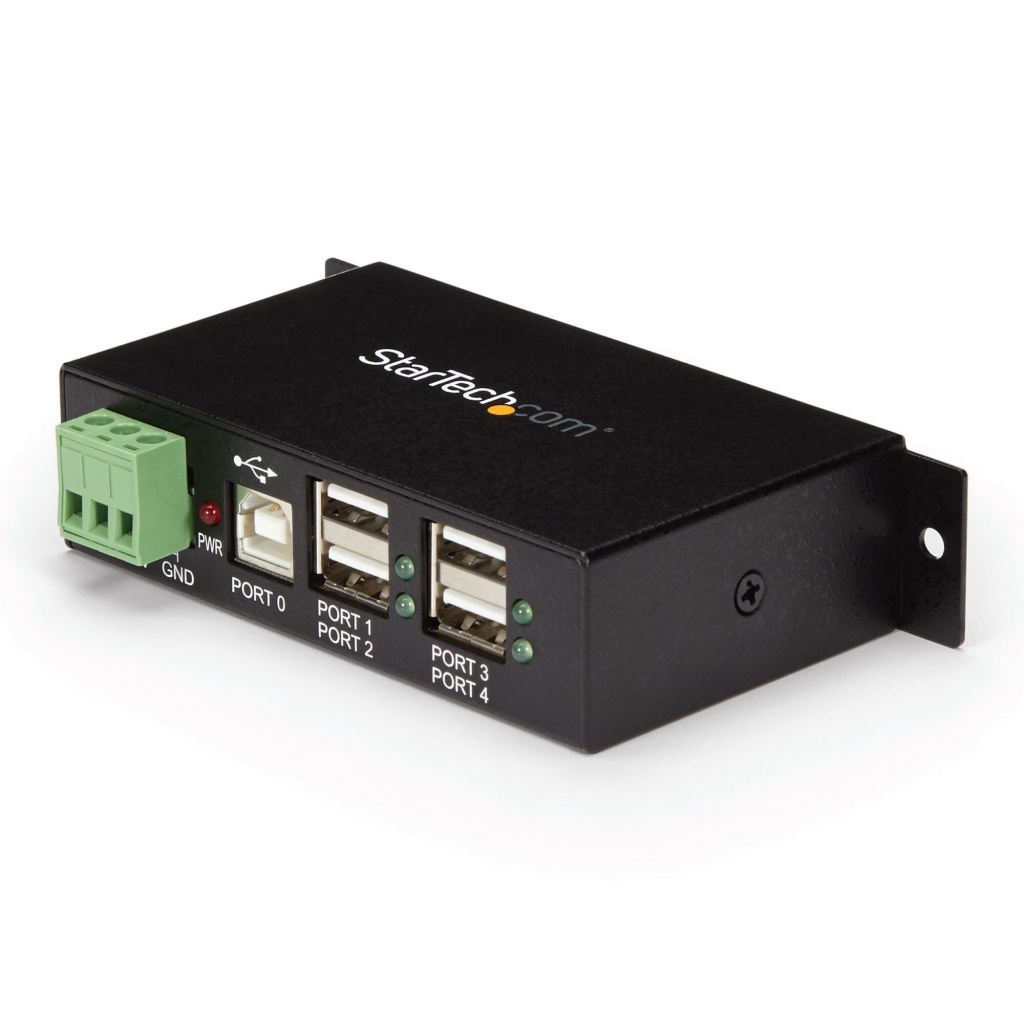

StarTech.com 4-Port USB 2.0 Hub – Metal Industrial USB-A Hub – Din Rail, Wall or Desk Mountable USB Data Hub – TAA Compliant USB

$139.32 (Incl. GST)

StarTech.com 4-Port USB 2.0 Hub – Metal Industrial USB-A Hub – Din Rail, Wall or Desk Mountable USB Data Hub – TAA Compliant USB

In stock

SKU: STARTECH.COM_ST4200USBM Category:

Print

Description

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

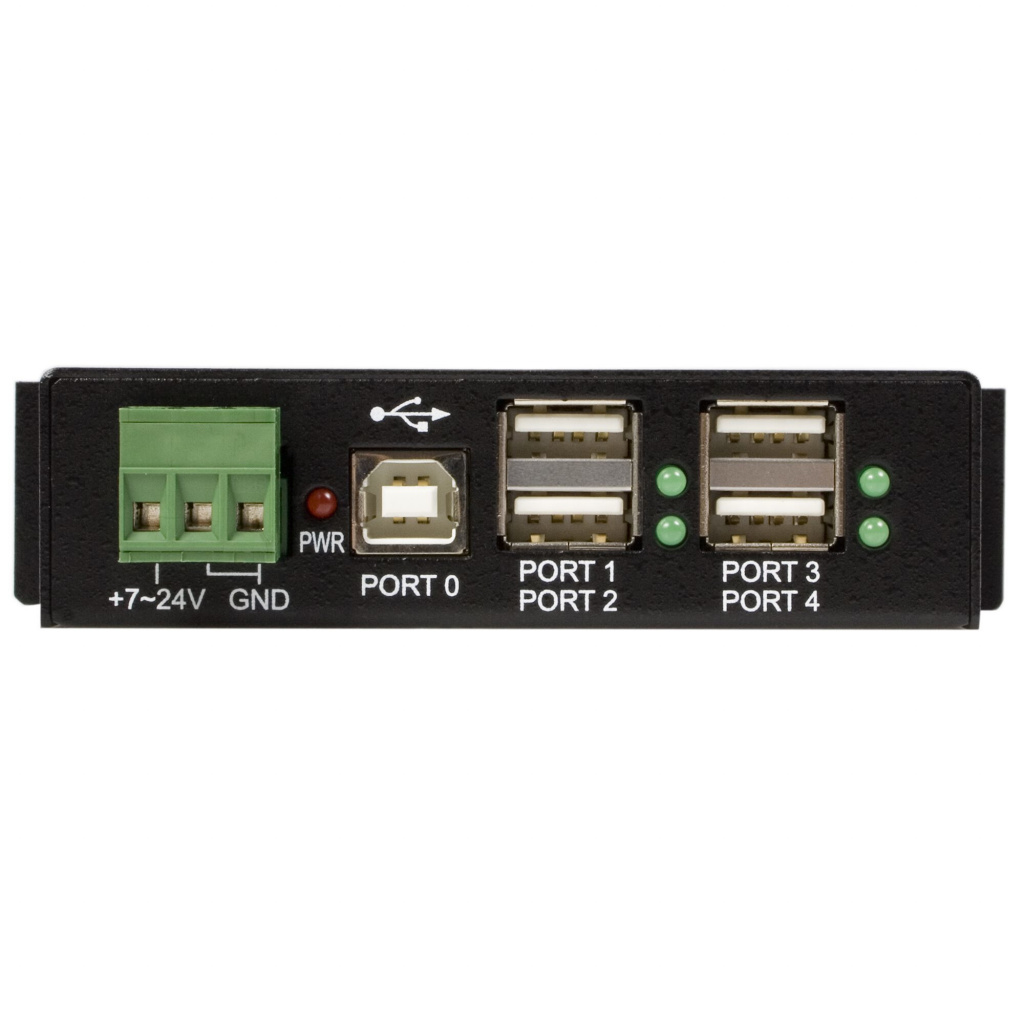

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

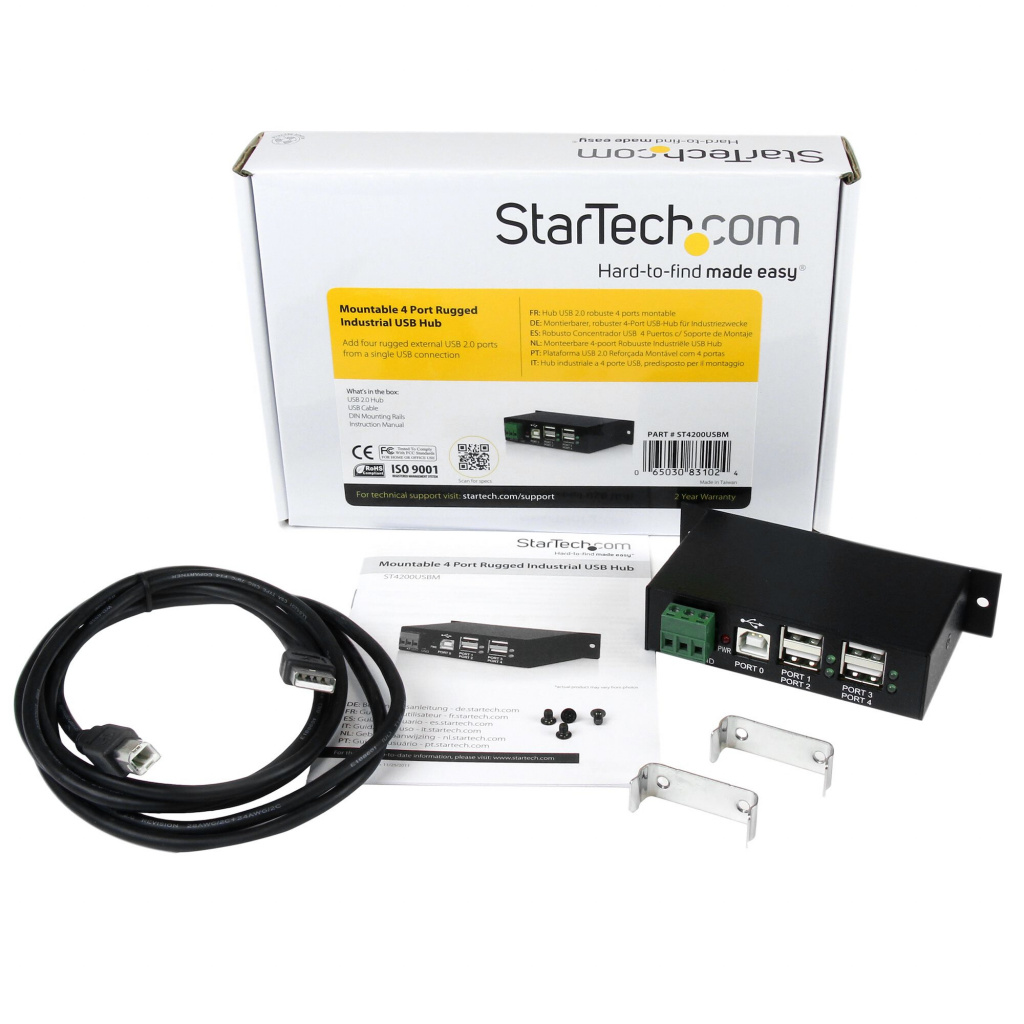

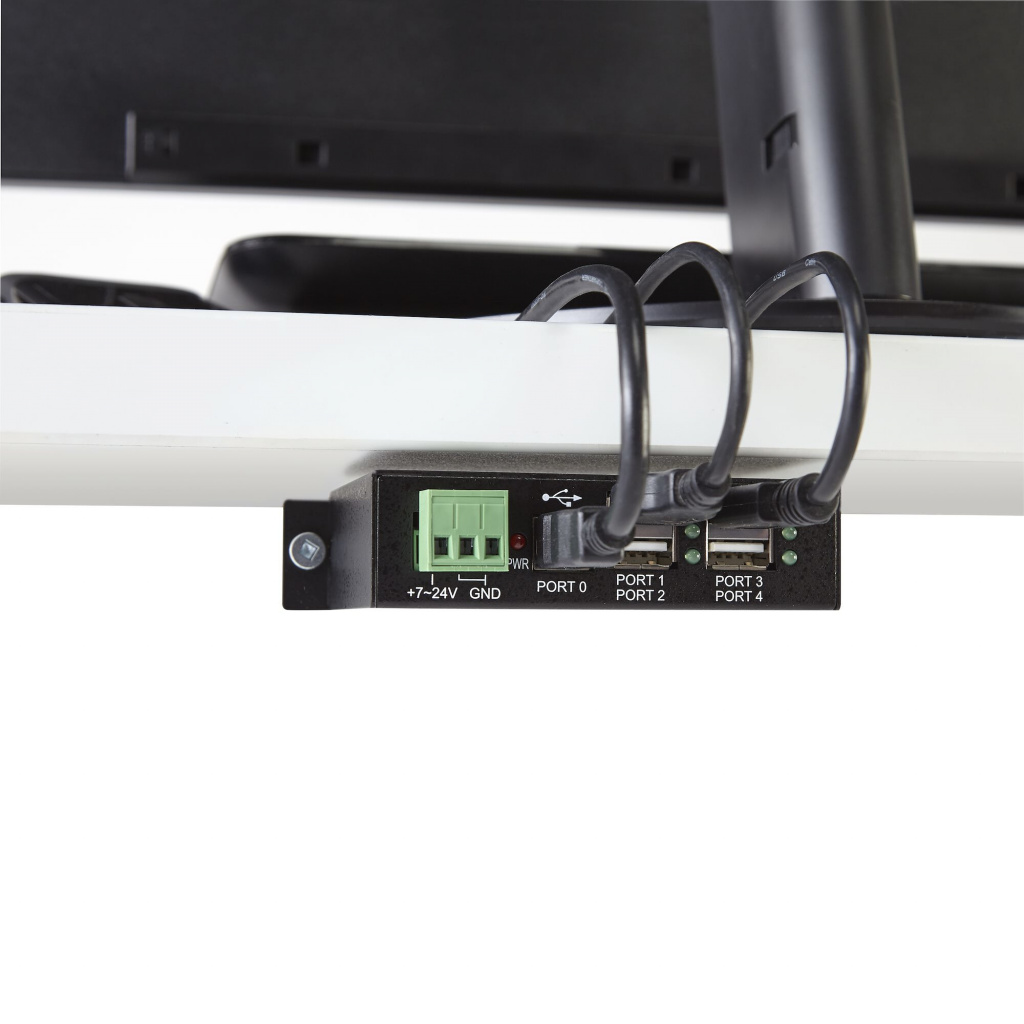

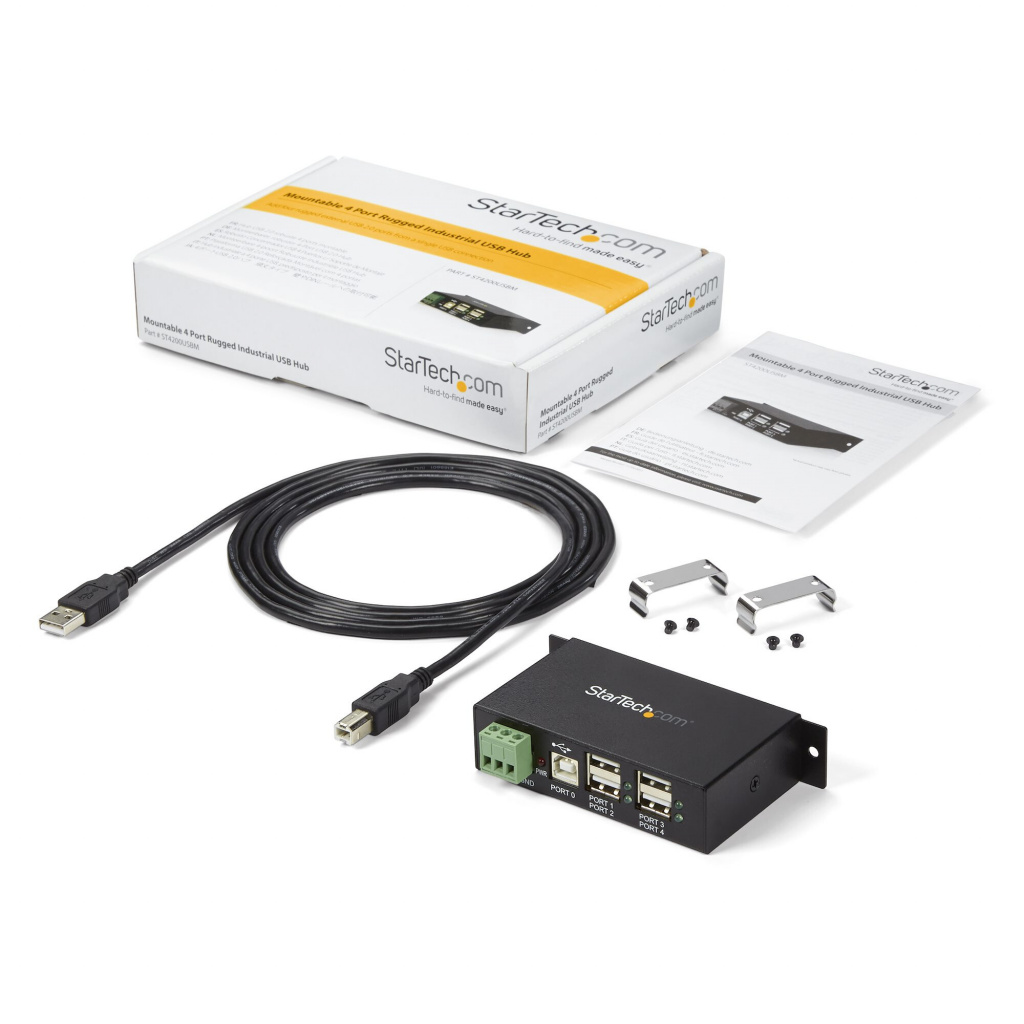

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Ports quantity

4

Brand

StarTech.com

Host interface

USB 2.0 Type-B

Hub interfaces

USB 2.0

USB 2.0 ports quantity

4

Data transfer rate

480 Mbit/s

Product colour

Black

Housing material

Steel

Plug and Play

Yes

Certification

CE, FCC, TAA, RoHS

Input voltage

7 – 24 V

Width

57.3 mm

Depth

114 mm

Height

26 mm

Weight

207 g

Package width

210 mm

Package depth

146 mm

Package height

40 mm

Package weight

400 g

Cables included

USB

Manual

Yes

Operating temperature (T-T)

0 – 55 °C

Mean time between failures (MTBF)

193317 h

Chipset

Renesas/NEC – µPD720114

Terminal block port

Yes

LED indicators

Power

DIN rail kit included

Yes

Storage temperature (T-T)

-20 – 85 °C

Operating relative humidity (H-H)

5 – 95%

Master (outer) case width

447 mm

Master (outer) case length

527 mm

Master (outer) case height

339 mm

Products per master (outer) case

50 pc(s)

Harmonized System (HS) code

84719000
