StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibra

$23.59 (Incl. GST)

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable for Calibrating Projectors, Digital Signage, TVs via Audio Jack (9M351M-RS232-CABLE)

In stock

SKU: STARTECH.COM_9M351M-RS232-CABLE Category:

Print

Description

Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control

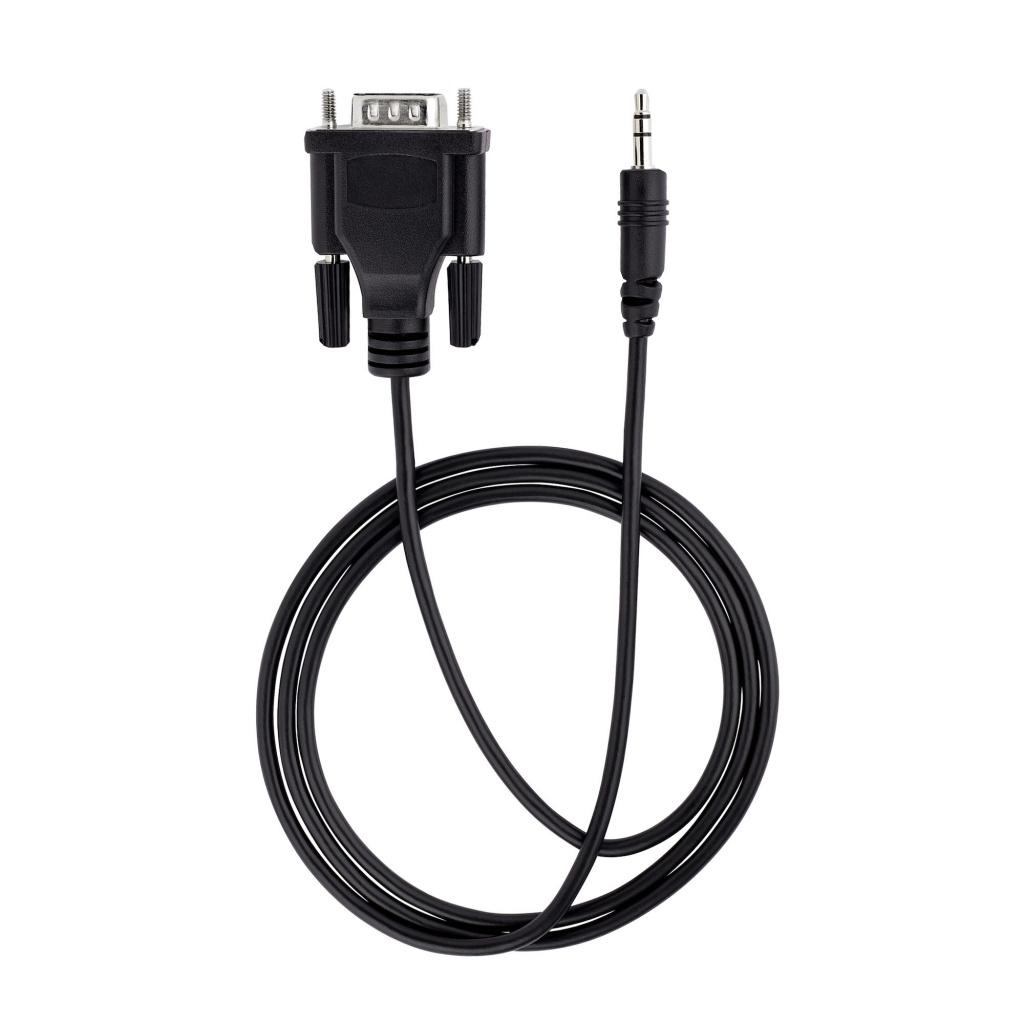

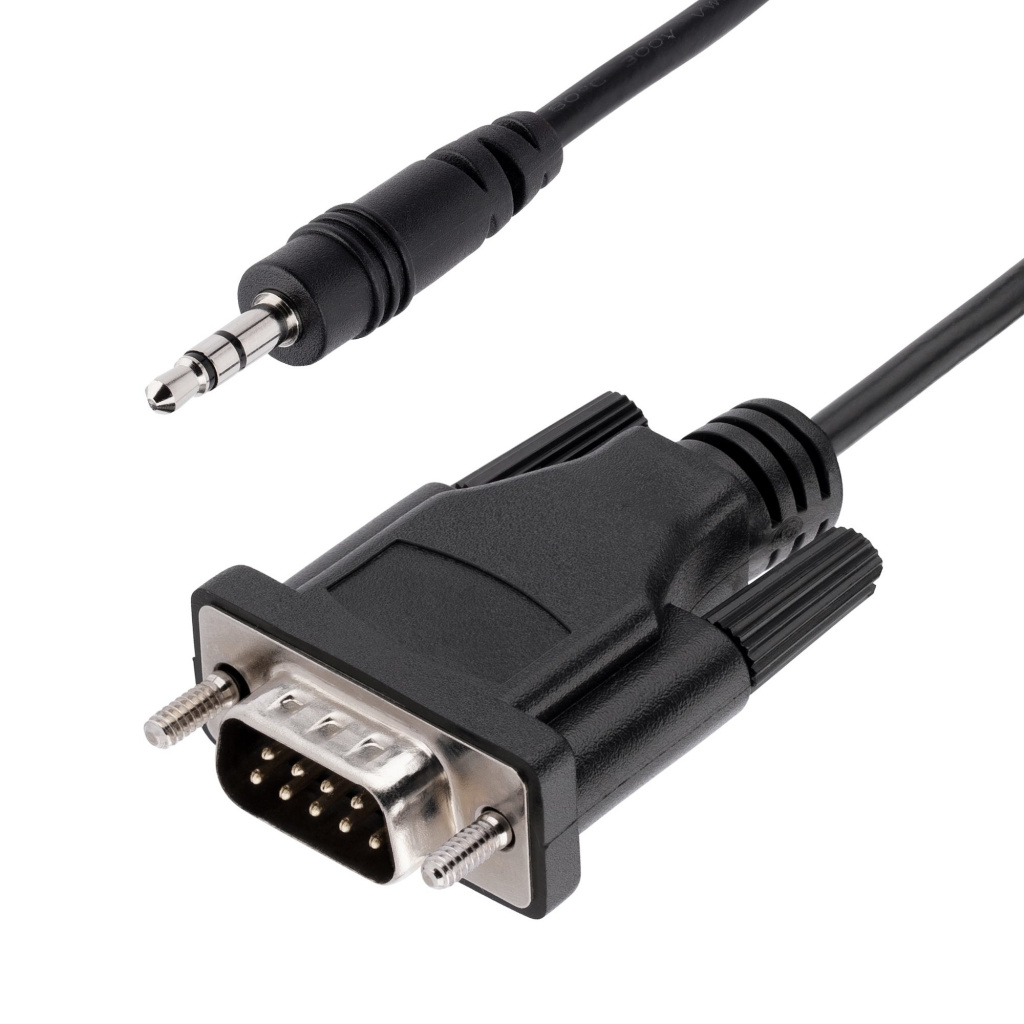

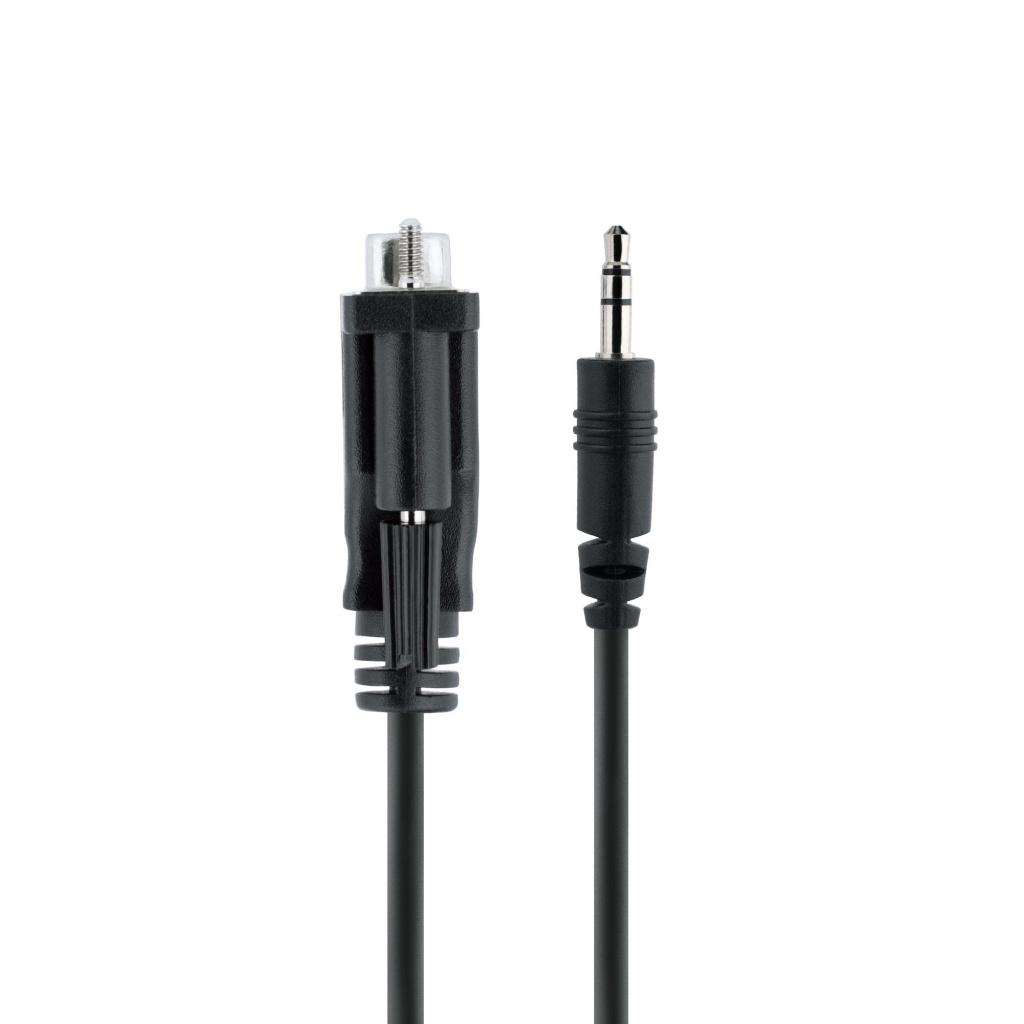

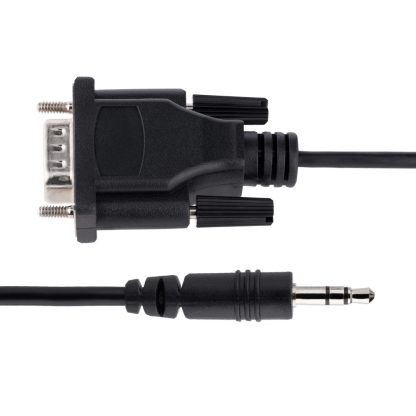

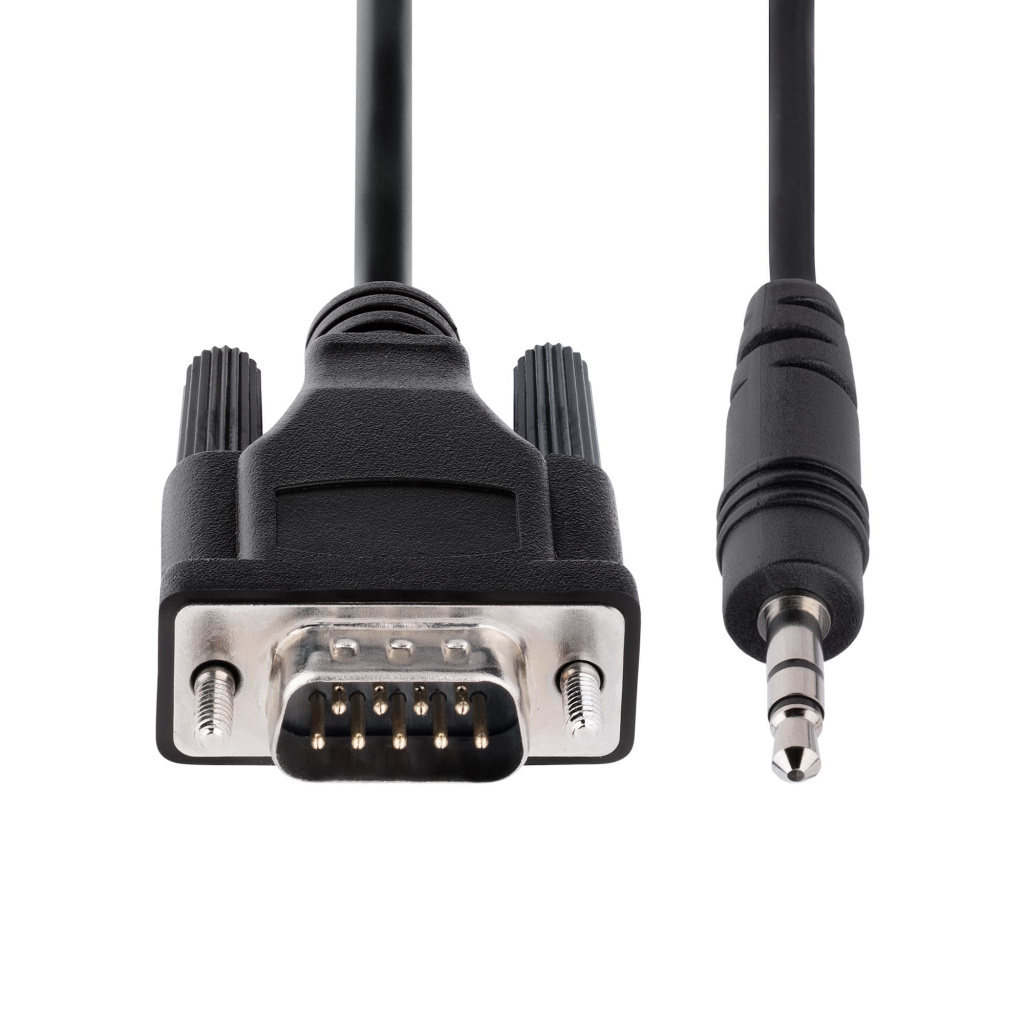

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.

High Quality Construction

The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.

Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.

DB9 Serial to 3.5mm Pinout

DB9 Pin 3 to 3.5mm Tip

DB9 Pin 2 to 3.5mm Ring

DB9 Pin 5 to 3.5mm Sleeve

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Additional information

Connector 1

DB-9

Brand

StarTech.com

Connector 2

3.5mm

Connector 1 gender

Male

Connector 2 gender

Male

Product colour

Black

Package width

128 mm

Package depth

220 mm

Package height

10 mm

Package weight

23 g

Cable length

1 m

Operating temperature (T-T)

-20 – 60 °C

Storage temperature (T-T)

-20 – 60 °C

Relative humidity

30 – 75%

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Products per master (outer) case

200 pc(s)

Master (outer) case width

388 mm

Master (outer) case length

340 mm

Master (outer) case height

310 mm

Cable jacket material

Polyvinyl chloride (PVC)

Sustainability compliance

Yes

AWG wire size

28

Compliance certificates

RoHS

Cable diameter

3.5 mm
