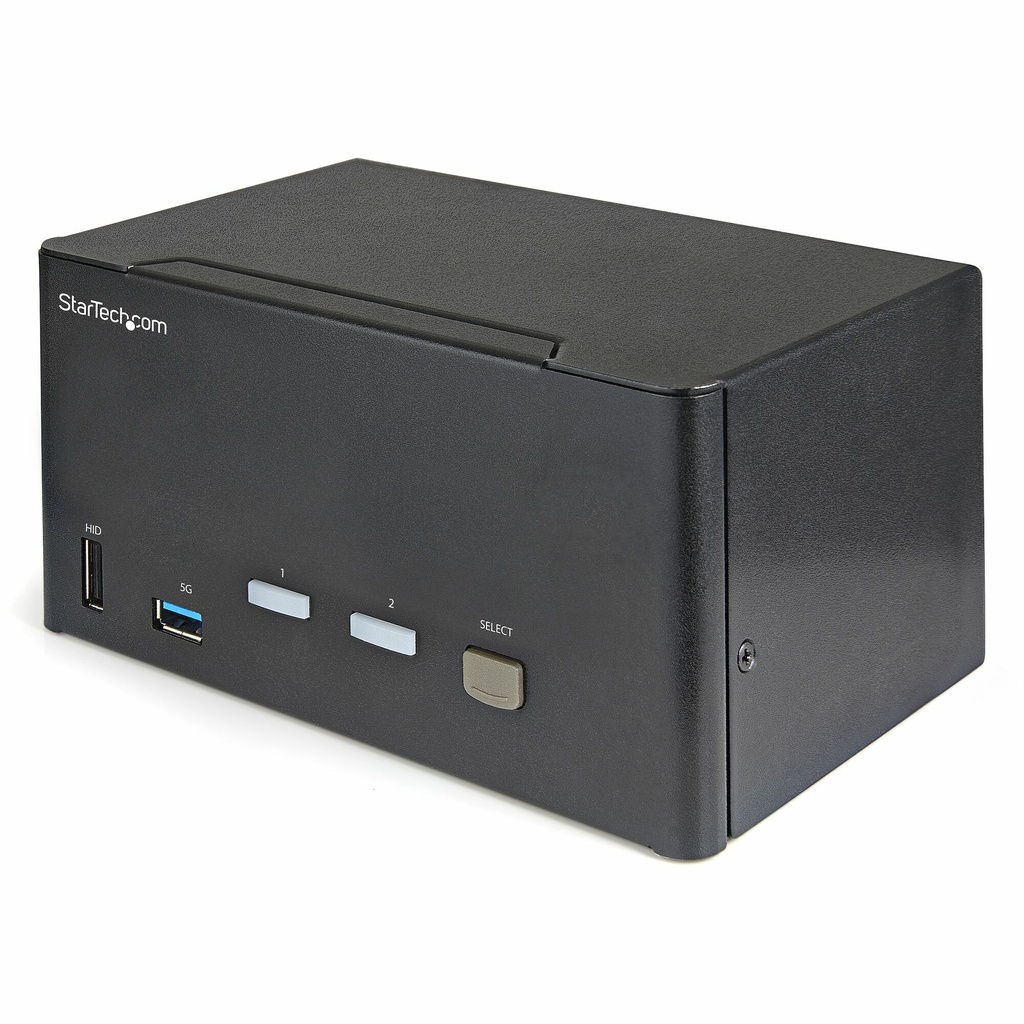

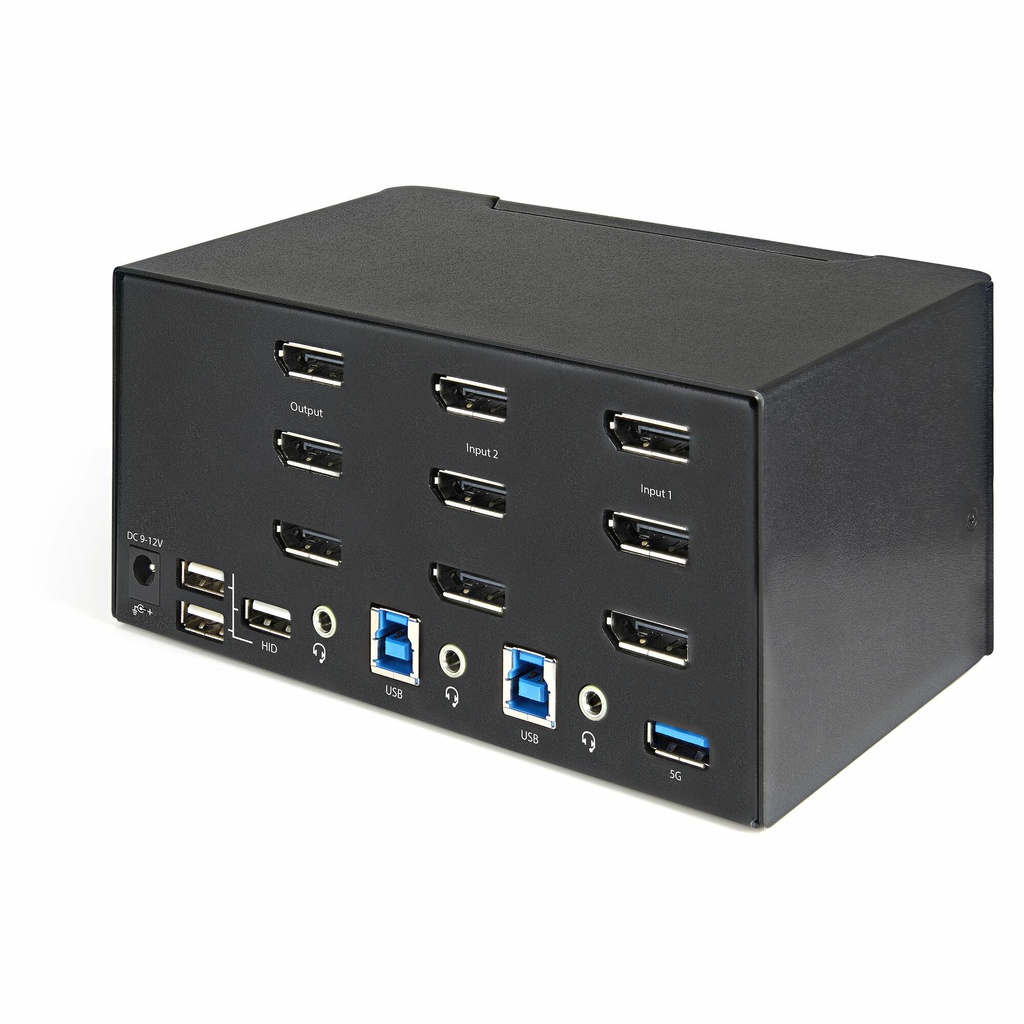

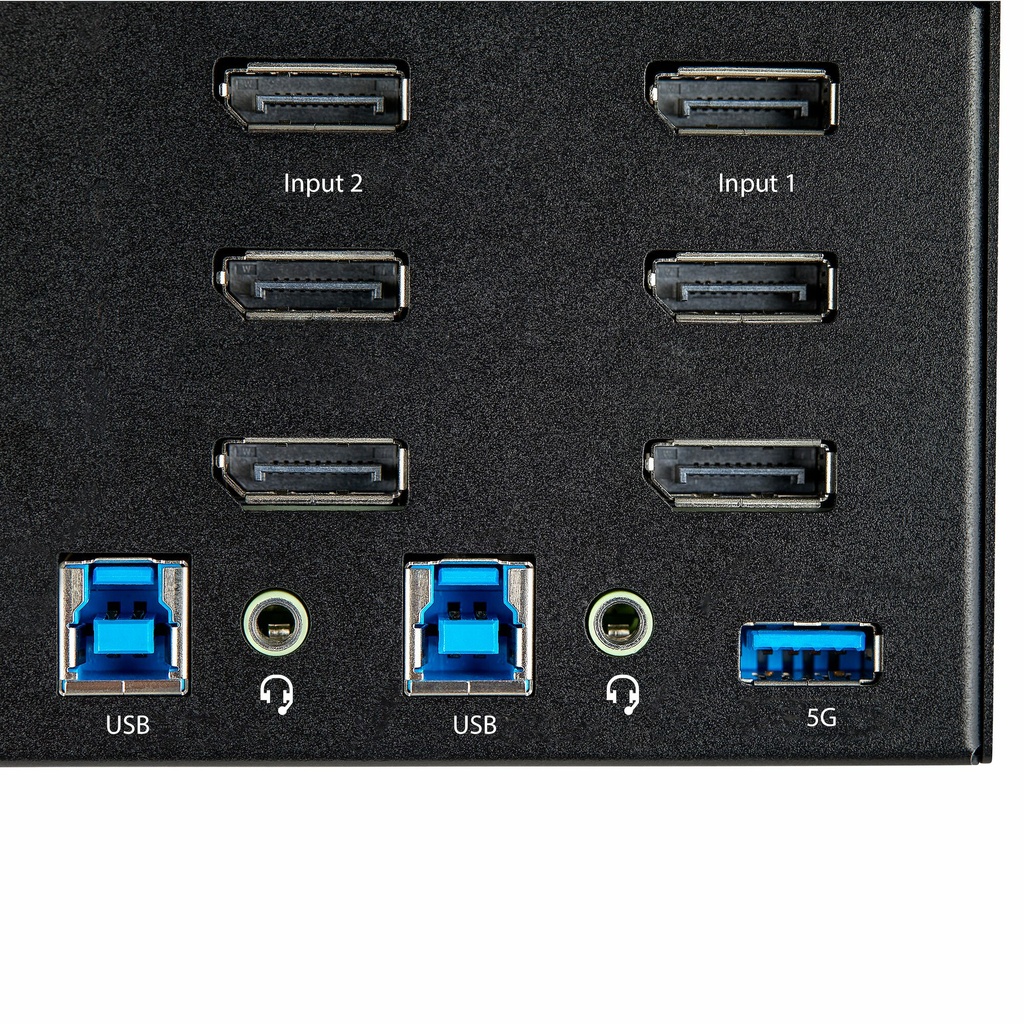

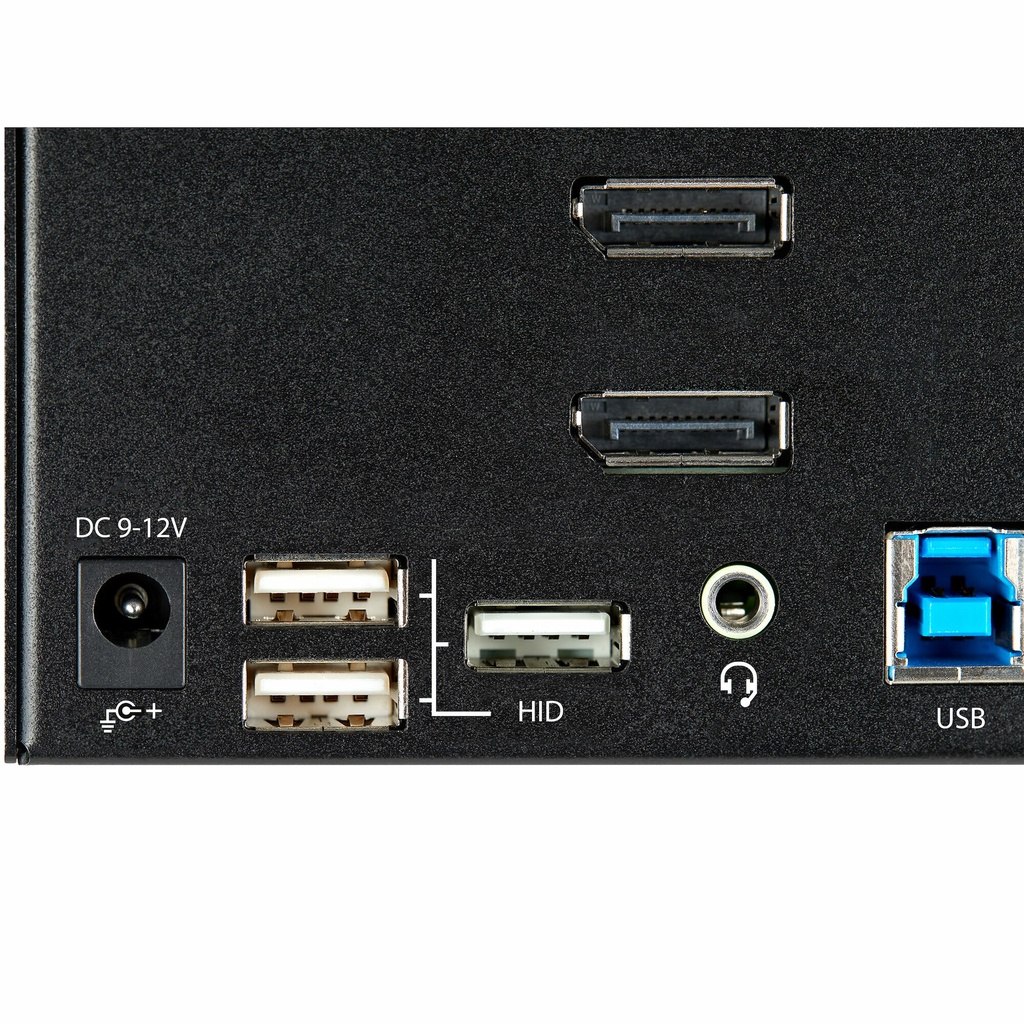

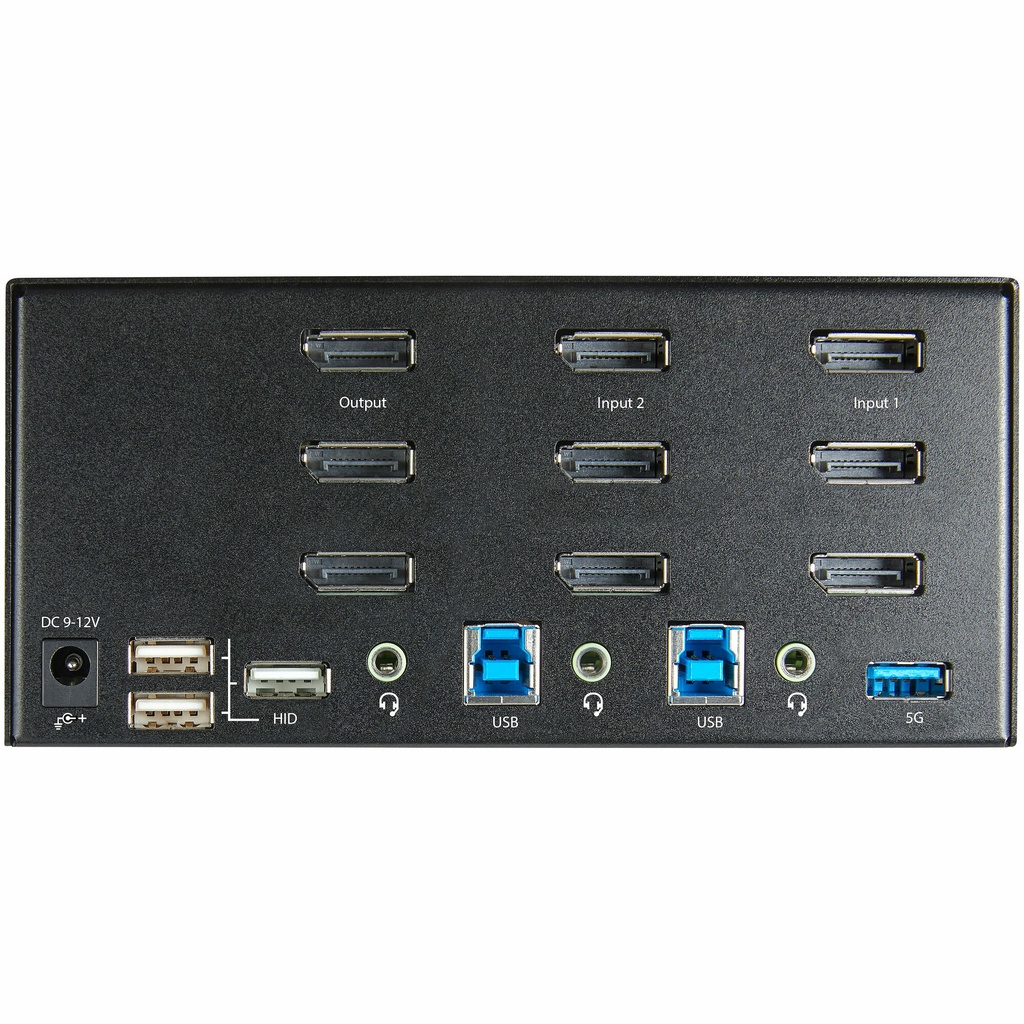

StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch – 4K 60Hz UHD HDR – Desktop DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps)

$1,009.33 (Incl. GST)

StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch – 4K 60Hz UHD HDR – Desktop DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps)

In stock

SKU: STARTECH.COM_SV231TDPU34K Category:

Print

Description

KVM with USB | Triple Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

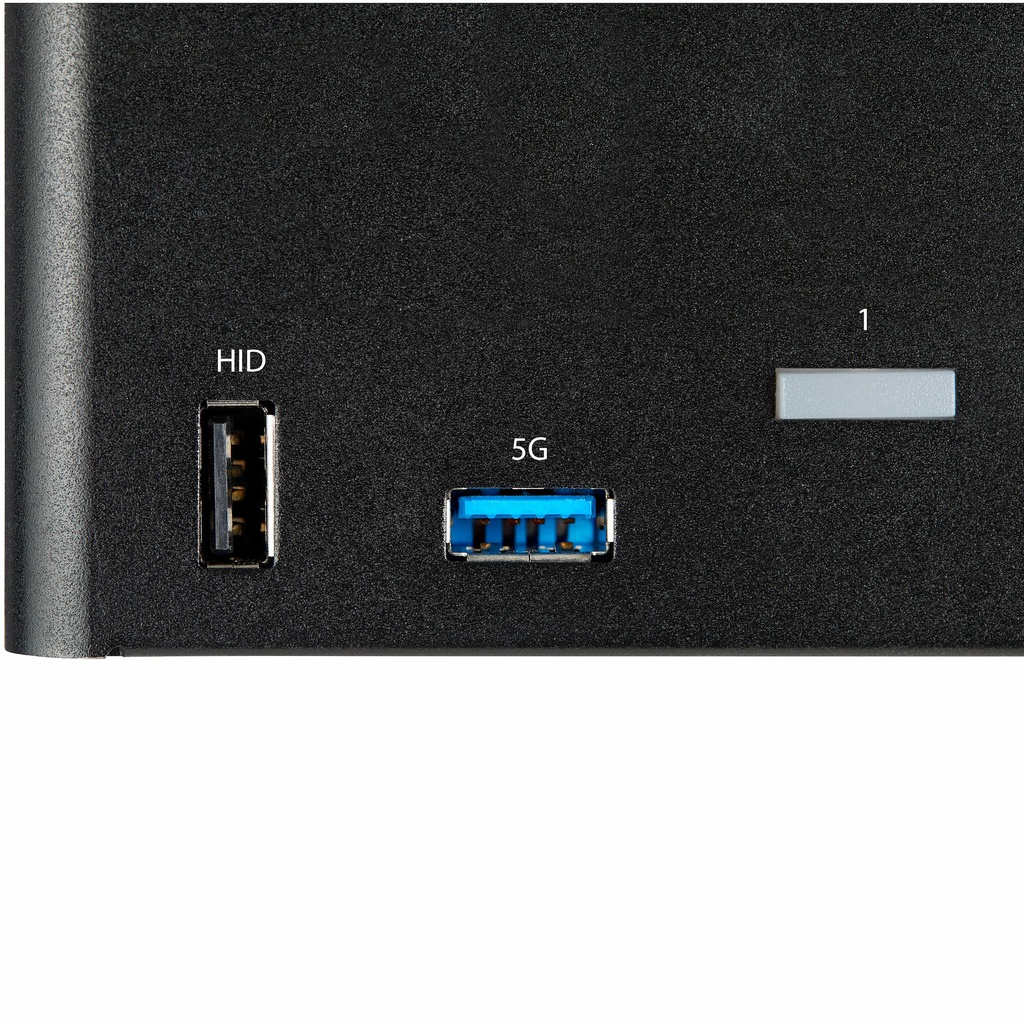

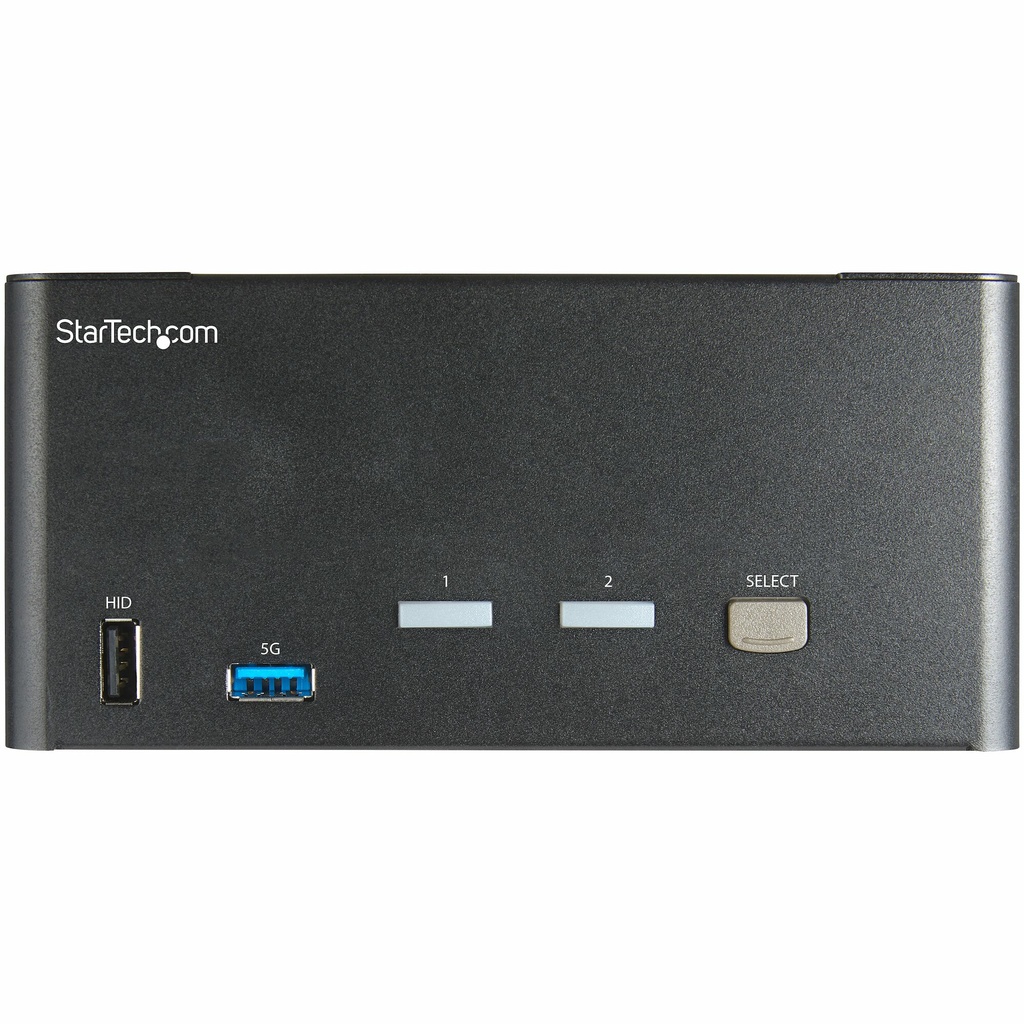

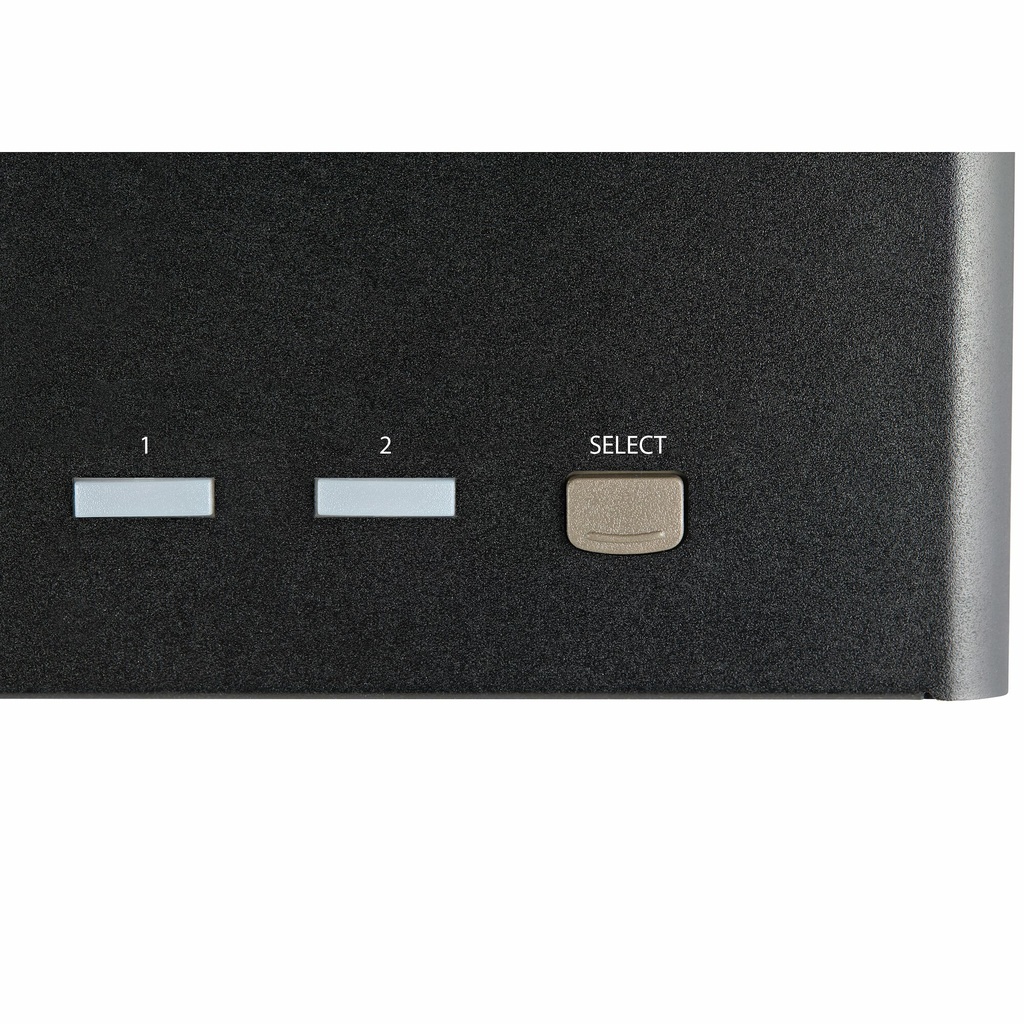

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Keyboard port type

USB

Brand

StarTech.com

Mouse port type

USB

Video port type

DisplayPort

Maximum resolution

3840 x 2160 pixels

Product colour

Black

Certification

CE, RoHS, FCC

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-10 – 60 °C

Operating relative humidity (H-H)

0 – 80%

Weight

850 g

Package width

238 mm

Package depth

189 mm

Package height

91 mm

Number of computers controlled

2

DC-in jack

Yes

Daisy chain

No

LED indicators

Yes

Hot keys

Yes

Built-in display

No

On Screen Display (OSD)

No

Input current

1 A

Output voltage

12 V

Output current

3 A

Power plug type

Type M

Compatible power plug types

AU, EU, JP, UK, US

Width

160 mm

Depth

100 mm

Height

98 mm

IP control

No

Headphone outputs

3

Console ports

3.5mm headphone, DisplayPort, USB A

Audio connections

Yes

Housing material

Steel

Rubber feet

Yes

Console USB ports quantity

4

Mean time between failures (MTBF)

156000 h

Power consumption (typical)

36 W

HDCP

Yes

HD type

4K Ultra HD

USB hub

Yes

Audio channels

5.1

Push button

Yes

DisplayPorts quantity

9

Quick installation guide

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2

DisplayPort version

1.2

Video bandwidth

60 Hz

Scan interval

3,8,15,30 s

Master (outer) case width

397 mm

Master (outer) case length

317 mm

Master (outer) case height

280 mm

Products per master (outer) case

6 pc(s)

Number of displays supported

3

Harmonized System (HS) code

85176200

Input voltage

100 – 240 V
