StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub – TAA

$779.79 (Incl. GST)

StarTech Dual Monitor DisplayPort KVM Switch – 2 Port – USB 2.0 Hub – Audio and Microphone – DP KVM Switch , TAA (SV231DPDDUA)

In stock

SKU: STARTECH.COM_SV231DPDDUA Category:

Print

Description

Control 2 high-resolution dual DisplayPort computers with a single console

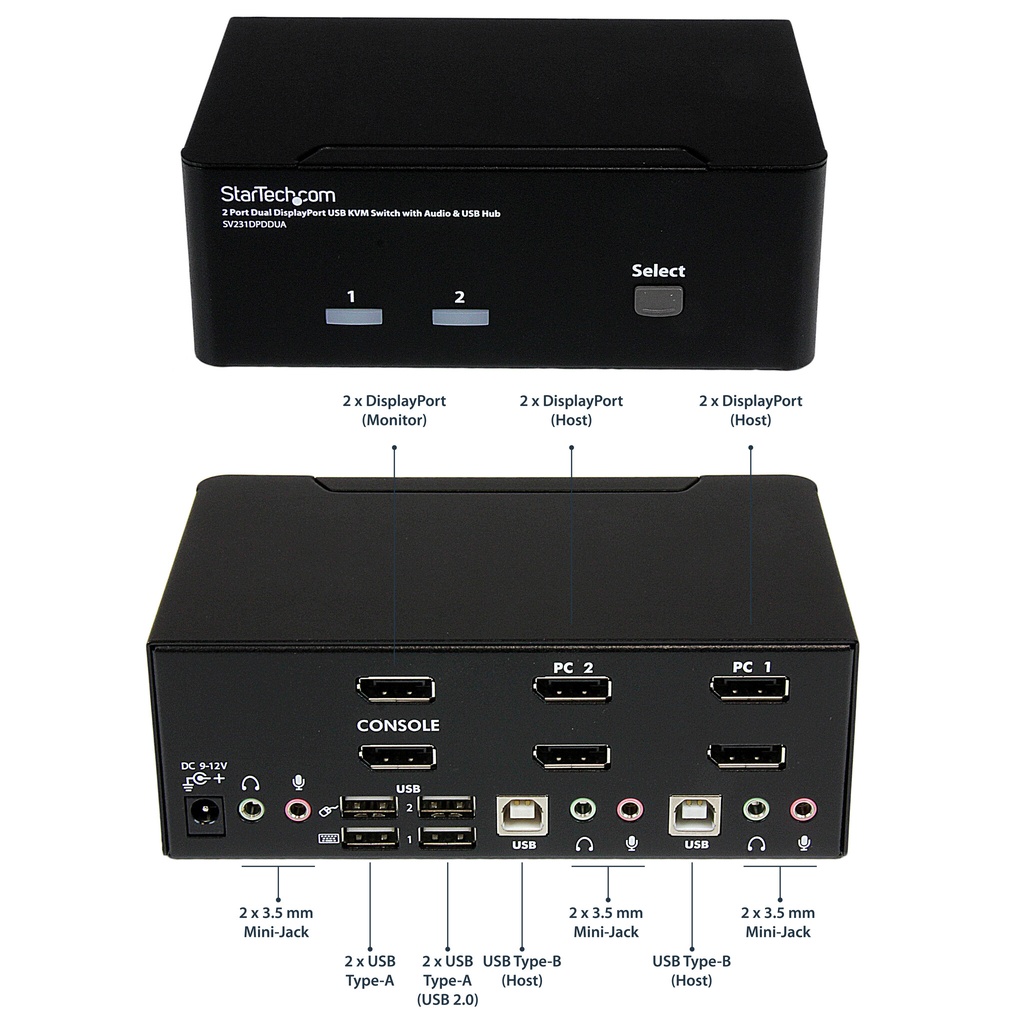

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560×1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840×2400 is supported at reduced refresh rates.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Additional information

Keyboard port type

USB

Brand

StarTech.com

Mouse port type

USB

Video port type

DisplayPort

Maximum resolution

3840 x 2400 pixels

Rack mounting

No

Product colour

Black

Certification

CE, FCC, REACH, TAA

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

20 – 60 °C

Operating relative humidity (H-H)

0 – 80%

Weight

734 g

Package weight

1.19 kg

Package width

252 mm

Package depth

188 mm

Package height

100 mm

Number of computers controlled

2

DC-in jack

Yes

Ethernet LAN

No

Hot-Plug support

Yes

Daisy chain

No

Number of users

1 user(s)

LED indicators

Yes

Hot keys

Yes

Built-in display

No

On Screen Display (OSD)

No

Input current

0.8 A

Output voltage

12 V

Output current

1.5 A

Power plug type

Type M

Compatible power plug types

AU, EU, UK, US

Width

161 mm

Depth

100 mm

Height

57.5 mm

Manual

Yes

Audio support

Yes

IP control

No

Headphone outputs

3

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

USB connector type

USB Type-A

Audio connections

Yes

Number of microphone inputs

3

Housing material

Steel

Console USB ports quantity

2

Power consumption (typical)

18 W

External power adapter

Yes

HD type

4K Ultra HD

DDC2B support

Yes

USB hub

Yes

Audio channels

7.1

Push button

Yes

DisplayPorts quantity

6

Master (outer) case width

403 mm

Master (outer) case length

322 mm

Master (outer) case height

285 mm

Products per master (outer) case

6 pc(s)

Harmonized System (HS) code

85176200
