StarTech.com 16-Port USB-to-Serial Adapter Hub

$1,044.51 (Incl. GST)

StarTech.com 16-Port USB to RS232 Hub – DB9 – Rack Mount FTDI USB to Serial Adapter – USB Serial Adapter – USB to Serial RS232 A

In stock

SKU: STARTECH.COM_ICUSB23216FD Category:

Print

Description

StarTech.com 16-Port USB-to-Serial Adapter Hub. Host interface: USB 2.0 Type-B, Hub interfaces: Serial. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Power consumption (max): 36 W, Input voltage: 100 – 240 V, Input current: 1.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High…, Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows…. Width: 120 mm, Depth: 430 mm, Height: 45 mm

Here’s an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.

Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.

Meets the demands of industrial environments

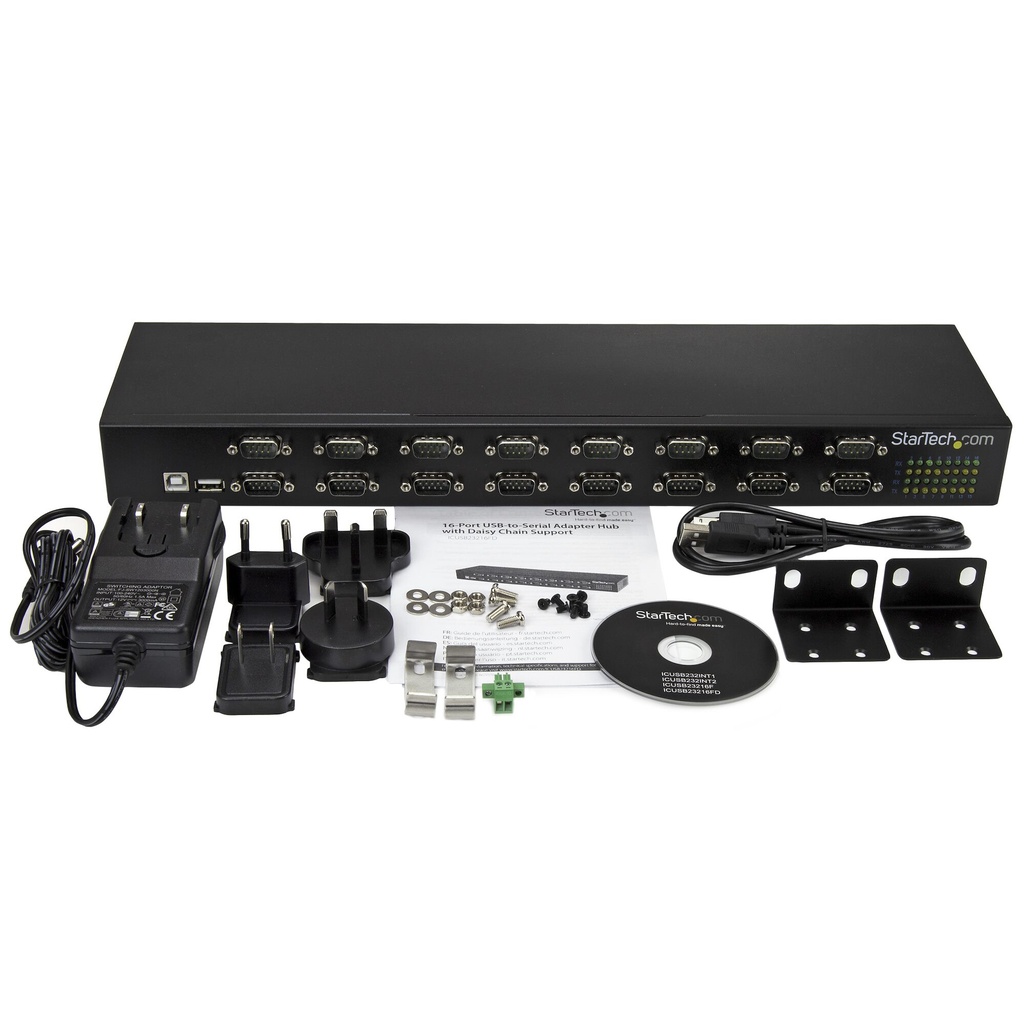

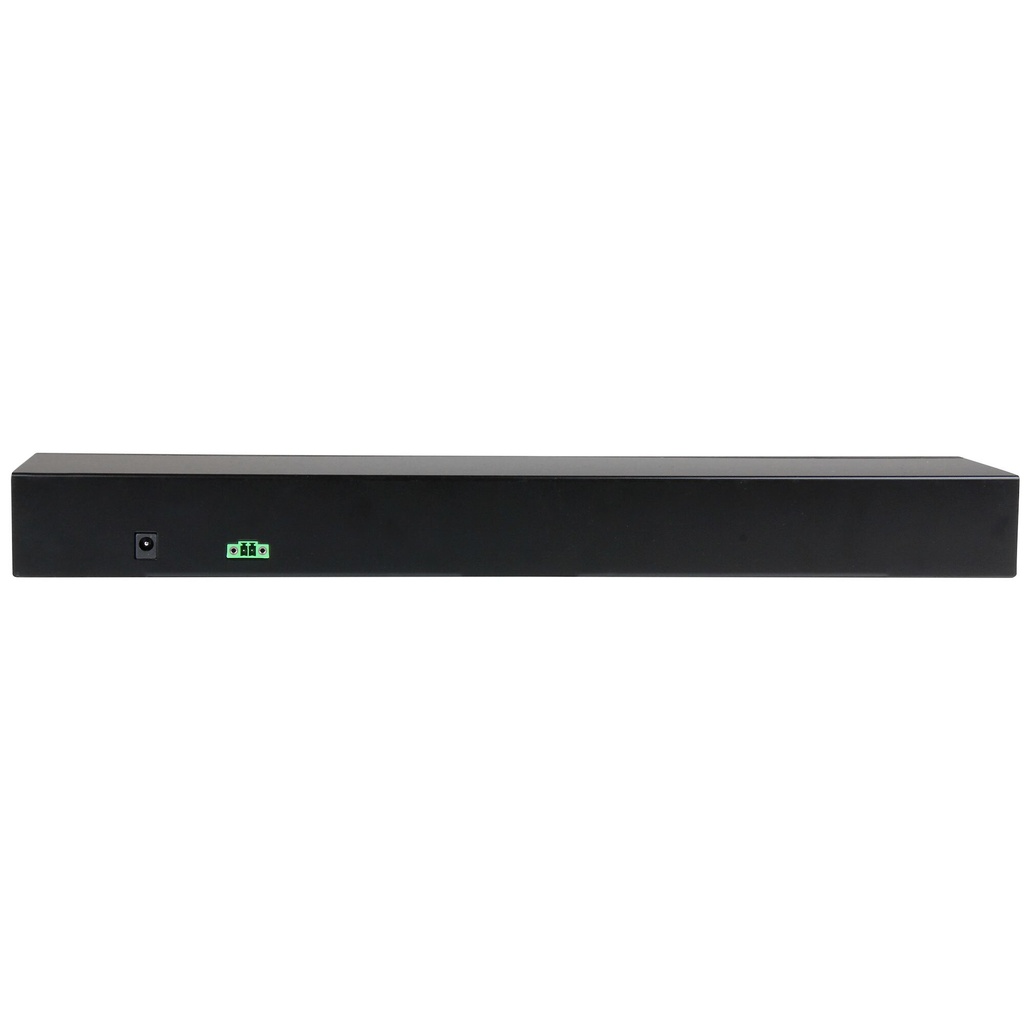

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

The ICUSB23216FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Warranty: 2 Years

Additional information

Ports quantity

16

Brand

StarTech.com

Host interface

USB 2.0 Type-B

Hub interfaces

Serial

Data transfer rate

480 Mbit/s

Product colour

Black

Housing material

Steel

Input voltage

100 – 240 V

Input current

1.5 A

Output voltage

12 V

Output current

3 A

Power plug type

Type N

Width

120 mm

Depth

430 mm

Height

45 mm

Weight

1.55 kg

Package width

215 mm

Package depth

451 mm

Package height

61 mm

Package weight

2.31 kg

AC adapter included

Yes

Cables included

USB

Operating temperature (T-T)

-40 – 85 °C

Mean time between failures (MTBF)

49337 h

Chipset

FTDI – FT232RL

Terminal block port

Yes

LED indicators

Yes

Storage temperature (T-T)

-65 – 150 °C

Operating relative humidity (H-H)

20 – 80%

DC-in jack

Yes
