$347.60 (Incl. GST)
LGA 1851, Intel B860, 4 DIMMs, DDR5 – 8800+ MT/s (OC), 4 x SATA, Wi-Fi 7, Bluetooth 5.4, 5G LAN
In stock

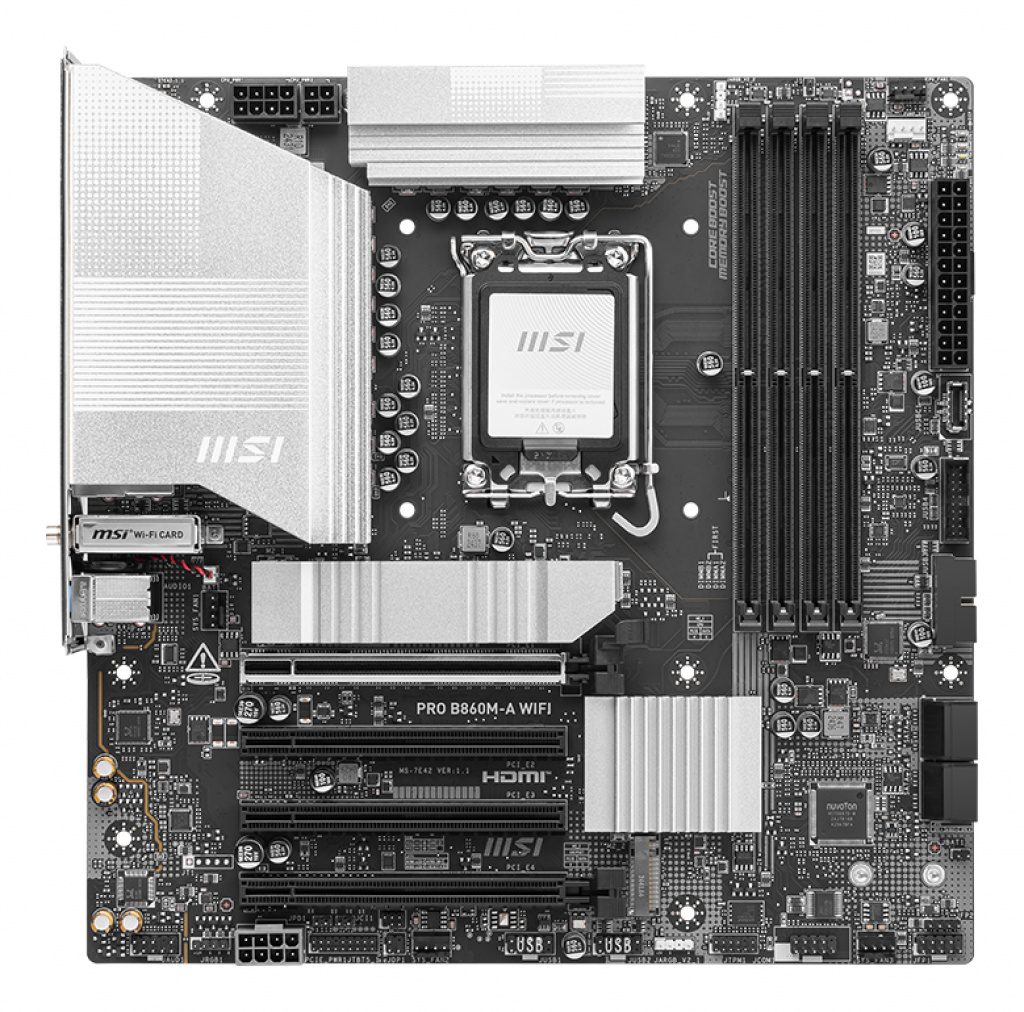

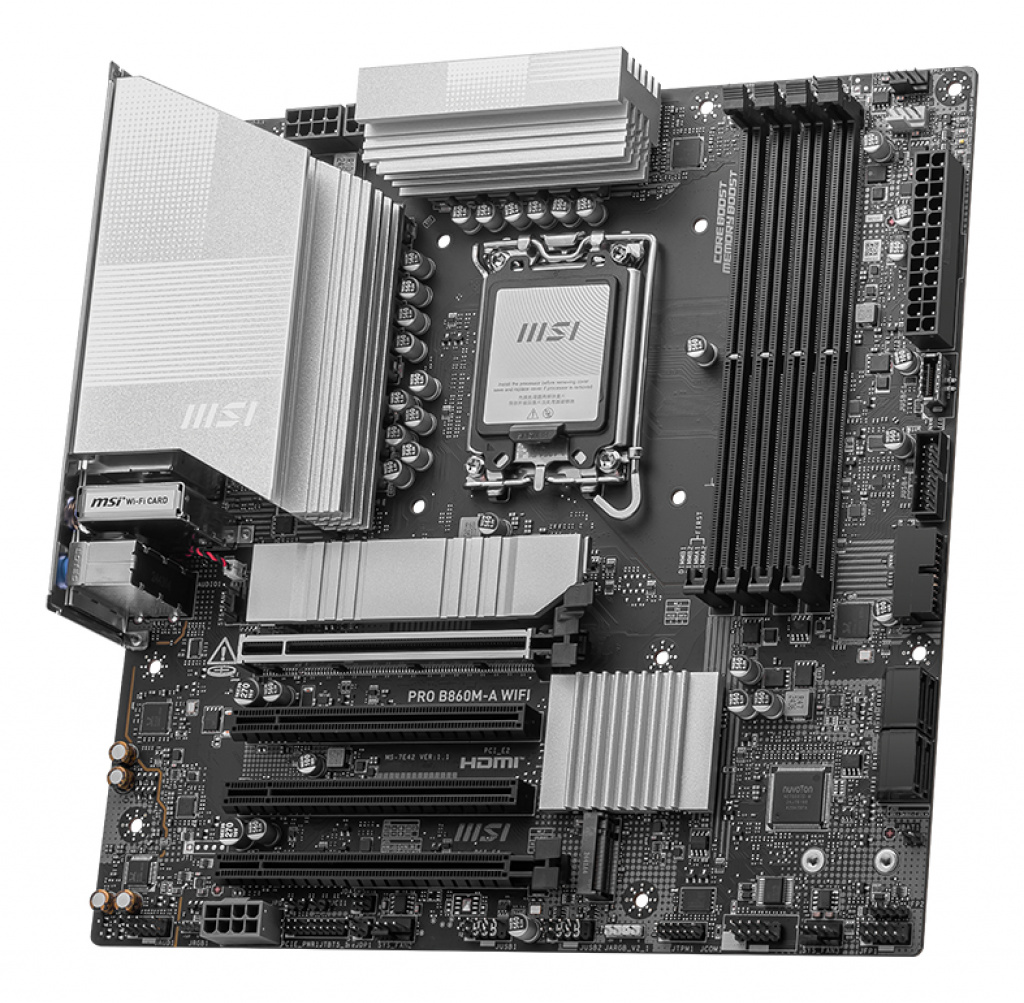

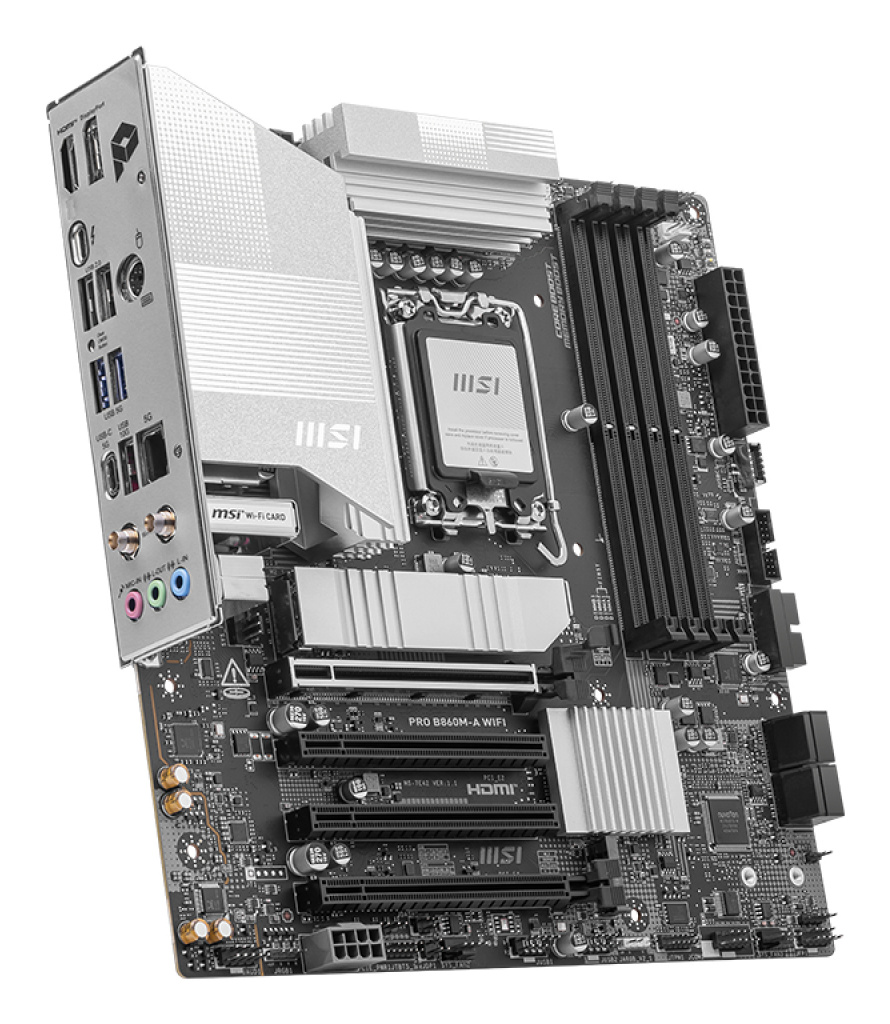

PRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
| Processor manufacturer | Intel |
|---|---|
| Brand | MSI |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum internal memory supported by processor | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,6400,8800 MHz |
| Supported storage drive interfaces | M.2, Micro SATA III |
| RAID levels | 0, 1, 5, 10 |
| On-board graphics adapter | No |
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 0 |
| Total number of SATA connectors | 4 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Component for | PC |
| Motherboard chipset | Intel B860 |
| Supported processor sockets | LGA 1851 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 4 |
| CPU fan connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC897 |
| Windows operating systems supported | Windows 11 x64 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Width | 243.8 mm |
| Depth | 243.8 mm |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Audio output channels | 7.1 channels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI version | 2.1 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| PCI Express x16 (Gen 4.x) slots | 3 |
| ACPI version | 6.5 |
| System Management BIOS (SMBIOS) version | 3.7 |
