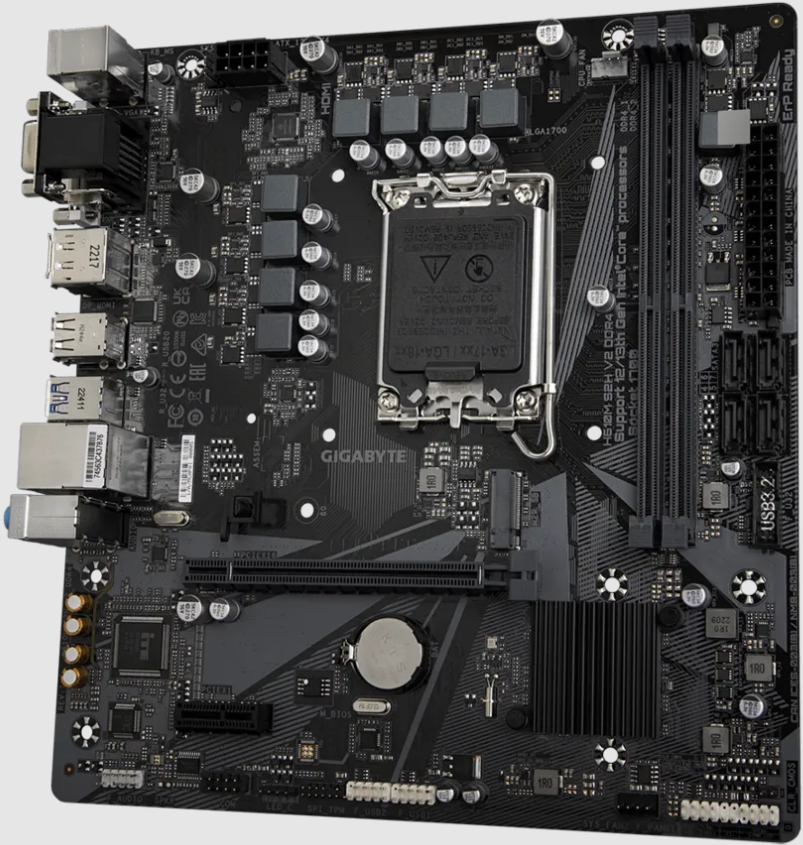

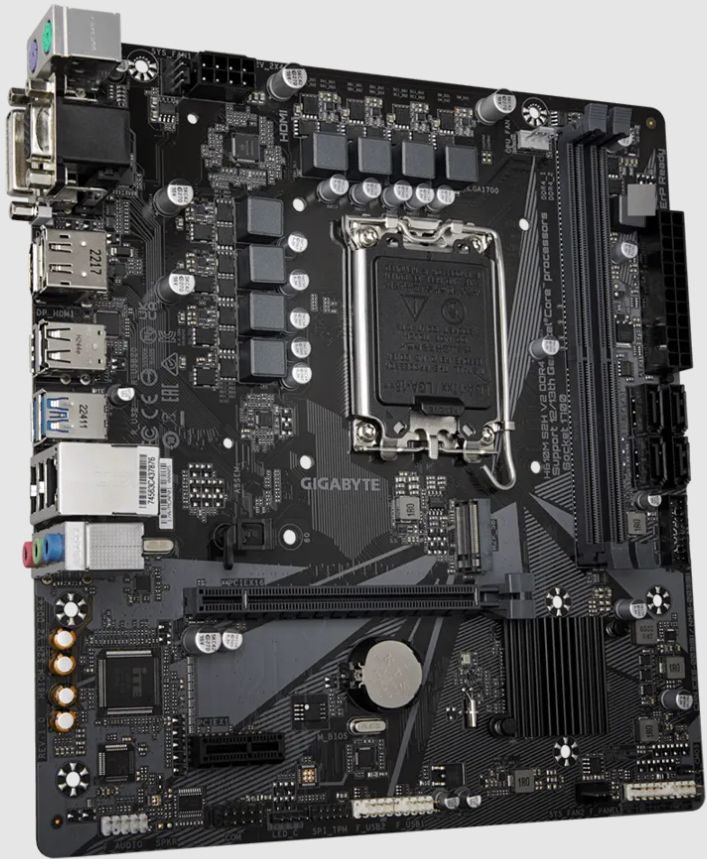

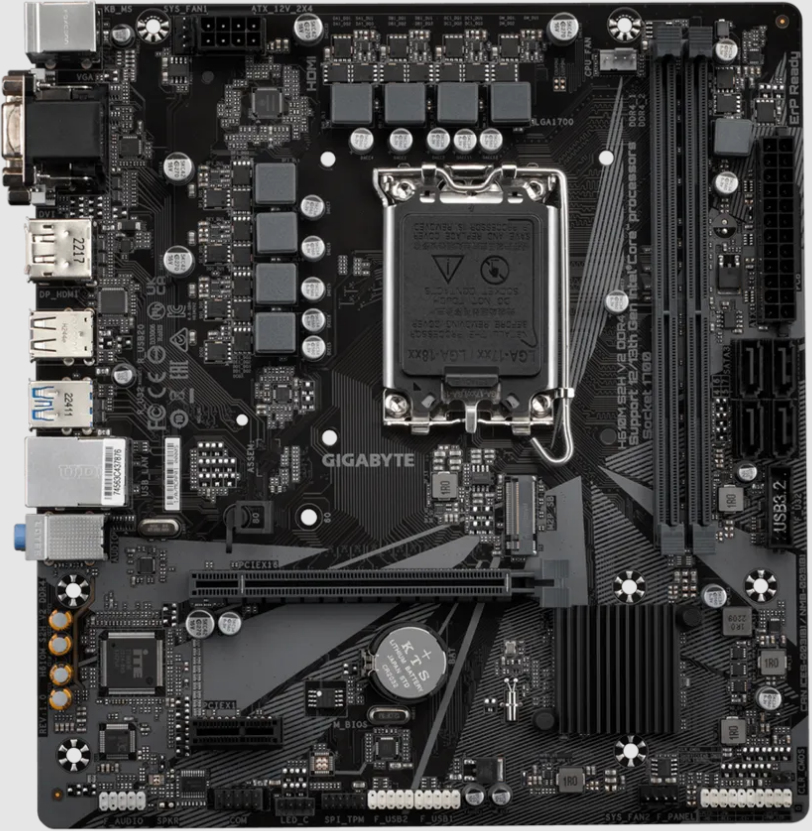

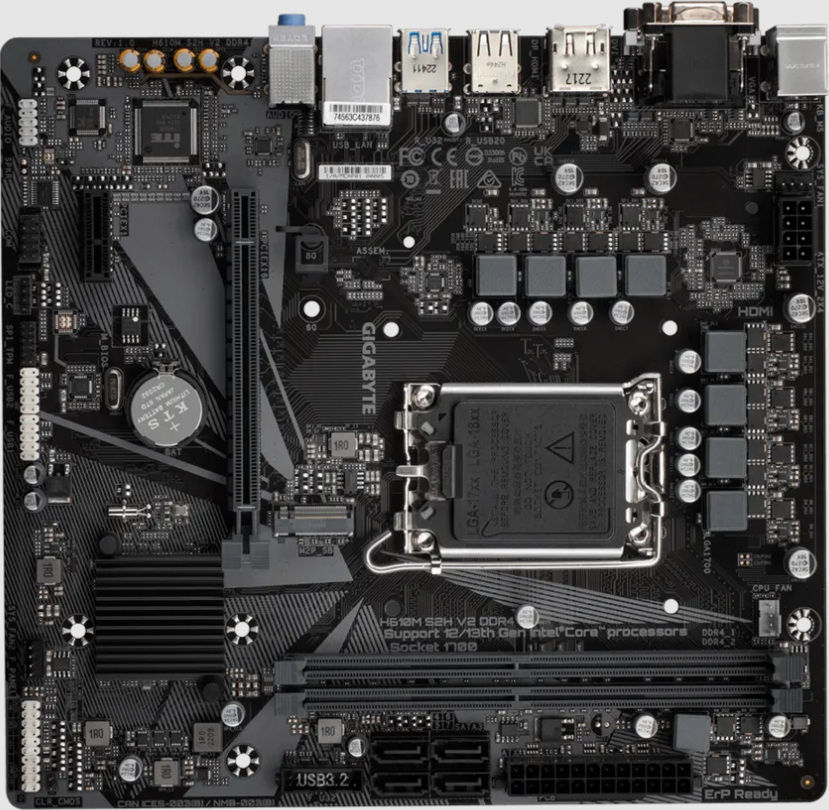

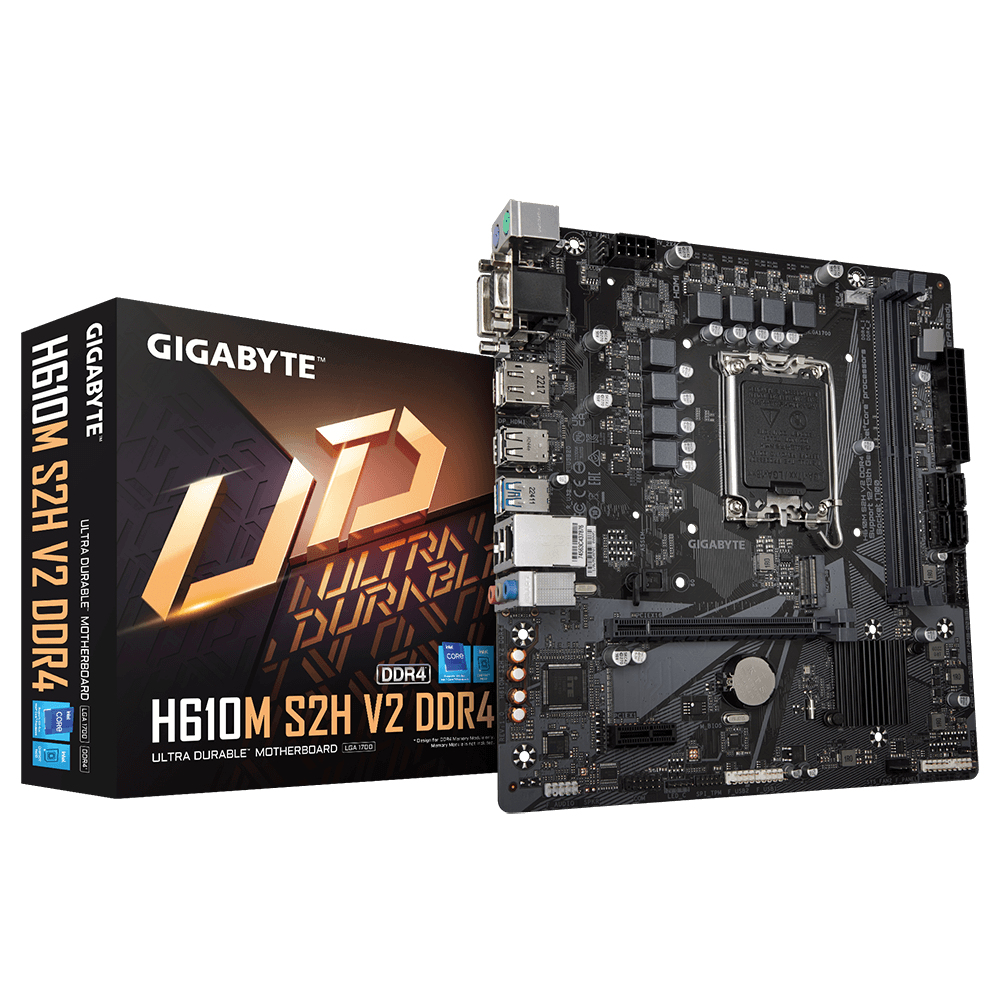

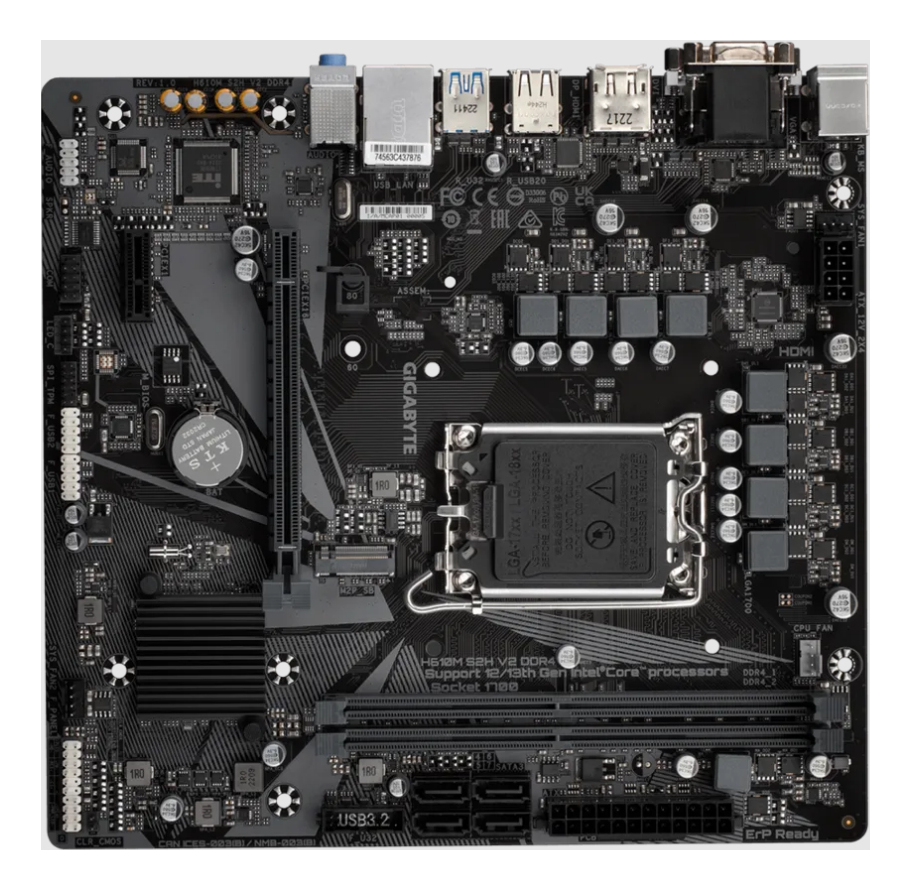

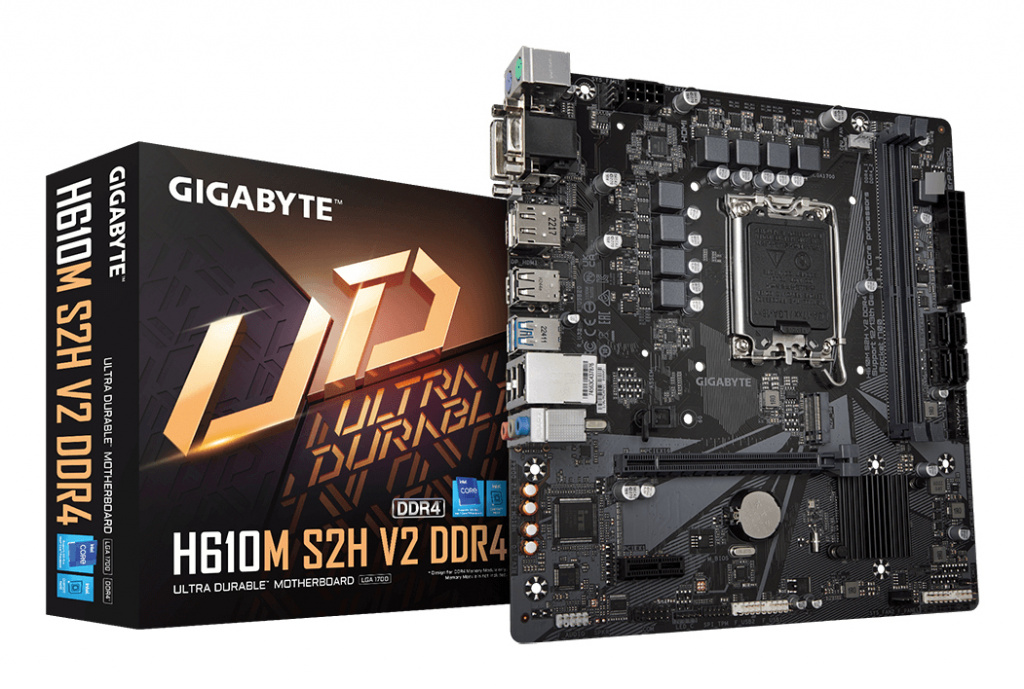

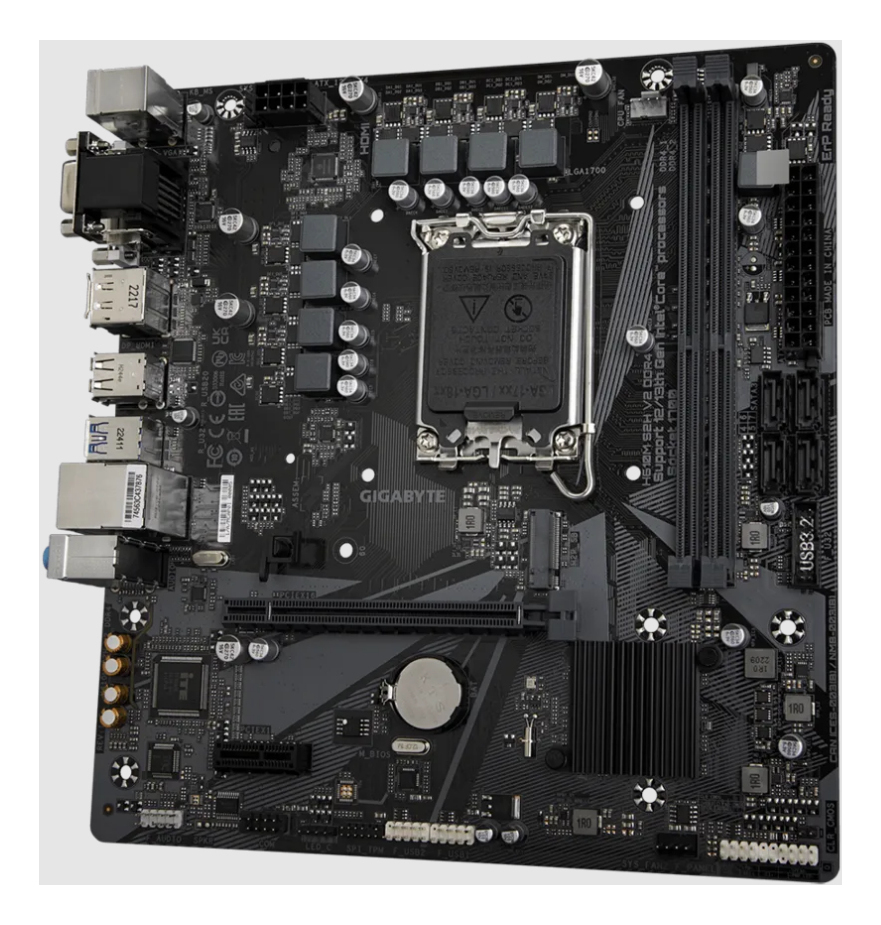

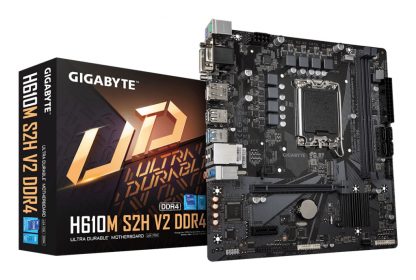

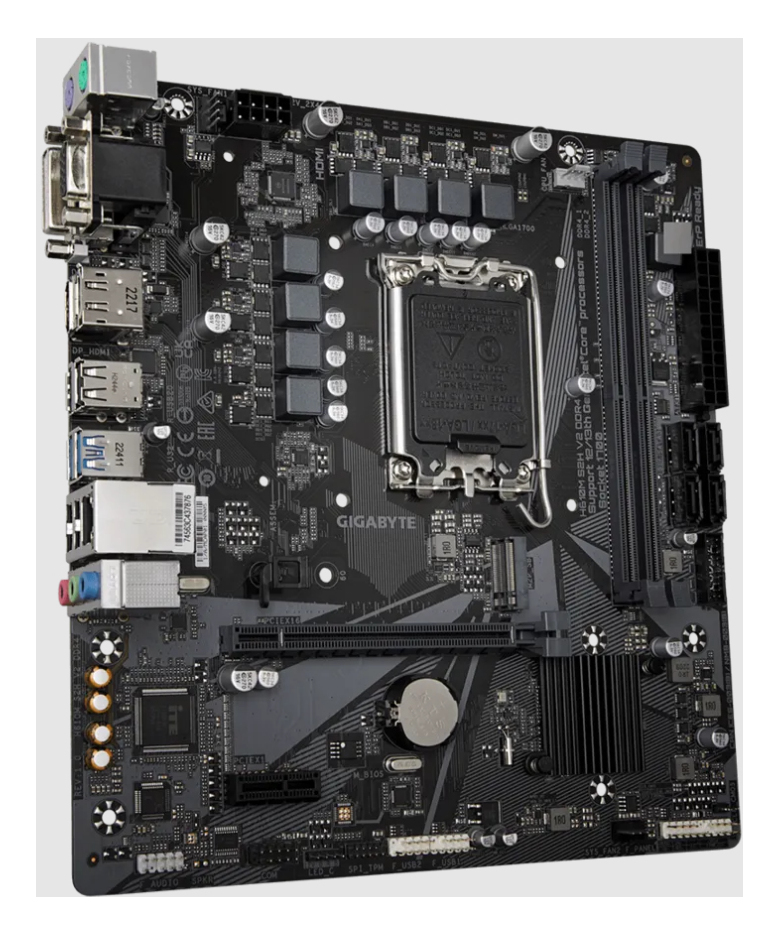

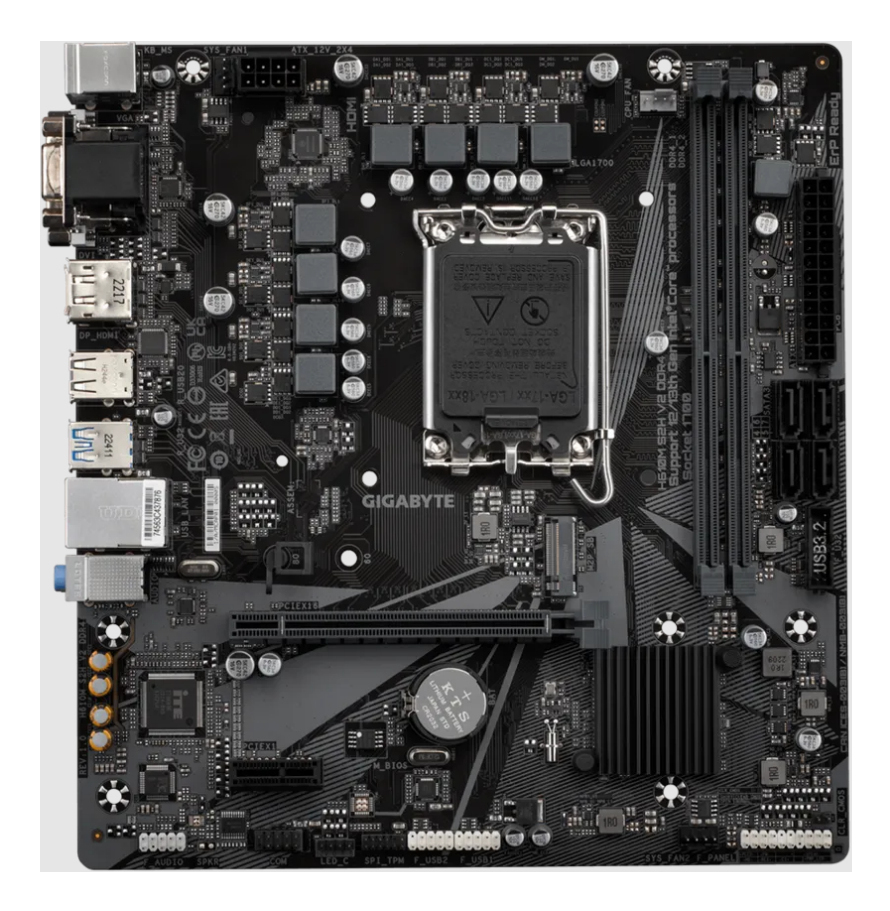

GIGABYTE H610M S2H V2 DDR4 Motherboard – Supports Intel Core 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4 (OC)

$188.83 (Incl. GST)

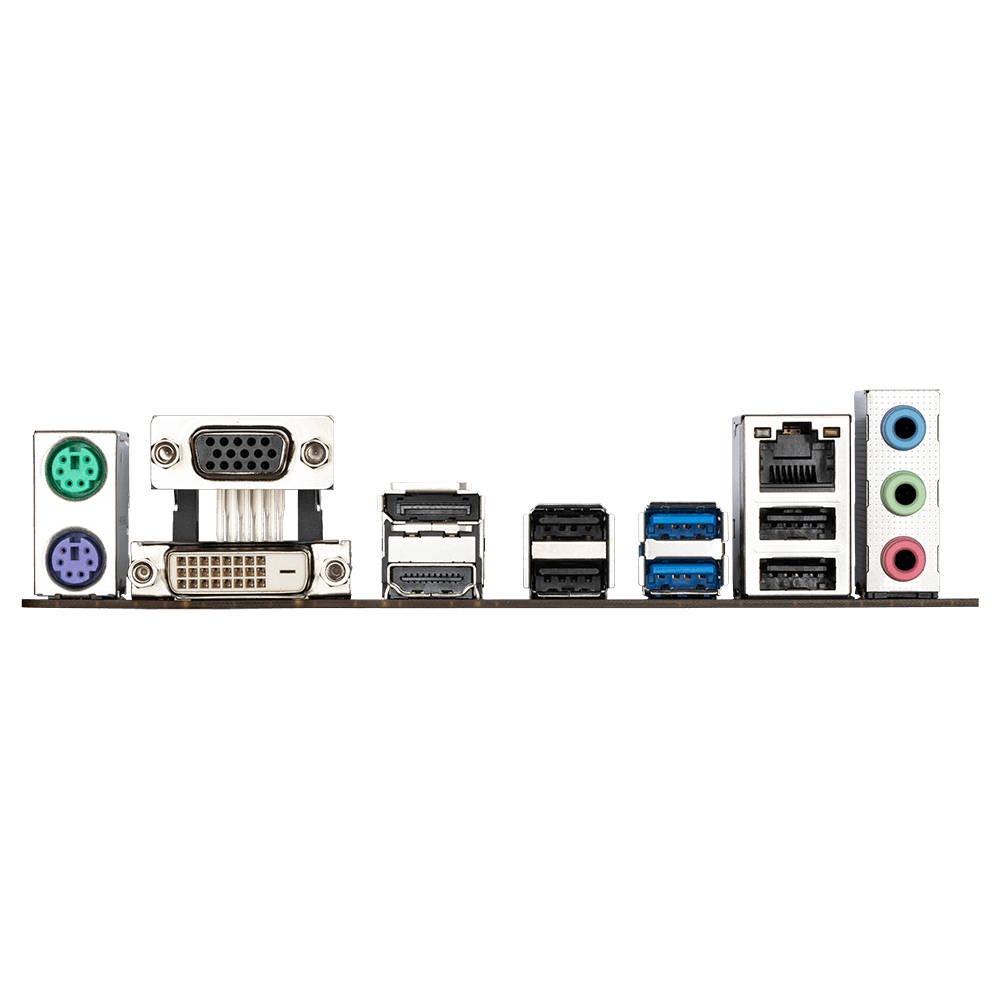

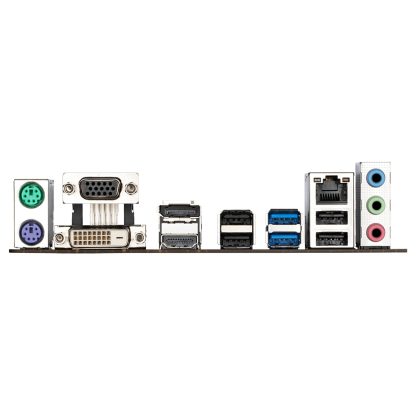

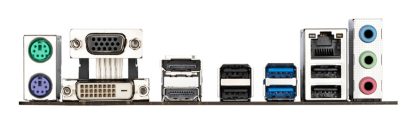

Intel H610, LGA 1700, 2 x DDR4, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort, Micro ATX, 23.0 x 21.5cm

In stock

SKU: GIGABYTE_H610M S2H V2 DDR4 Category:

Print

Description

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Additional information

Processor manufacturer

Intel

Brand

Gigabyte

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Maximum internal memory supported by processor

64 GB

Supported memory types

DDR4-SDRAM

Maximum internal memory

64 GB

Memory channels

Dual-channel

ECC

Yes

Supported memory clock speeds

2133,2400,2666,2933,3000,3200 MHz

Supported storage drive interfaces

M.2, SATA

On-board graphics adapter

Yes

USB 2.0 connectors

2

Total number of SATA connectors

4

USB 2.0 ports quantity

4

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

1

Wi-Fi

No

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Component for

PC

Motherboard chipset

Intel H610 Express

PCI Express x1 slots

1

PCI Express x16 slots

1

Supported processor sockets

LGA 1700

Number of memory slots

2

Memory slots type

DIMM

Non-ECC

Yes

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Unbuffered memory

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

DirectX version

12.0

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

Front panel connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

TPM connector

Yes

Serial port headers

1

12V power connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

DVI-D ports quantity

1

PS/2 ports quantity

2

Headphone outputs

1

Microphone in

Yes

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, LED, Temperature, Voltage, Water cooling

Cooling type

Active

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Number of M.2 (M) slots

1

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

Clear CMOS jumper

Yes

Width

230 mm

Depth

215 mm

Maximum number of SMP processors

1

DisplayPorts quantity

1

Audio output channels

7.1 channels

Number of chassis fan connectors

2

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Graphics adapter family

Intel

Number of storage drives supported

5

Clear CMOS button

Yes

HDCP

Yes

Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Number of COM connectors

1

Graphics adapter

HD Graphics

Height

35 mm

Supported memory clock speed (max)

3200 MHz

Country of origin

China

Package weight

857 g

Package width

265 mm

Package depth

265 mm

Package height

54 mm

On-board graphics adapter model

Intel® HD Graphics

Supported DIMM module capacities

8GB, 16GB

Product colour

Brown

Products per shipping (inner) case

1 pc(s)

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Batteries included

Yes

Warranty period

3 year(s)
