Description

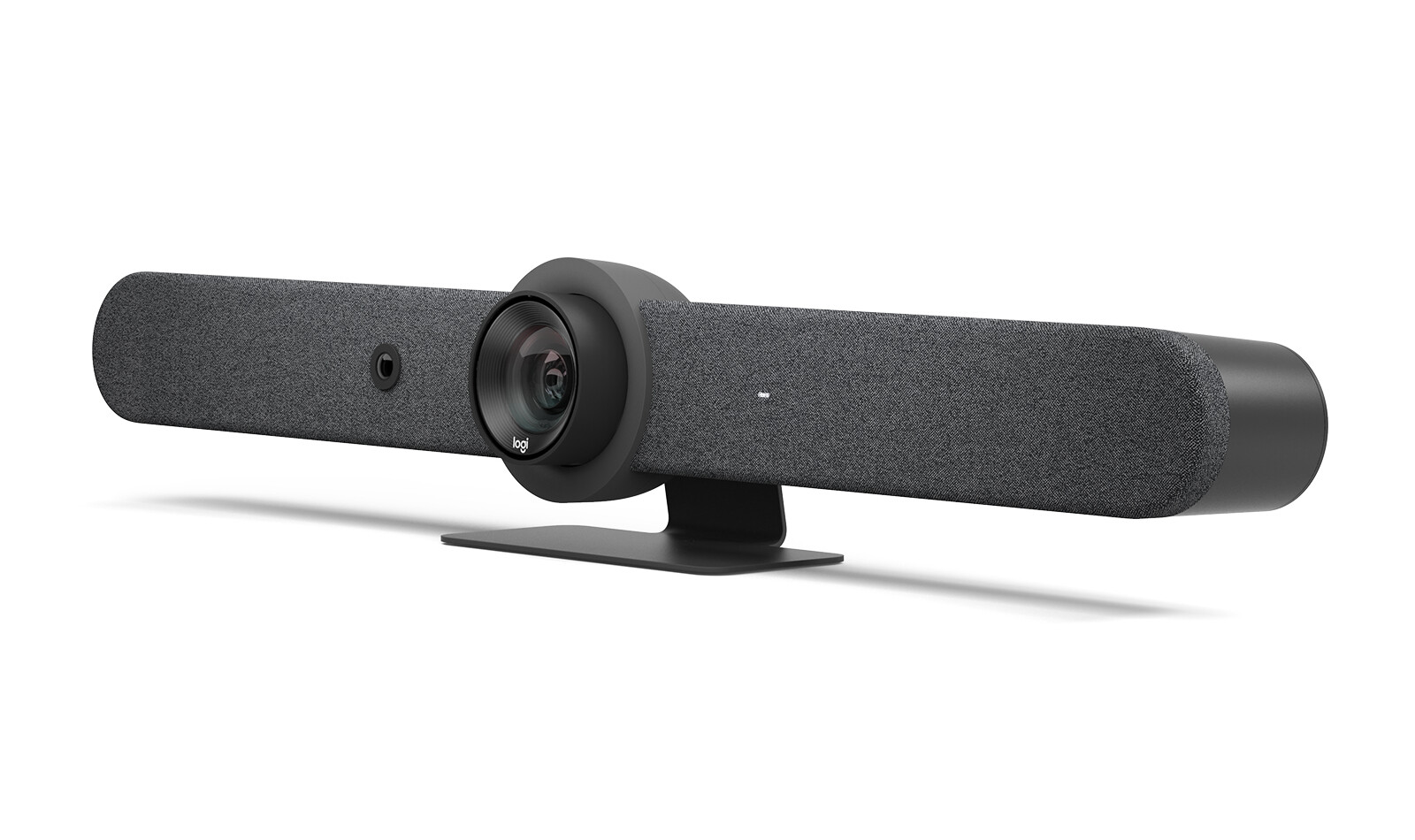

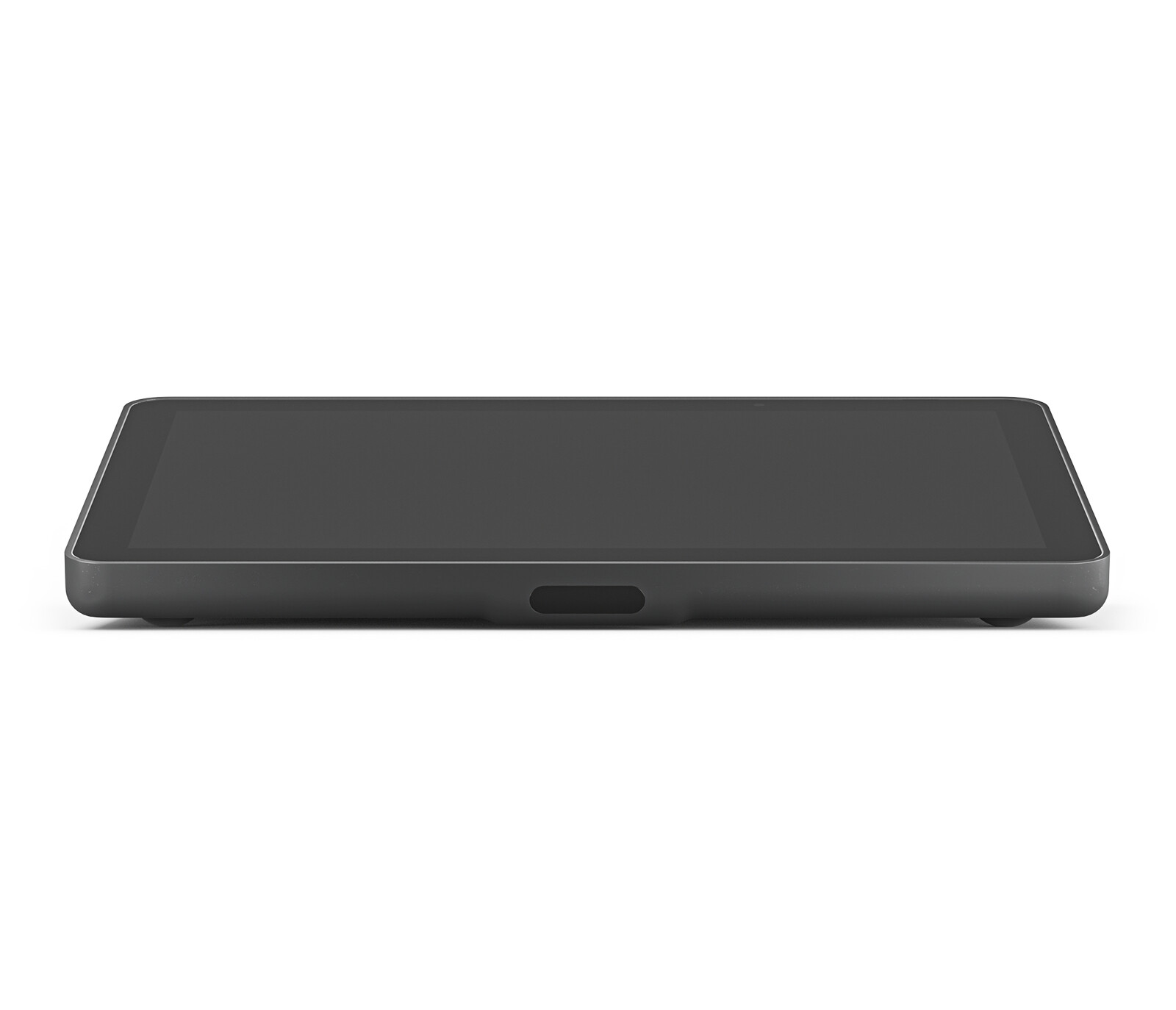

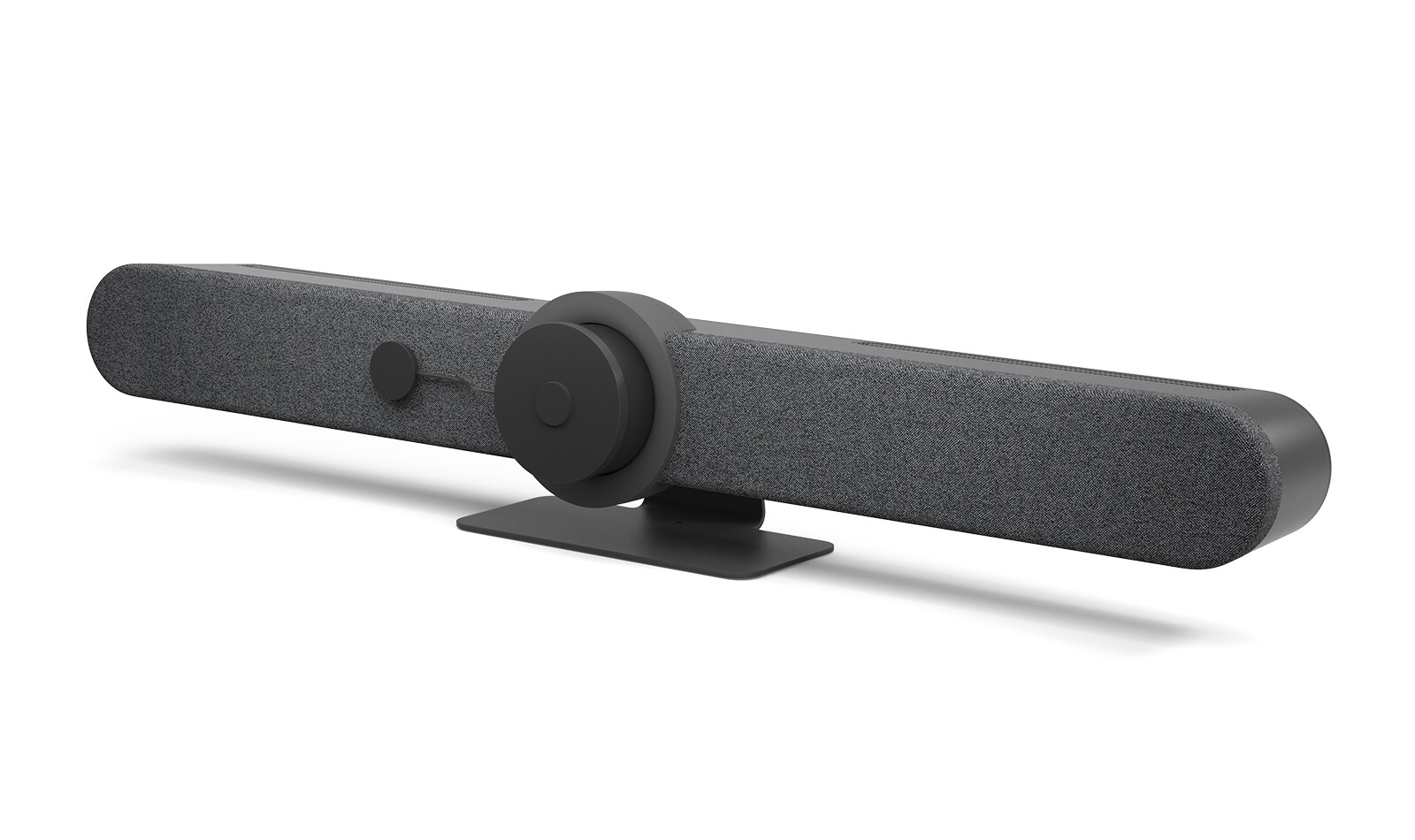

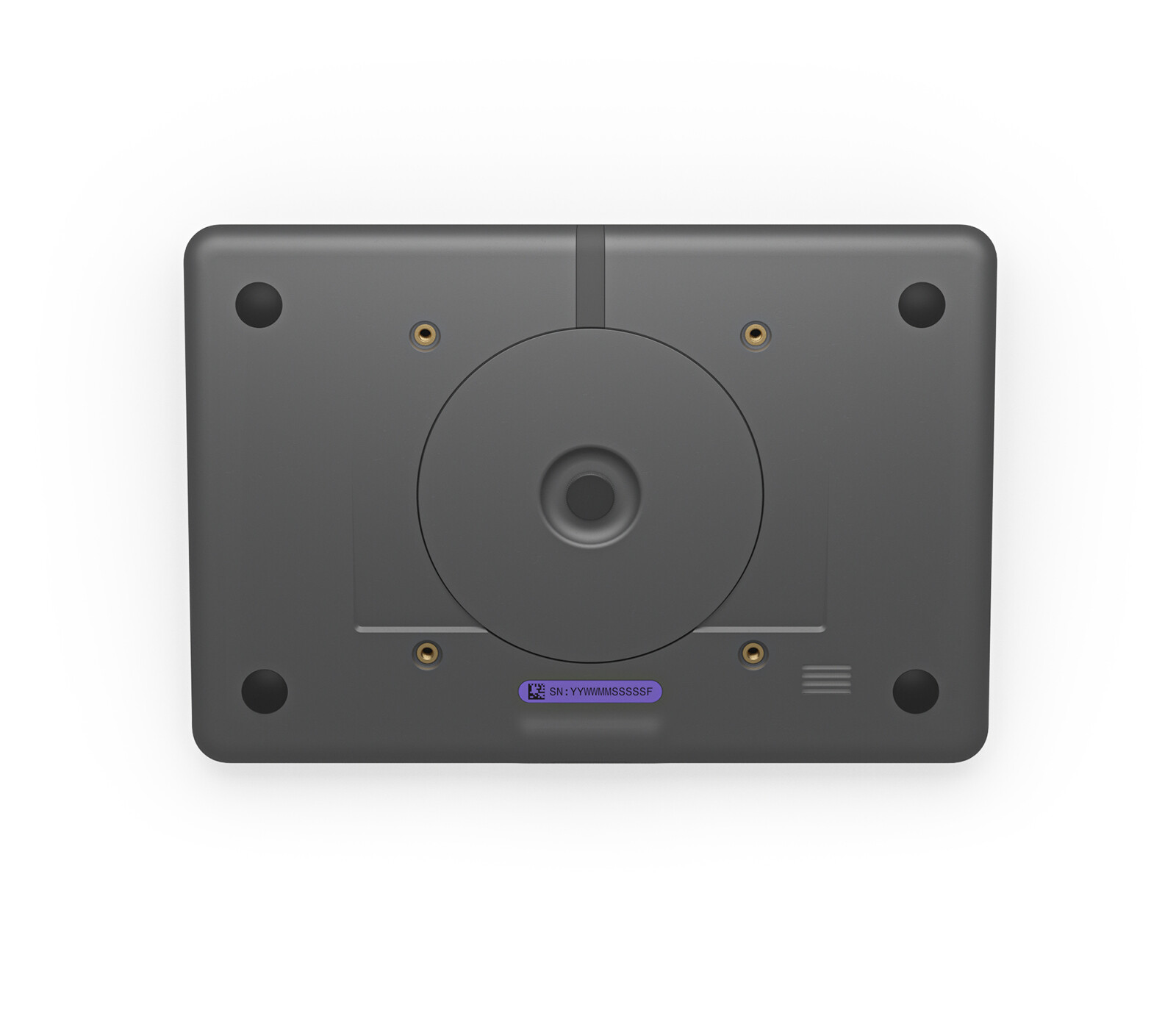

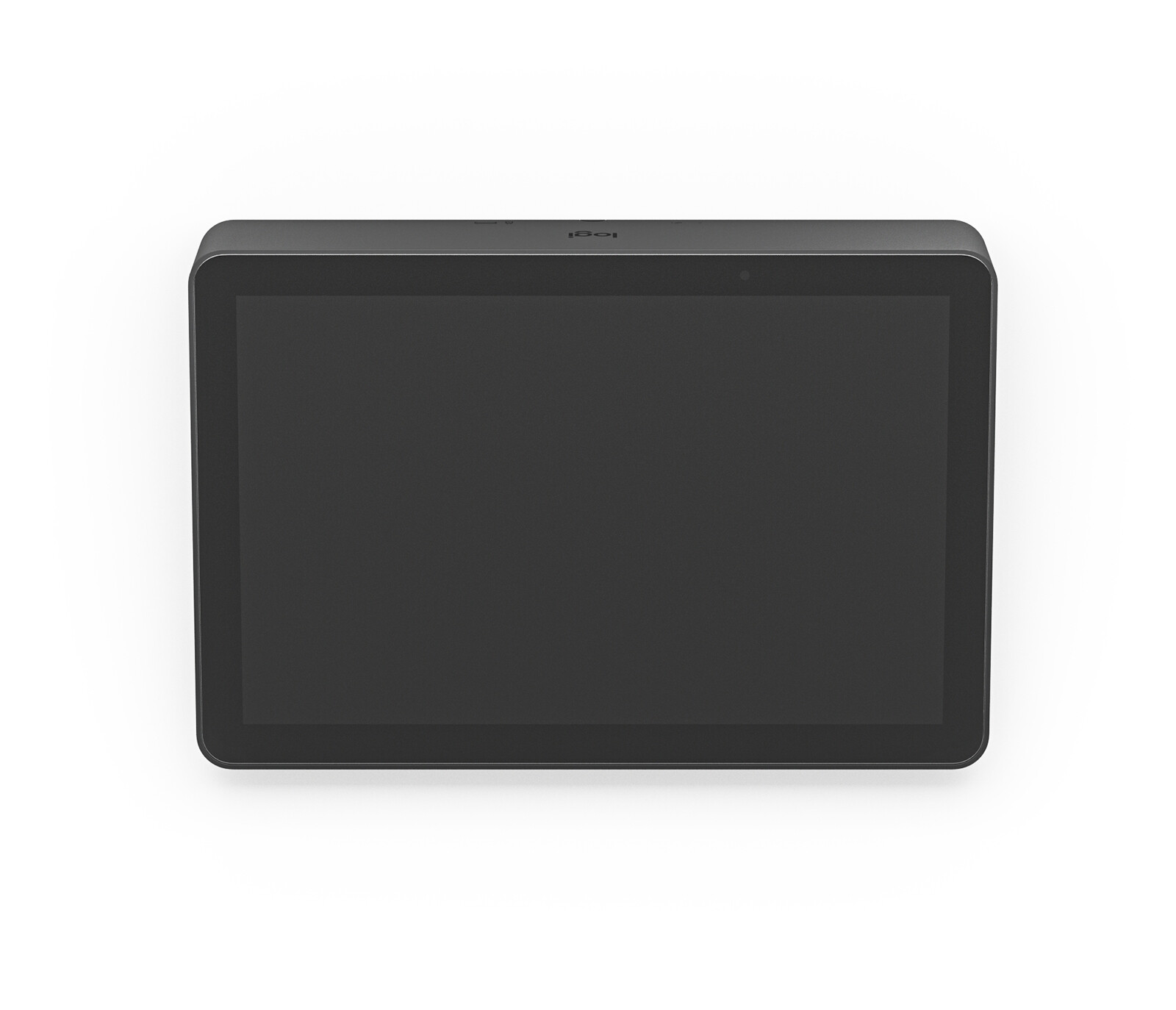

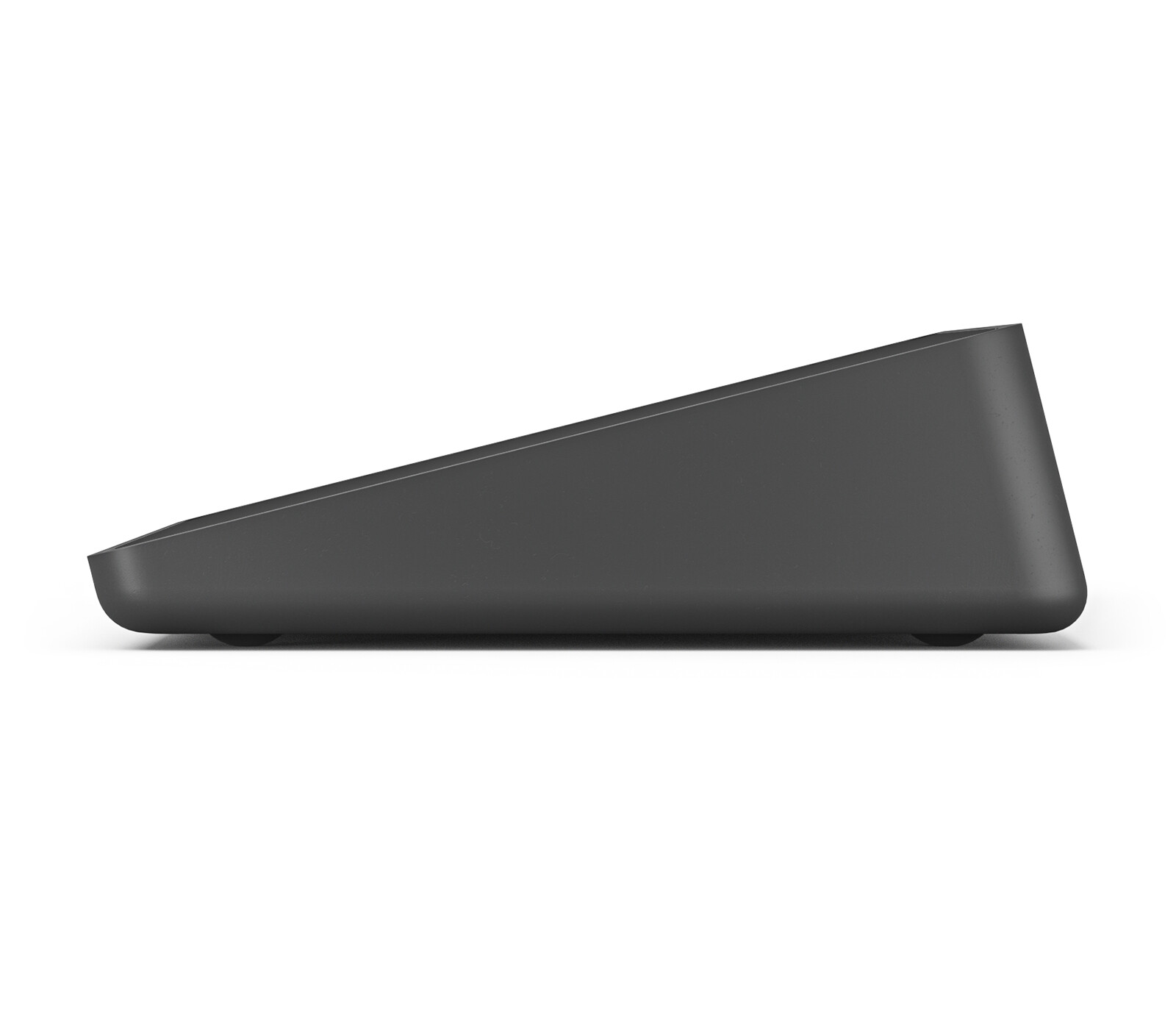

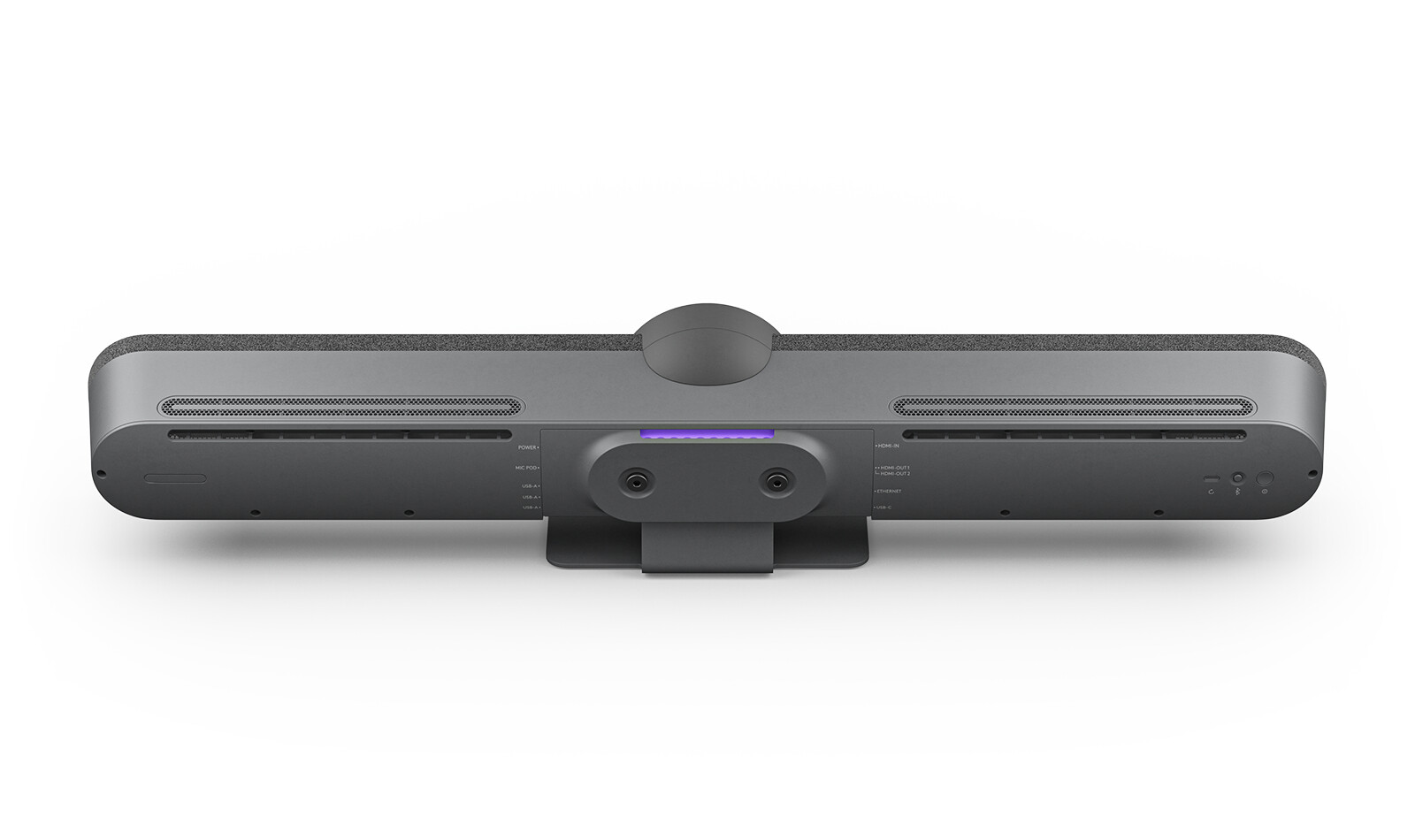

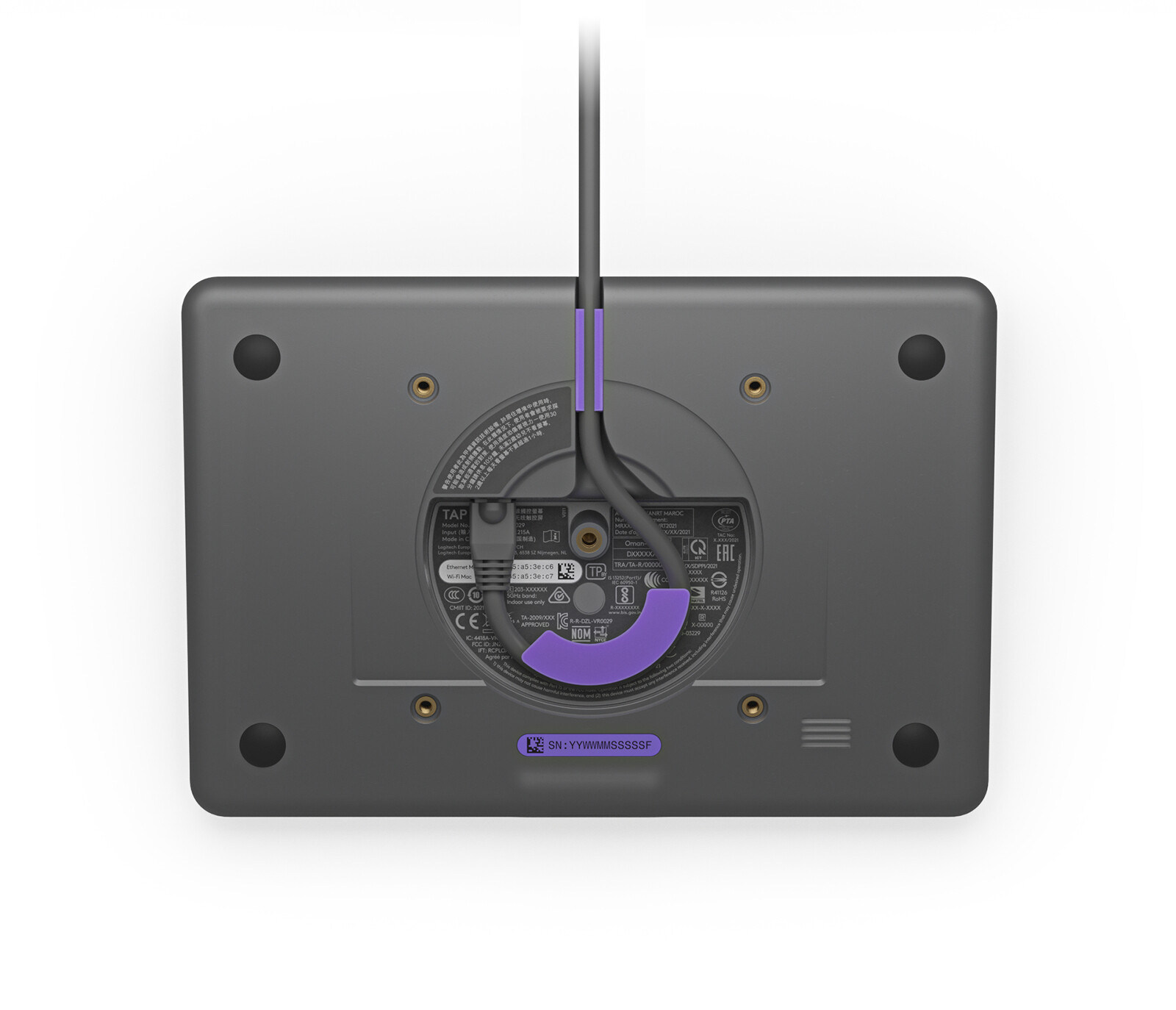

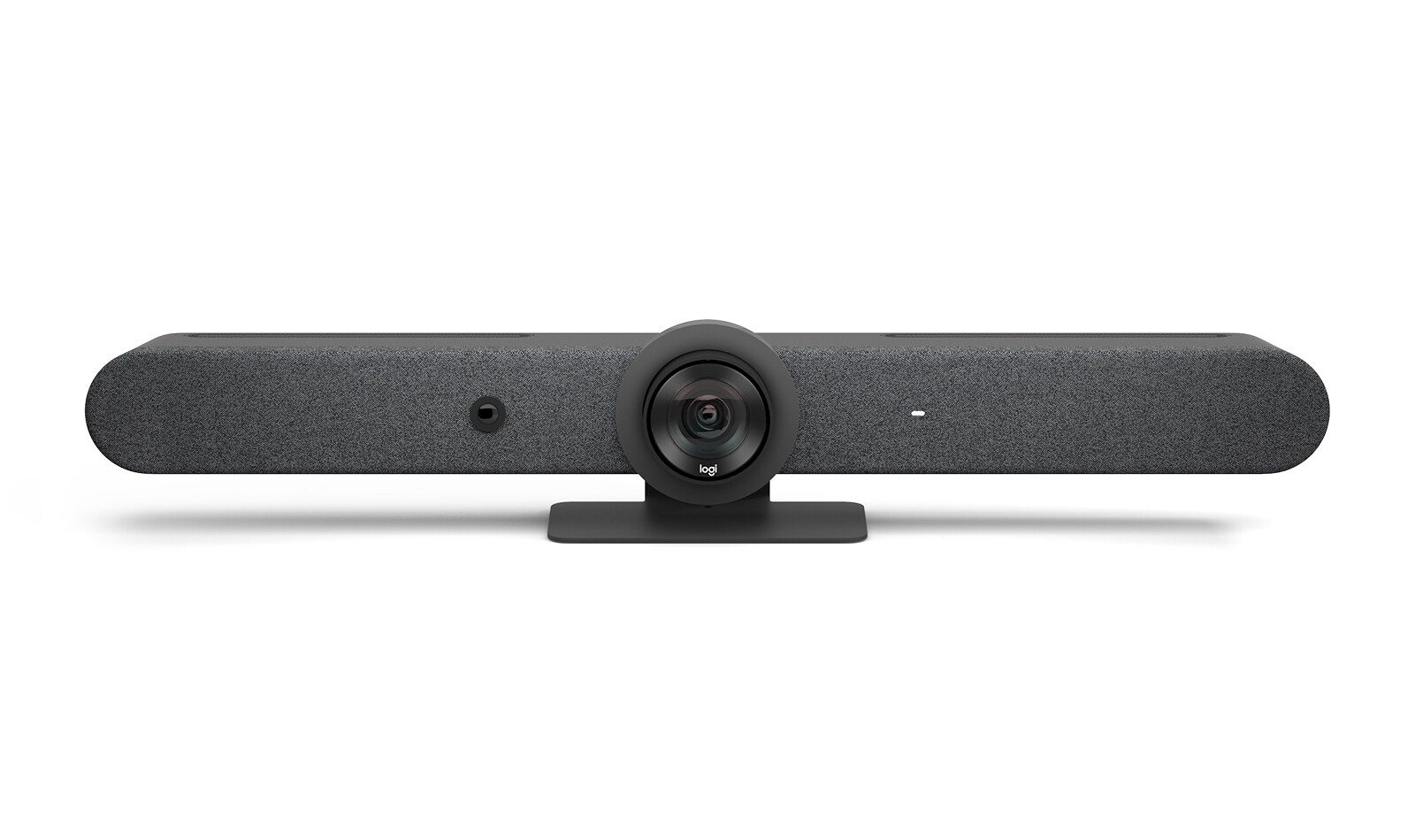

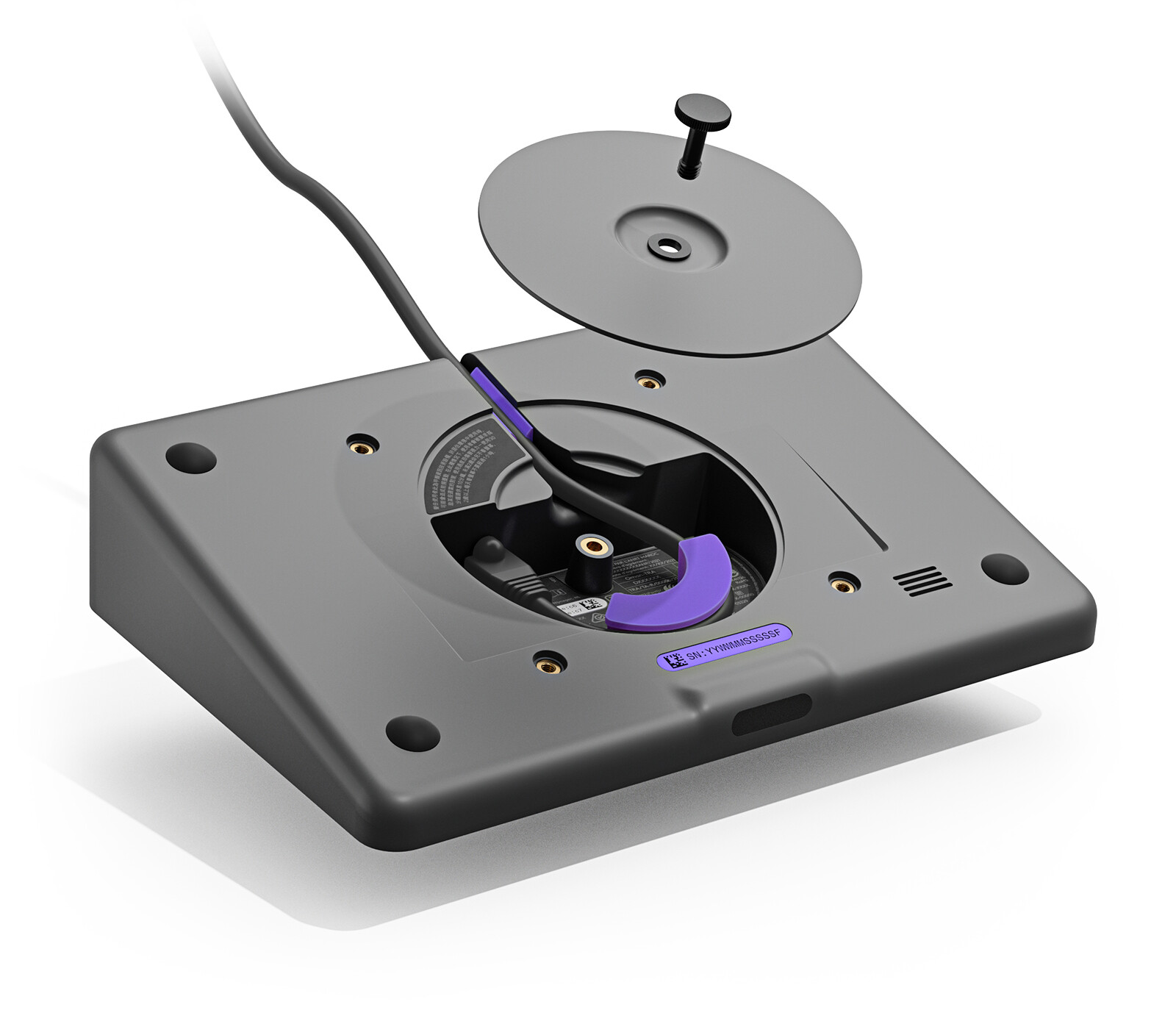

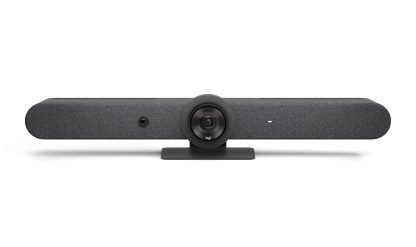

Rally Bar & Tap IP
Additional information
| Product type | Group video conferencing system |
|---|---|
| Brand | Logitech |
| Product colour | Graphite |
| Pan range | -25 – 25° |
| Tilt angle range | -15 – 15° |
| HD type | 4K Ultra HD |
| Optical zoom | 5x |
| Digital zoom | 3x |
| Maximum frame rate | 30 fps |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Microphone pick-up range | 4.5 m |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Horizontal field of view | 82.1° |
| AC input voltage | 100 – 240 V |
| Built-in speaker(s) | Yes |
| Output level | 90/99 dB |
| Number of microphones | 6 |
| Operating temperature (T-T) | 0 – 40 °C |
| Power source type | AC |
| PTZ control | Yes |
| Supported video modes | 720p, 900p, 1440p, 2160p |

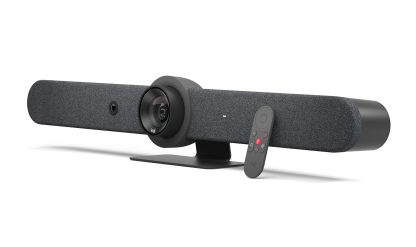

| Remote control included | Yes |
| Security algorithms | 128-bit AES |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Camera dimensions (WxDxH) | 910 x 160 x 164 mm |
| External interface module included | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Field of view (FOV) angle | 90° |
| Remote control interface | Bluetooth |
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 – 16000 Hz |
| Sound pressure level (max) | 90 dB |
| Telepresence | No |
| Heat dissipation | 64 BTU/h |
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Interface module weight | 1 kg |
| Camera weight | 7.08 kg |
