$482.25 (Incl. GST)

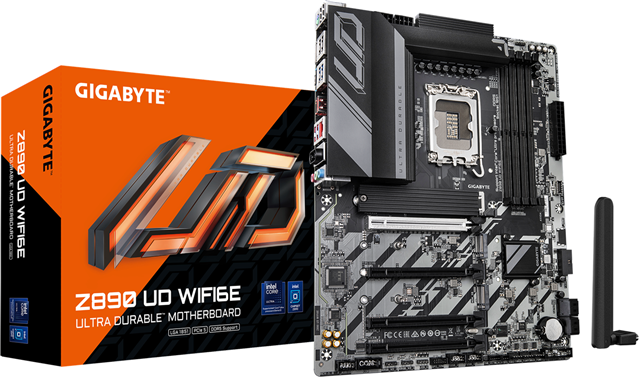

Z890 UD WIFI6E Motherboard – Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 +
In stock
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor manufacturer | Intel |
|---|---|
| Brand | Gigabyte |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum internal memory supported by processor | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| On-board graphics adapter | No |
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 0 |
| Total number of SATA connectors | 4 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Component for | PC |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 7 |
| DirectX version | 12.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 11 x64 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Width | 305 mm |
| Depth | 244 mm |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| DisplayPorts quantity | 2 |
| S/PDIF out port | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Audio output channels | 7.1 channels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Number of storage drives supported | 4 |
| Clear CMOS button | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Thunderbolt ports quantity | 2 |
| RAID support | Yes |
| Number of SATA II connectors | 0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Height | 35 mm |
| Supported memory clock speed (max) | 8800 MHz |
| Country of origin | China |
| Package weight | 2.02 kg |
| Weight | 1.78 kg |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Product colour | Black |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Batteries included | Yes |
| Warranty period | 3 year(s) |
| ECC сompatibility | Non-ECC |
| mSATA ports quantity | 0 |
