ATEN 4-Port True 4K HDMI Splitter

$75.21 (Incl. GST)

4-Port True 4K HDMI Splitter

In stock

SKU: ATEN_VS4814-AT Category:

Print

Description

The VS4814 is a 4-Port True 4K HDMI Splitter engineered to meet the highest demands of modern digital signage and commercial display applications. Featuring EDID Sync™, it delivers up to four simultaneous video streams from a single HDMI source, ensuring HDMI and HDCP 2.2-compliant visual excellence at all times. With support for HDR10+, 3D formats, and Deep Color, the VS4814 provides richer contrast and a wider color spectrum for truly immersive viewing experiences.

EDID Sync™ Smart Display Optimization
Automatically optimizes resolutions and prevents display issues for flawless display presentation

True 4K Dual-Display Sharing

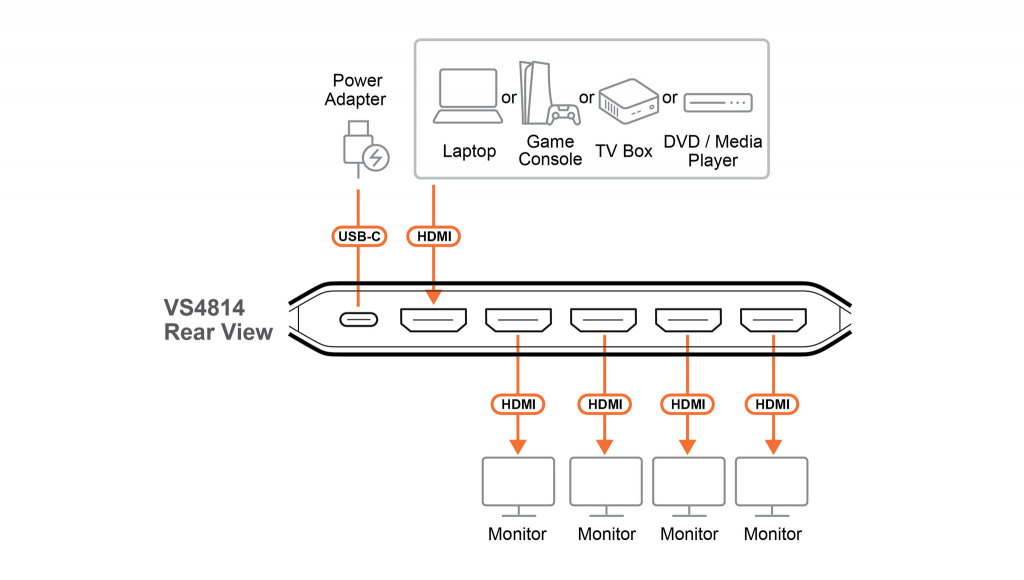

Shares one HDMI source across four True 4K displays for maximum visual impact with uncompromised quality

HDMI 3D/Deep Color, HDR10+, HDCP 2.2 Compatible
Guarantees stable performance, broad compatibility, and superior image quality

Master-Class Audio Immersion
Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound

Aesthetic Compact Form

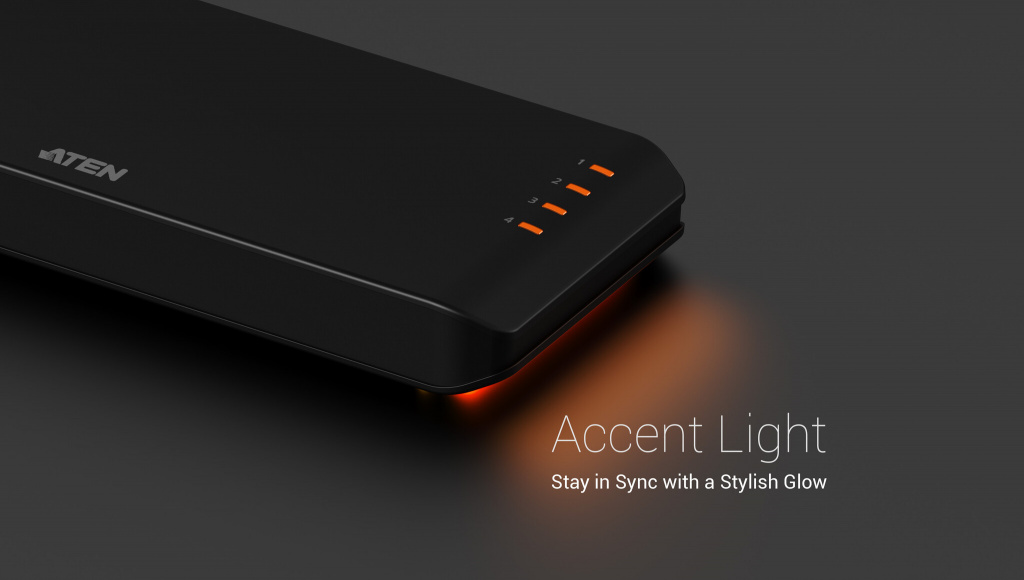

Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting

Additional information

Video ports quantity

5

Brand

Aten

Video port type

HDMI

Video out

4x HDMI

Maximum resolution

3840 x 2160 pixels

Product colour

Black

Maximum operating distance

3 m

Maximum refresh rate

60 Hz

Output voltage

5 V

Output current

1 A

Width

56.5 mm

Depth

145 mm

Height

15.2 mm

Weight

100 g

Housing material

Polycarbonate (PC)

HDCP

Yes

LED indicators

Yes

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-20 – 60 °C

Operating relative humidity (H-H)

0 – 80%

Products per master (outer) case

20 pc(s)

USB powered

Yes

Cables included

USB Type-A to USB Type-C

HD type

4K Ultra HD

Harmonized System (HS) code

85437090

HDCP version

2.2

Storage relative humidity (H-H)

0 – 80%

Data transfer rate

18 Gbit/s

Country of origin

China
