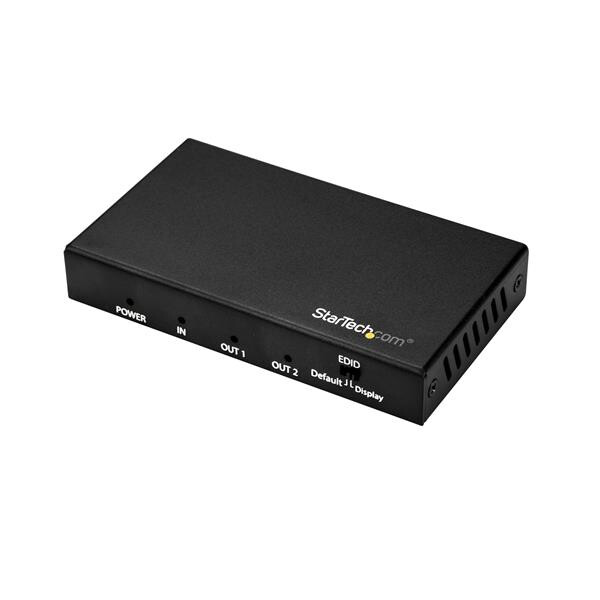

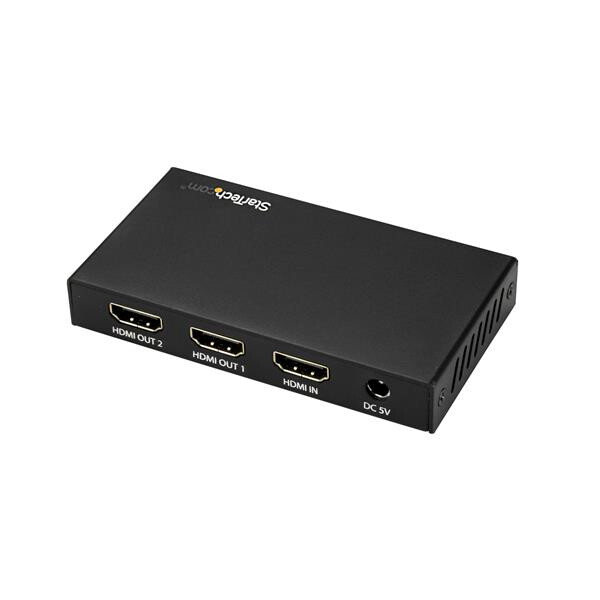

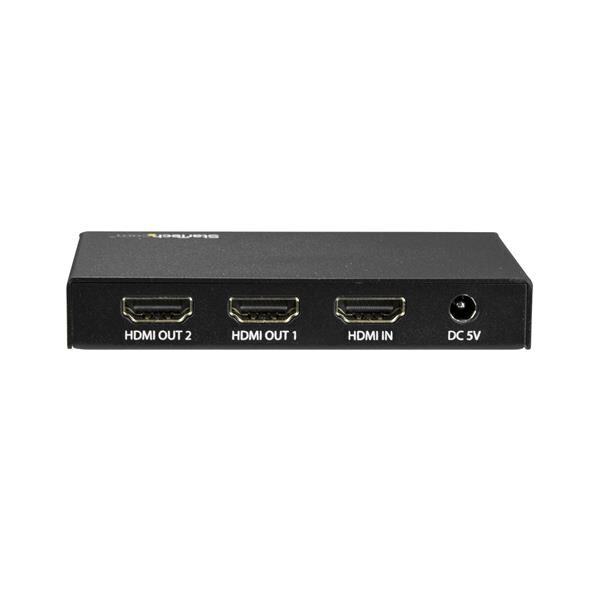

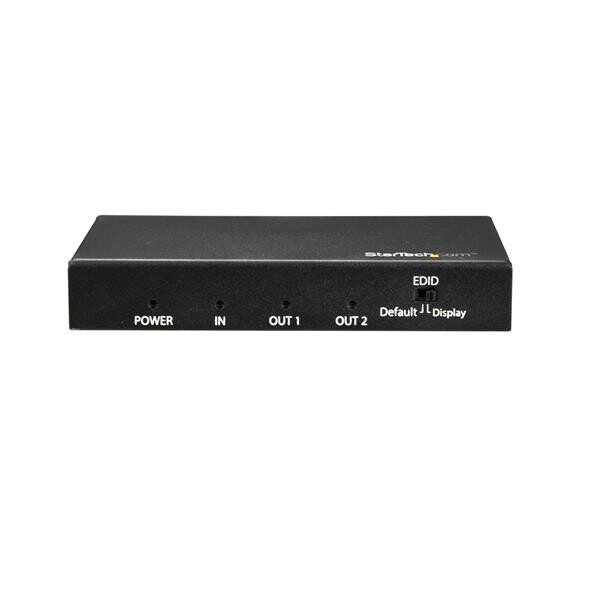

2-Port HDMI Splitter with HDR – 4K 60Hz

$106.61 (Incl. GST) HDMI Splitter – 2-Port – 4K 60Hz – HDMI Splitter 1 In 2 Out – 2 Way HDMI Splitter – HDMI Port Splitter (ST122HD202)

In stock

SKU: STARTECH.COM_ST122HD202 Category:


Description 2-Port HDMI Splitter with HDR – 4K 60Hz. Video port type: HDMI, Video out: 2x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160. AC input voltage: 100 – 240 V, Input current: 0.2 A, Output voltage: 5 V. Dimensions (WxDxH): 56 x 100 x 17 mm, Weight: 159 g. Package width: 55 mm, Package depth: 100 mm, Package height: 16 mm

1 In 2 Out Video Splitter | HDMI 2.0 | HDR | 2-Year WarrantyThis 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.True 4K at 60Hz and HDRWith transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096×2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.Widely CompatibleThe 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.Easy InstallationFor hassle-free setup, the 1×2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.ST122HD202 is backed by a 2-year warranty and free lifetime technical support.The Advantage

Warranty: 2 Years

Additional information

Video ports quantity



Video port type


Video out


Maximum resolution

3840 x 2160 pixels

Product colour




Input current

0.2 A

Output voltage

5 V

Output current

1 A

Power consumption (typical)

5 W


159 g

Package width

55 mm

Package depth

100 mm

Package height

16 mm

Package weight

402 g

AC adapter included


Sustainability certificates


AC input voltage

100 – 240 V



LED indicators


Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-20 – 60 °C

Operating relative humidity (H-H)

20 – 90%

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Supported video modes

720p, 1080p

Plug and Play


HDMI version


Dimensions (WxDxH)

56 x 100 x 17 mm

Supported audio channels


Power LED


User guide


Harmonized System (HS) code
