$4,373.97 (Incl. GST)

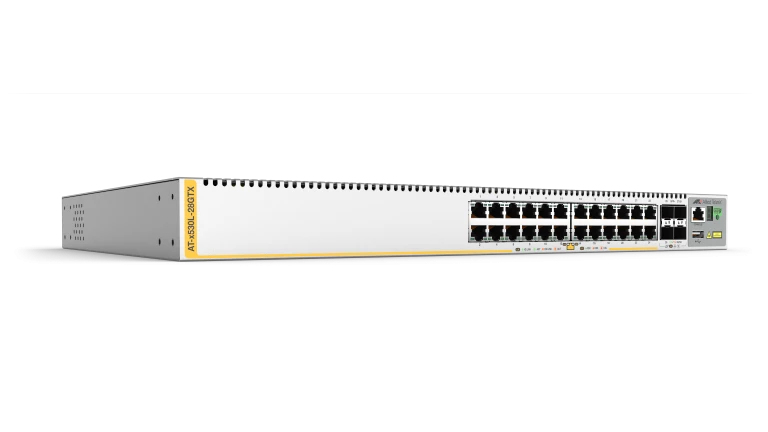

24-port 10/100/1000T stackable switch with 4 SFP+ ports and 2 fixed power supplies
In stock
Stackable Intelligent Layer 3 Switches
The Allied Telesis x530L Series stackable Layer 3 switches feature high capacity, resiliency and easy management. With both Multi-Gigabit and high port density models, plus Power over Ethernet, they are the ideal choice for network access applications.
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Brand | Allied Telesis |
| Full duplex | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Stackable | Yes |
| Power over Ethernet (PoE) | No |
| Operating relative humidity (H-H) | 5 – 90% |
| Operating altitude | 0 – 3048 m |
| Weight | 4.4 kg |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Noise level | 42 dB |
| Switch layer | L3 |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3bt, IEEE 802.1ad, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3af, IEEE 802.3u, IEEE 802.3at, IEEE 802.3x, IEEE 802.1v, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3az |
| 10G support | Yes |
| Flow control support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| Rack mounting | Yes |
| Power consumption (max) | 39 W |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Package width | 577 mm |
| Package depth | 440 mm |
| Package height | 153 mm |
| Package weight | 6.3 kg |
| Power supply included | Yes |
| DHCP features | DHCPv6 server, DHCPv6 client, DHCPv6 relay |
| AC input voltage | 90 – 264 V |
| AC input frequency | 50/60 Hz |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Flash memory | 256 MB |
| System event log | Yes |
| Internal memory | 1024 MB |
| ARP inspection | Yes |
| Traffic classification | Yes |
| Latency (10-100 Mbps) | 6.06 µs |
| Latency (1 Gbps) | 3.98 µs |
| Latency (10 Gbps) | 1.63 µs |
| Power source | AC |
