Vertiv Liebert GXT5 uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 7 AC outlet(s)

$5,223.58 (Incl. GST)

Vertiv Liebert GXT5 UPS 3000VA/3000W 230V Online Double Conversion UPS, Optional RDU101 Card

Out of stock

SKU: VERTIV_01202005 Category:

Print

Description

The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a two-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.

Additional information

Product colour

Black

Brand

Vertiv

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 40 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Operating altitude

0 – 3000 m

UPS topology

Double-conversion (Online)

Output power capacity

3 kVA

Output power

3000 W

Input frequency

50/60 Hz

Efficiency

95%

Power protection features

Overload

Audible alarm(s)

Yes

AC outlet types

C13 coupler, C19 coupler

AC outlets quantity

7 AC outlet(s)

USB port

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

9 VAh

Battery voltage

12 V

Typical backup time at full load

3 min

Typical backup time at half load

9 min

Battery recharge time

3 h

Form factor

Rackmount/Tower

Certification

IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6);FCC 15 ACISPR22 A(RFI)

Sustainability certificates

ENERGY STAR

Width

430 mm

Depth

540 mm

Height

85 mm

Weight

28.2 kg

Package width

517 mm

Package depth

617 mm

Package height

262 mm

Package weight

33 g

Nominal output voltage

230 V

Nominal input voltage

230 V

Waveform

Pure sine

Input operation voltage (min)

115 V

Input operation voltage (max)

288 V

Noise level

58 dB

Emergency Power Off (EPO)

Yes

Battery type

VRLA

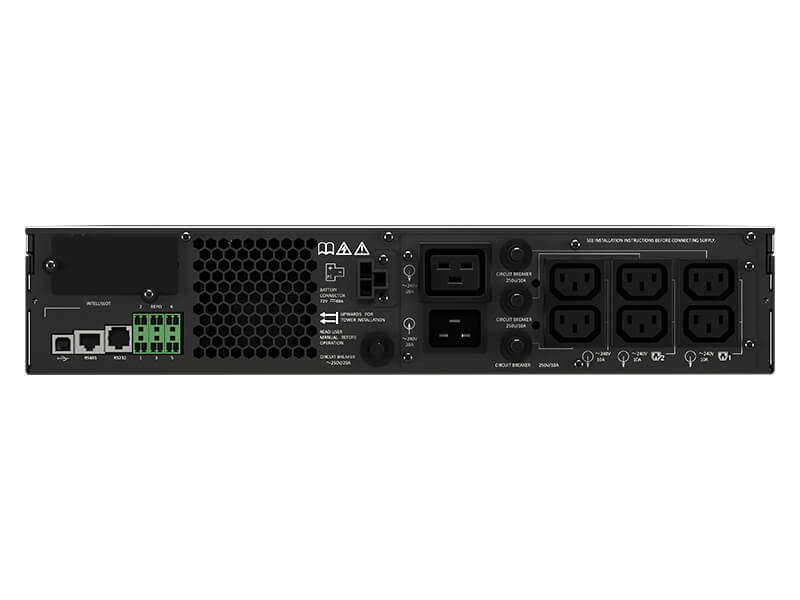

Output connections

IEC320 C13 & C19

Input connection type

C20
