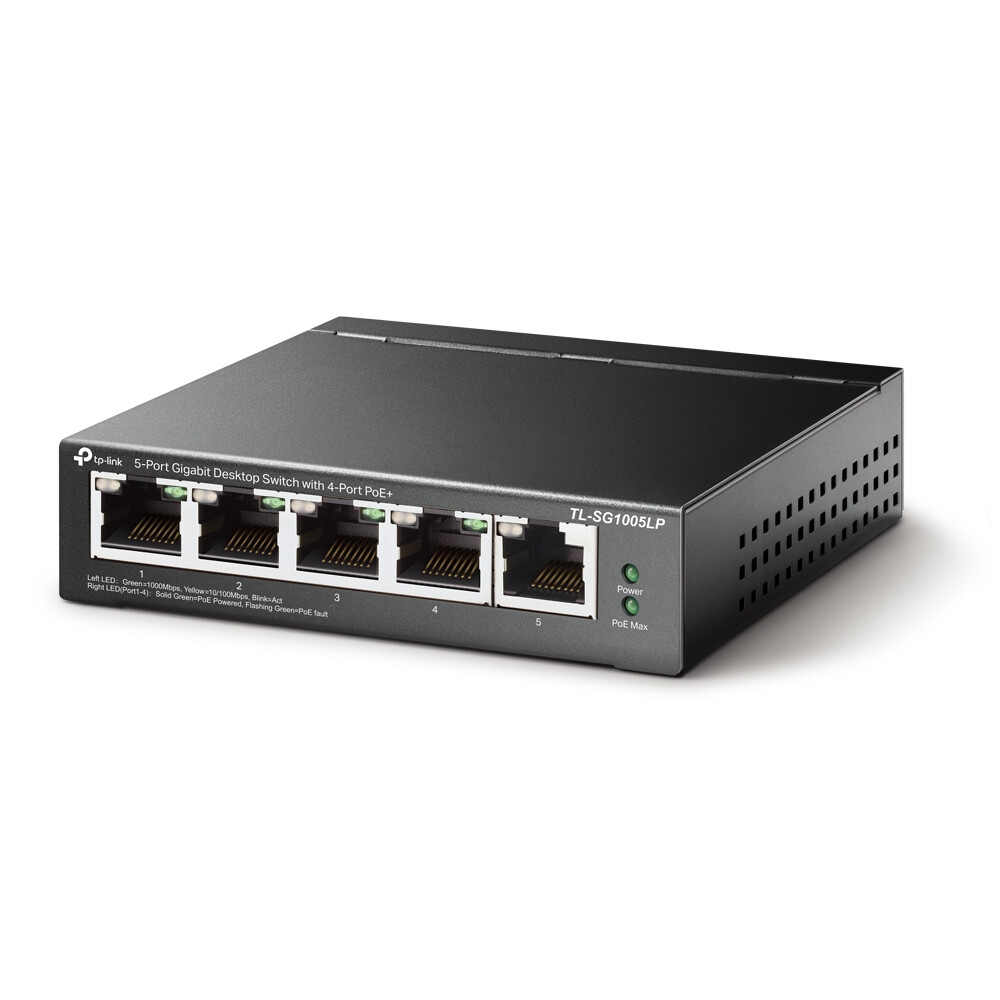

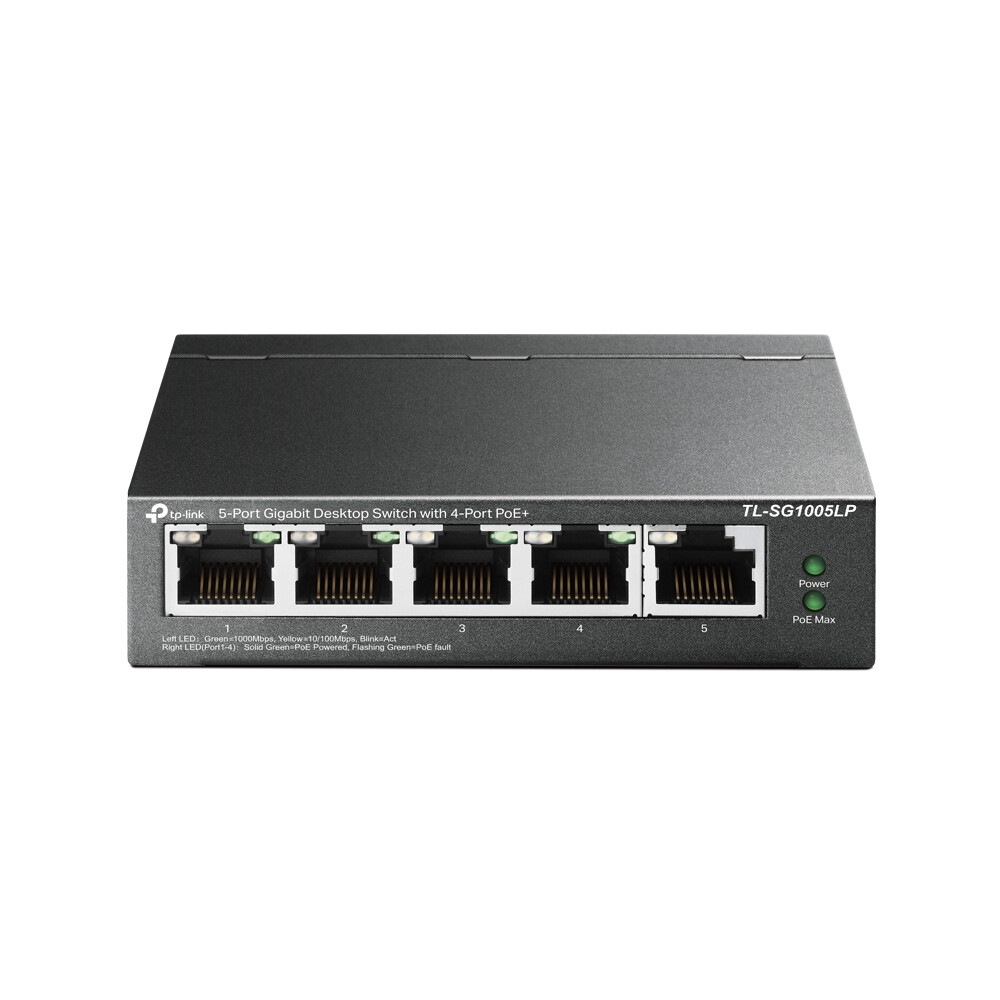

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

$69.66 (Incl. GST)

5x 1G RJ-45, 10 Gbps, 7.44 Mpps, PoE, 99.8×98×25 mm

In stock

SKU: TP-LINK_TL-SG1005LP Category:

Print

Description

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

Additional information

Basic switching RJ-45 Ethernet ports quantity

5

Brand

TP-LINK

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-40 – 70 °C

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Gigabit Ethernet (copper) ports quantity

5

Stackable

No

Product colour

Black

Power over Ethernet (PoE)

Yes

Operating relative humidity (H-H)

10 – 90%

Heat dissipation

161.98 BTU/h

Jumbo frames support

Yes

Certification

FCC, CE, RoHS

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Networking standards

IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

No

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Cable types supported

Cat3, Cat4, Cat5, Cat5e, Cat6

Flow control support

Yes

Auto MDI/MDI-X

Yes

MAC address table

2000 entries

Switching capacity

10 Gbit/s

Forwarding rate

7.44 Mpps

Store-and-forward

Yes

Rack mounting

No

LED indicators

Yes

Power consumption (max)

47.5 W

Total Power over Ethernet (PoE) budget

40 W

Storage relative humidity (H-H)

5 – 90%

Width

99.8 mm

Depth

98 mm

Height

25 mm

Package width

131 mm

Package depth

196 mm

Package height

121 mm

Package weight

730 g

Auto-negotiation

Yes

Power supply included

Yes

Input current

0.81 A

IGMP snooping

Yes

AC input voltage

100 – 240 V

AC input frequency

50/60 Hz

MAC address auto-learning supported

Yes

Power over Ethernet plus (PoE+) ports quantity

4

Fanless

Yes

DC input voltage

53.5 V

Jumbo frames

16000

Sustainability compliance

Yes

Package type

Box

User guide

Yes

Harmonized System (HS) code

85176990

Maximum cable length

100 m

Wall mountable

Yes

MAC address auto-aging supported

Yes

Power source

DC/PoE

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS
