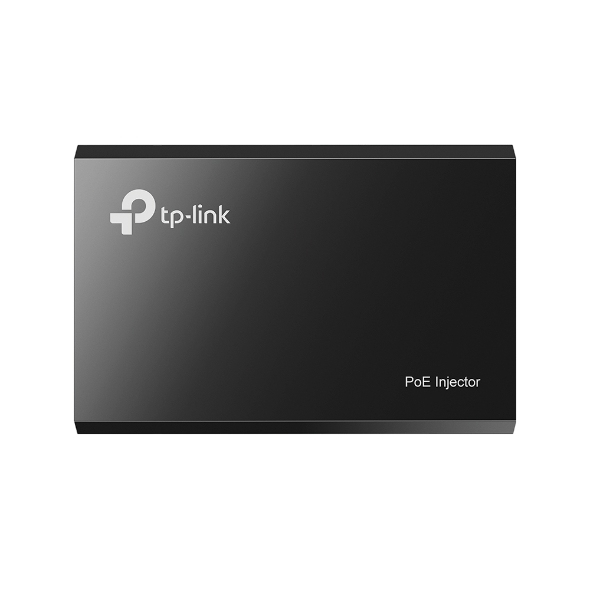

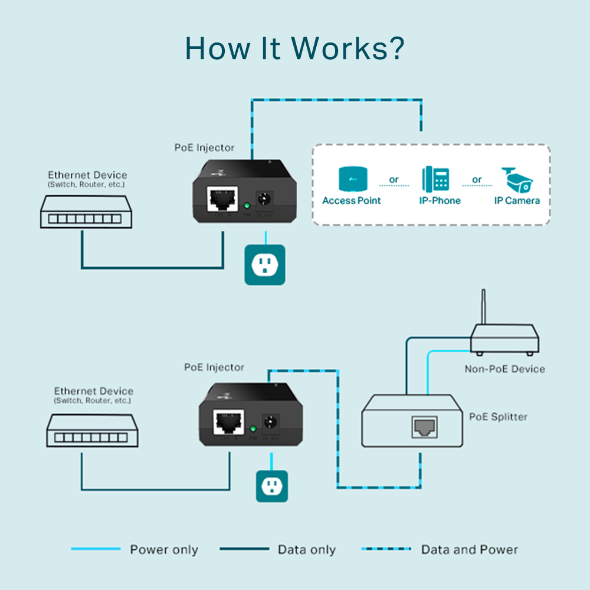

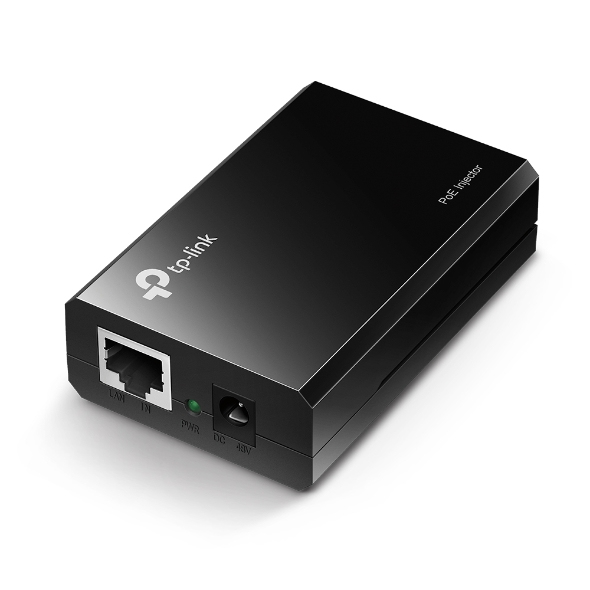

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
|---|---|
| Brand | TP-LINK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 80.8 mm |
| Depth | 54 mm |
| Height | 24 mm |
| LED indicators | Yes |
| DC-in jack | Yes |
| Package width | 65 mm |
| Package depth | 198 mm |
| Package height | 65 mm |
| Package weight | 350 g |
| Number of products included | 1 pc(s) |
| Input voltage | 48 V |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Cabling technology | 10/100/1000 |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
