$45.59 (Incl. GST)
PoE+, 10/100/1000Mbps RJ45 In, 10/100/1000Mbps RJ45 Out, 125×59.4×36.8 mm
In stock

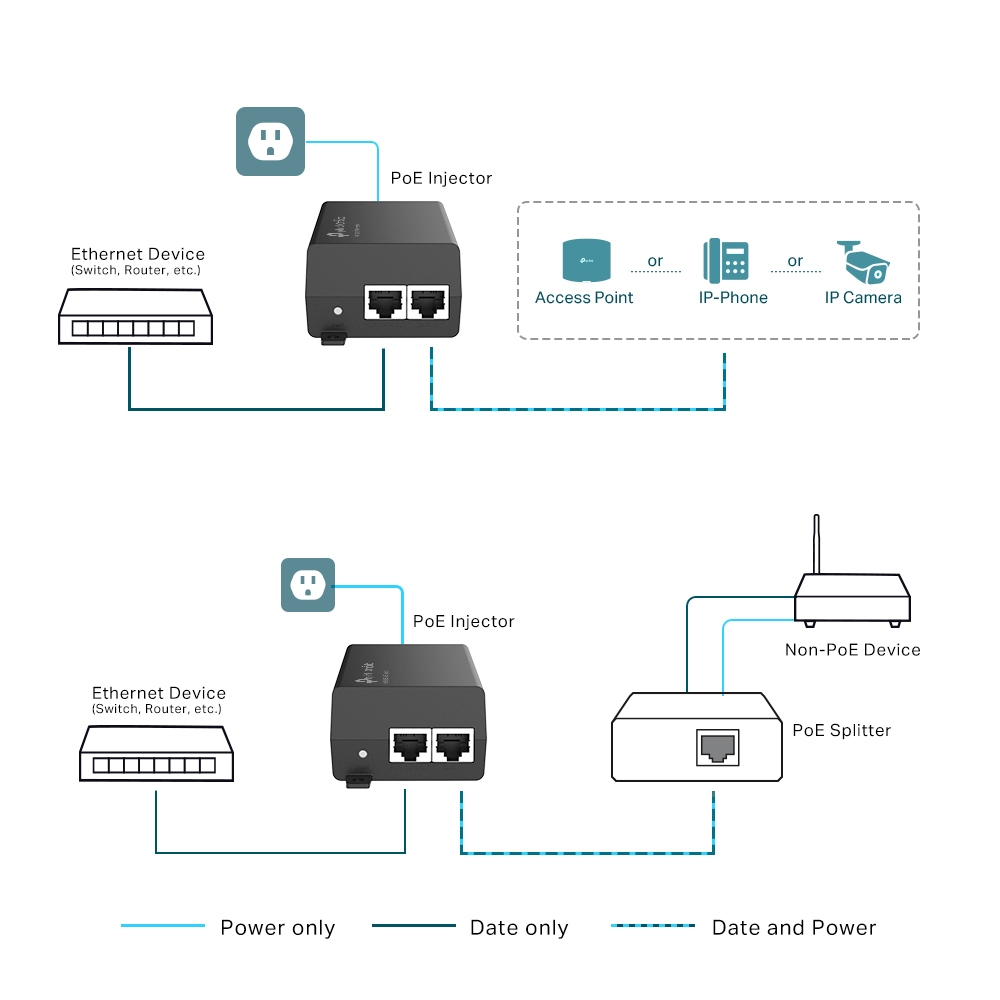

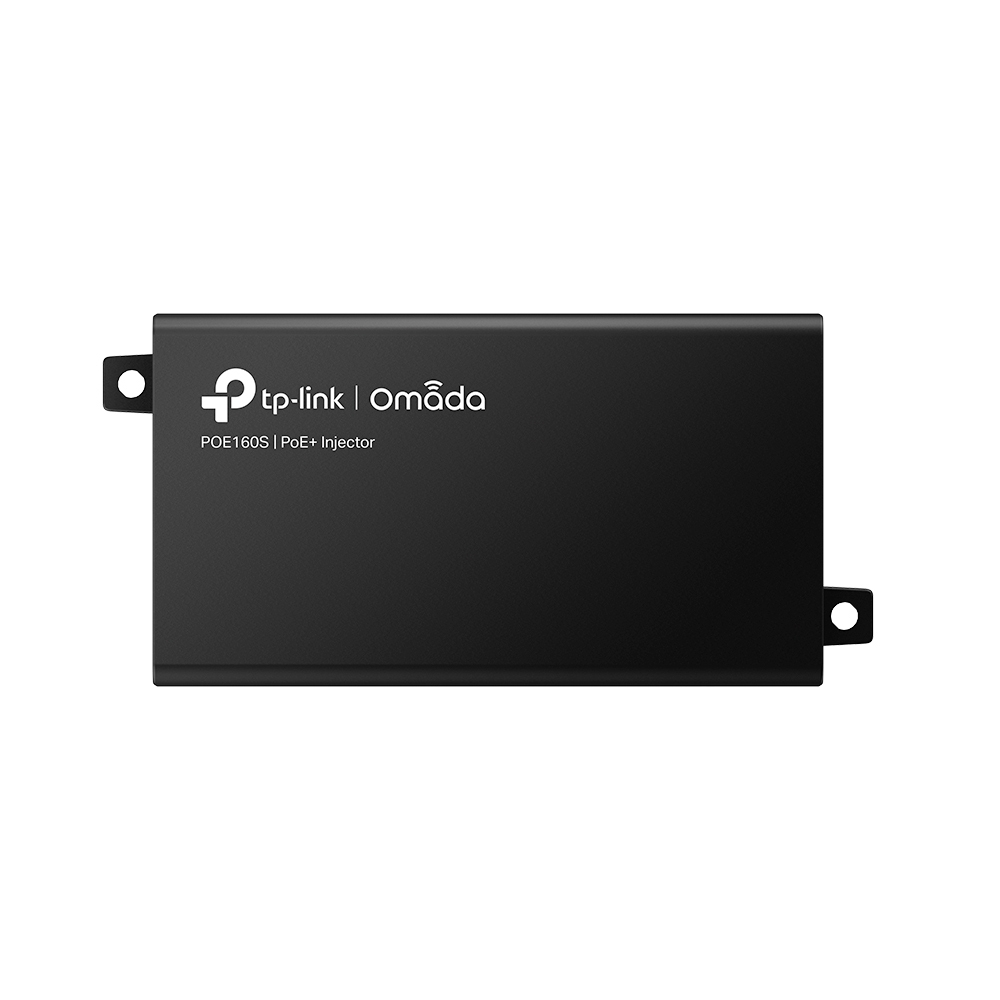

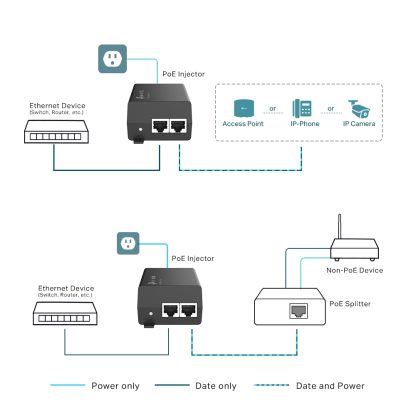

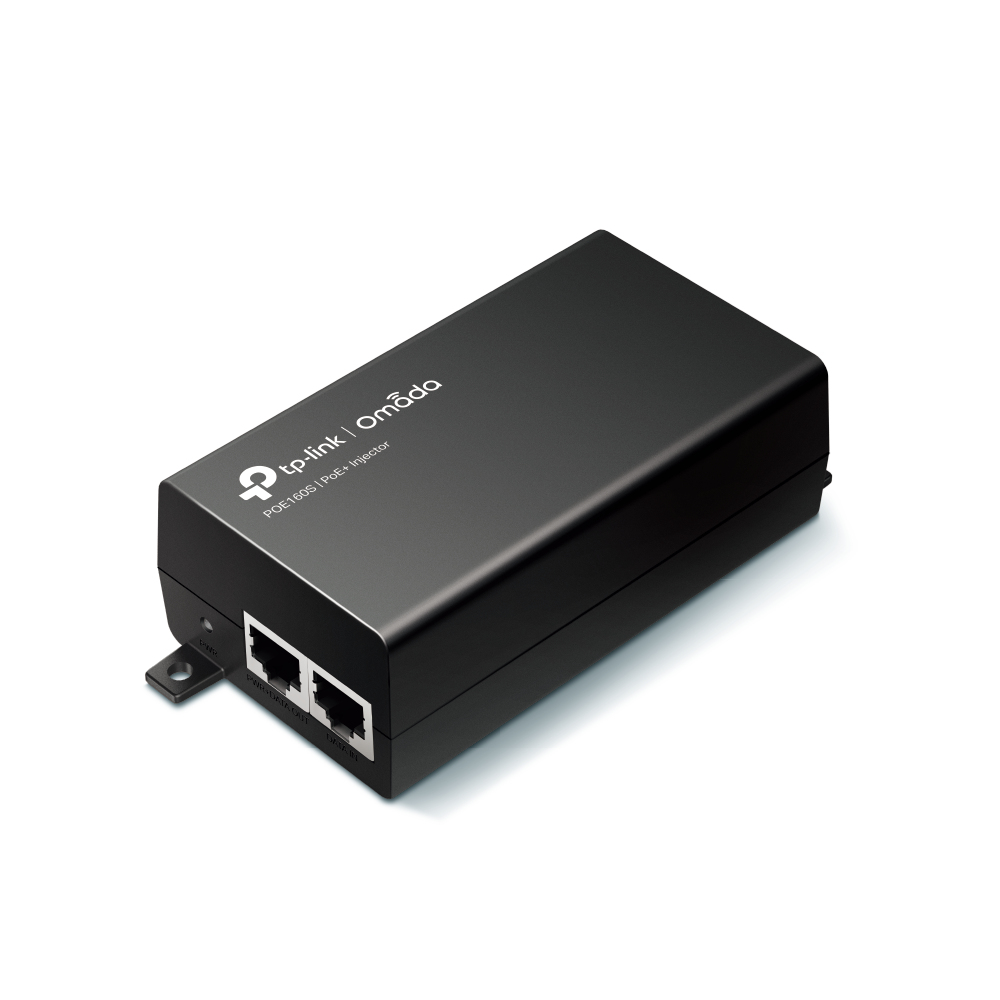

The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link’s POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Brand | TP-LINK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |

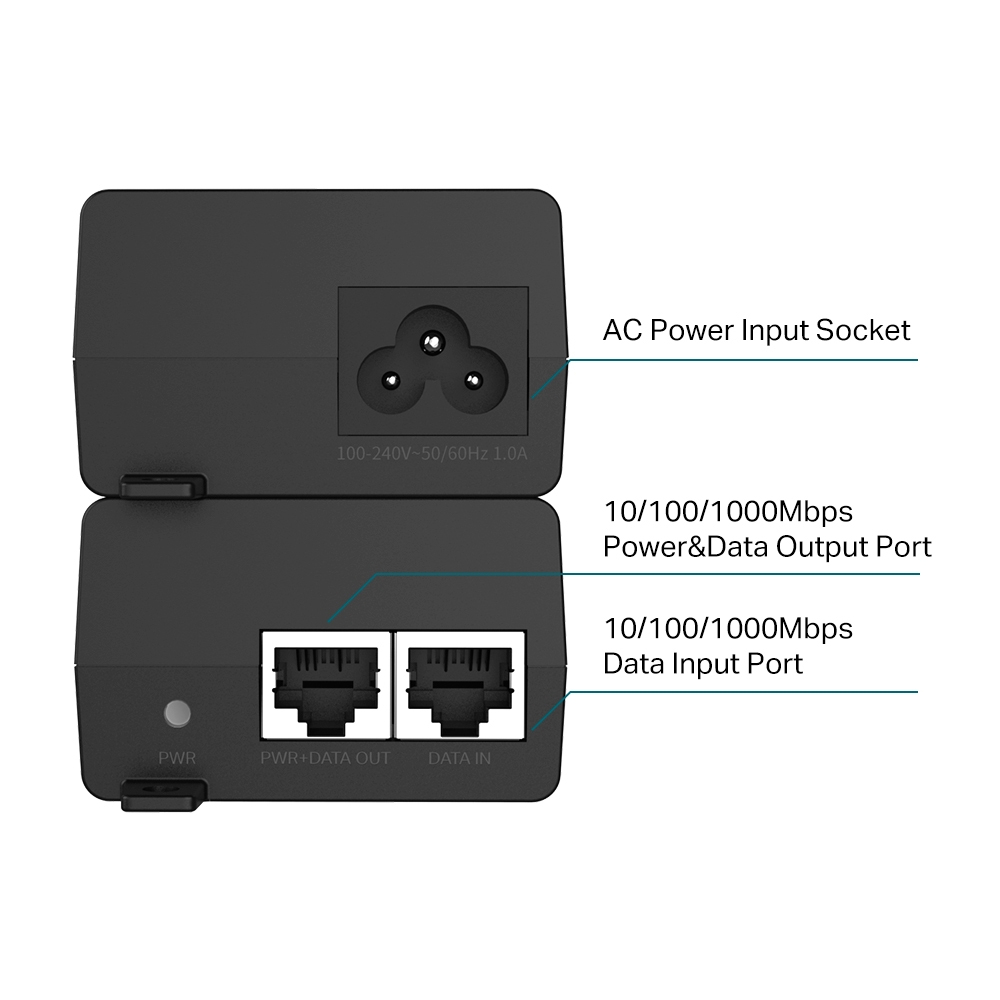

| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |

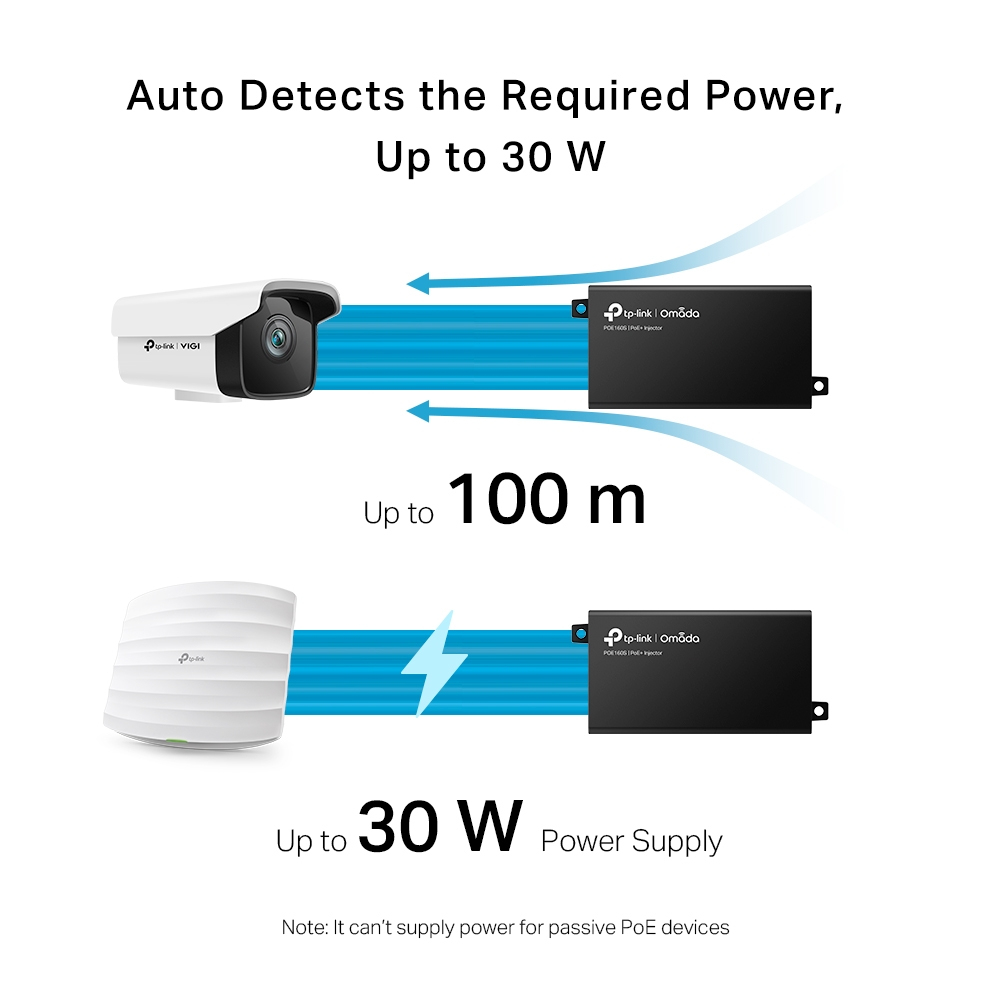

| Output power | 30 W |
| AC adapter input voltage | 100 – 240 V |
| AC adapter frequency | 50/60 Hz |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 125 mm |
| Depth | 59.4 mm |
| Height | 36.8 mm |
| LED indicators | Power |
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Quick installation guide | Yes |
| Wall mounting kit | Yes |
| Cabling technology | 10/100/1000 |
| Package type | Box |
| Product family | Omada |
