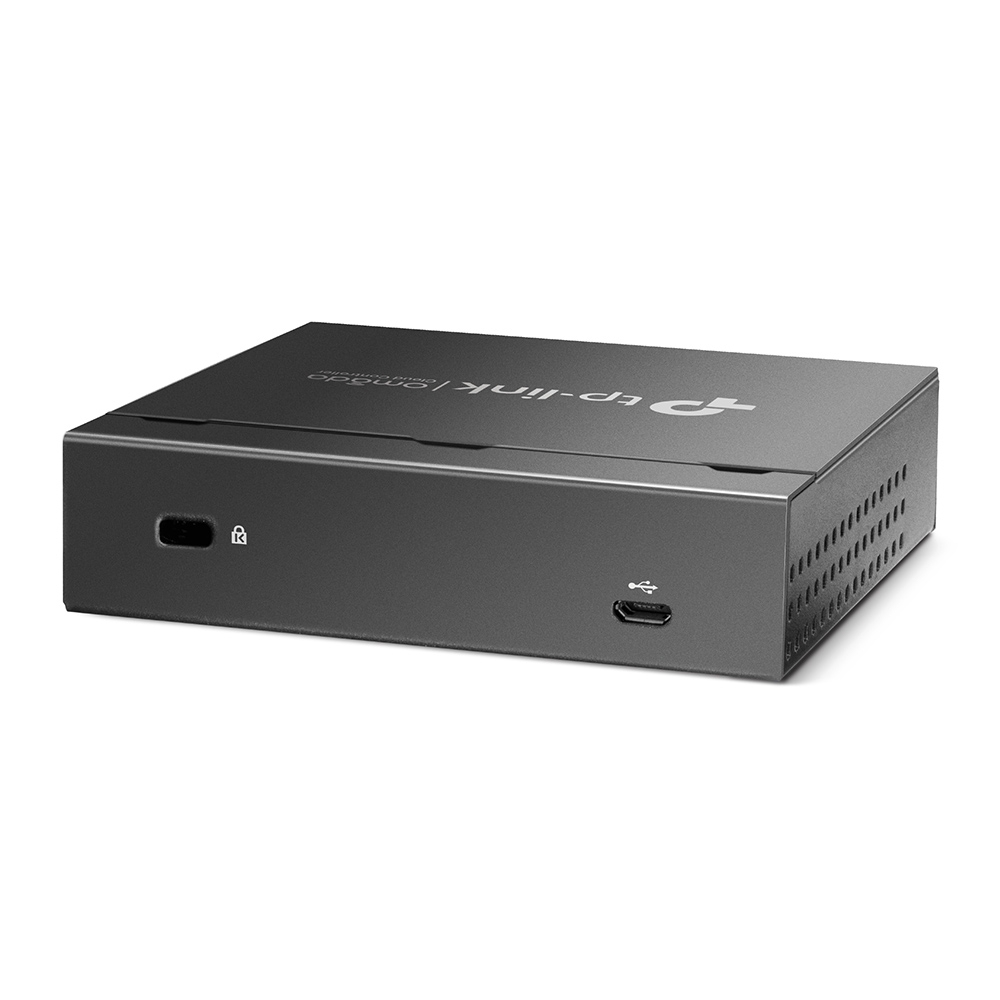

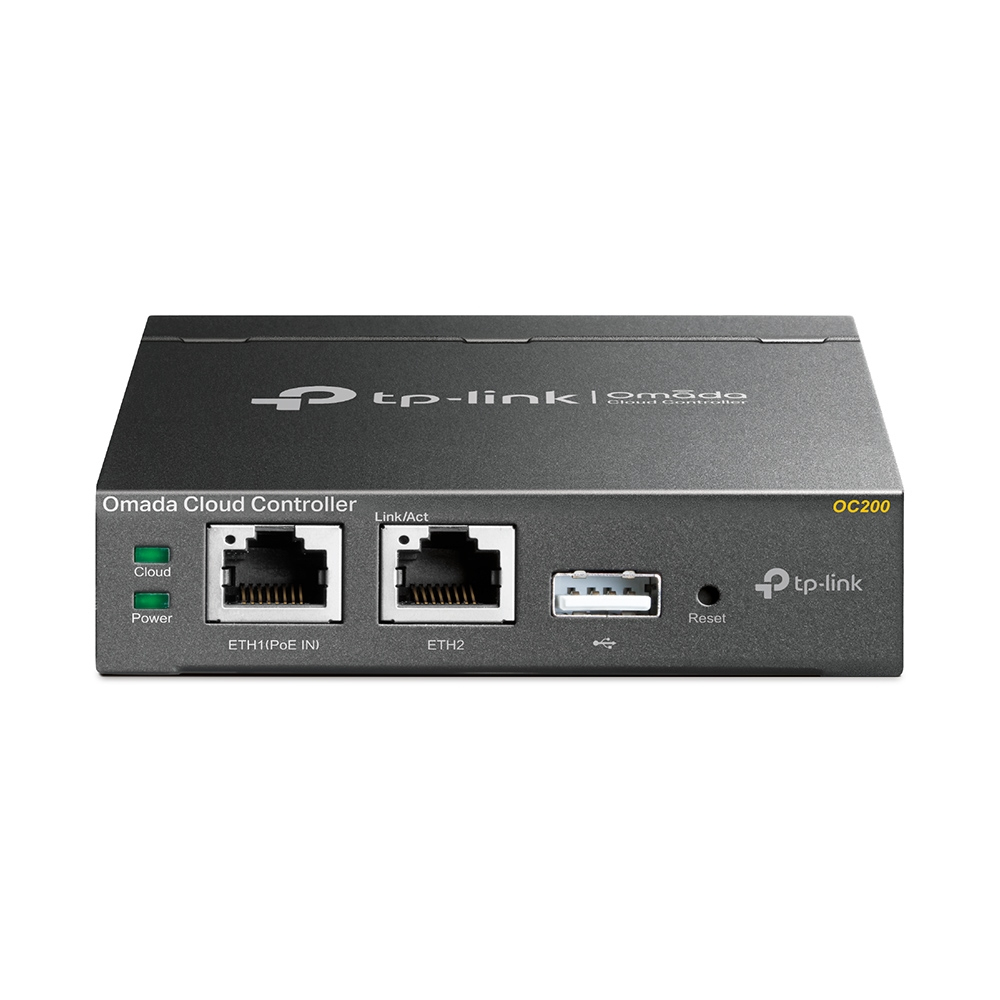

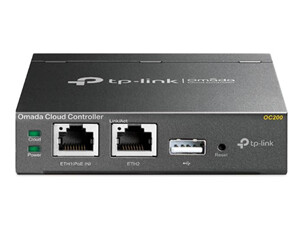

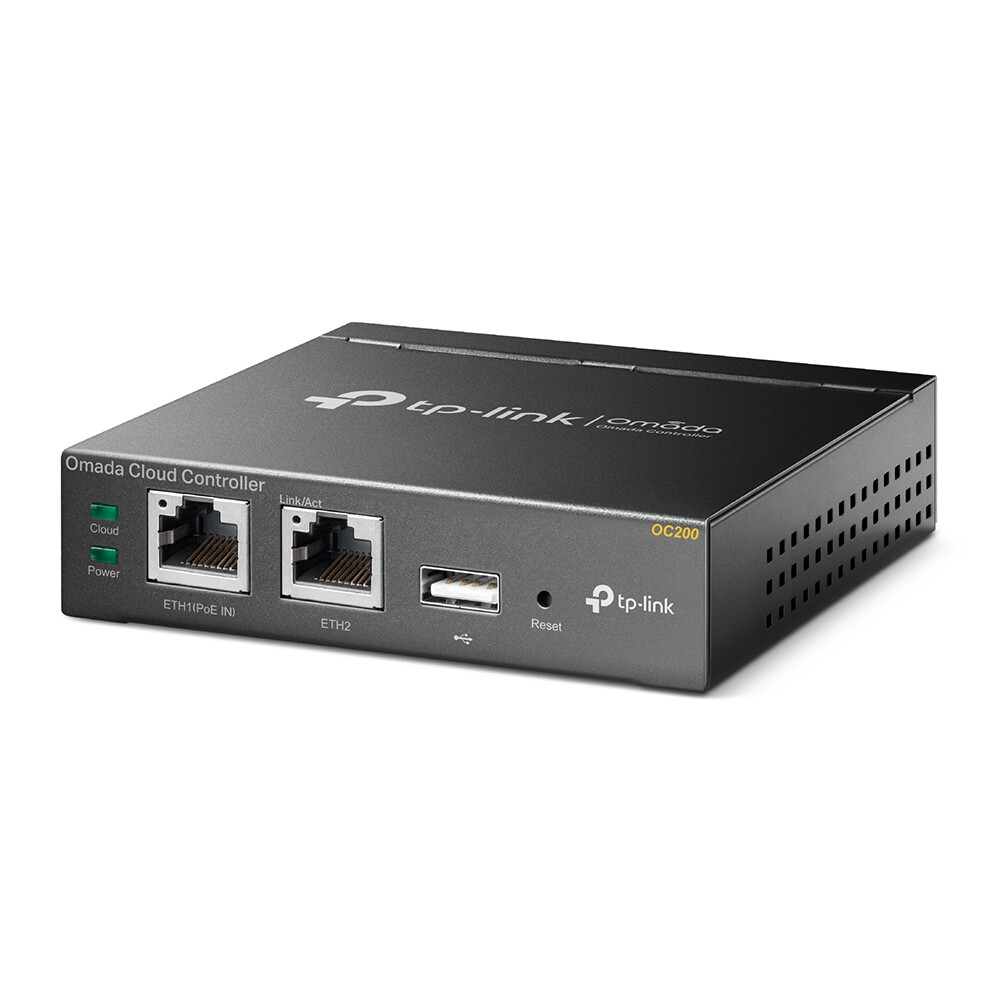

TP-Link Omada Cloud Controller

$149.83 (Incl. GST)

OC200 Omada, 10/100Mbps LAN, USB 2.0, Micro USB, PoE, 100×98×25 mm

In stock

SKU: TP-LINK_OC200 V1.1 Category:

Print

Description

Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.

Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.

Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.

Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.

Additional information

Security algorithms

SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Brand

TP-LINK

USB 2.0 ports quantity

1

Ethernet LAN (RJ-45) ports

2

Package width

135 mm

Package depth

128 mm

Package height

70 mm

Power consumption (typical)

5 W

Input voltage

5 V

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Certification

CE, FCC, RoHS

MAC address filtering

Yes

VLAN support

Yes

Ethernet LAN data rates

10,100 Mbit/s

Networking standards

IEEE 802.3af, IEEE 802.3at

Web-based management

Yes

Reset button

Yes

Width

99.8 mm

Depth

98 mm

Height

25 mm

Power over Ethernet (PoE)

Yes

DC input voltage

5 V

Storage relative humidity (H-H)

5 – 90%

Built-in processor

Yes

Management platform

L3

Number of processors installed

1

Processor frequency

1000 MHz

LED indicators

Yes

Compatible operating systems

Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux

Internal memory

1024 MB

Flash memory

4000 MB

Internal memory type

DDR3

Cables included

LAN (RJ-45)

Quick installation guide

Yes

Control display unit

No

Product colour

Black

Harmonized System (HS) code

85176990

Syslog

Yes

Input current

1 A
