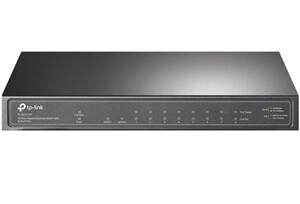

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

$139.81 (Incl. GST)

9x 10/100/1000, 1x 1G SFP, PoE+, 63 W PoE budget ports, 209 x 126 x 26 mm

Out of stock

SKU: TP-LINK_TL-SG1210P V1 Category:

Print

Description

PoE Switches for Your Ultra Convenience

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P

Surveillance
Work with IP Cameras

Conference Call
Work with IP Phones

Wi-Fi Coverage
Work with Omada EAPs

Easy to Use

Power over Ethernet

Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Qos
For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP
Snooping
Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Additional information

Basic switching RJ-45 Ethernet ports quantity

9

Brand

TP-LINK

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-40 – 70 °C

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Gigabit Ethernet (copper) ports quantity

9

Product colour

Grey

Power over Ethernet (PoE)

Yes

Operating relative humidity (H-H)

10 – 90%

Heat dissipation

266.42 BTU/h

Packet buffer memory

14.88 MB

Certification

CE, FCC, RoHS

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

1

Networking standards

IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

10G support

No

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Auto MDI/MDI-X

Yes

MAC address table

4000 entries

Switching capacity

20 Gbit/s

Store-and-forward

Yes

LED indicators

Yes

Power consumption (max)

78.13 W

Total Power over Ethernet (PoE) budget

63 W

Storage relative humidity (H-H)

5 – 90%

Width

209 mm

Depth

126 mm

Height

26 mm

Package width

240 mm

Package depth

315 mm

Package height

70 mm

Package weight

1.24 kg

Auto-negotiation

Yes

Power supply included

Yes

Input current

1.31 A

IGMP snooping

Yes

Housing material

Metal

MAC address auto-learning supported

Yes

Manual

Yes

Power over Ethernet plus (PoE+) ports quantity

8

Fanless

Yes

DC input voltage

53.5 V

Quick start guide

Yes

Harmonized System (HS) code

85176990

Fiber ethernet cabling technology

1000BASE-X

MAC address auto-aging supported

Yes

Fiber type

Single-mode

Power source

DC
