StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) – VGA Cat5 Extender

$289.44 (Incl. GST)

StarTech.com VGA Over CAT5 Extender – 250 ft (80m) – 1 Local and 1 Remote Unit – VGA Video Over Ethernet Extender Kit (ST121UTPE

In stock

SKU: STARTECH.COM_ST121UTPEP Category:

Print

Description

Extend a VGA signal to a remote display using Cat5 cabling

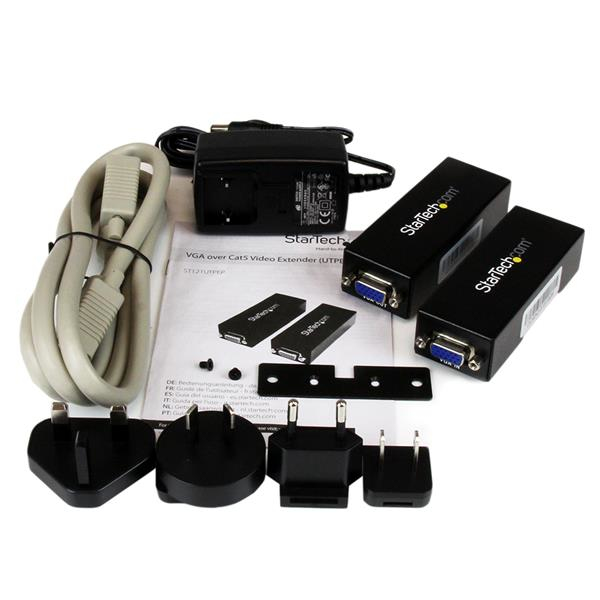

The ST121UTPEP VGA Video Extender over Cat5 – Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Package width

140 mm

Brand

StarTech.com

Package depth

315 mm

Package height

60 mm

Type

AV transmitter & receiver

Cable types supported

Cat5

Maximum transfer distance

80 m

Supported graphics resolutions

1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)

Material

Aluminium

Daisy chain

No

Product colour

Black

Certification

CE, FCC, REACH, TAA

RJ-45 input ports

1

RJ-45 output ports

1

VGA (D-Sub) input ports

1

VGA (D-Sub) output ports

1

DC-in jack

Yes

Operating voltage

12 V

Output current

0.6 A

Power consumption (typical)

7.2 W

External power adapter

Yes

Package weight

795 g

AC adapter included

Yes

Manual

Yes

Mounting brackets included

Yes

Maximum resolution

1920 x 1200 pixels

Plug and Play

Yes

Power plug type

Type M

Width

138 mm

Depth

100 mm

Height

25 mm

Weight

263 g

Cables included

VGA

Included power plug types

AU, EU, NA, UK

Compliance certificates

RoHS
