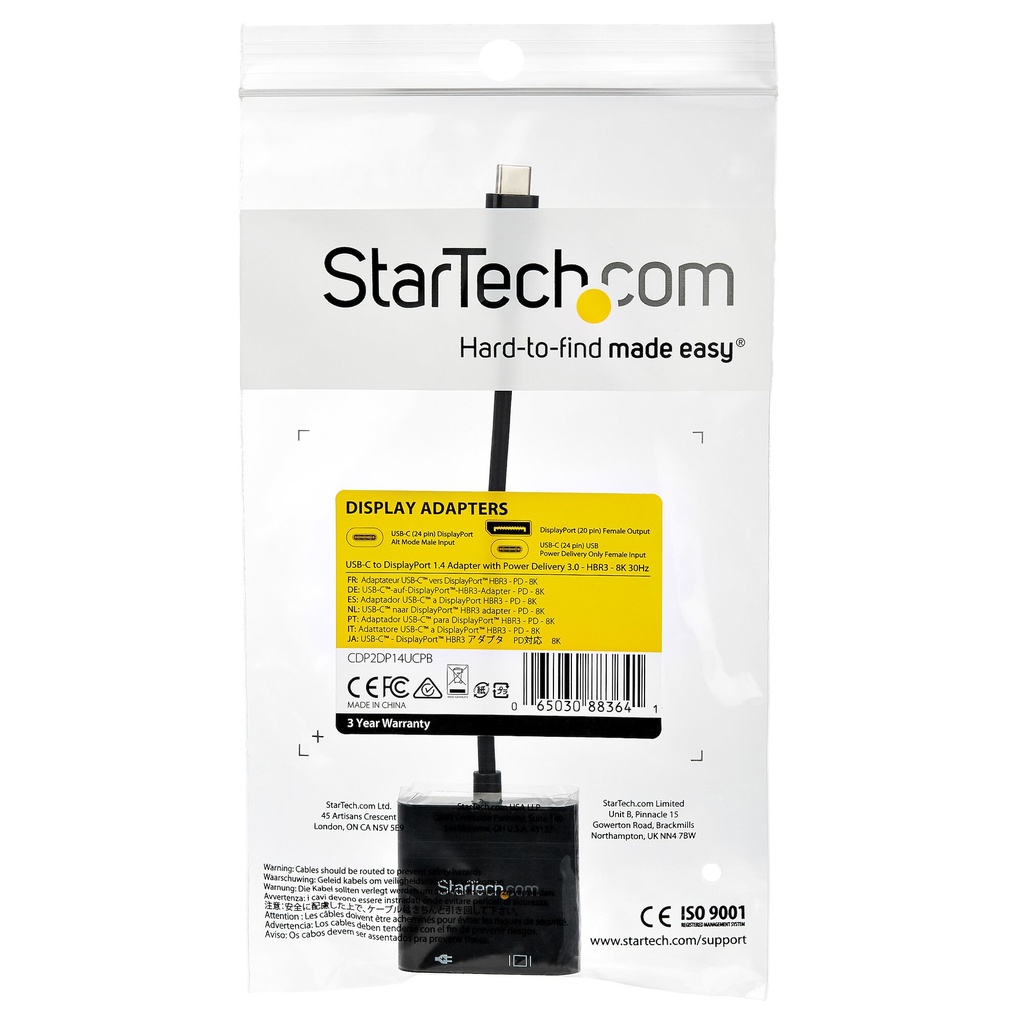

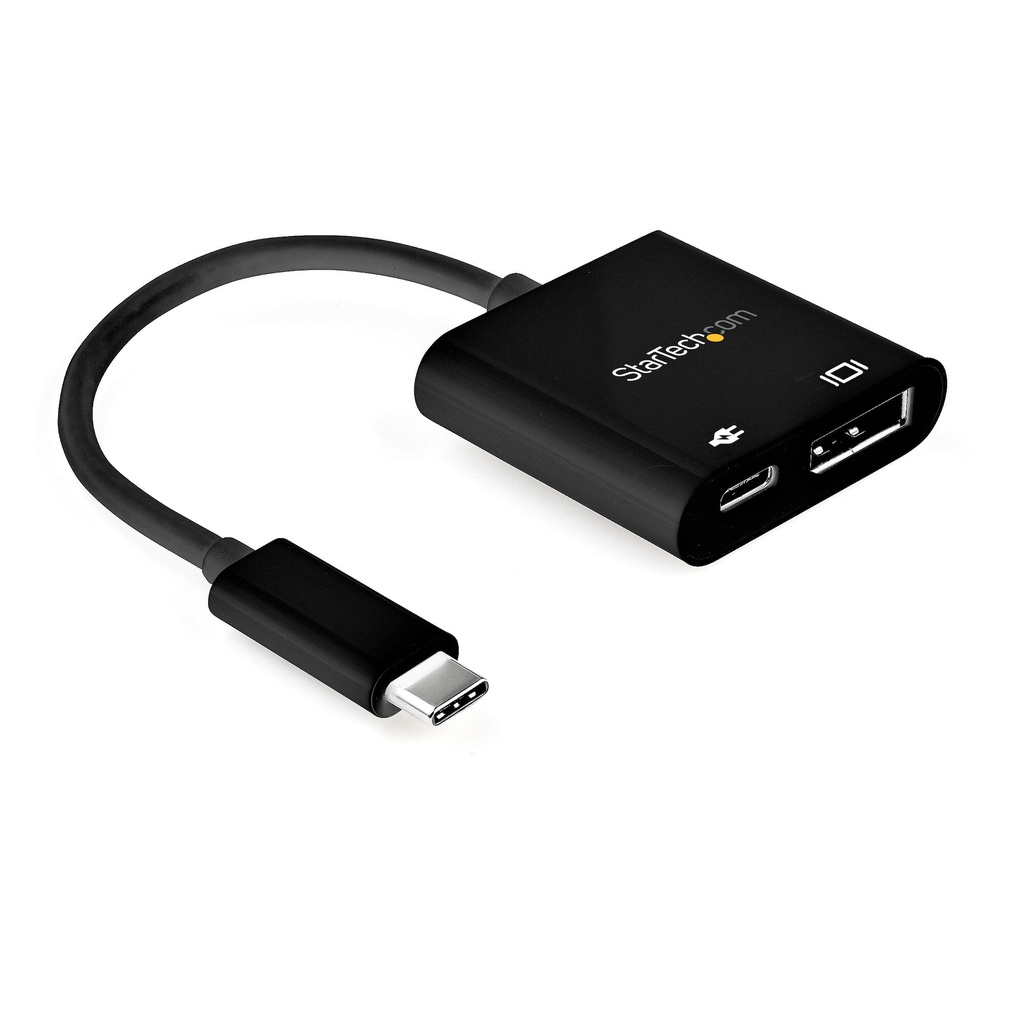

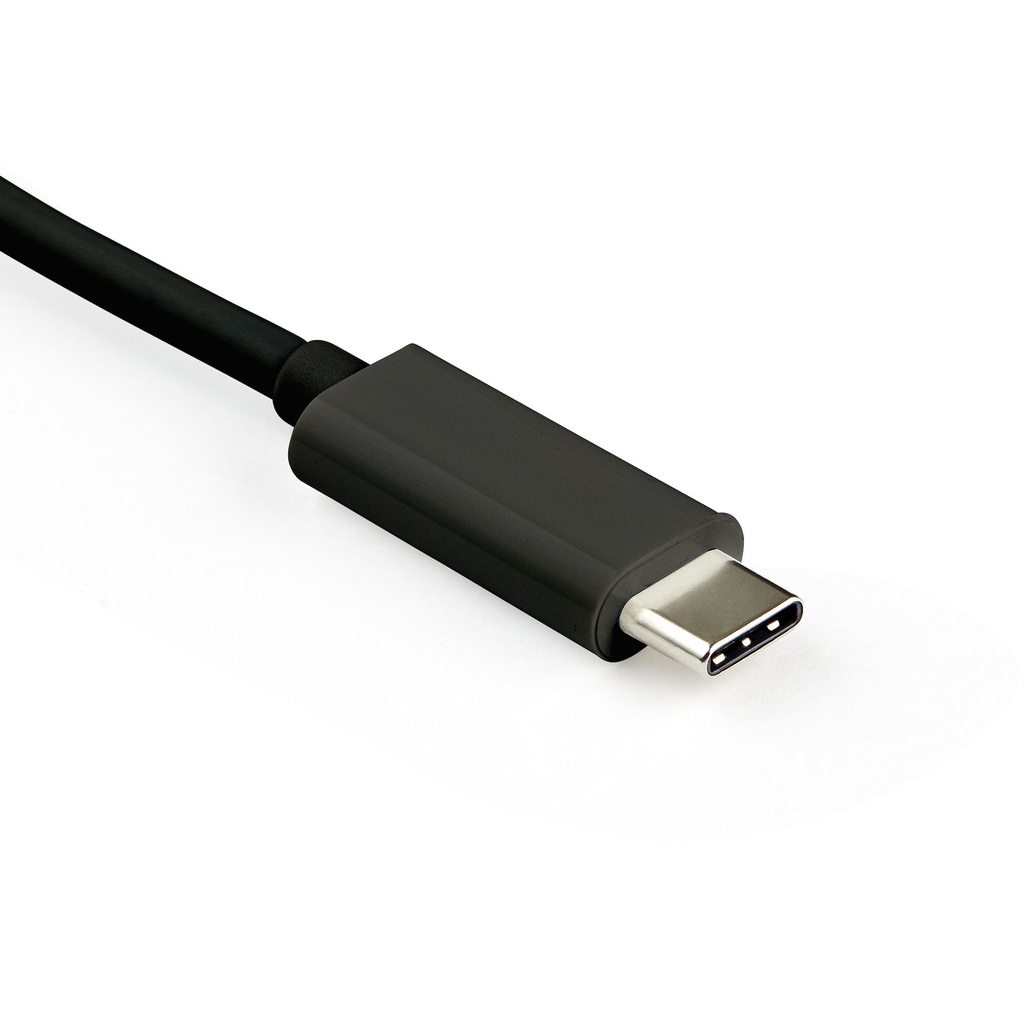

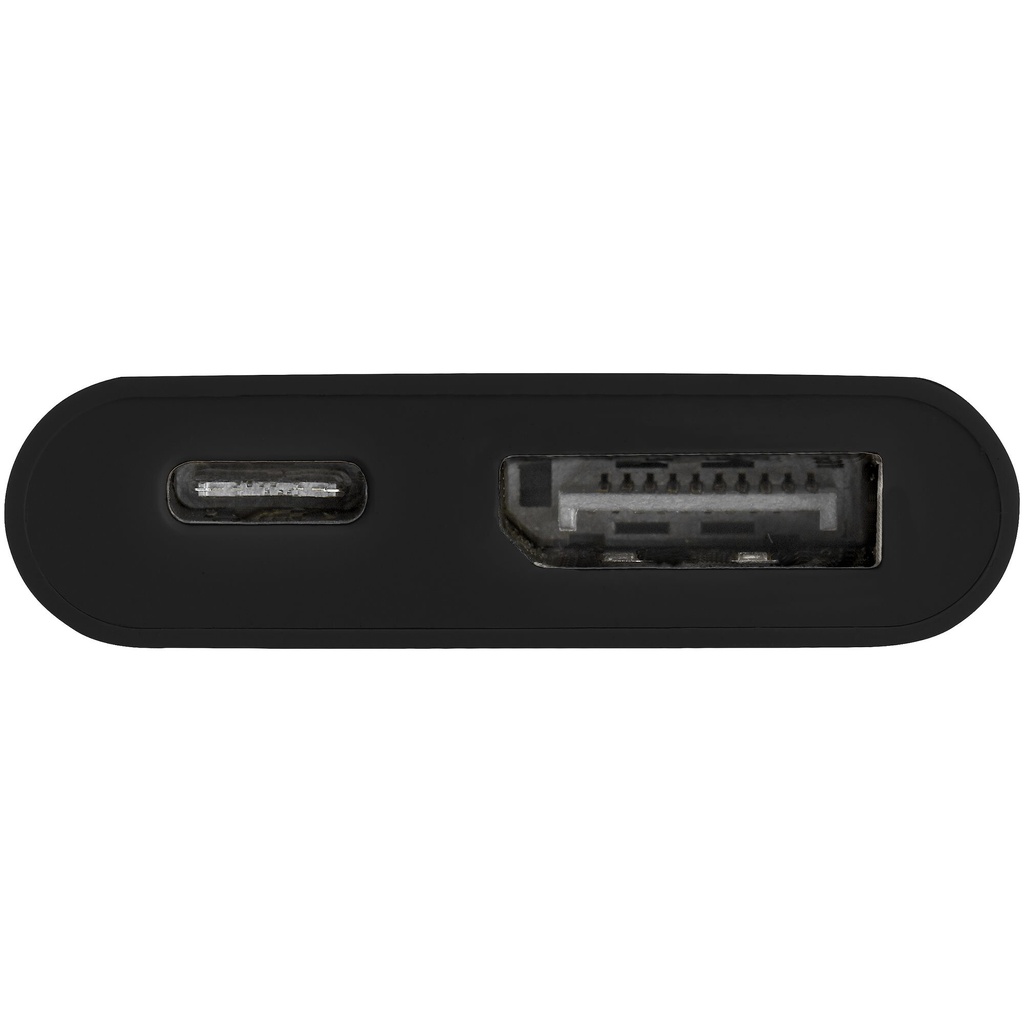

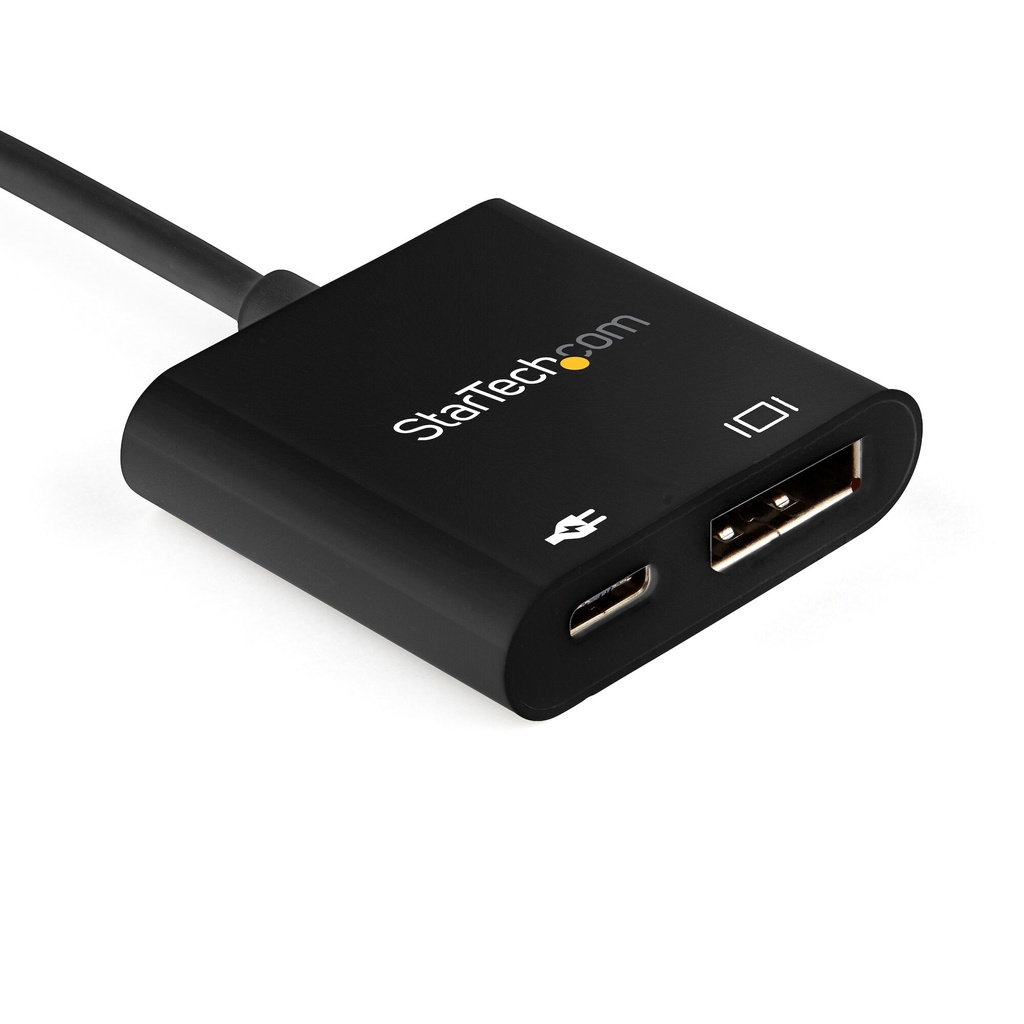

StarTech.com USB C to DisplayPort Adapter with Power Delivery – 8K 60Hz /4K 120Hz USB Type C to DP 1.4 Video Converter w/ 60W PD

$88.40 (Incl. GST)

StarTech.com USB C to DisplayPort Adapter with Power Delivery – 8K 60Hz /4K 120Hz USB Type C to DP 1.4 Video Converter w/ 60W PD

In stock

SKU: STARTECH.COM_CDP2DP14UCPB Category:

Print

Description

StarTech.com USB C to DisplayPort Adapter with Power Delivery – 8K 60Hz /4K 120Hz USB Type C to DP 1.4 Video Converter w/ 60W PD Pass-Through Charging – HBR3 – Thunderbolt 3 Compatible. USB connector type: USB Type-C, USB connector gender: Male, HDCP version: 1.4/2.2. Product colour: Black, Housing material: Plastic. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,…. Width: 40 mm, Depth: 43 mm, Height: 11.4 mm. Products per master (outer) case: 200 pc(s), Master (outer) case width: 328 mm, Master (outer) case length: 482 mm

DisplayPort 1.4 Adapter | Thunderbolt 3 Compatible | HBR3 | 60W PD

This USB-C to DisplayPort adapter lets you connect your USB Type-C or Thunderbolt 3 device to a DisplayPort display, providing you with a convenient, high-performance solution. The adapter features USB Power Delivery so you can power and charge your devices while outputting Ultra HD video.

Power & Video with USB Power Delivery

This USB-C display adapter supports USB Power Delivery up to 60 watts and features an additional USB-C port so you can charge your laptop or tablet using its USB-C power adapter.

Incredible 8K Picture Quality

Delivering cutting-edge picture quality, this 8K DisplayPort 1.4 adapter supports UHD resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

The DisplayPort dongle is also backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.

Ideal for Travel

This lightweight display adapter is highly portable, with a small-footprint design. It’s the perfect accessory for your MacBook, Microsoft Surface Book or other USB-C (or Thunderbolt 3) device, fitting perfectly into your carrying case.

CDP2DP14UCPB is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

Your USB-C device must support DisplayPort Alternate Mode to work with this adapter.

To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.

The StarTech.com Advantage

– HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (DP Alt Mode HBR3) (32.4Gbps) adapter to connect a single DP display supporting 8K 60Hz (7680×4320) or 4K 120Hz UHD
– HDR/DisplayHDR
– DSC

Warranty: 3 Years

Additional information

DVI output

No

Brand

StarTech.com

HDMI output

No

DisplayPort output

Yes

Number of displays supported

1

USB connector type

USB Type-C

USB connector gender

Male

Maximum resolution

7680 x 4320 pixels

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320

Chipset

Parade PS8468, VIA VL102

Product colour

Black

Integrated USB cable

Yes

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Width

40 mm

Depth

43 mm

Height

11.4 mm

Weight

22 g

Package width

124 mm

Package depth

226 mm

Package height

11 mm

Package weight

26 g

Sustainability certificates

CE, RoHS

Operating temperature (T-T)

5 – 45 °C

Storage temperature (T-T)

-10 – 70 °C

Operating relative humidity (H-H)

10 – 85%

Housing material

Plastic

Mac compatibility

Yes

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Refresh rate at maximum resolution

30 Hz

Audio output channels

7.1 channels

Products per master (outer) case

200 pc(s)

Master (outer) case width

328 mm

Master (outer) case length

482 mm

Master (outer) case height

210 mm

DisplayPort version

1.4

HDCP

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

HDCP version

1.4/2.2

Harmonized System (HS) code

84733020

Sustainability compliance

Yes
