StarTech.com Triple-Monitor USB 3.0 Docking Station – 1x HDMI – 2x DisplayPort

$405.93 (Incl. GST)

StarTech.com Triple Monitor USB 3.0 Laptop Docking Station – 4K HDMI, 2x DisplayPort – Universal USB Dock for Windows & Mac OS (

In stock

SKU: STARTECH.COM_USB3DOCKH2DP Category:

Print

Description

StarTech.com Triple-Monitor USB 3.0 Docking Station – 1x HDMI – 2x DisplayPort. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100-240 V, Input current: 1.5 A, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura, Other operating systems supported: ChromeOS

Port Replicator | Mac & Windows | 4K DP | 5 USB ports | TAA Compliant

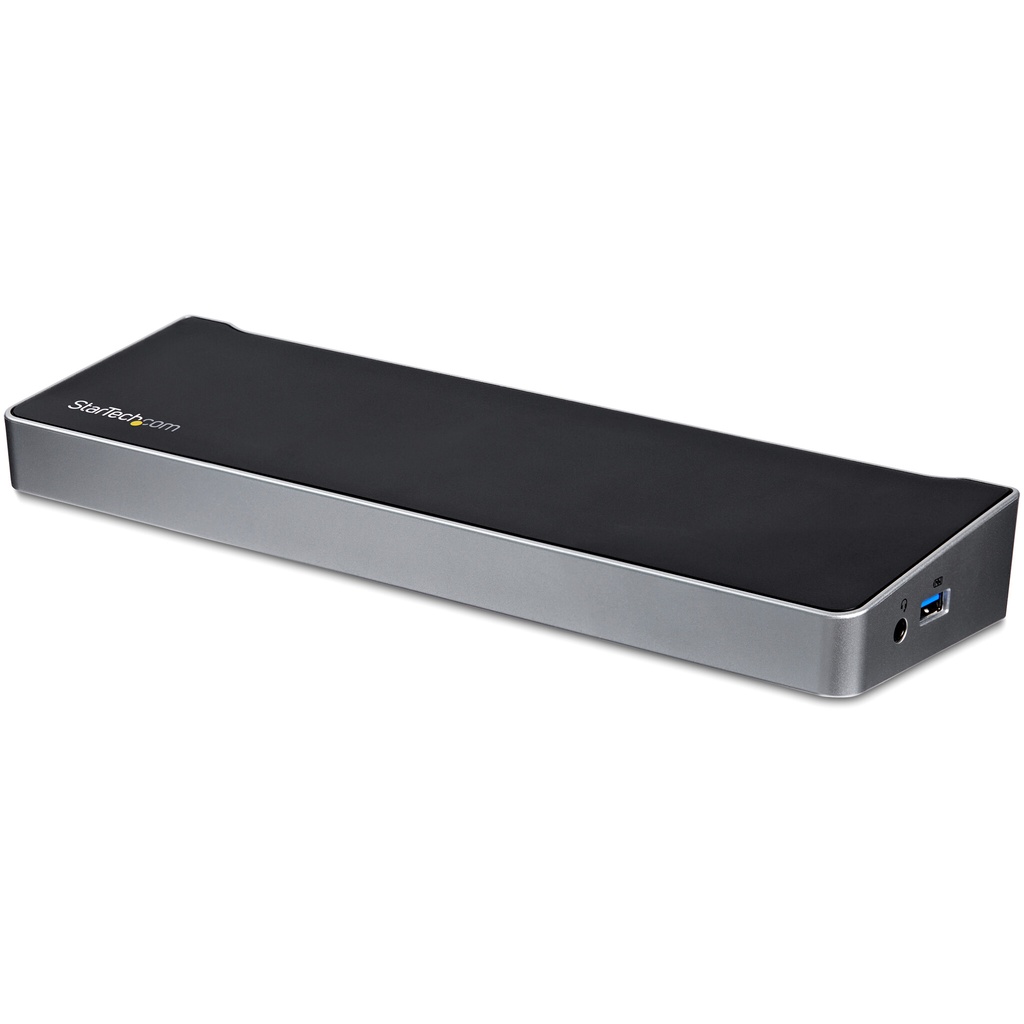

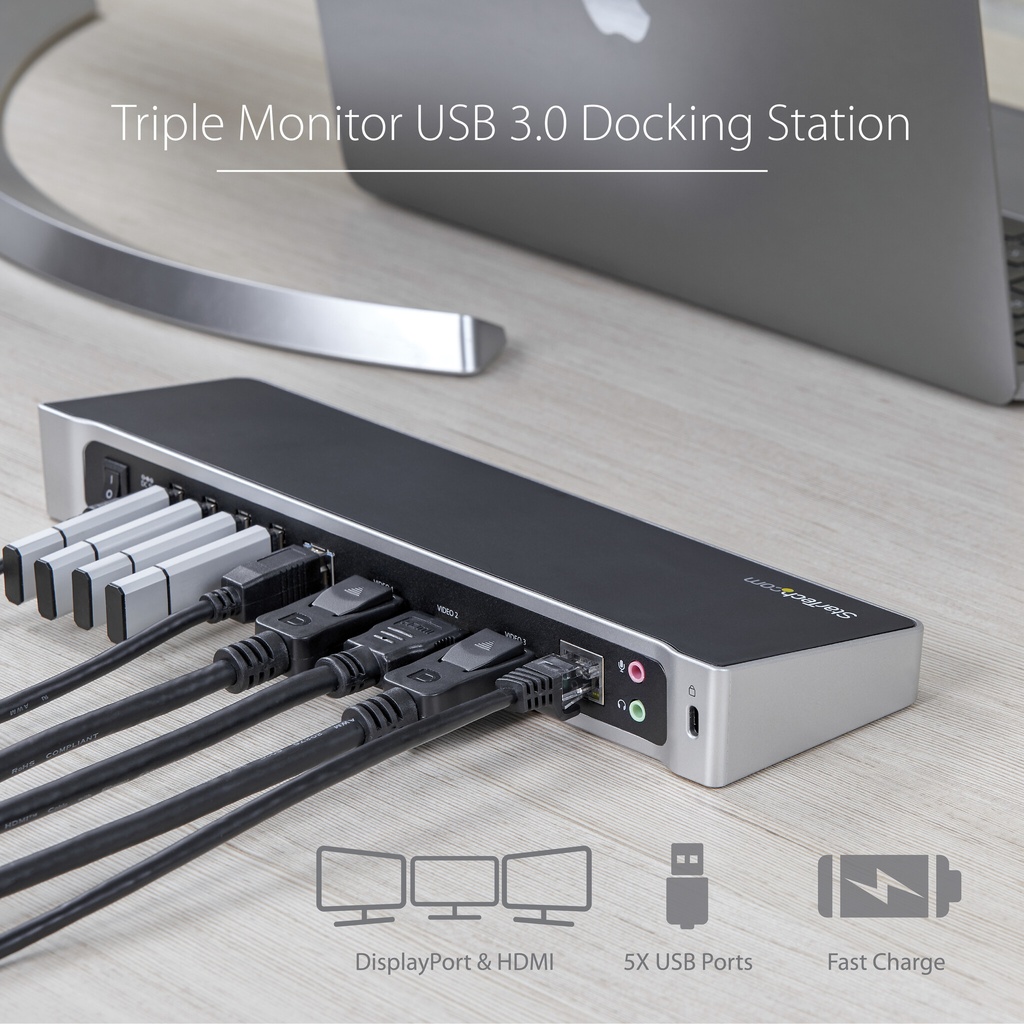

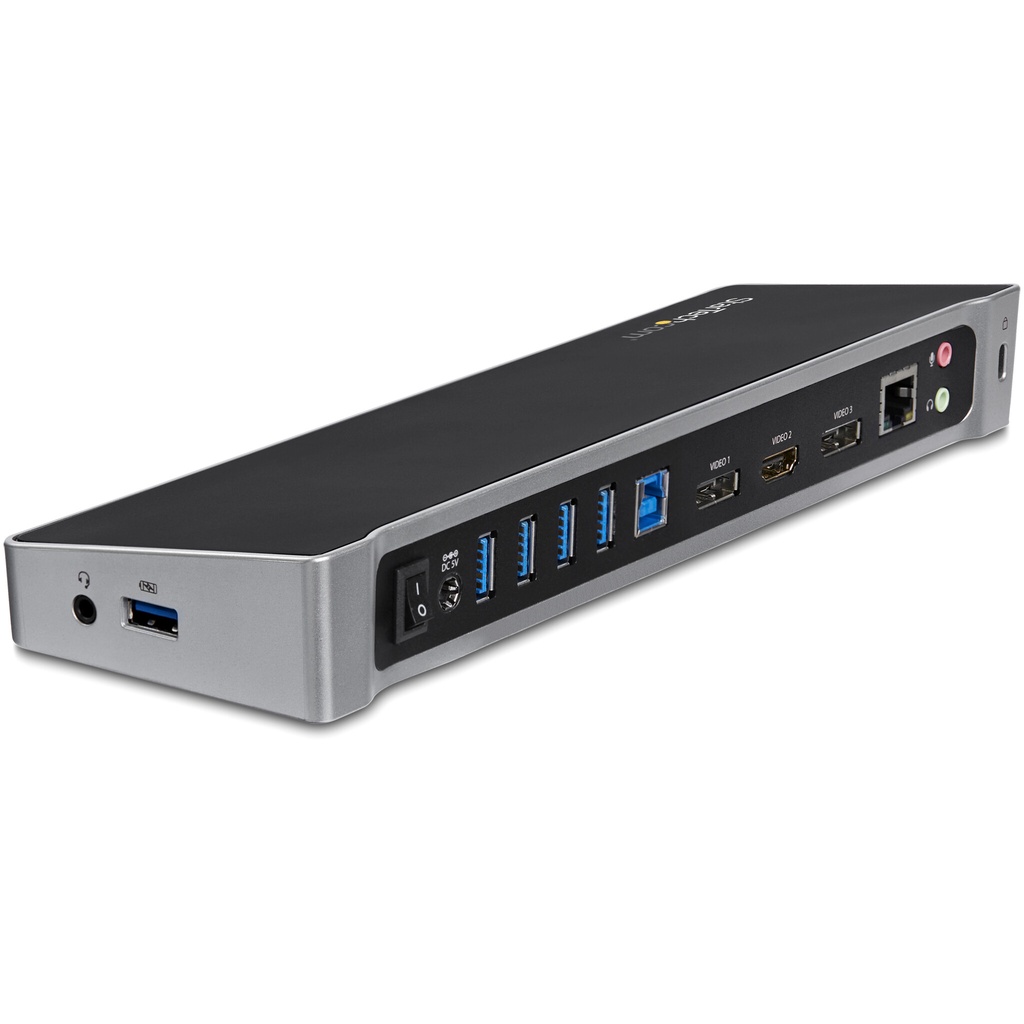

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Triple Display Flexibility

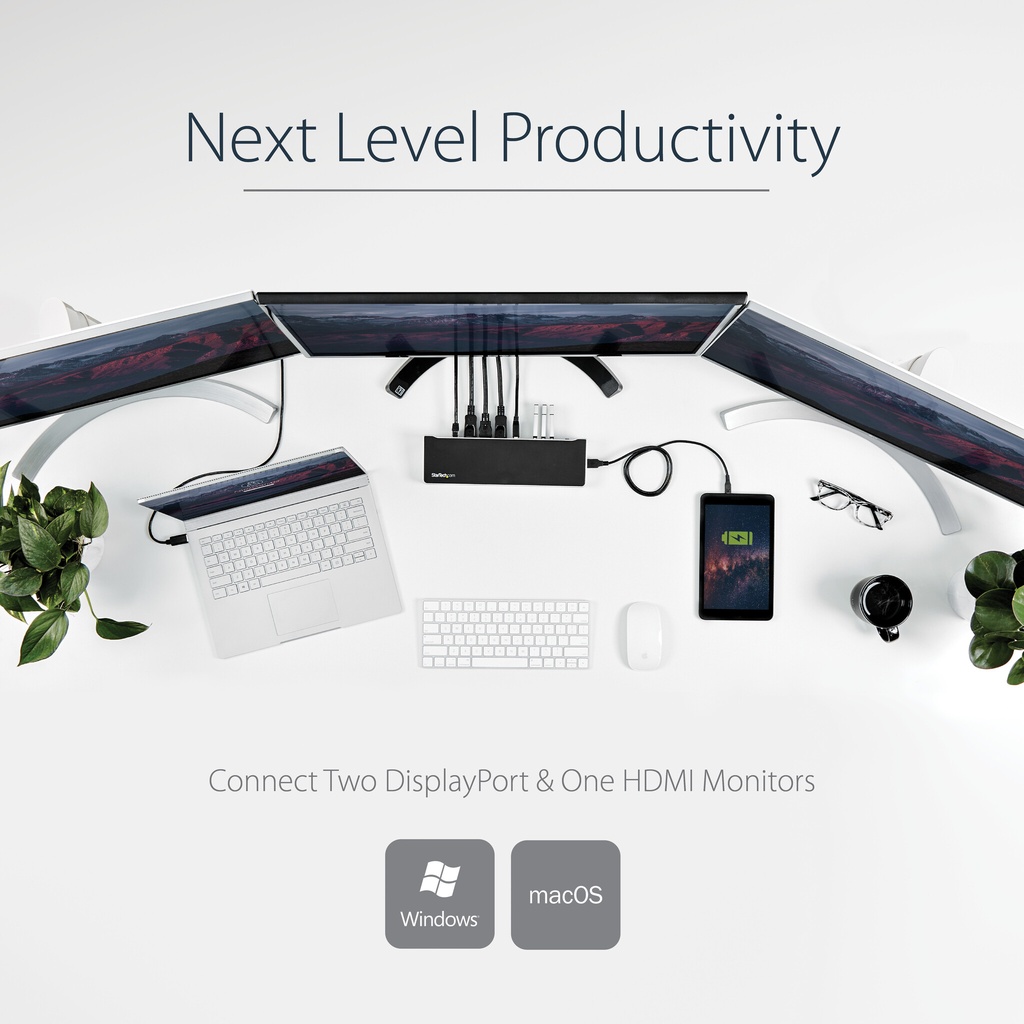

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048×1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

Powerful Connections and Fast Device Charging

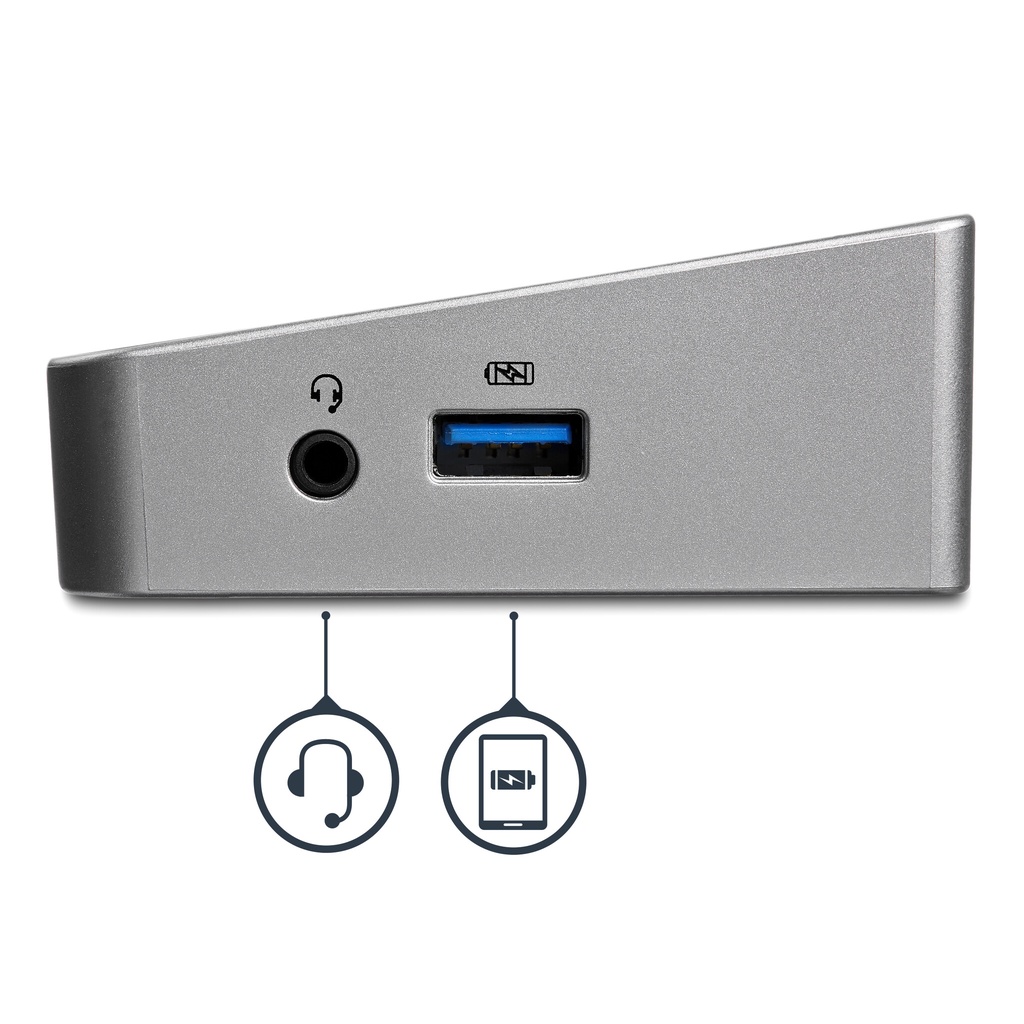

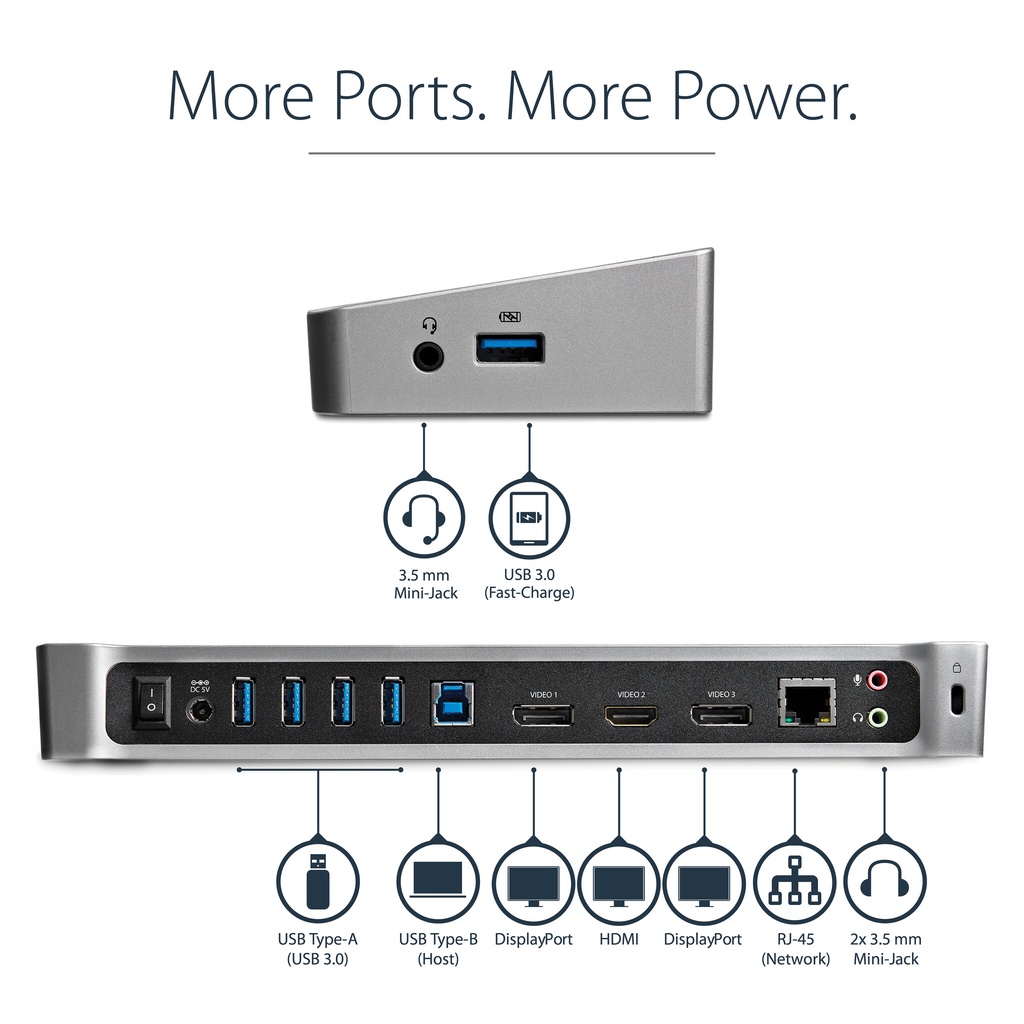

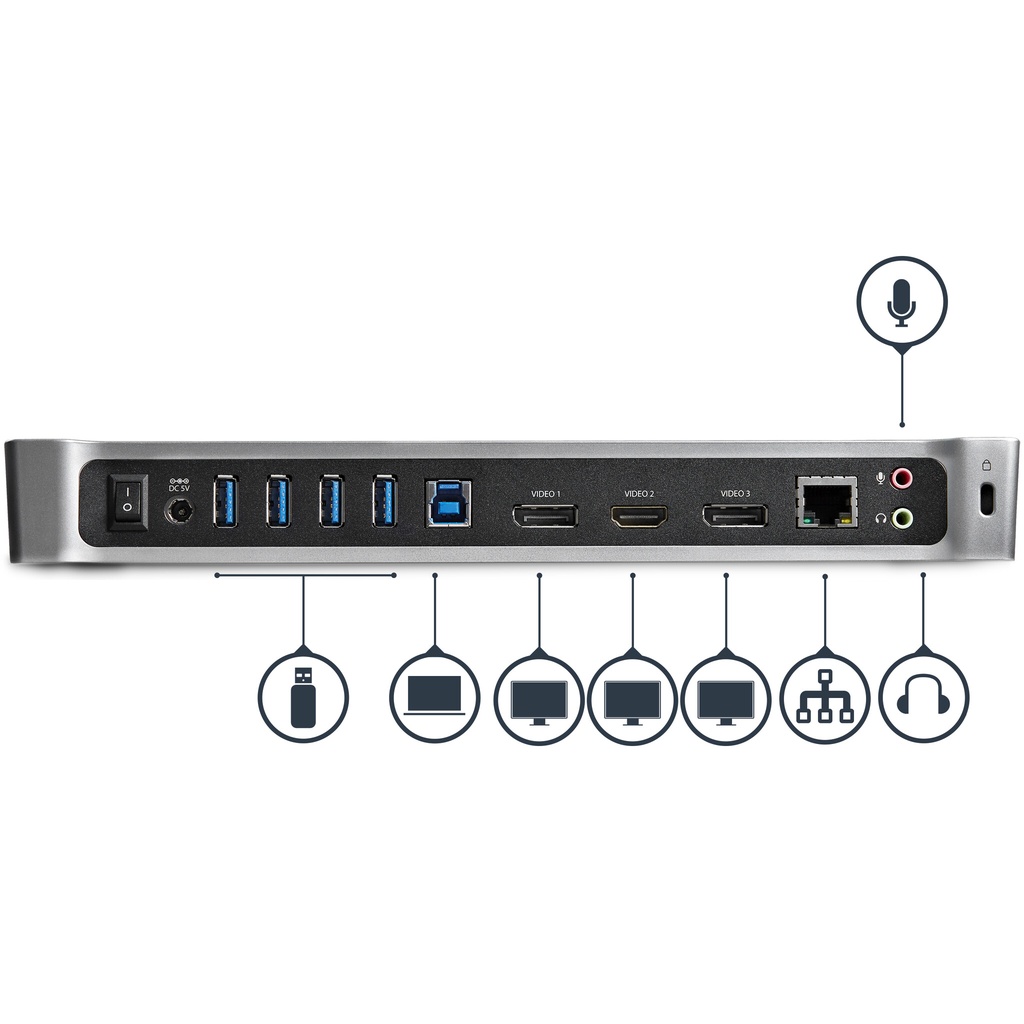

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

– Maximize your display capabilities with triple monitors (1 x HDMI and 2 x DP) or a dual-monitor setup
– Achieve a high resolution with up to 3840x2160p (4K) on one of the displays
– Connect your USB devices with 5 x USB 3.0 ports

Warranty: 3 Years

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

HDMI ports quantity

1

Microphone in

Yes

Headphone outputs

2

Combo headphone/mic port

Yes

Headphone connectivity

3.5 mm

USB connector type

USB Type-A

DC-in jack

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Auto MDI/MDI-X

Yes

Full duplex

Yes

Product colour

Black, Silver

Card reader integrated

No

Data transfer rate

5 Gbit/s

Maximum digital resolution

3840 x 2160 pixels

LED indicators

Activity, Link

Housing material

Plastic

Brand compatibility

Any brand

Certification

CE, FCC, DisplayLink, TAA, REACH

AC input voltage

100-240 V

Input current

1.5 A

Output voltage

5 V

Output current

6.5 A

Power consumption (typical)

32.5 W

Power plug type

Type N

Compatible power plug types

AU, EU, UK, US

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Mac compatibility

Yes

Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Other operating systems supported

ChromeOS

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-10 – 80 °C

Sustainability certificates

RoHS

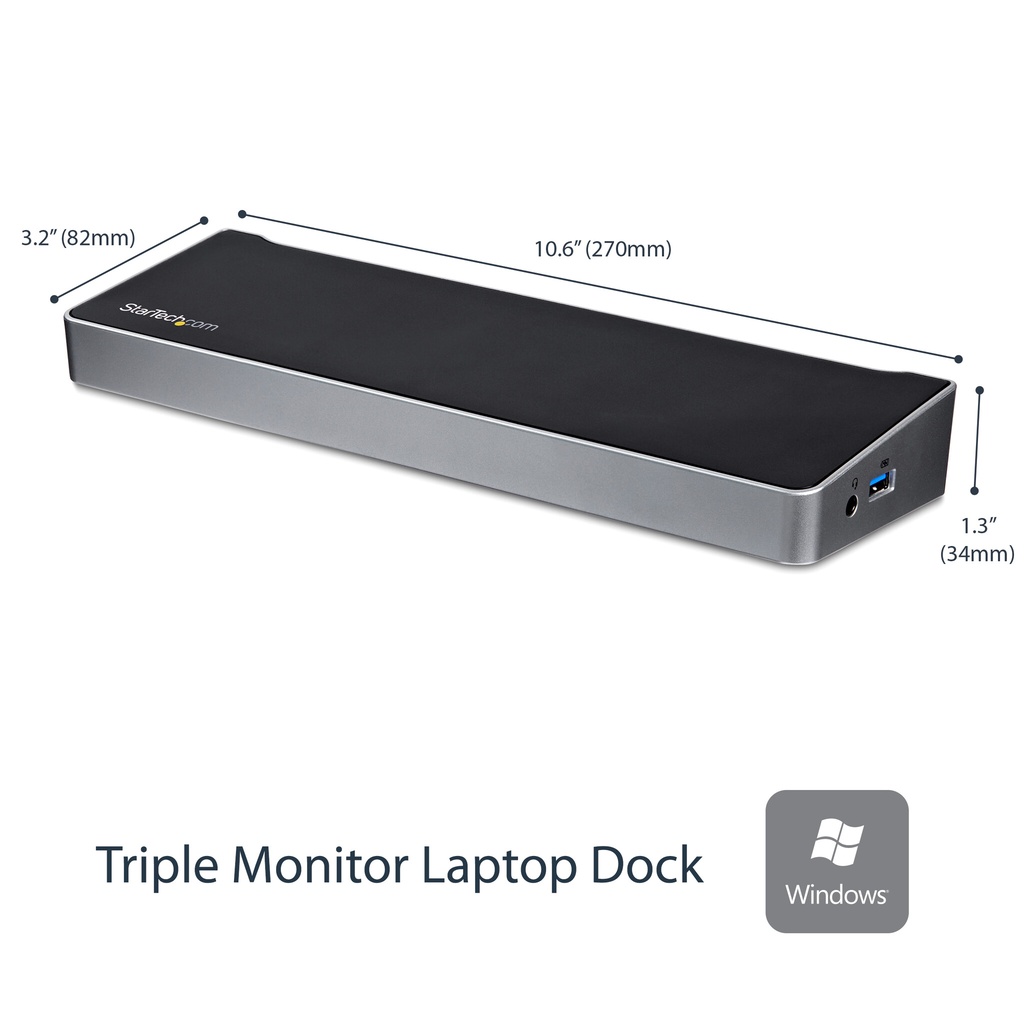

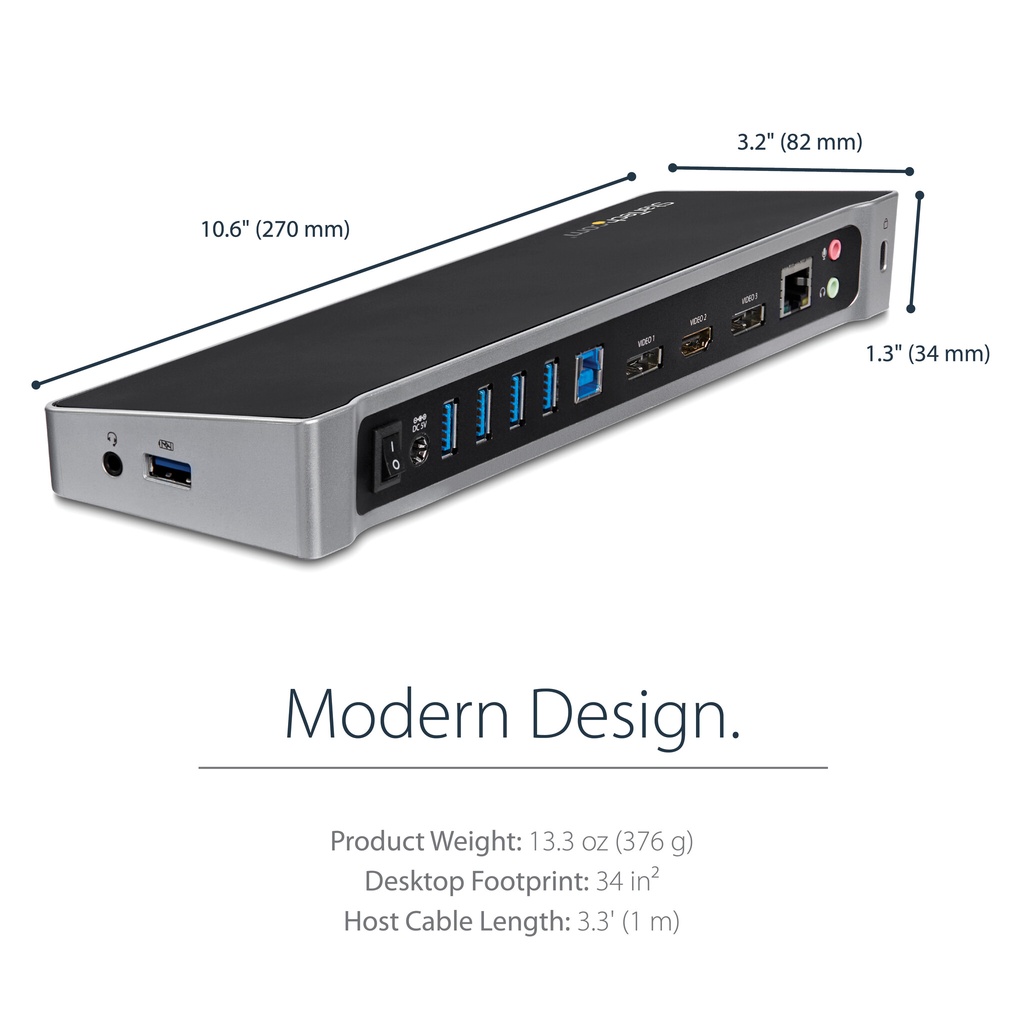

Width

82 mm

Depth

270 mm

Height

34 mm

Weight

376 g

Package width

296 mm

Package depth

164 mm

Package height

71 mm

Package weight

1.03 kg

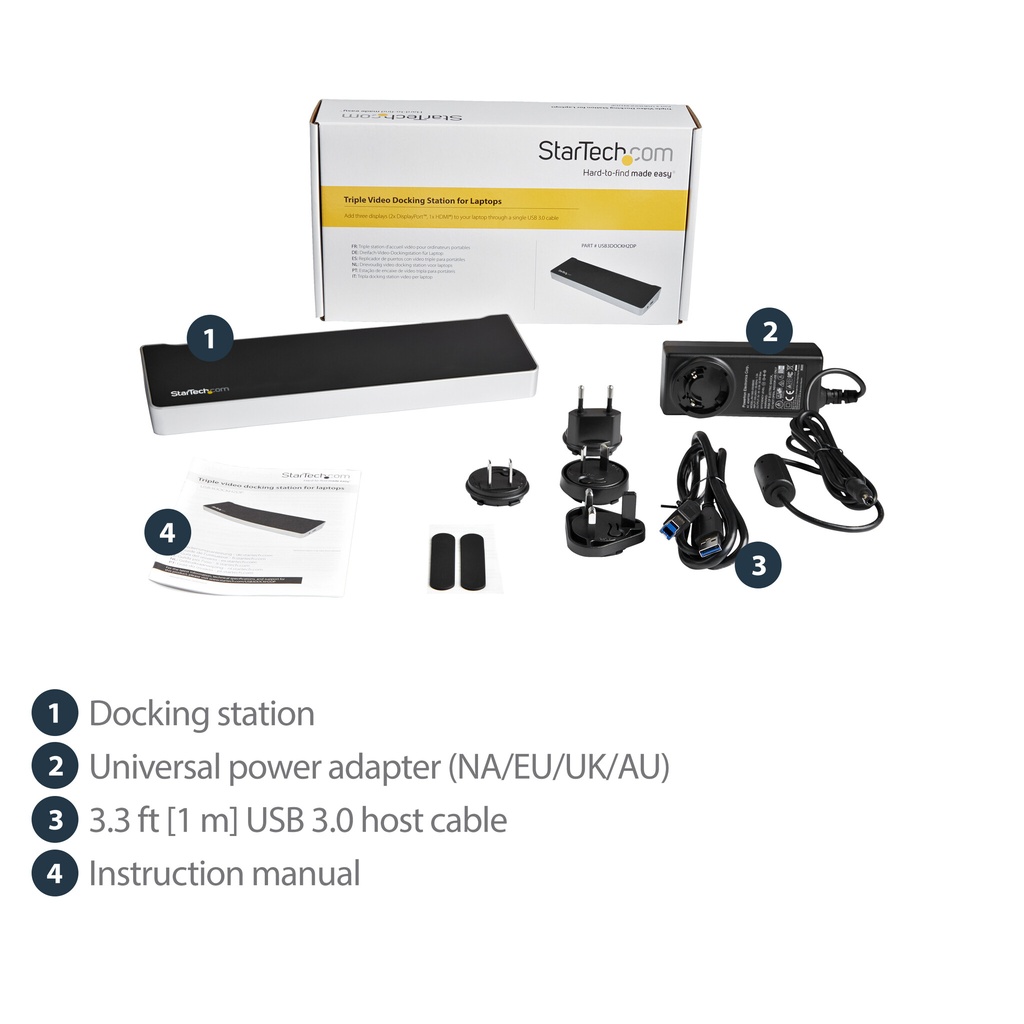

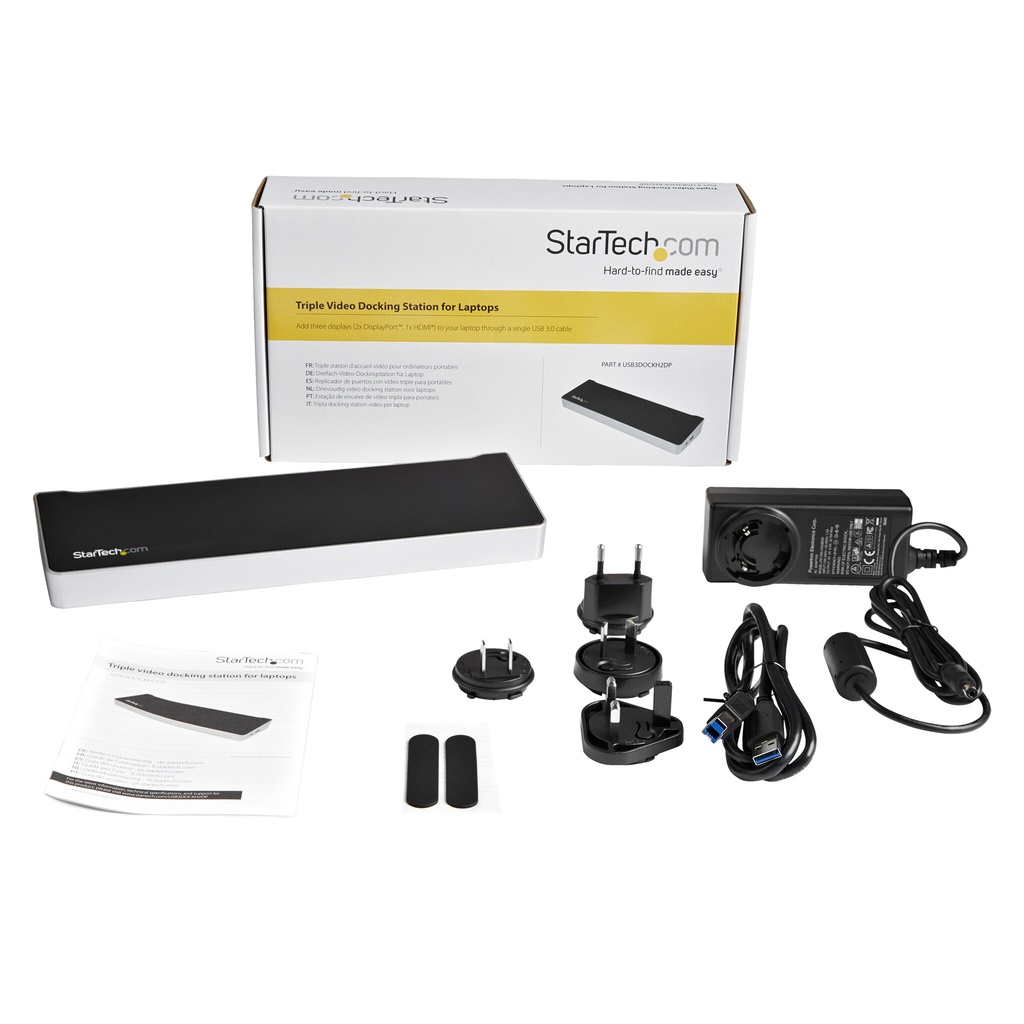

Cables included

USB

AC adapter included

Yes

Manual

Yes

Chipset

DisplayLink – DL-5910, VLI – VL812

Number of microphone inputs

1

Cable lock slot

Yes

Operating relative humidity (H-H)

0 – 90%

USB data transfer rates

5000 Mbit/s

DisplayPorts quantity

2

Wake-on-LAN ready

Yes

UASP support

Yes

Products per master (outer) case

10 pc(s)

Master (outer) case width

363 mm

Master (outer) case length

373 mm

Master (outer) case height

395 mm

Harmonized System (HS) code

84733020
