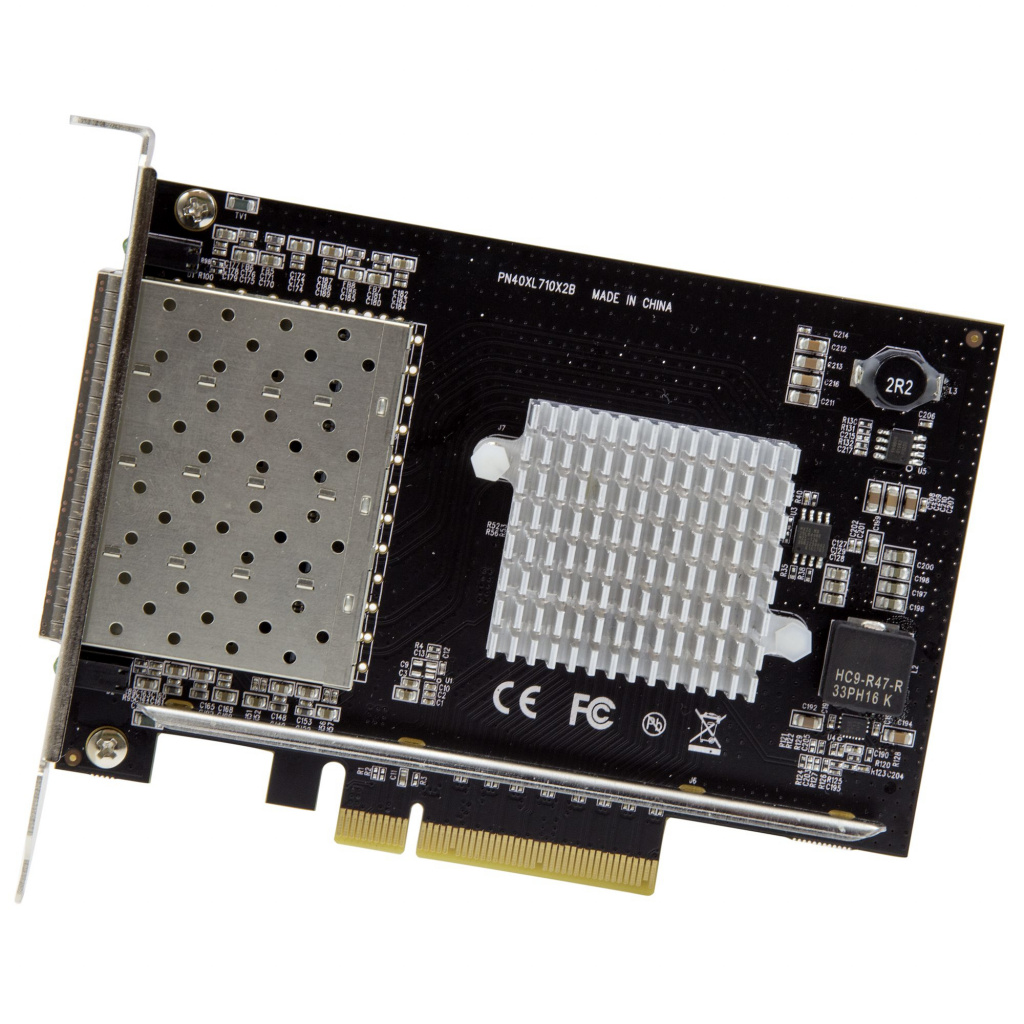

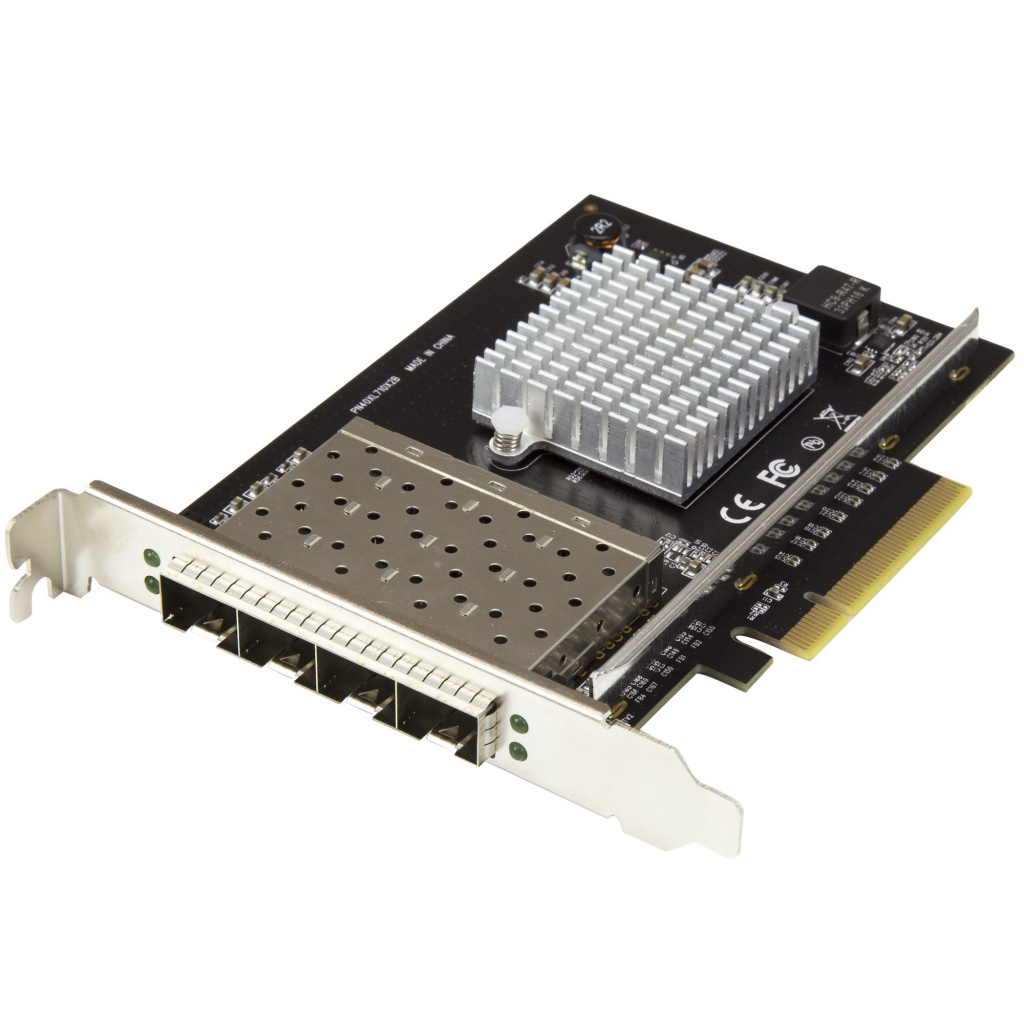

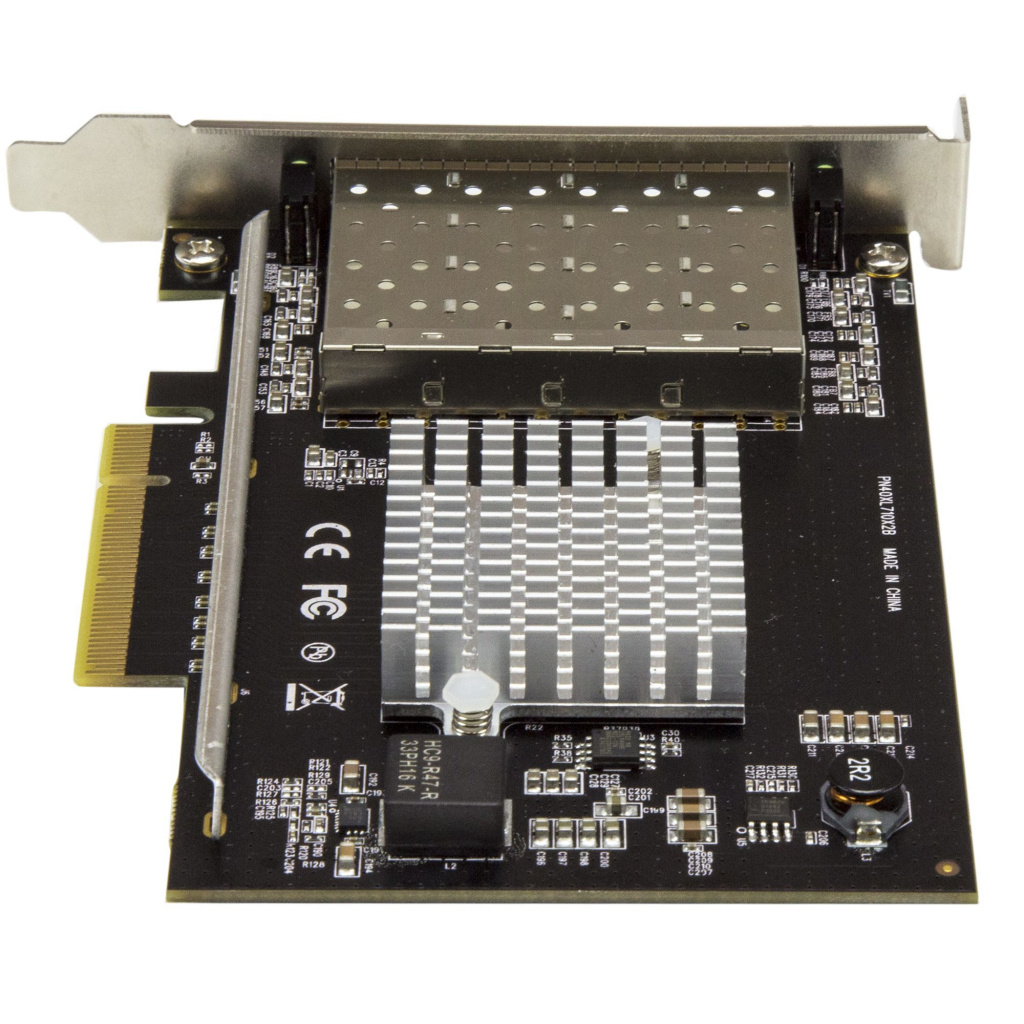

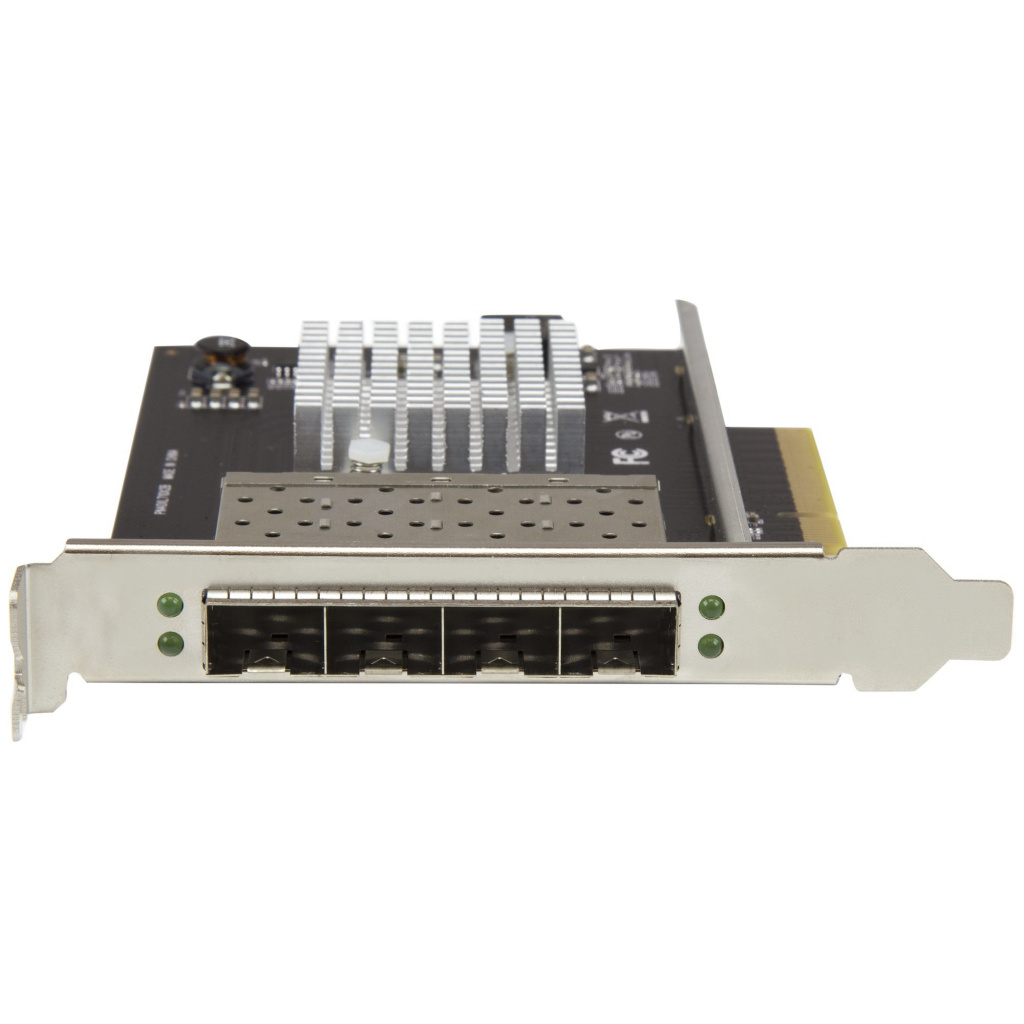

StarTech.com Quad Port 10G SFP+ Network Card – Intel XL710 Open SFP+ Converged Adapter – PCIe 10 Gigabit Ethernet Server NIC – 1

$1,158.08 (Incl. GST)

StarTech.com Quad Port 10G SFP+ Network Card – Intel XL710 Open SFP+ Converged Adapter – PCIe 10 Gigabit Ethernet Server NIC – 1

In stock

SKU: STARTECH.COM_PEX10GSFP4I Category:

Print

Description

StarTech.com Quad Port 10G SFP+ Network Card – Intel XL710 Open SFP+ Converged Adapter – PCIe 10 Gigabit Ethernet Server NIC – 10GbE Fiber Optic LAN Card – Dell PowerEdge HPE ProLiant. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 20000 Mbit/s. Product colour: Black

Add four 10 Gigabit fiber Ethernet ports to your server or workstation, using the SFP+ transceiver of your choice

This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Add redundant connections in zero-downtime environments

With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.

Increase your network speed

This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation

The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.

The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities

The SFP+ server network card features the Intel XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.

The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

– QUAD SFP+ ADAPTER: 4 ports on SFP+ network card can provide redundancy, or be aggregated for demanding applications; Data Center Bridging (DCB), virtualization incl. VT-c, SAN & iSCSI offload support
– TECH SPECS: 10 Gbps per port
– 4 SFP+ Ports, MSA Compliant

Warranty: 2 Years

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Maximum data transfer rate

20000 Mbit/s

Host interface

PCI Express

Interface

Fiber

PCI version

3.0

Networking standards

IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ae, IEEE 802.3x

Full duplex

Yes

VLAN tagging

Yes

Internal

Yes

Chipset

Intel® XL710

LED indicators

Activity, Link

Certification

CE, FCC, REACH

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operating temperature (T-T)

5 – 50 °C

Operating relative humidity (H-H)

20 – 80%

Sustainability certificates

RoHS

Width

15 mm

Depth

139 mm

Height

100 mm

Weight

122 g

Package width

142 mm

Package depth

170 mm

Package height

30 mm

Package weight

182 g

Storage temperature (T-T)

-20 – 60 °C

Harmonized System (HS) code

85176990

Product colour

Black

Quick start guide

Yes

Flow control support

Yes

Fiber optic connector

SFP+

Fiber ports quantity

4

Jumbo frames support

Yes

Jumbo frames

9000

Master (outer) case width

305 mm

Master (outer) case length

580 mm

Master (outer) case height

360 mm

Products per master (outer) case

80 pc(s)
