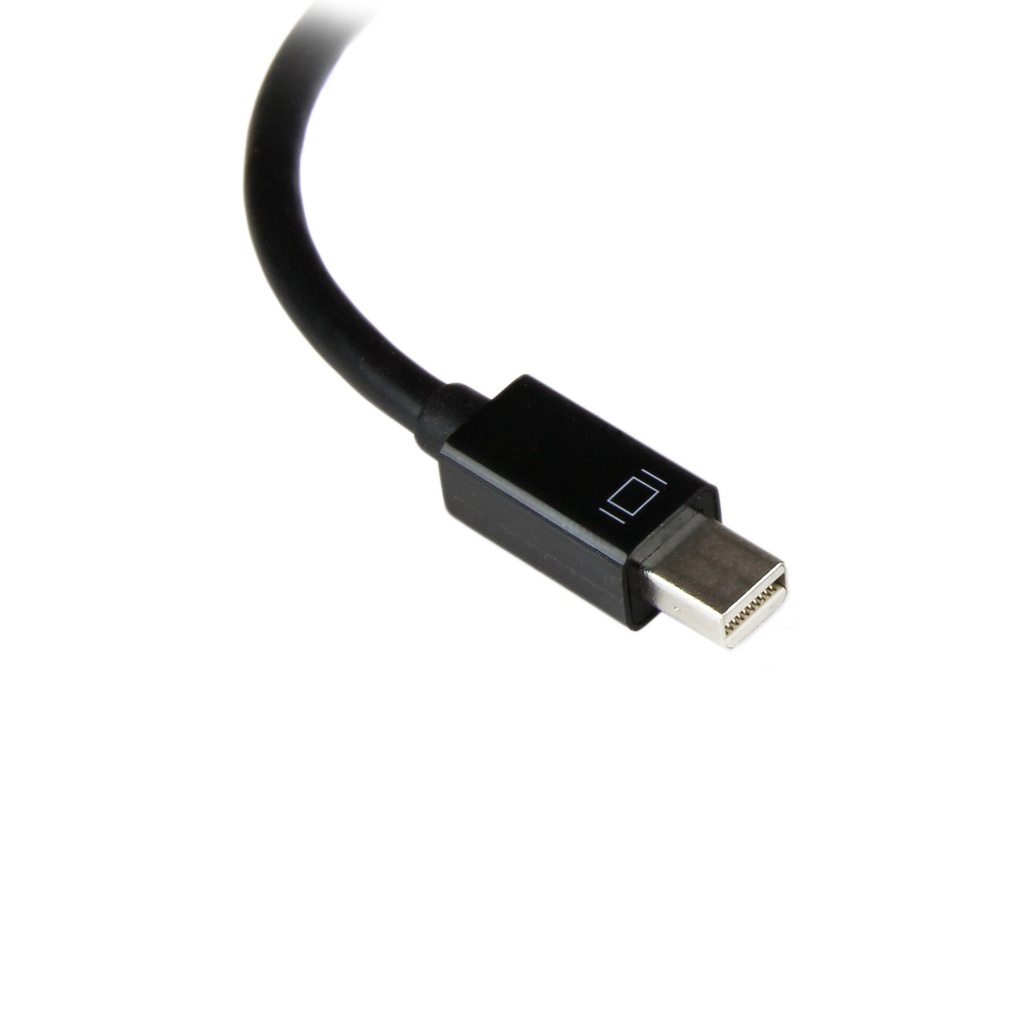

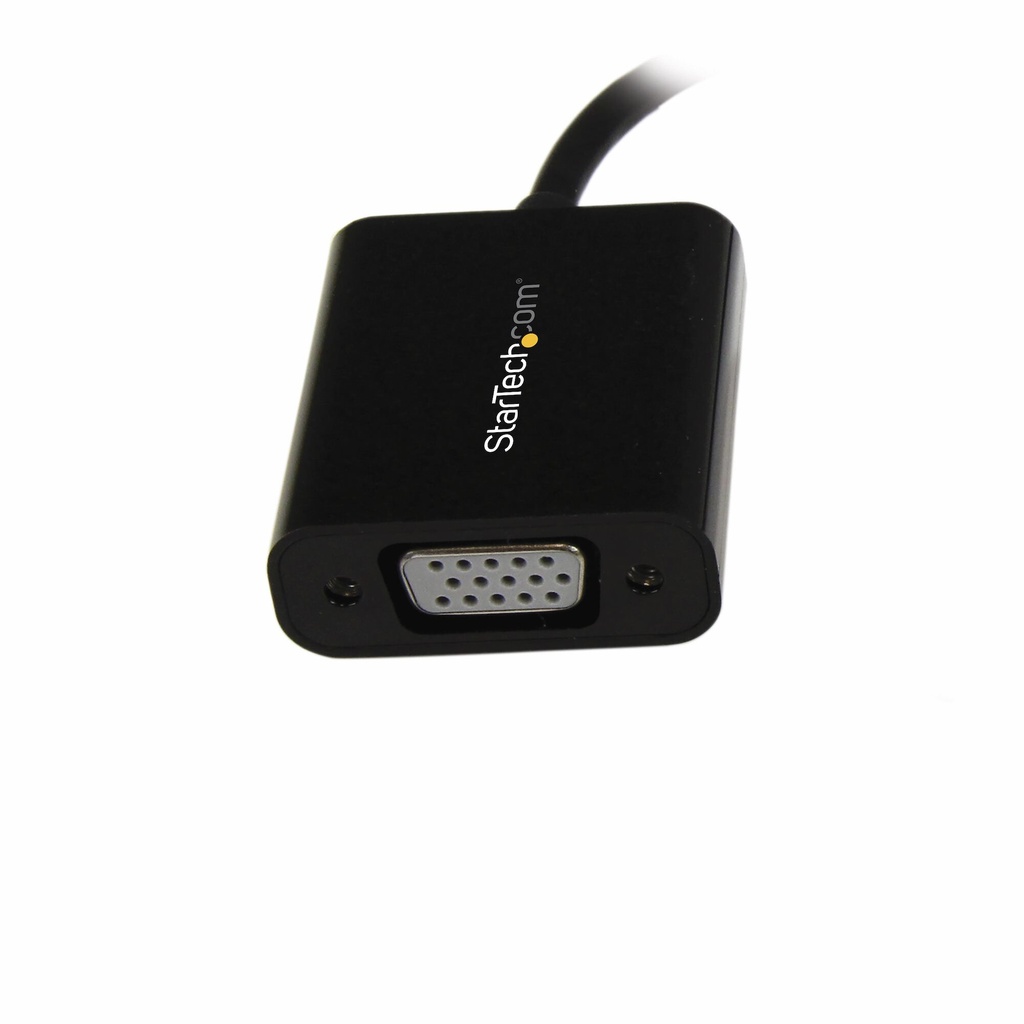

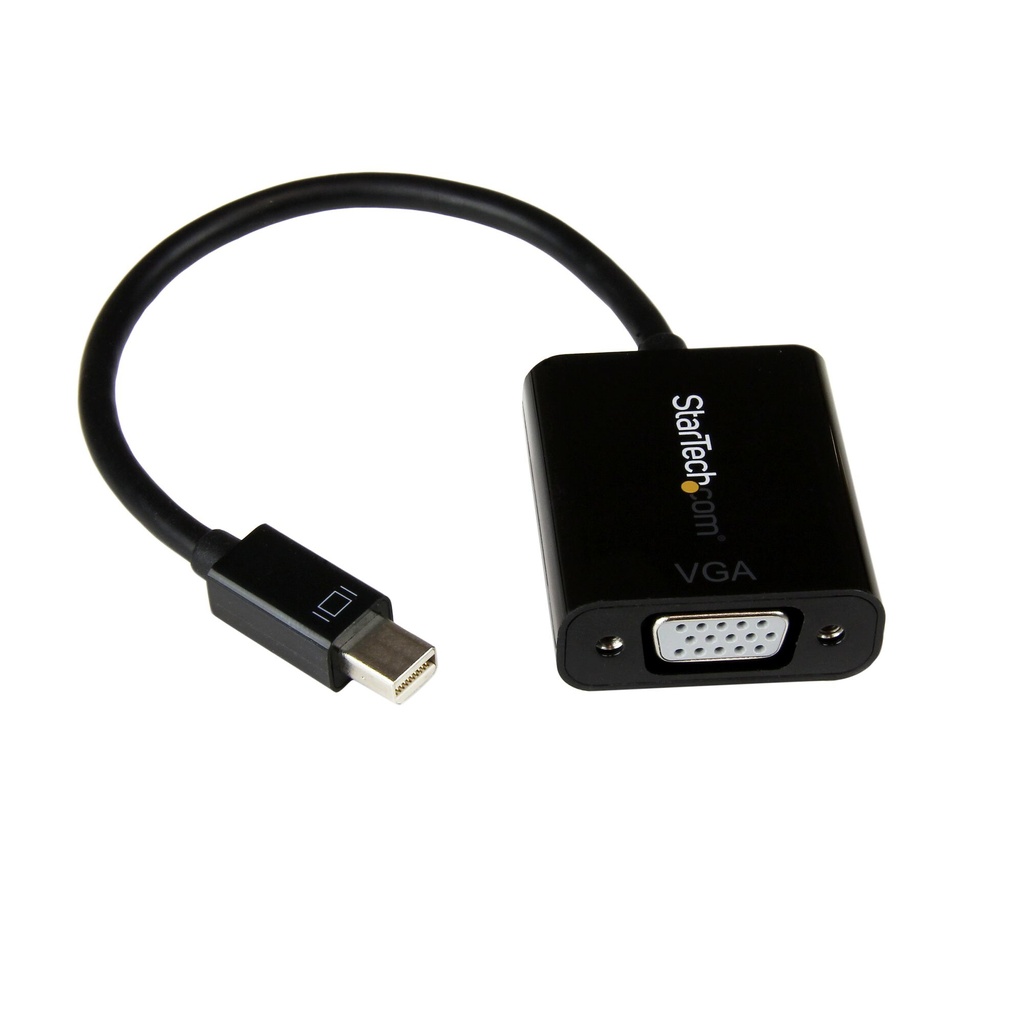

StarTech.com Mini DisplayPort to VGA Adapter – Active Mini DP to VGA Converter – 1080p Video – mDP or Thunderbolt 1/2 Mac/PC to

$40.93 (Incl. GST)

StarTech Mini DisplayPort to VGA Adapter – Active Mini DP to VGA Converter – 1080p Video – mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display – mDP 1.2 to VGA Dongle – Black (MDP2VGA2)

In stock

SKU: STARTECH.COM_MDP2VGA2 Category:

Print

Description

Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.

With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920×1200 (WUXGA).

The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Additional information

Cable length

0.18 m

Brand

StarTech.com

Connector 1

Mini DisplayPort

Connector 2

VGA (D-Sub)

Connector 1 gender

Male

Connector 2 gender

Female

Product colour

Black

Plug and Play

Yes

Weight

27 g

Package width

200 mm

Package depth

220 mm

Package height

18 mm

Package weight

36 g

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Converter type

Active video converter

Certification

RoHS, CE, FCC

Width

35 mm

Height

8 mm

DisplayPort version

1.2

Maximum resolution

1920 x 1200 pixels

Supported video modes

720p, 1080p

Depth

220 mm

Master (outer) case width

328 mm

Master (outer) case length

508 mm

Master (outer) case height

214 mm

Products per master (outer) case

150 pc(s)

Operating temperature (T-T)

0 – 70 °C

Storage temperature (T-T)

-10 – 80 °C

Operating relative humidity (H-H)

10 – 85%

Maximum refresh rate

60 Hz

Chipset

Analogix – ANX9833

HBR2 support

Yes

Harmonized System (HS) code

84733080

Compliance certificates

CE, RoHS
