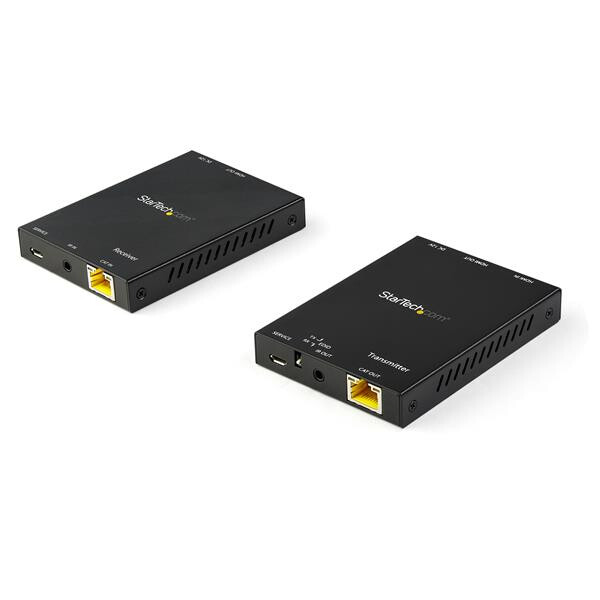

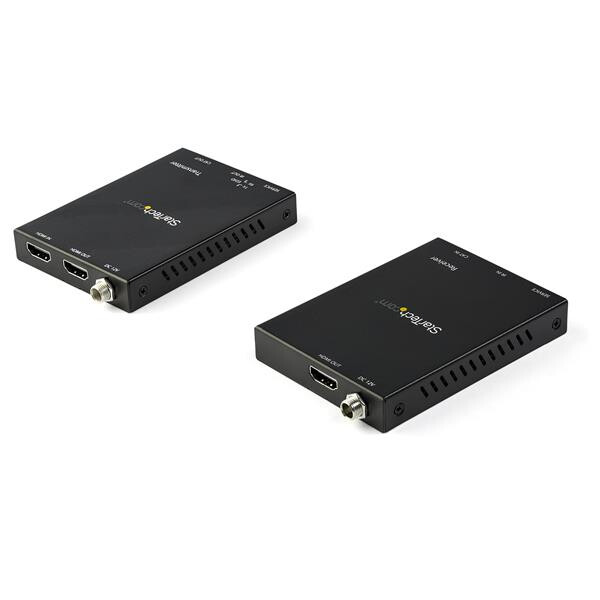

StarTech.com HDMI over CAT6 Extender Kit – 4K 60Hz

$240.11 (Incl. GST)

StarTech.com HDMI over CAT6 Extender Kit – 4K 60Hz – HDMI Balun Kit – Signal up to 165 ft / 50m – HDR – 4:4:4 – 7.1 Audio Suppor

In stock

SKU: STARTECH.COM_ST121HD20V Category:

Print

Description

HDMI Balun Kit | HDR | 4:4:4 | 7.1 Audio Support | 165 ft. (50 m)

This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.

Astonishing 4K Picture Quality

This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that’s ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.

Long-Distance Transmission

Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.

Compatible with HDCP 2.2 Devices

Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.

ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage

– Crystal-clear picture quality with support for resolutions up to 4K 60Hz
– Compatible with HDR and 4:4:4 chroma subsampling for lifelike images
– Hassle-free setup with long-distance transmission over a reliable connection

Additional information

Package width

130 mm

Brand

StarTech.com

Package depth

220 mm

Package height

70 mm

Type

AV transmitter & receiver

Cable types supported

Cat6

Maximum transfer distance

50 m

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Product colour

Black

Certification

CE, FCC, REACH

RJ-45 input ports

1

RJ-45 output ports

1

Output current

1 A

Package weight

777 g

Maximum resolution

3840 x 2160 pixels

Power plug type

Type M

Width

70 mm

Depth

97 mm

Height

13 mm

Weight

156 g

Included power plug types

ANZ, EU, JP, NA, UK

HDCP

Yes

HDMI in

1

Number of HDMI outputs

2

AC input voltage

100 – 240 V

Input current

0.3 A

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-20 – 60 °C

Operating relative humidity (H-H)

0 – 80%

IR receiver included

Yes

Master (outer) case width

375 mm

Master (outer) case length

457 mm

Master (outer) case height

282 mm

Products per master (outer) case

20 pc(s)

Maximum refresh rate

60 Hz

Audio output channels

7.1 channels

Connectivity technology

Wired

IR blaster included

Yes

HDMI version

2.0

Quick start guide

Yes

HDCP version

2.2

Operating voltage (transmitter)

12 V

Operating voltage (receiver)

12 V

Harmonized System (HS) code

85176200

Compliance certificates

RoHS
