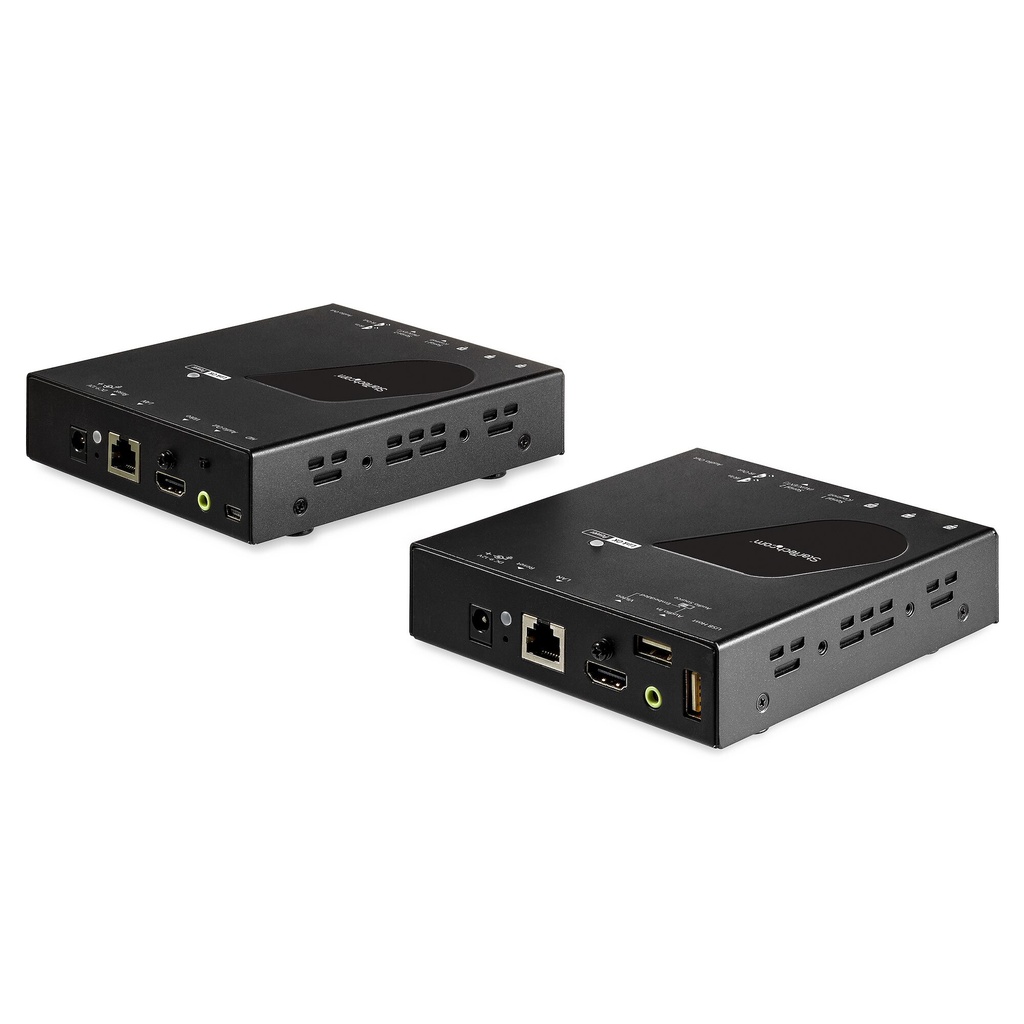

StarTech.com HDMI KVM Extender over IP Network – 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft)

$1,547.58 (Incl. GST)

StarTech.com HDMI KVM Extender over IP – 4K 30Hz HDMI 2.0 & USB over IP LAN or CAT5e/CAT6 Ethernet (100m/330ft) – Remote KVM Swi

In stock

SKU: STARTECH.COM_SV565HDIP Category:

Print

Description

KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

Supports UHD 4K 30Hz

The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

Hassle-Free Installation

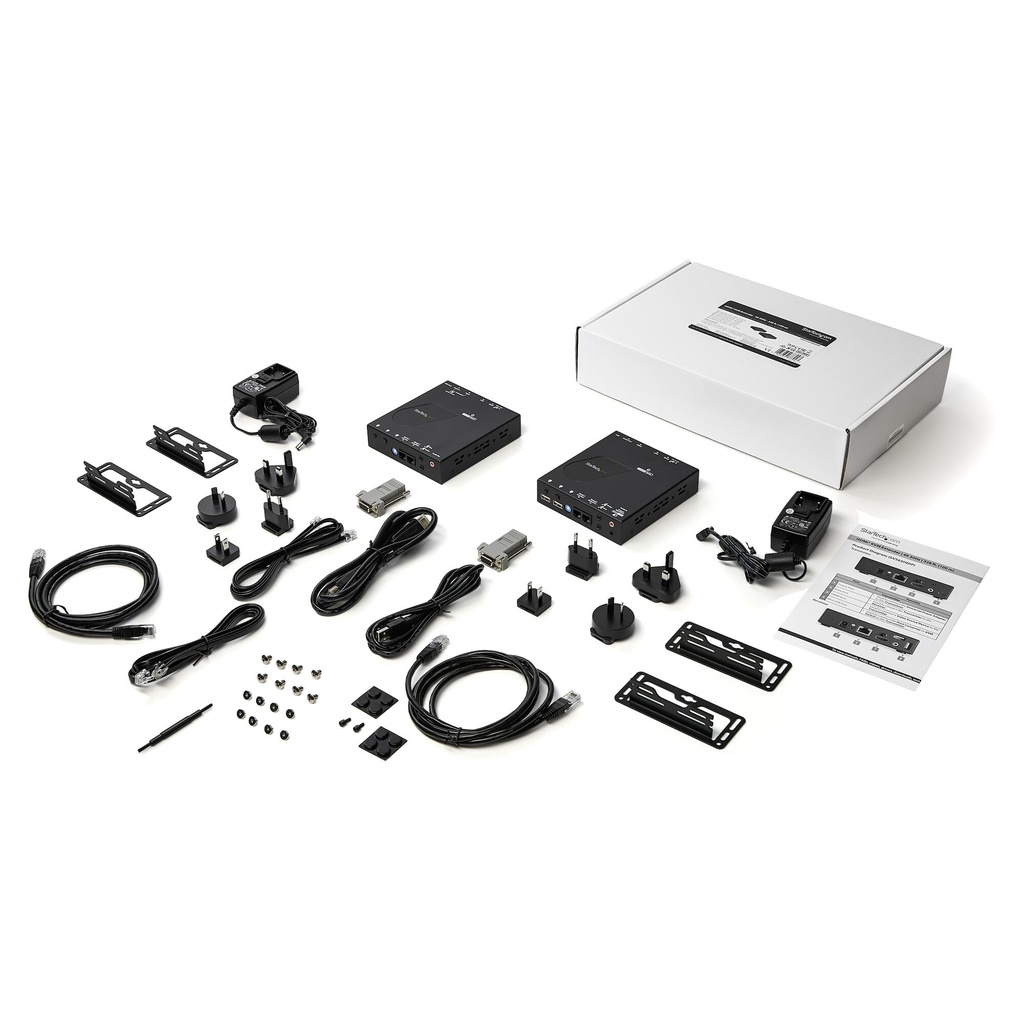

With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.

Versatile Configuration Options

The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.

For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).

SV565HDIP is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Keyboard port type

USB

Brand

StarTech.com

Mouse port type

USB

Video port type

HDMI

Maximum resolution

3840 x 2160 pixels

Product colour

Black

Certification

CE, FCC, TAA, REACH

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-10 – 60 °C

Operating relative humidity (H-H)

0 – 80%

Weight

610 g

Package width

365 mm

Package depth

195 mm

Package height

235 mm

DC-in jack

Yes

Ethernet LAN (RJ-45) ports

2

Daisy chain

No

LED indicators

Yes

Hot keys

No

Built-in display

No

On Screen Display (OSD)

Yes

Input current

0.6 A

Output voltage

12 V

Output current

1.5 A

Power plug type

Type M

Compatible power plug types

AU, EU, JP, UK

Width

117 mm

Depth

130 mm

Height

28 mm

Cables included

HDMI, LAN (RJ-45), Phone (RJ-11), USB

IP control

No

Headphone outputs

8

Audio connections

Yes

Number of microphone inputs

2

Housing material

Steel

AC adapter included

Yes

Rubber feet

Yes

Mean time between failures (MTBF)

60000 h

Power consumption (typical)

18 W

External power adapter

Yes

HD type

4K Ultra HD

USB hub

Yes

Audio channels

7.1

USB 2.0 Type-A hub ports quantity

2

Quick installation guide

Yes

Maximum operating distance

100 m

Video bandwidth

30 Hz

Master (outer) case width

385 mm

Master (outer) case length

495 mm

Master (outer) case height

265 mm

Products per master (outer) case

6 pc(s)

HDMI ports quantity

2

Chipset

ASPEED – AST1520

Harmonized System (HS) code

85176200

Compliance certificates

RoHS

Input voltage

100 – 240 V
