StarTech.com 5-Port USB PCIe Card – 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A – 1x 2 Port IDC (Internal 5Gbps USB H

$138.21 (Incl. GST)

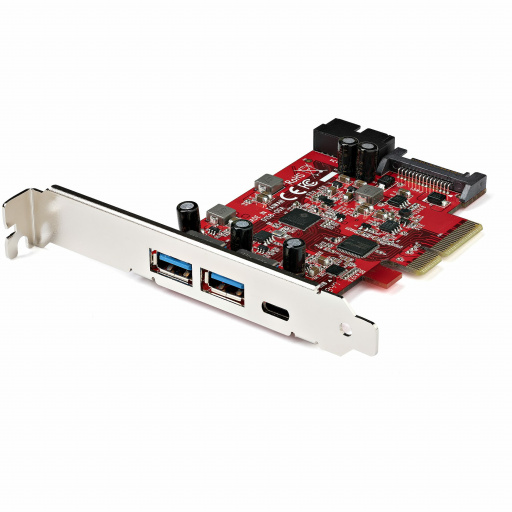

StarTech.com 5-Port USB PCIe Card – 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A – 1x 2 Port IDC (Internal 5Gbps USB Header Expansion) – USB C PCI Express Controller Card (PEXUSB312A1C1H)

In stock

SKU: STARTECH.COM_PEXUSB312A1C1H Category:

Print

Description

2x USB 3.2 Gen 2 (10Gbps) Type-A | 1x USB 3.2 Gen 2 (10Gbps) Type-C 2×1 | 2x USB 3.2 Gen 1 (5Gbps) IDC

This 5-port USB 3.2 Gen 2 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers a USB Type-C™ port (10Gbps), two traditional USB Type-A ports (10Gbps), and a motherboard header (USB 5Gbps).

By offering a range of USB port types, you can easily connect a variety of modern and legacy USB devices, both inside and outside your computer.

Because the card offers a 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.

USB 3.2 Gen 2 (USB 10Gbps) is also known as USB 3.1 (10Gbps). USB 3.2 Gen 1 (5Gbps) is also known as USB 3.0 (5Gbps).

Work faster and prepare for the future

This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.

Connect different types of USB devices

Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:

• One external USB-C port (10Gbps)
• Two external USB-A ports (10Gbps)
• One internal 20-pin IDC motherboard header port that can provide two internal USB-A ports (5Gbps)

With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.

By adding three types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.

Ideal for building or upgrading your computer

With two internal motherboard-style headers, this dynamic USB 3.2 card is perfect for upgrading or building your own computer. If your existing headers are occupied, or if you don’t have any motherboard headers, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard or computer upgrades.

Connect your older USB devices

Connecting your older peripherals isn’t a problem. This 5-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices.

PEXUSB312A1C1H is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: The card does not support DP alt mode or USB Power Delivery.

The StarTech.com Advantage

Additional information

Host interface

PCIe

Brand

StarTech.com

Output interface

USB 3.2 Gen 2 (3.1 Gen 2)

Internal

Yes

Product colour

Red

Weight

60 g

Chipset

ASMedia – ASM3142, Genesys Logic – GL3590

Width

68.9 mm

Depth

102 mm

Height

14.4 mm

Package width

140 mm

Package depth

175 mm

Package height

30 mm

Package weight

125 g

Operating temperature (T-T)

0 – 70 °C

Storage temperature (T-T)

-20 – 80 °C

Operating relative humidity (H-H)

15 – 90%

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019

Mounting brackets included

Yes

Mean time between failures (MTBF)

1677495 h

Data transfer rate (max)

10 Gbit/s

Mac operating systems supported

Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

Products per master (outer) case

60 pc(s)

Master (outer) case width

370 mm

Master (outer) case length

375 mm

Master (outer) case height

500 mm

Expansion card standard

PCIe 3.0

Internal SATA ports quantity

1

Quick installation guide

Yes

Harmonized System (HS) code

84733020

UASP support

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Compliance certificates

CE, RoHS
