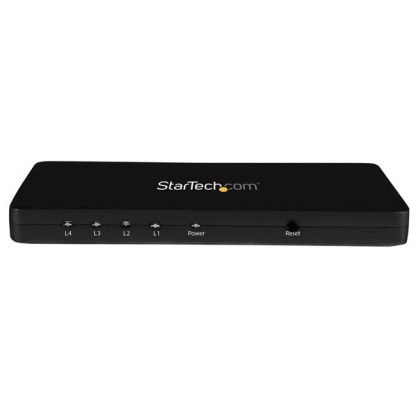

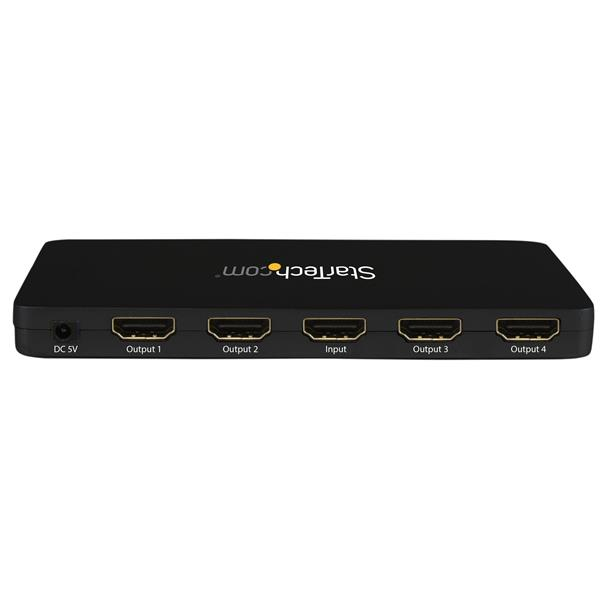

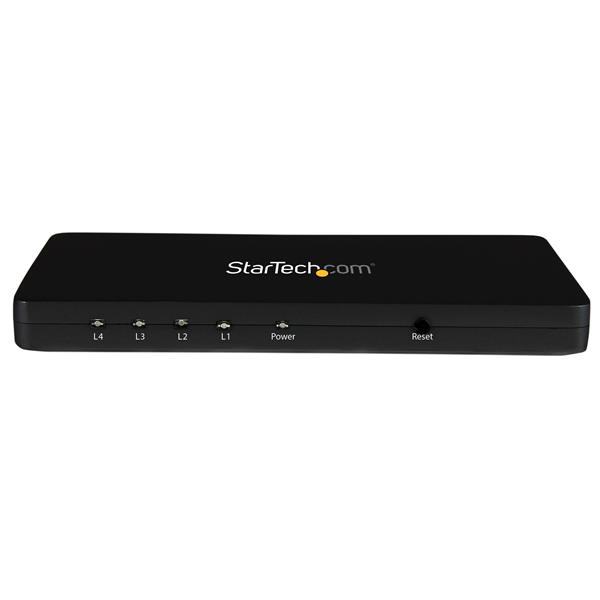

StarTech.com 4K HDMI 4-Port Video Splitter – 1×4 HDMI Splitter w/ Solid Aluminum Housing – 4K 30Hz

$147.50 (Incl. GST)

StarTech.com 4K HDMI Splitter – 4k 30Hz – 4 Port – Aluminum – Backward Compatible – HDMI Multi Port – HDMI Hub (ST124HD4K)

In stock

SKU: STARTECH.COM_ST124HD4K Category:

Print

Description

Split an HDMI audio/video source on four separate HDMI displays simultaneously, with support for resolutions up to 4K

The ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio / video source devices, such as a computer, Blu-ray player or cable TV set-top box.

With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don’t require 4K video today, the ST124HD4K ensures you’ll be ready to take advantage of tomorrow’s display technology.

Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.

Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.

The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

The StarTech.com Advantage

Additional information

Video ports quantity

4

Brand

StarTech.com

Video port type

HDMI

Video out

4x HDMI

Maximum resolution

3840 x 2160 pixels

Product colour

Black

Maximum operating distance

5 m

Maximum refresh rate

30 Hz

Certification

CE, FCC, REACH

Input current

0.35 A

Output voltage

5 V

Output current

1 A

Power consumption (typical)

5 W

Width

85 mm

Depth

140 mm

Height

12 mm

Weight

280 g

Package width

300 mm

Package depth

360 mm

Package height

95 mm

Package weight

530 g

Manual

Yes

AC adapter included

Yes

AC input voltage

100 – 240 V

Housing material

Aluminium

LED indicators

Activity, Power

Included power plug types

AU, EU, NA, UK

Operating temperature (T-T)

0 – 70 °C

Storage temperature (T-T)

-10 – 80 °C

Operating relative humidity (H-H)

5 – 90%

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)

Supported video modes

720p, 1080p, 2160p

Audio support

Yes

HDMI version

1.4

Supported audio channels

7.1

Harmonized System (HS) code

85176990

Compliance certificates

RoHS
