StarTech.com 4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable

$240.65 (Incl. GST)

StarTech.com 4 Port USB to Serial RS232 Adapter – Wall Mount – Din Rail – COM Port Retention – FTDI USB to DB9 RS232 Hub (ICUSB2

In stock

SKU: STARTECH.COM_ICUSB2324I Category:

Print

Description

Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB

The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

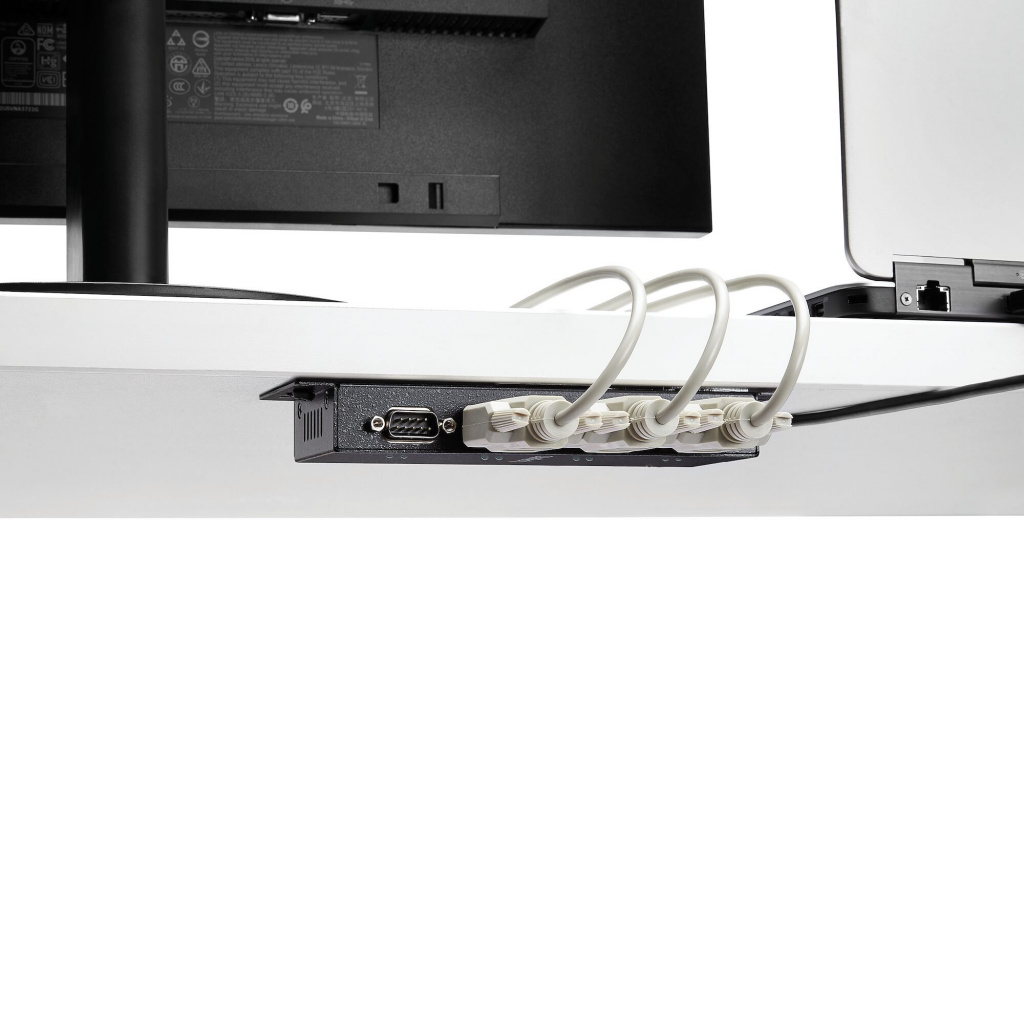

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Ports quantity

4
Brand

StarTech.com
Host interface

USB 2.0 Type-B
Hub interfaces

Serial
Product colour

Black
Housing material

Steel
Power plug type

Type M
Width

59 mm
Depth

1788 mm
Height

23 mm
Weight

300 g
Package width

216 mm
Package depth

152 mm
Package height

50 mm
Package weight

518 g
Cables included

USB
Manual

Yes
Operating temperature (T-T)

0 – 55 °C
Mean time between failures (MTBF)

282713.5 h
Chipset

FTDI – FT4232HL
LED indicators

Activity
DIN rail kit included

Yes
Storage temperature (T-T)

-20 – 85 °C
Operating relative humidity (H-H)

5 – 95%
DC-in jack

Yes
Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64,
Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, M
Quantity per pack

1 pc(s)
Power source type

USB
RS-232 ports

4
Linux operating systems supported

Yes
Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported

Windows XP Embedded
Drivers included

Yes
Data bits

7, 8
Stop bits

1, 2
Parity bit

Even, Mark, No, Odd, Space
FIFO (First In, First Out)

256 B
Baud rate

921.6 Kbit/s
Card reader integrated

No
Master (outer) case width

432 mm
Master (outer) case length

518 mm
Master (outer) case height

264 mm
Products per master (outer) case

25 pc(s)
Harmonized System (HS) code

84719000
Sustainability compliance

Yes
Compliance certificates

CE, RoHS
