StarTech.com 4-Port Industrial USB 3.0 Hub with ESD Protection~4-Port USB 3.0 Hub – 5Gbps – Metal Industrial USB-A Hub – Wall or

$229.89 (Incl. GST)

StarTech.com 4-Port USB 3.0 Hub – Metal Industrial USB-A Hub – Wall or Desk Mountable USB Data Hub – TAA Compliant USB Expander

In stock

SKU: STARTECH.COM_ST4300USBM Category:

Print

Description

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | 5 Gbps

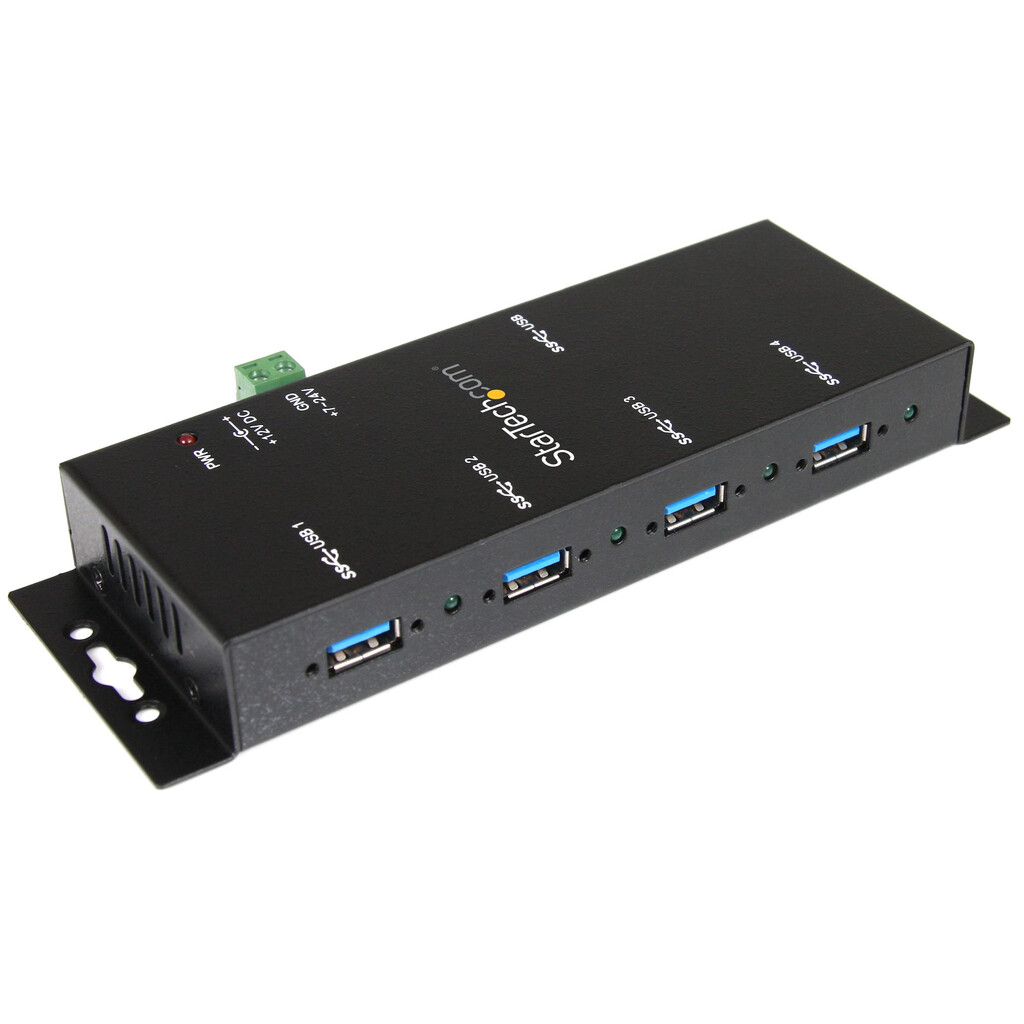

This TAA compliant 4-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

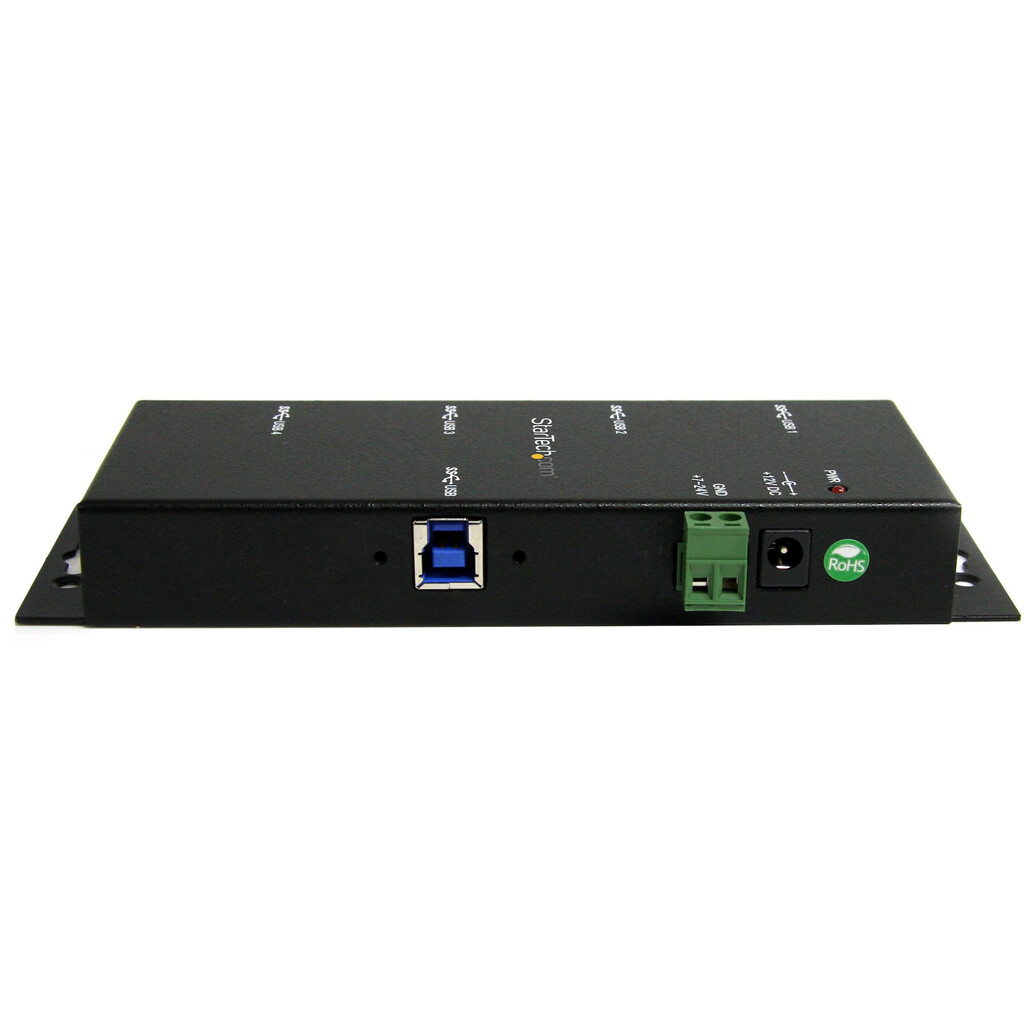

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

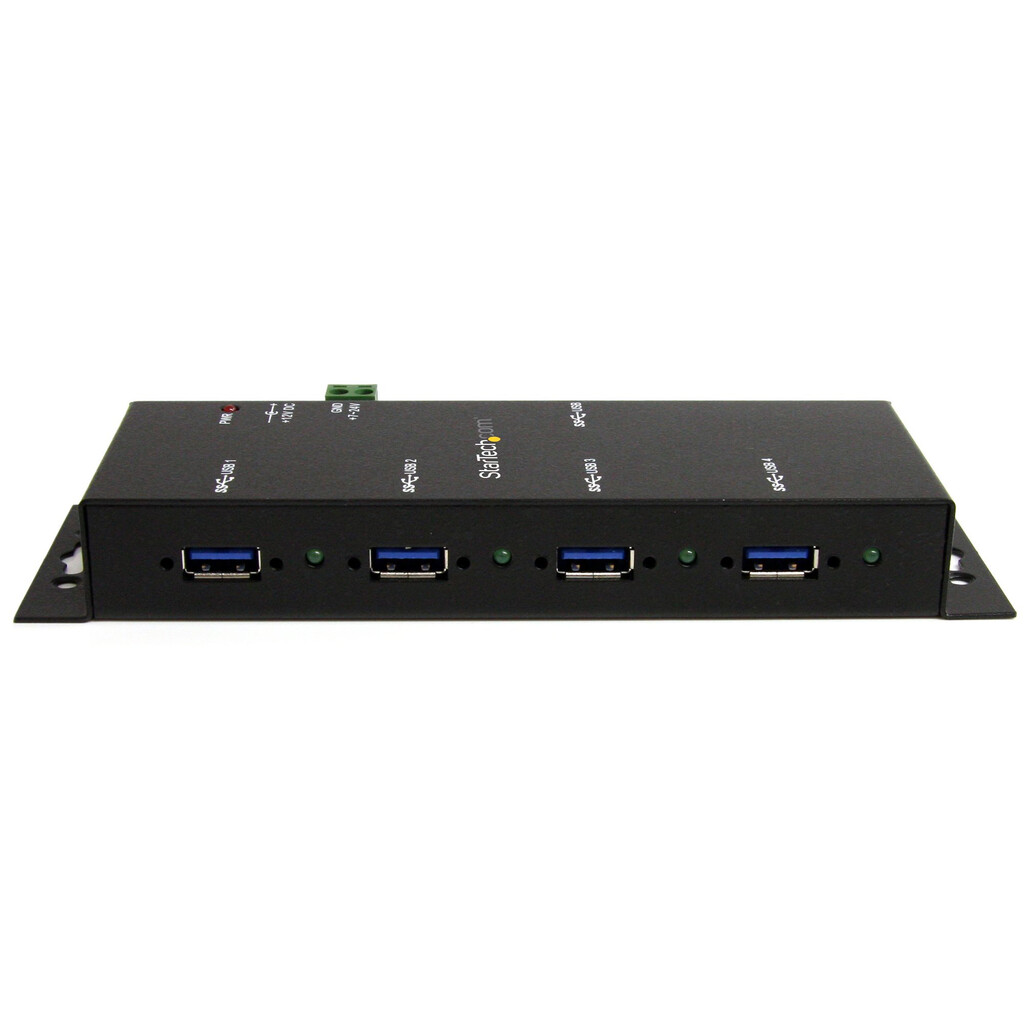

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers four connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 20W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

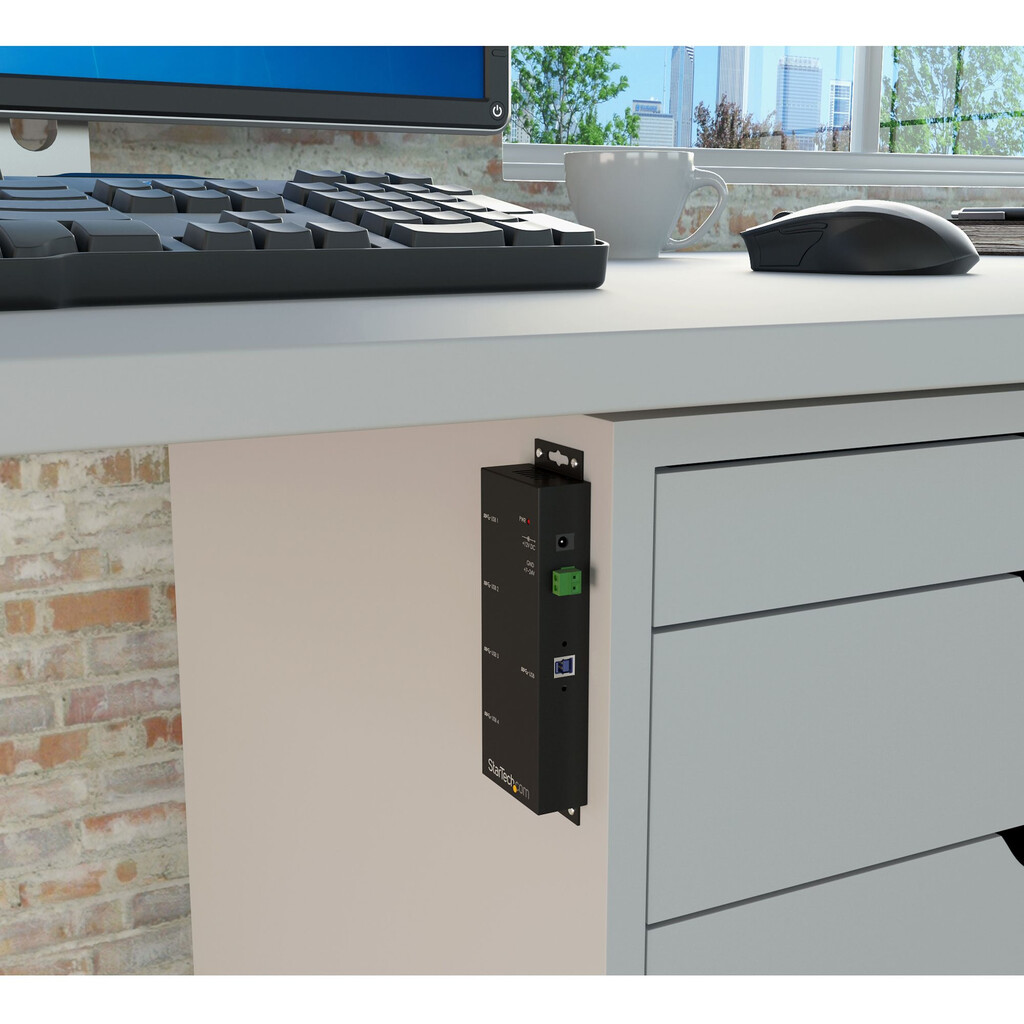

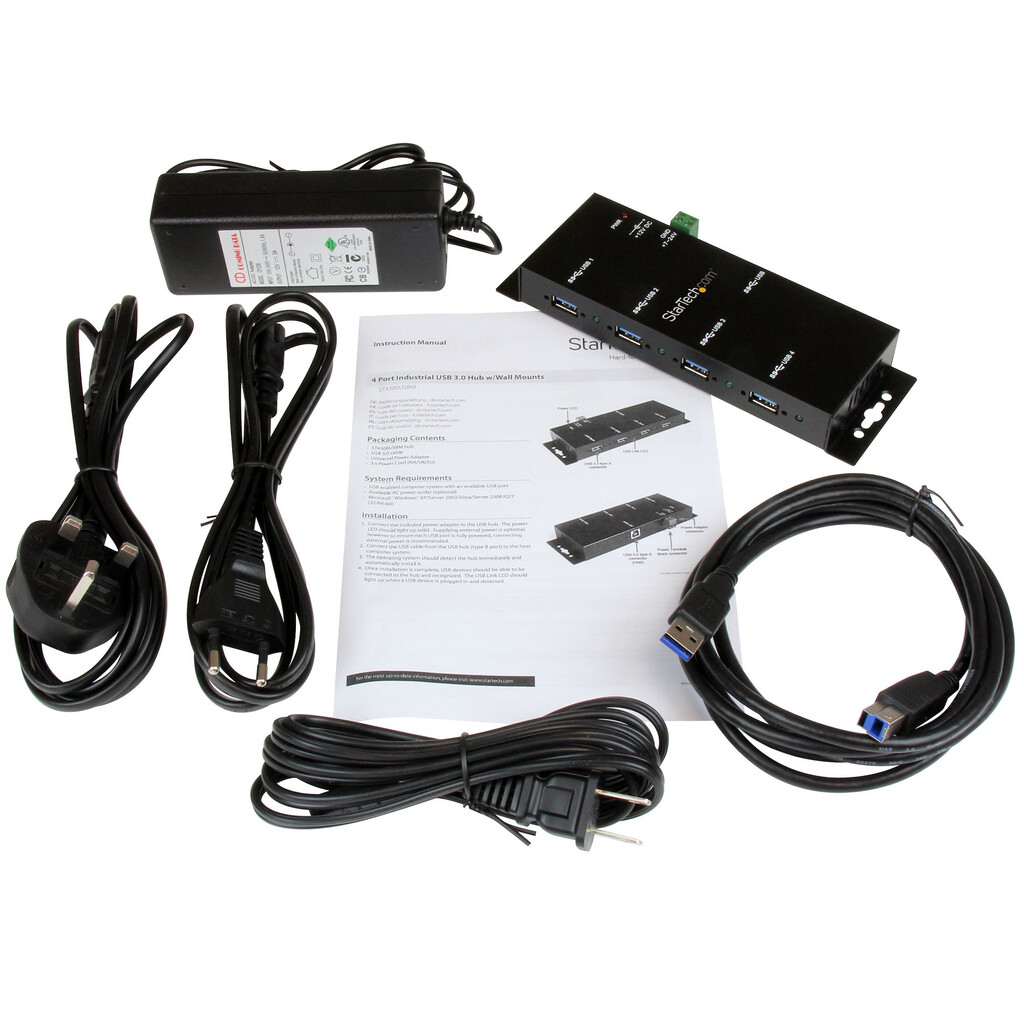

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and an included 1.8-meter USB host cable, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5 Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST4300USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Ports quantity

4

Brand

StarTech.com

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

Hub interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A

Data transfer rate

5000 Mbit/s

Product colour

Black

Housing material

Steel

Hot-swap

Yes

Plug and Play

Yes

Certification

RoHS, CE, FCC, TAA, REACH

Power consumption (typical)

36 W

Output voltage

12 V

Output current

3 A

Power plug type

Type M

Width

59.6 mm

Depth

152 mm

Height

24 mm

Weight

301 g

Package width

295 mm

Package depth

191 mm

Package height

69 mm

Package weight

1.2 kg

AC adapter included

Yes

Cables included

USB

Manual

Yes

Operating temperature (T-T)

0 – 55 °C

Mean time between failures (MTBF)

245881 h

Chipset

VIA/VLI – VL811+

Terminal block port

Yes

LED indicators

Power, USB

Storage temperature (T-T)

-20 – 85 °C

Operating relative humidity (H-H)

5 – 95%

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

DC-in jack

Yes

Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard

Quantity per pack

1 pc(s)

Included power plug types

AU, EU, NA, UK

Master (outer) case width

402 mm

Master (outer) case length

513 mm

Master (outer) case height

318 mm

Products per master (outer) case

14 pc(s)

Harmonized System (HS) code

84719000
