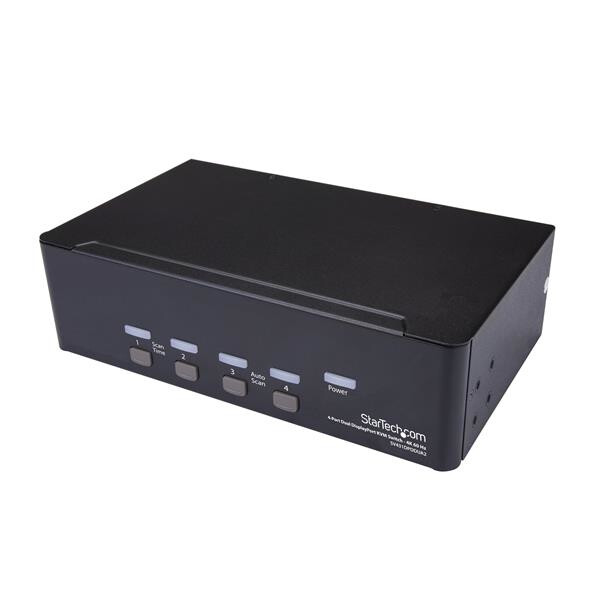

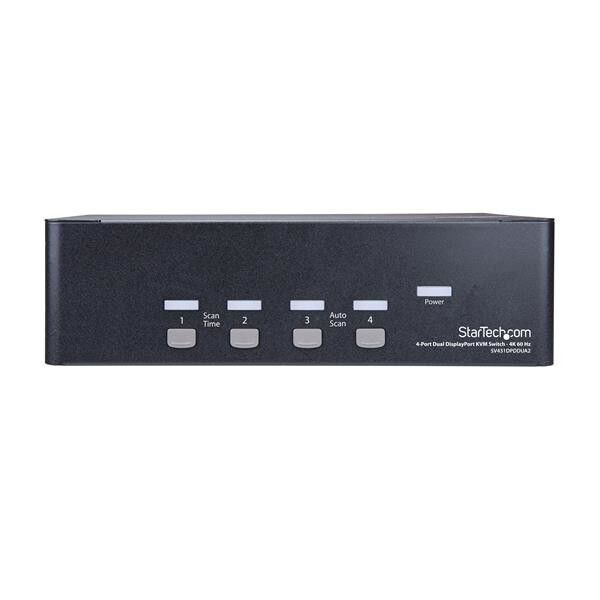

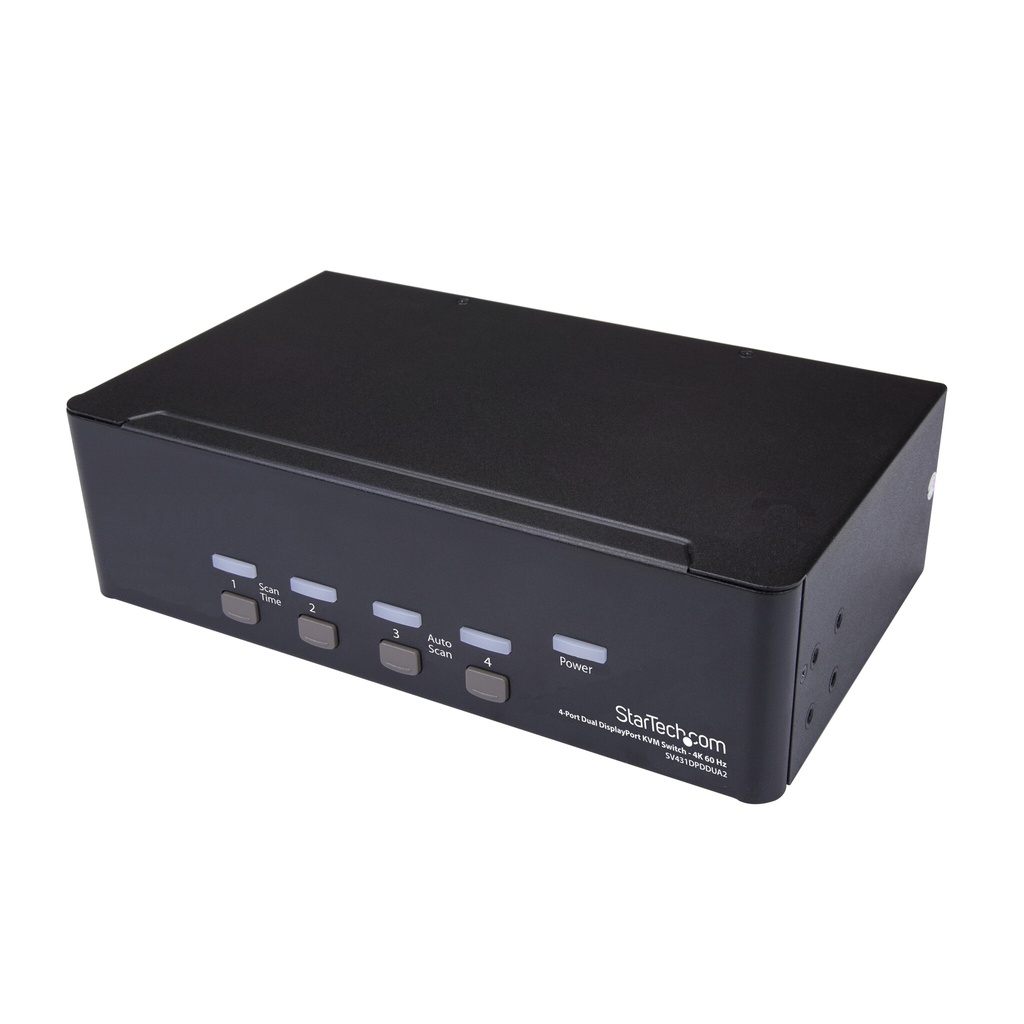

StarTech.com 4-Port Dual DisplayPort KVM Switch – 4K 60Hz

$1,534.72 (Incl. GST)

StarTech.com DisplayPort KVM – 4 port – 4K 60Hz – Dual Monitor KVM – DisplayPort Switch – KVM DisplayPort – Desktop KVM Switch (SV431DPDDUA2)

In stock

SKU: STARTECH.COM_SV431DPDDUA2 Category:

Print

Description

StarTech.com 4-Port Dual DisplayPort KVM Switch – 4K 60Hz. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 0.5 Gbit/s. Product colour: Black, Rack capacity: 2U, Housing material: Steel. Power source: AC, AC input voltage: 100 – 240 V, Input current: 0.6 A. Sustainability certificates: RoHS

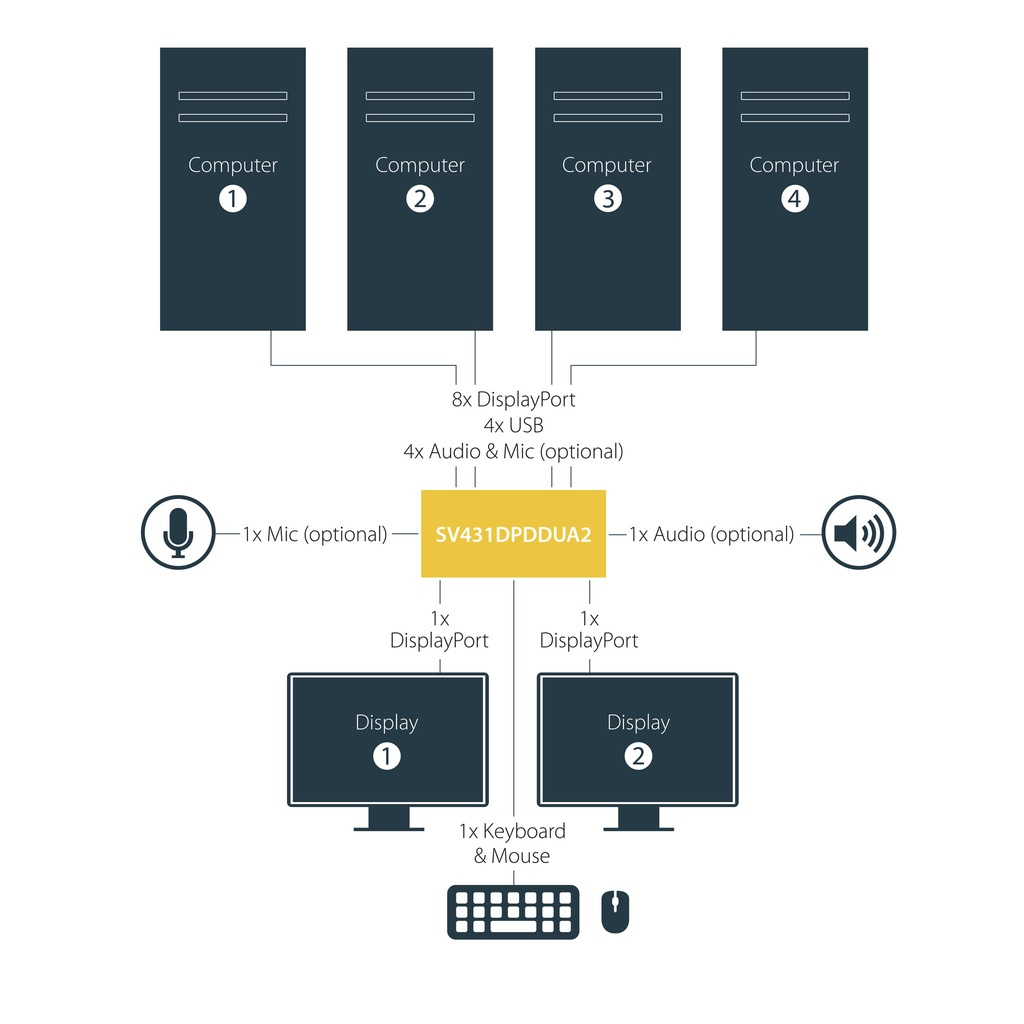

This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.

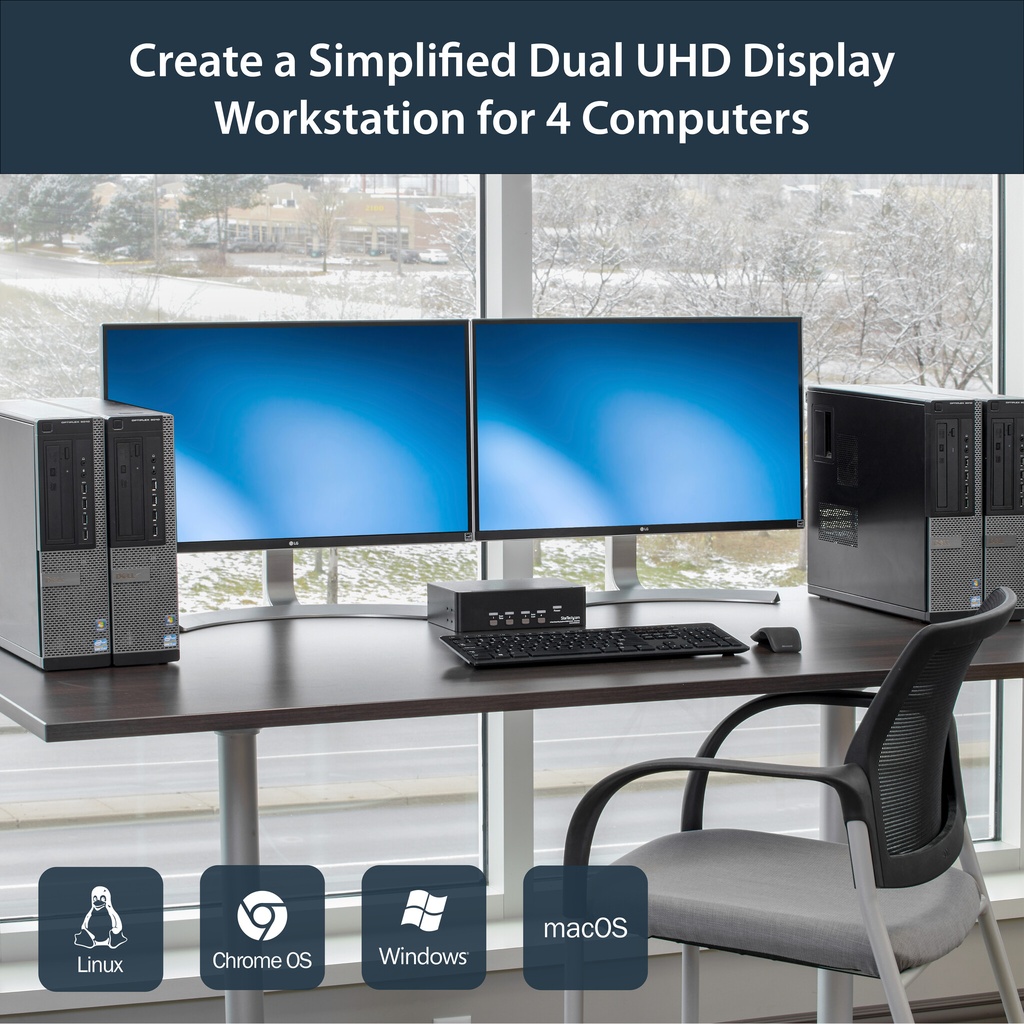

Maximize productivity with dual video

With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Convenient multimedia and peripheral sharing

The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.

The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.

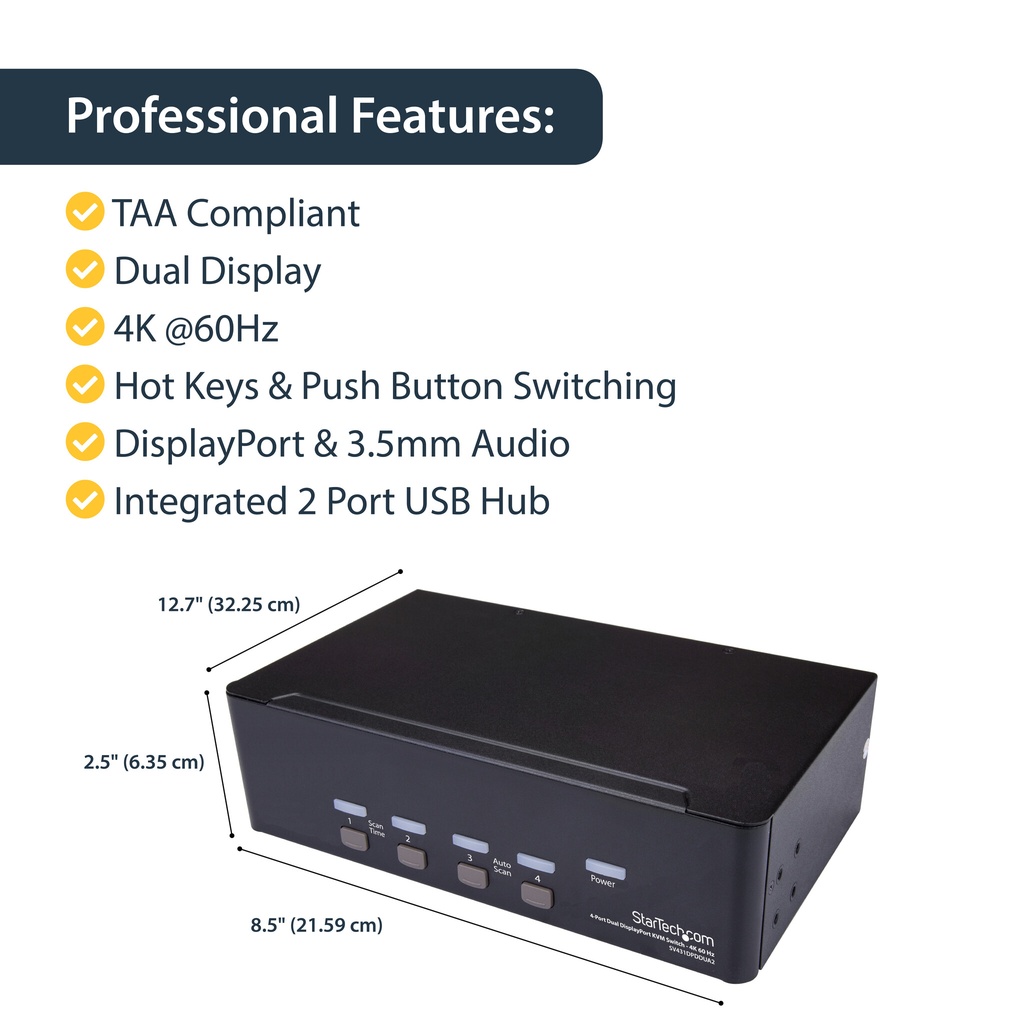

The StarTech.com Advantage

– Maximum productivity with dual-display, multi-computer access
– Full multimedia control with separate 3.5 mm microphone and speaker support
– Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz

Warranty: 2 Years

Additional information

Keyboard port type

USB

Brand

StarTech.com

Mouse port type

USB

Video port type

DisplayPort

Maximum resolution

3840 x 2160 pixels

Rack mounting

Yes

Product colour

Black

Rack capacity

2U

Certification

CE, FCC, TAA, REACH

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-10 – 60 °C

Operating relative humidity (H-H)

0 – 80%

Weight

1.2 kg

Package weight

1.8 kg

Package width

243 mm

Package depth

297 mm

Package height

87 mm

Number of computers controlled

4

DC-in jack

Yes

Daisy chain

No

LED indicators

Power

Hot keys

Yes

Built-in display

No

AC input voltage

100 – 240 V

Input current

0.6 A

Output voltage

12 V

Output current

1.5 A

Power plug type

Type M

Compatible power plug types

AU, EU, JP, UK, US

Width

216 mm

Depth

127 mm

Height

63 mm

Sustainability certificates

RoHS

Audio support

Yes

IP control

No

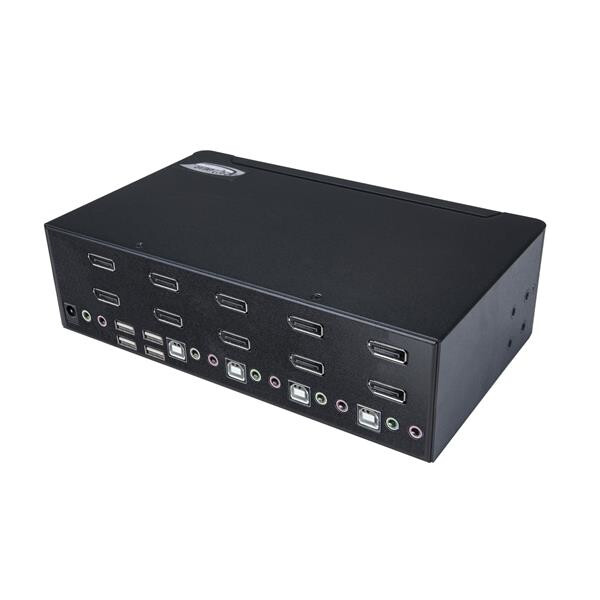

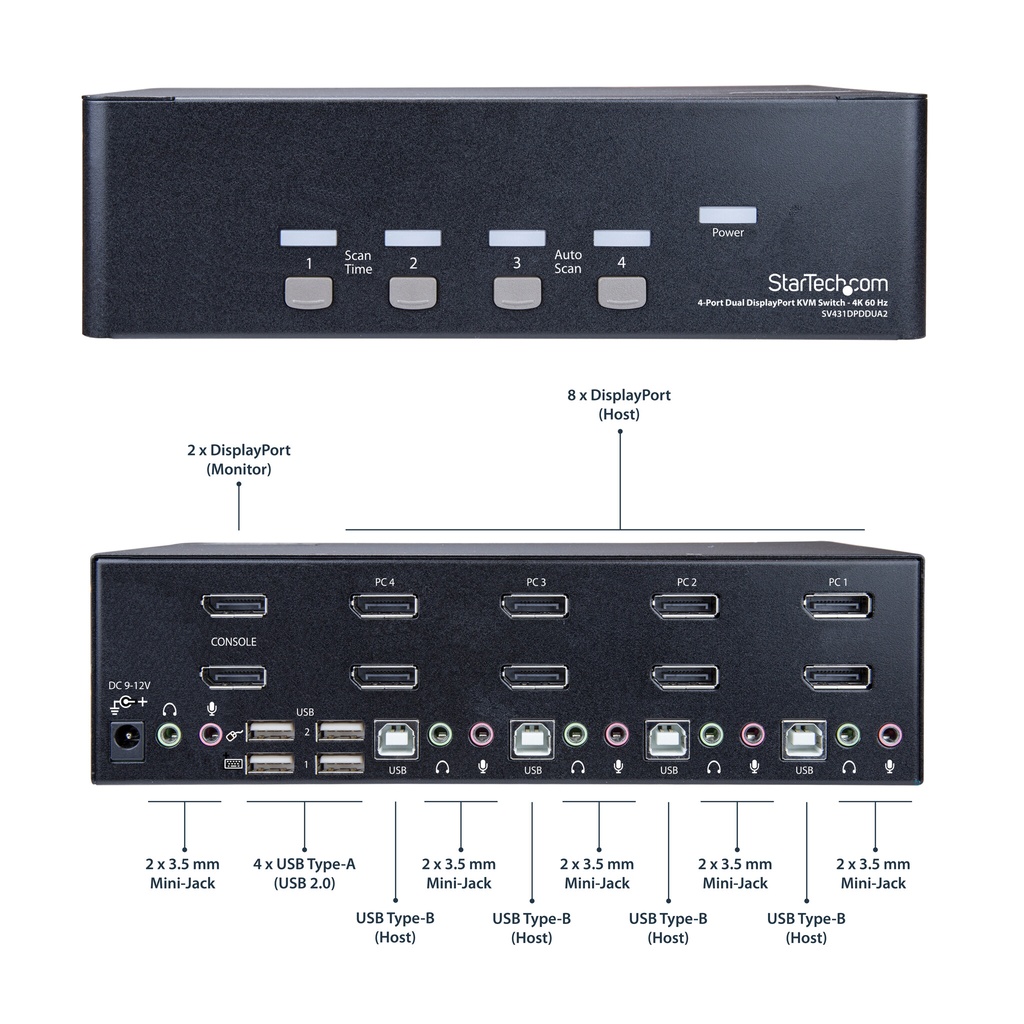

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

USB connector type

USB Type-A

Audio connections

Yes

Housing material

Steel

Rubber feet

Yes

Console USB ports quantity

4

Mean time between failures (MTBF)

142000 h

Power consumption (typical)

18 W

External power adapter

Yes

HD type

4K Ultra HD

USB hub

Yes

DisplayPorts quantity

10

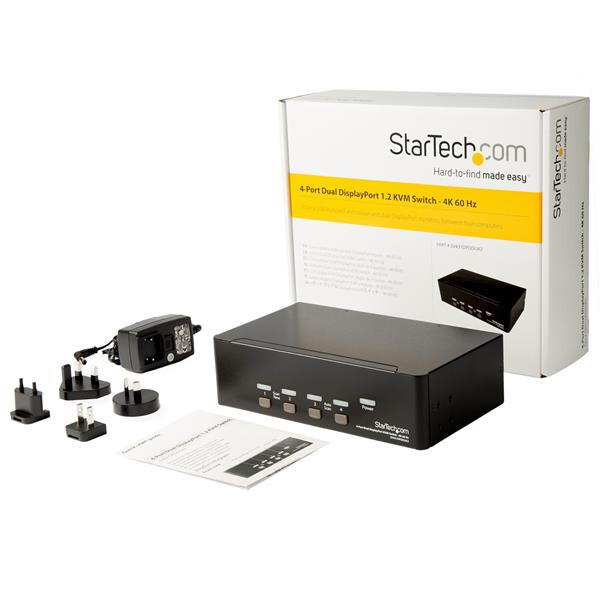

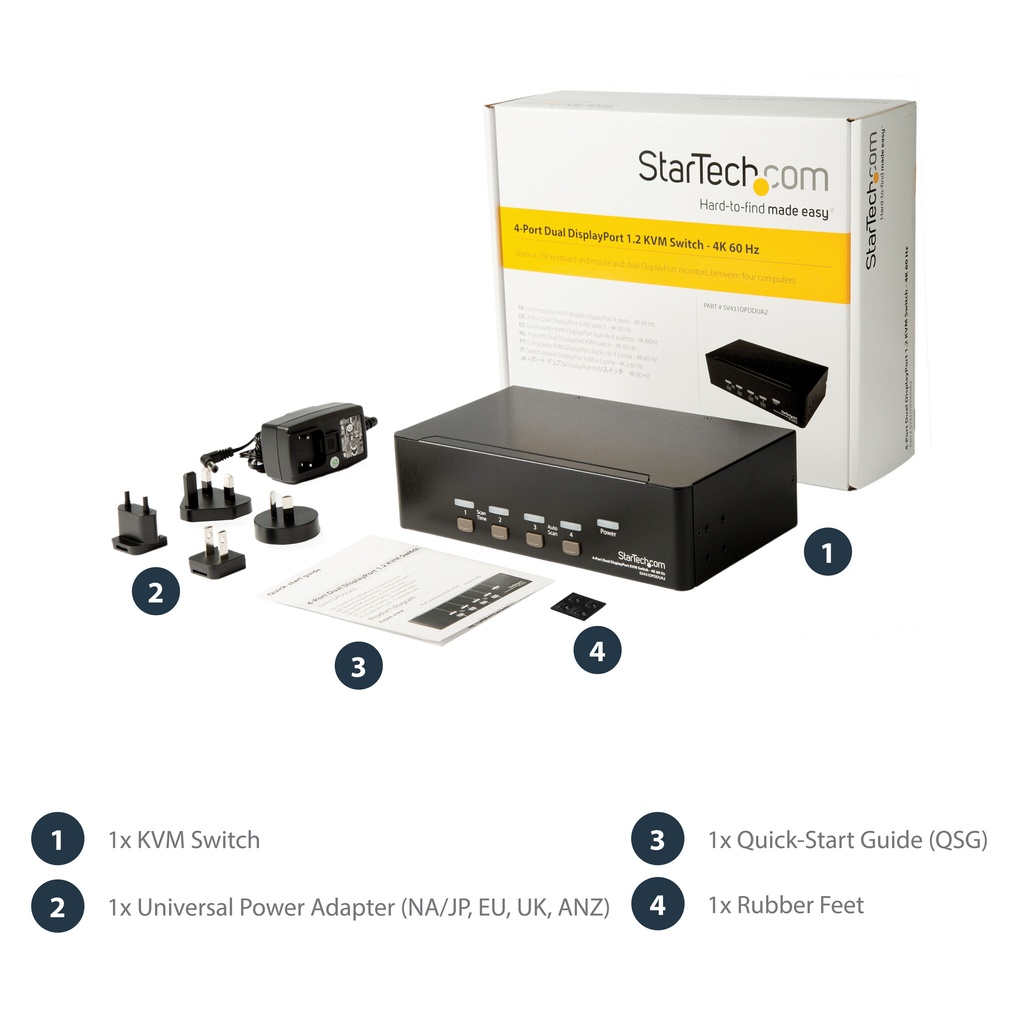

Quick installation guide

Yes

Scan interval

3,8,15,30 s

Data transfer rate (max)

0.5 Gbit/s

Power source

AC

Harmonized System (HS) code

85176200
