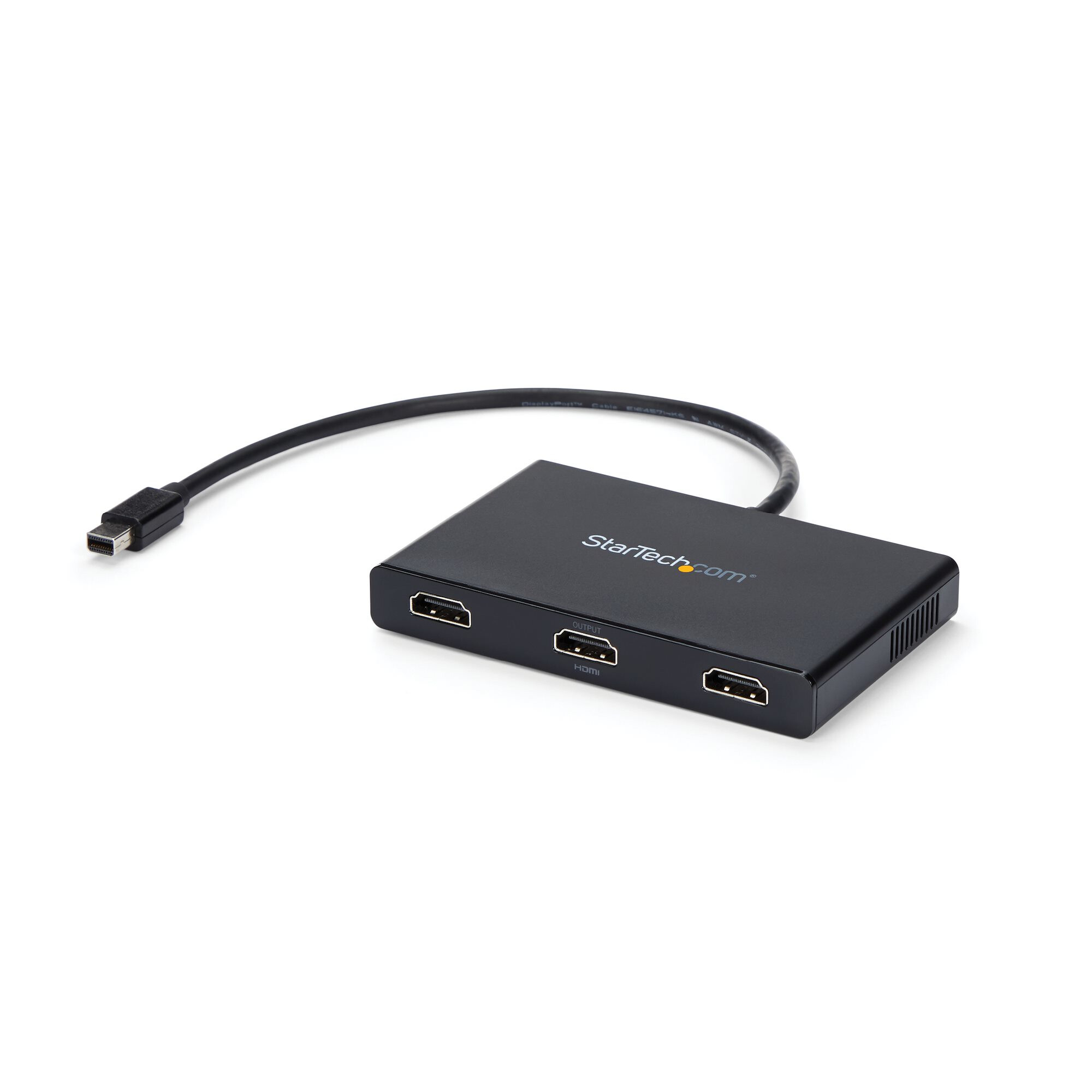

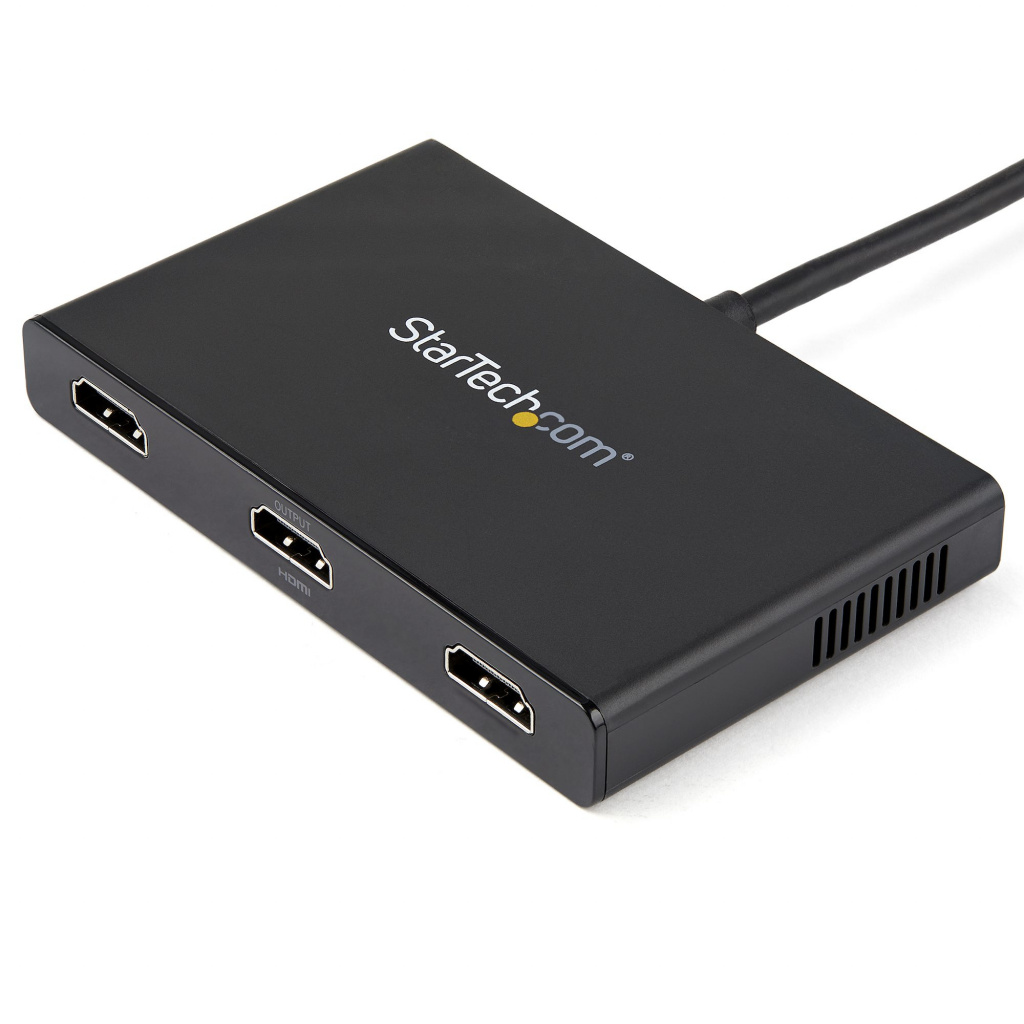

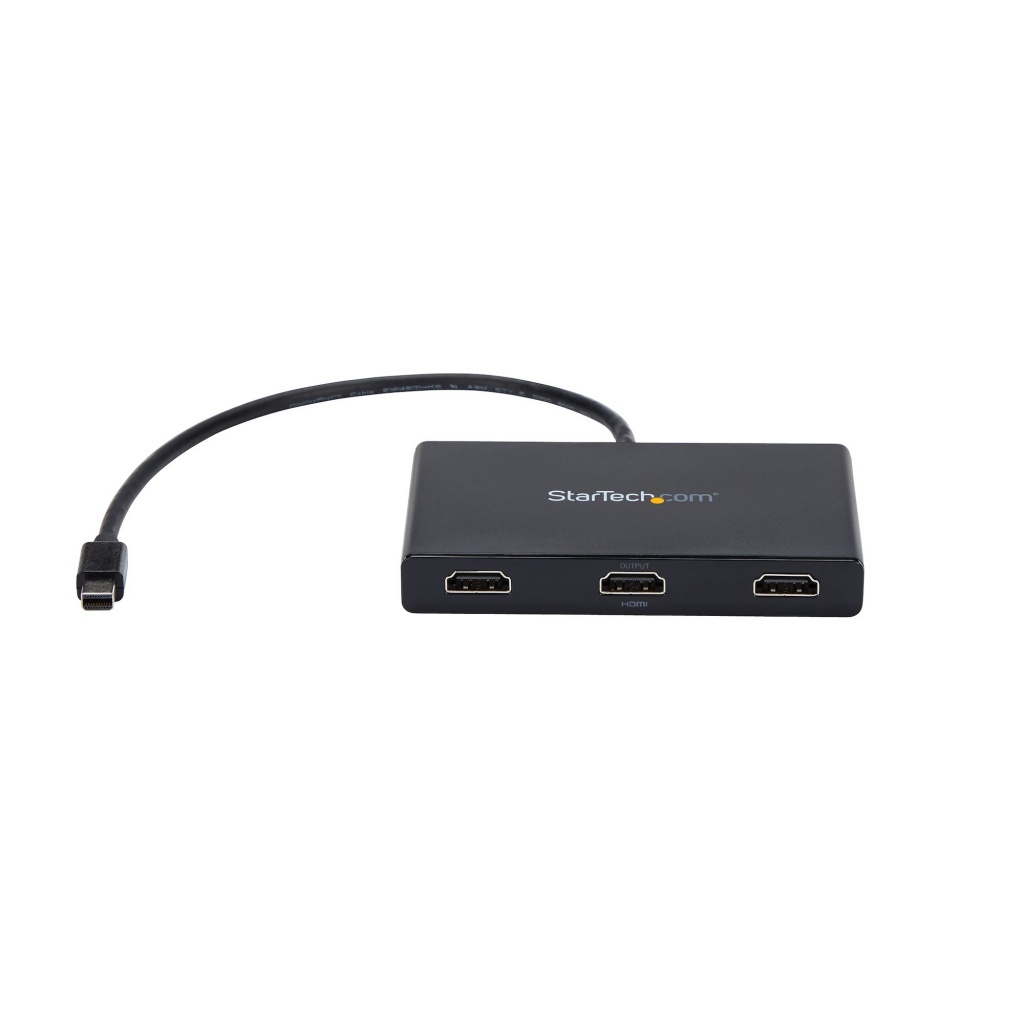

StarTech.com 3-Port Multi Monitor Adapter – Mini DisplayPort to HDMI MST Hub – Triple 1080p or Dual 4K 30Hz – Video Splitter for

$144.49 (Incl. GST)

StarTech.com 3-Port Multi Monitor Adapter – Mini DisplayPort to HDMI MST Hub – Triple 1080p or Dual 4K 30Hz – Video Splitter for

In stock

SKU: STARTECH.COM_MSTMDP123HD Category:

Print

Description

Use this adapter to connect three independent displays to a single mDP 1.2 port

This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.

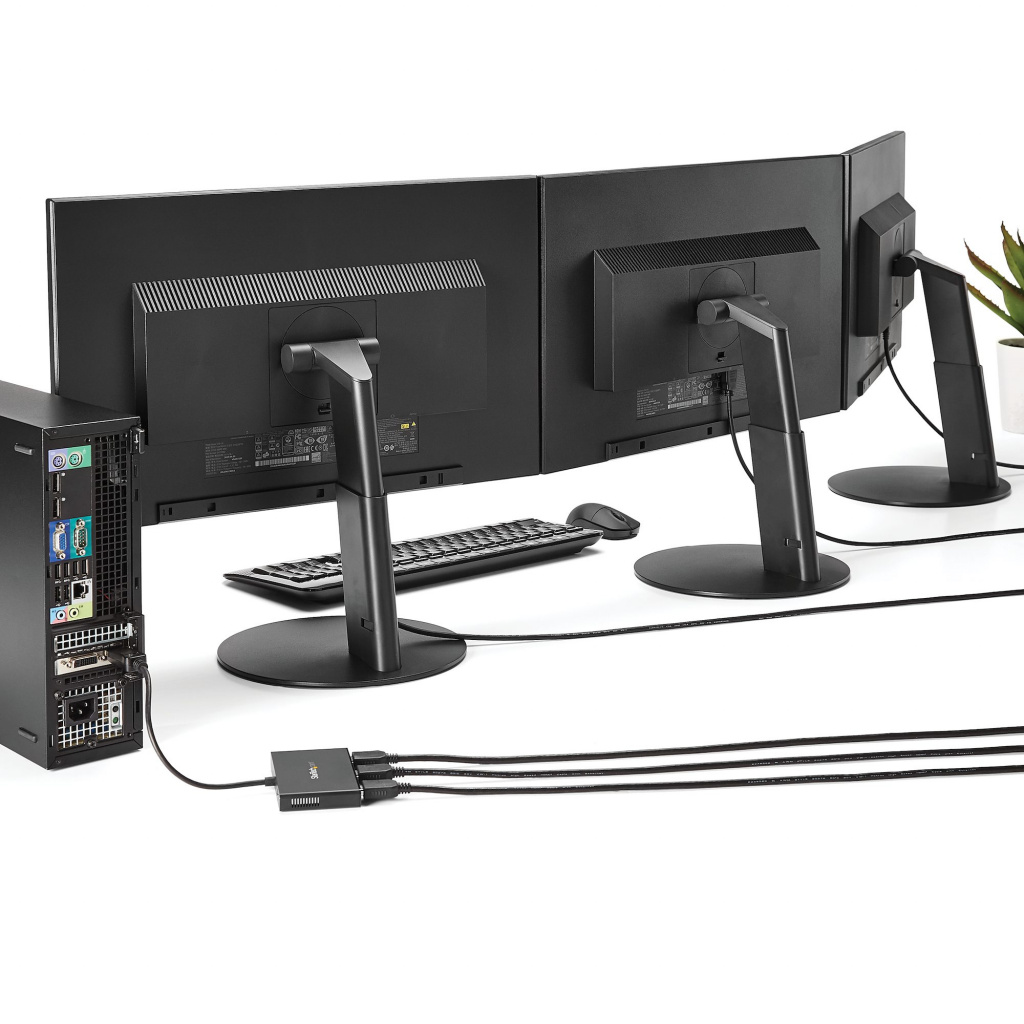

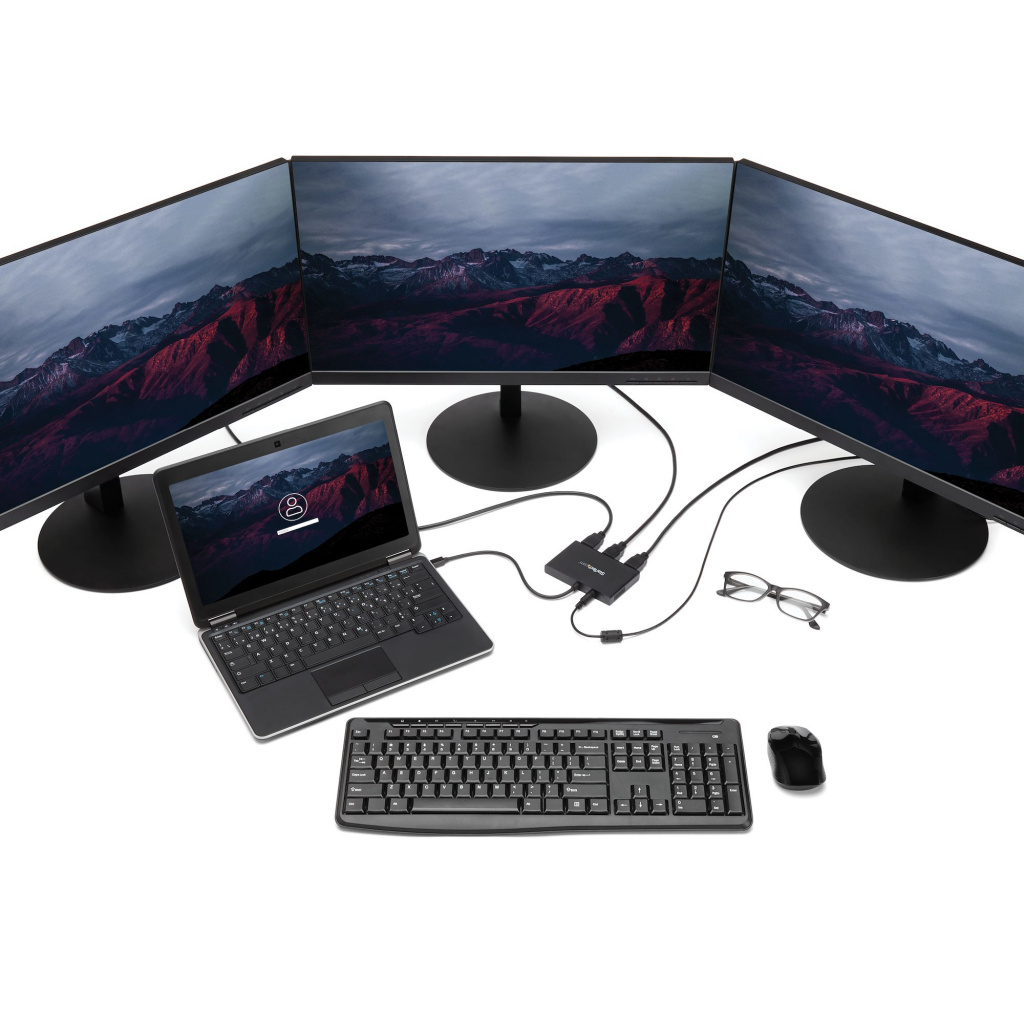

Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity – perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

The MSTMDP123HD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Video ports quantity

3

Brand

StarTech.com

Video port type

Mini DisplayPort

Video out

3x HDMI

Maximum resolution

3840 x 2160 pixels

Product colour

Black

Maximum refresh rate

30 Hz

Certification

CE, FCC, REACH

Input current

0.5 A

Output voltage

5 V

Output current

3 A

Power consumption (typical)

15 W

Width

66 mm

Depth

114 mm

Height

14 mm

Weight

120 g

Package width

151 mm

Package depth

240 mm

Package height

63 mm

Package weight

514 g

Manual

Yes

AC adapter included

Yes

AC input voltage

100 – 240 V

Housing material

Plastic

Included power plug types

AU, EU, NA, UK

Operating temperature (T-T)

0 – 45 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

50 – 90%

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Supported video modes

1080p, 720p

Plug and Play

Yes

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Master (outer) case width

335 mm

Master (outer) case length

500 mm

Master (outer) case height

220 mm

Products per master (outer) case

10 pc(s)

HD type

4K Ultra HD

Harmonized System (HS) code

85176990

Compliance certificates

RoHS
