StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART – RS232

$111.71 (Incl. GST)

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART – RS232 Low Profile Serial Card – PCI Serial Card (PEX2S1050)

In stock

SKU: STARTECH.COM_PEX2S1050 Category:

Print

Description

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.

Convenient system upgrades through PCIe

The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don’t have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it’s compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.

High-performance serial communication

The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.

Easy installation

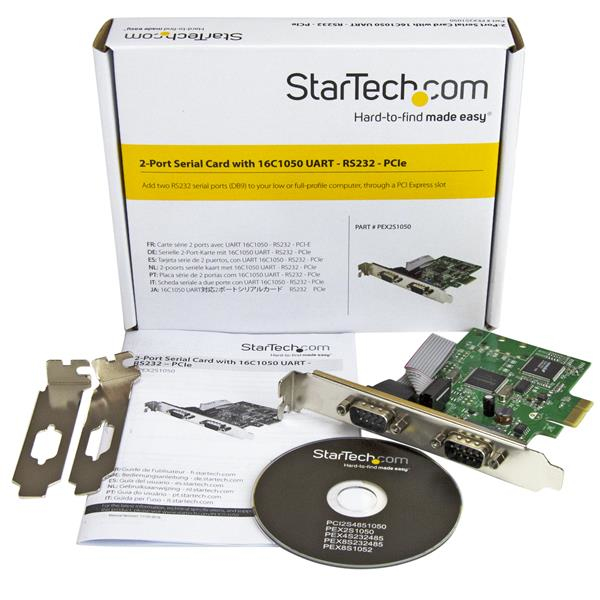

The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.

The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Host interface

PCIe

Brand

StarTech.com

Output interface

Serial

Serial ports quantity

2

Internal

Yes

Weight

61 g

Certification

CE, FCC, Microsoft WHQL

Chipset

SystemBase – SB16C1052PCI

Width

120 mm

Depth

103 mm

Height

20 mm

Package width

143 mm

Package depth

174 mm

Package height

32 mm

Package weight

149 g

Expansion card form factor

Full-height / Low-profile

Serial interface type

RS-232

Baud rate

460.8 Kbit/s
