StarTech.com 2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 5ft/1.5m USB-A/DisplayPort/Audio Integr

$456.93 (Incl. GST)

StarTech.com 2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 5ft/1.5m USB-A/DisplayPort/Audio Integr

In stock

SKU: STARTECH.COM_C2-DD46-UA2-CBL-KVM Category:

Print

Description

Share a mouse, keyboard, and dual 4K 60Hz DisplayPort displays between two DisplayPort enabled computers, using this KVM Switch with built-in cables

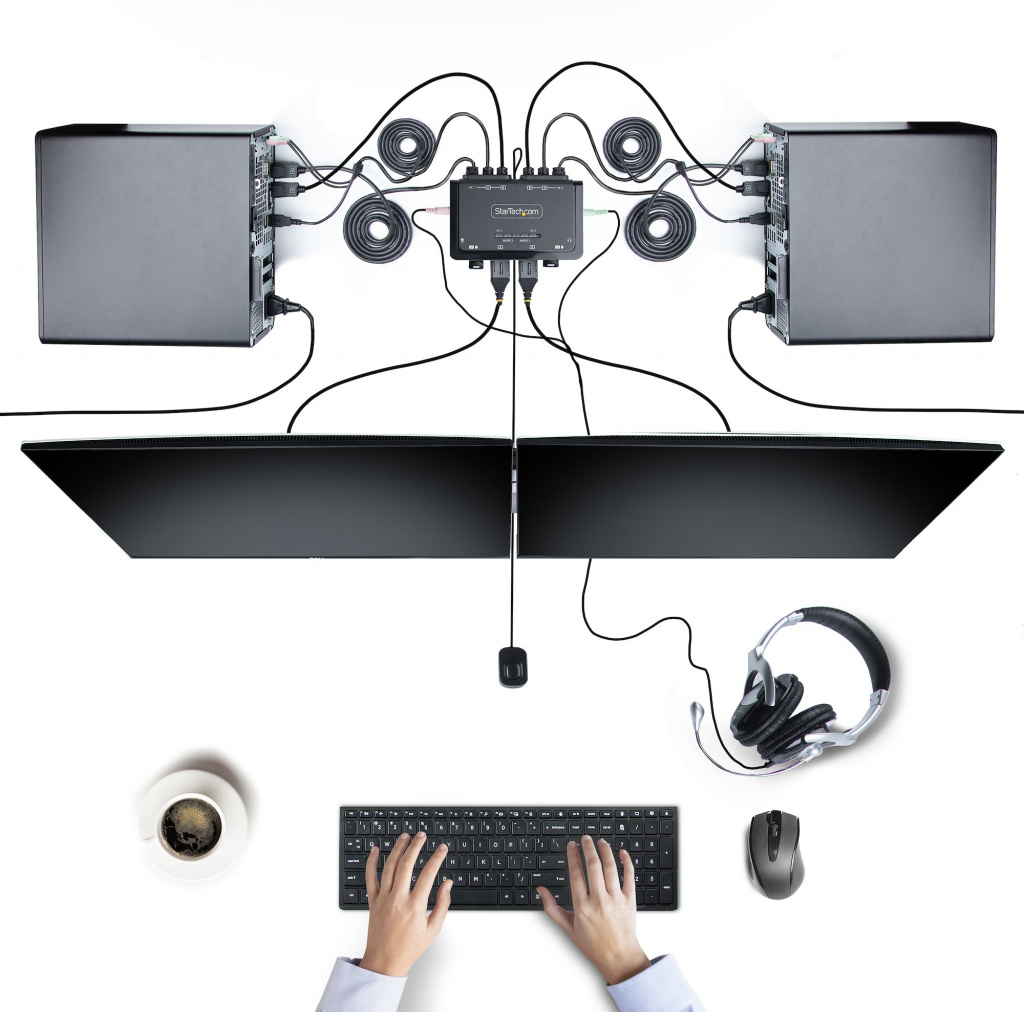

This Dual-Monitor KVM Switch enables users to switch between two USB-A and DisplayPort enabled desktops, sharing dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and audio input/output devices.

Hassle-Free Setup

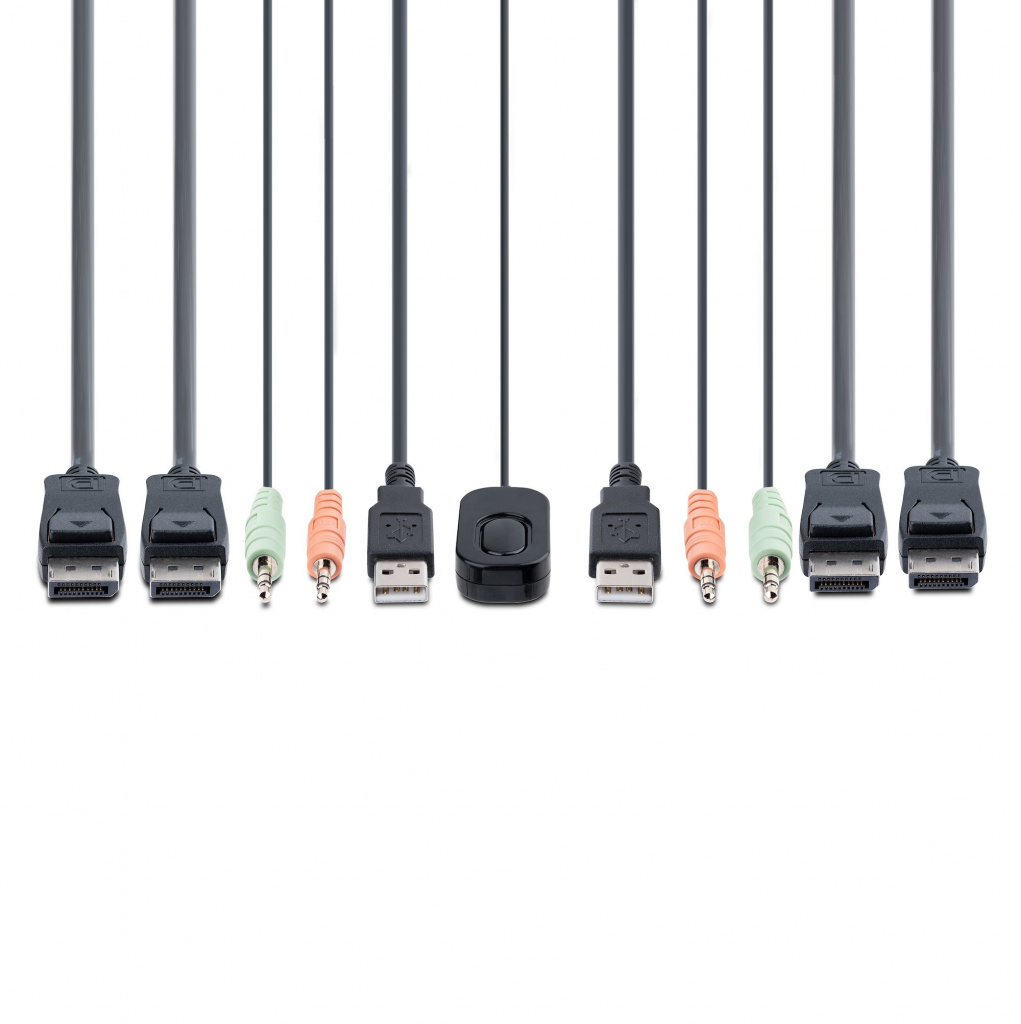

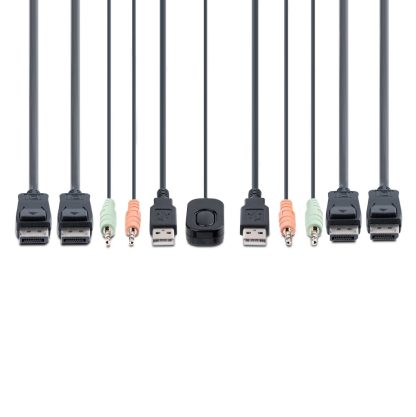

The KVM switch is bus powered and features built-in dual-DisplayPort, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals – without the need to select and purchase the cables required for those connections.

Compatibility

The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.

Intuitive Control

The KVM switch offers two options to switch between hosts – a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage

Additional information

Keyboard port type

USB

Brand

StarTech.com

Mouse port type

USB

Video port type

DisplayPort

Maximum resolution

4096 x 2160 pixels

Rack mounting

No

Product colour

Black

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-20 – 60 °C

Operating relative humidity (H-H)

0 – 90%

Weight

600 g

Package weight

700 g

Package width

160 mm

Package depth

100 mm

Package height

210 mm

Number of computers controlled

2

LED indicators

Yes

Hot keys

Yes

Built-in display

No

Width

90 mm

Depth

125 mm

Height

25 mm

Headphone outputs

2

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Audio connections

Yes

Number of microphone inputs

2

Housing material

Acrylonitrile butadiene styrene (ABS)

Console USB ports quantity

2

Mean time between failures (MTBF)

419293 h

HD type

4K Ultra HD

Audio channels

2.0

Push button

Yes

DisplayPorts quantity

4

Cable length

1.5 m

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey

Quick installation guide

Yes

USB version

2.0

DisplayPort version

1.2

Video bandwidth

60 Hz

Scan interval

10,20,30,40,50,60 s

Master (outer) case width

440 mm

Master (outer) case length

320 mm

Master (outer) case height

345 mm

Products per master (outer) case

12 pc(s)

Data transfer rate (max)

0.48 Gbit/s

Chipset

SN8P2202SG

Power source

USB

Console DisplayPorts ports quantity

2

Other operating systems supported

ChromeOS

Sustainability compliance

Yes

Display resolution at frequency

4096×2160 @60Hz3840x2160 @60Hz5120x1440 @60Hz3440x1440 @60Hz2560x1440 @60Hz2560x1080 @60Hz1920x1200 @60Hz1920x1080 @60Hz

Compliance certificates

RoHS
