StarTech.com 10G PCIe SFP+ Card – Single SFP+ Port Network Adapter – Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables –

$324.88 (Incl. GST)

or 6 weekly interest-free payments from $54.14 with Laybuy

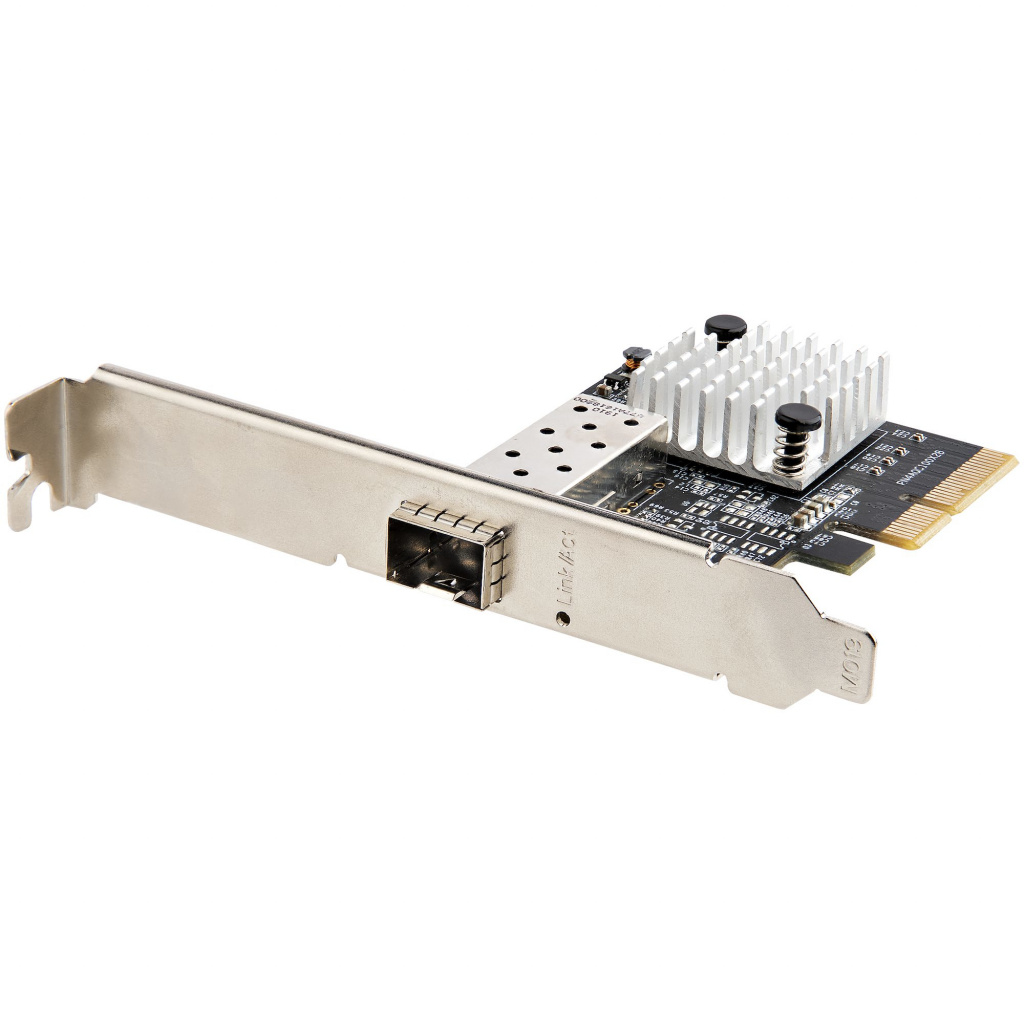

StarTech.com 10G PCIe SFP+ Card – Single SFP+ Port Network Adapter – Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables – 10 Gigabit Fiber PCIe NIC – PCI Express SFP+ Network Card (PEX10GSFP)

In stock

SKU: STARTECH.COM_PEX10GSFP Category:

Print

Description

StarTech.com 10G PCIe SFP+ Card – Single SFP+ Port Network Adapter – Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables – 10 Gigabit Fiber PCIe NIC – PCI Express SFP+ Network Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 20000 Mbit/s. Product colour: Black

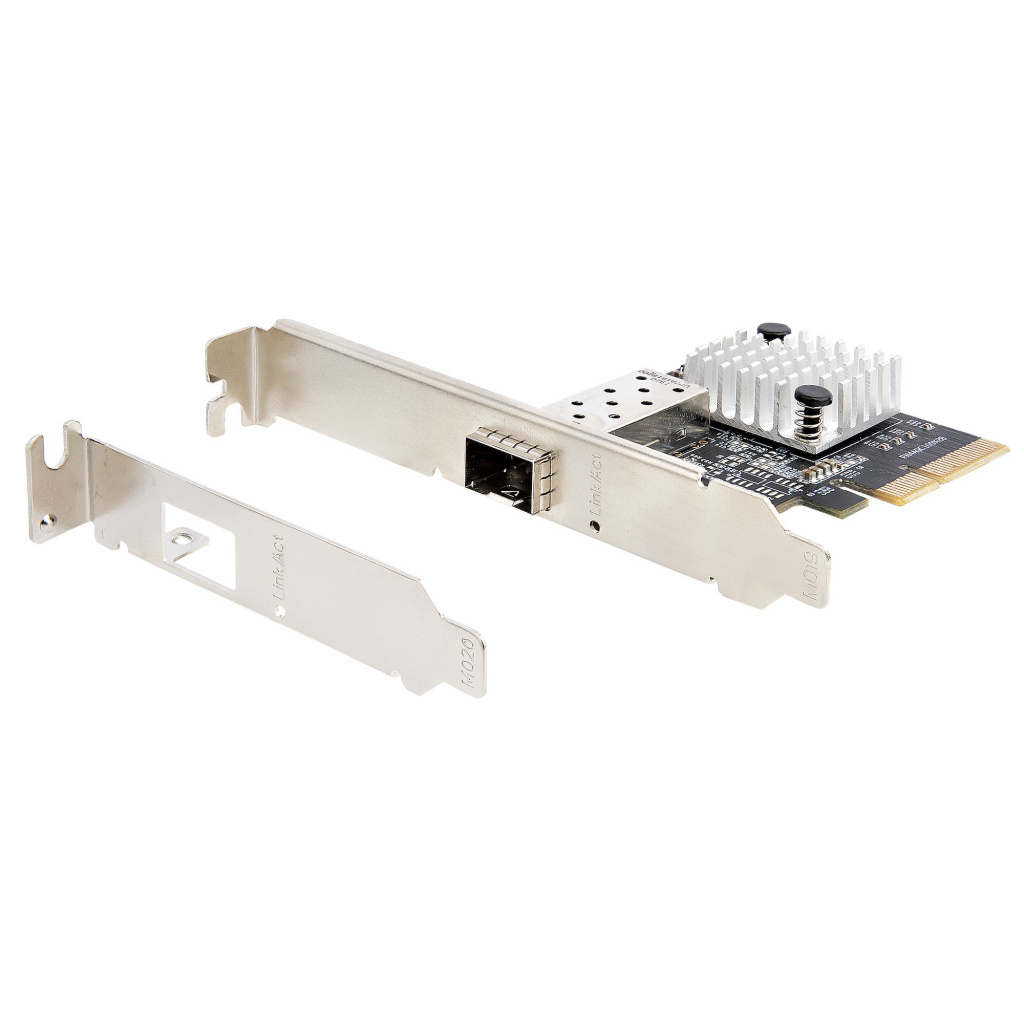

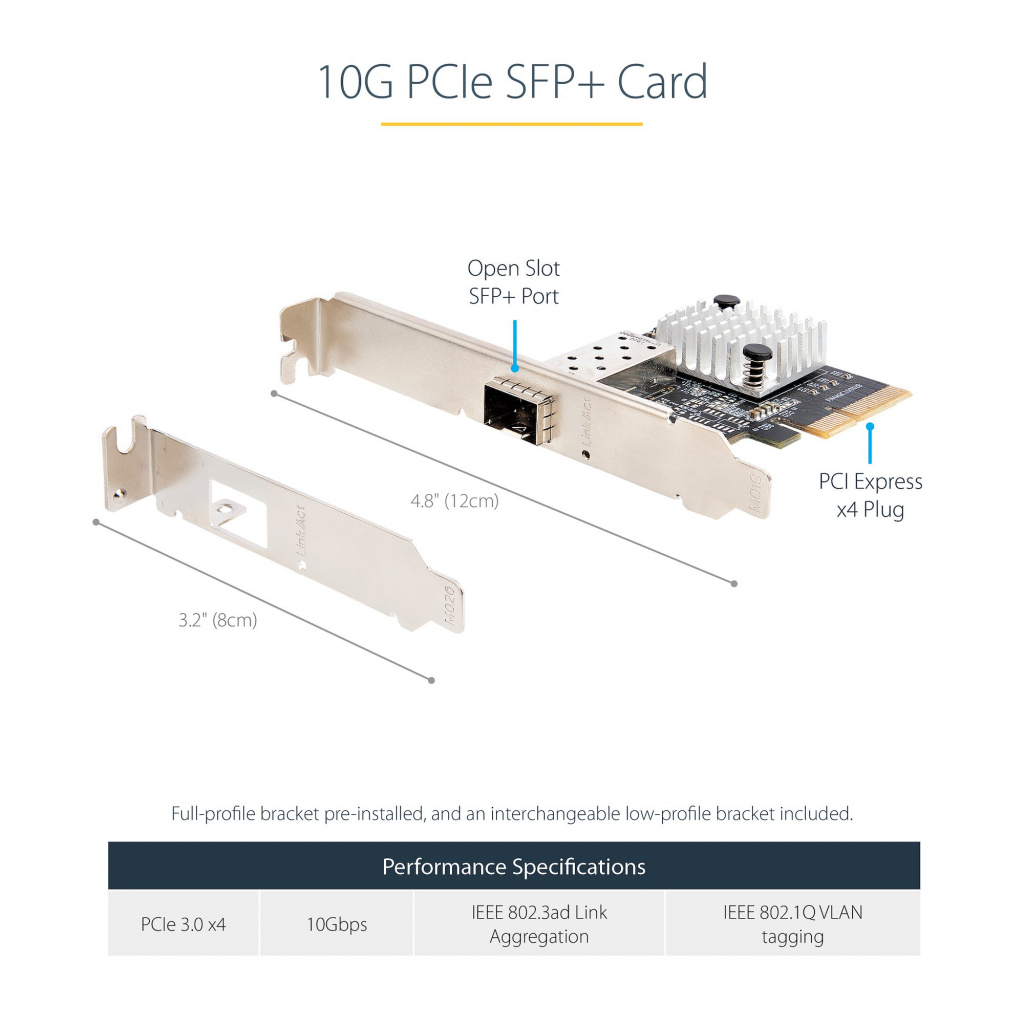

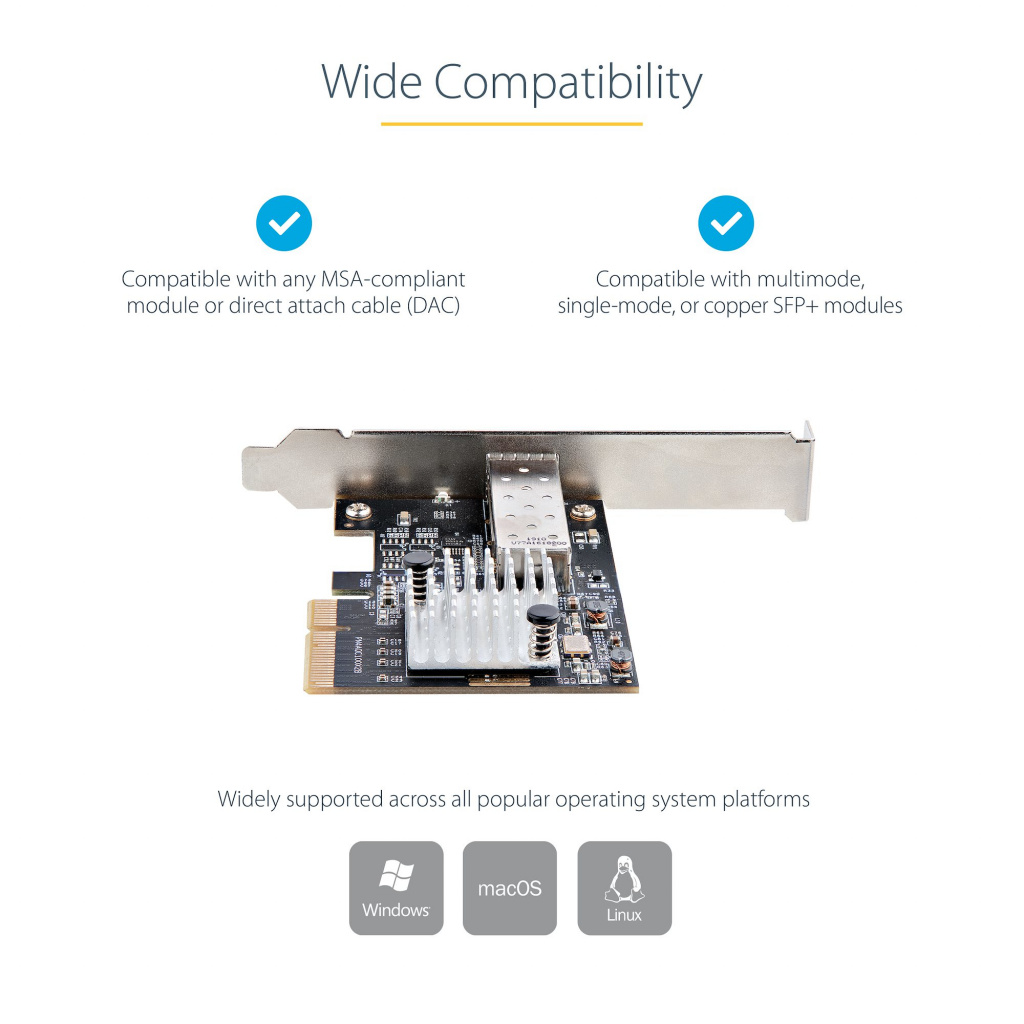

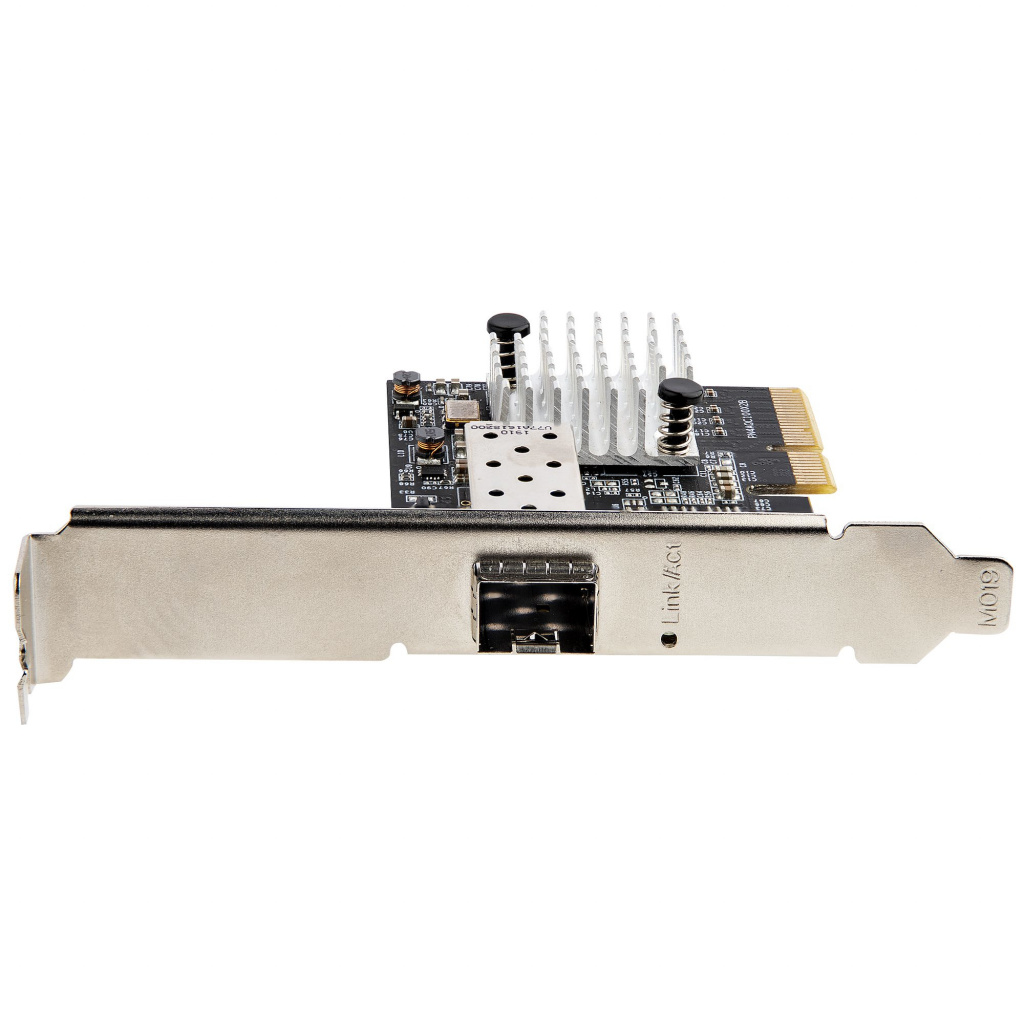

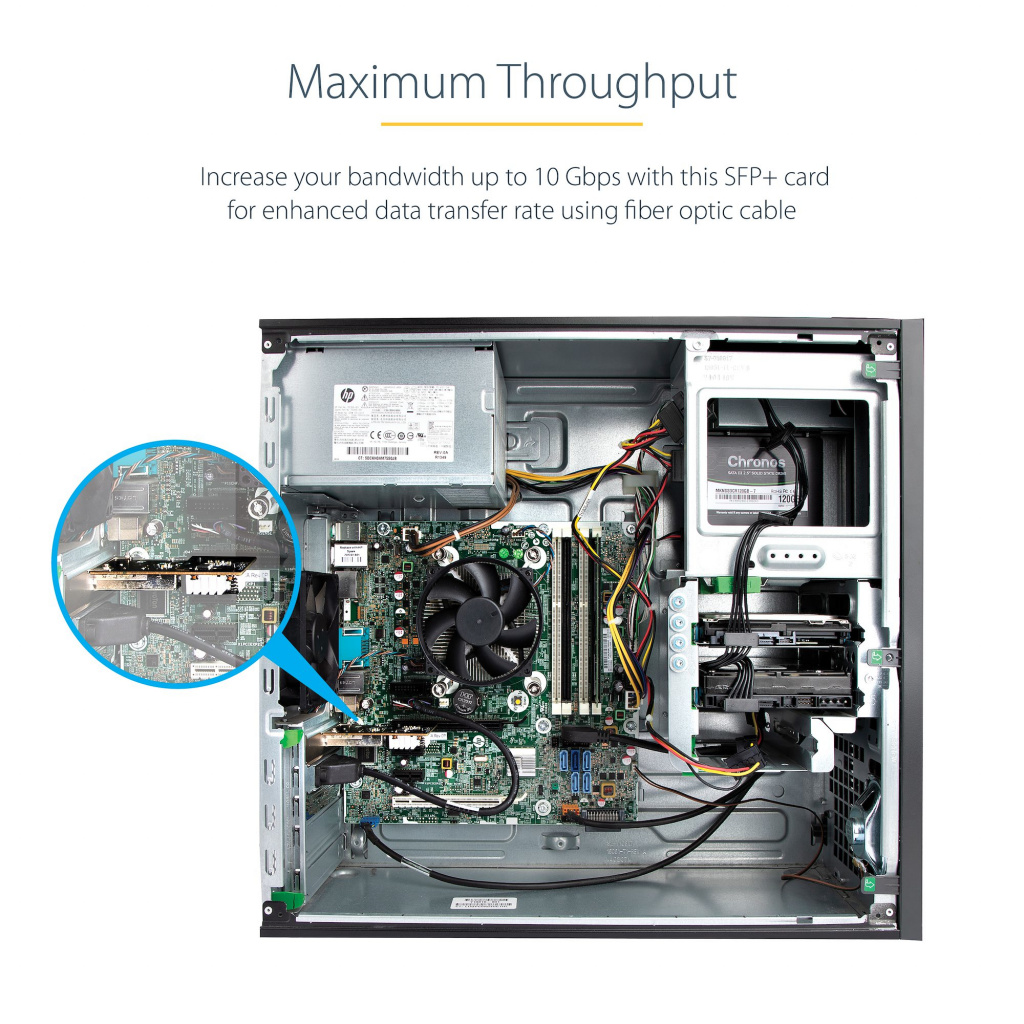

PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4Increase your network speedThis PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps which improve speeds and reduces load times.Scalable network connectionFeaturing an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.Enhance your existing hardwareThe 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.The PEX10GSFP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Warranty: 2 Years

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Maximum data transfer rate

20000 Mbit/s

Host interface

PCI Express

Interface

Fiber

PCI version

3.0

Networking standards

IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x

Full duplex

Yes

VLAN tagging

Yes

Internal

Yes

Component for

PC

Chipset

Aquantia AQC100S

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Operating temperature (T-T)

5 – 50 °C

Operating relative humidity (H-H)

20 – 80%

Sustainability certificates

CE, RoHS

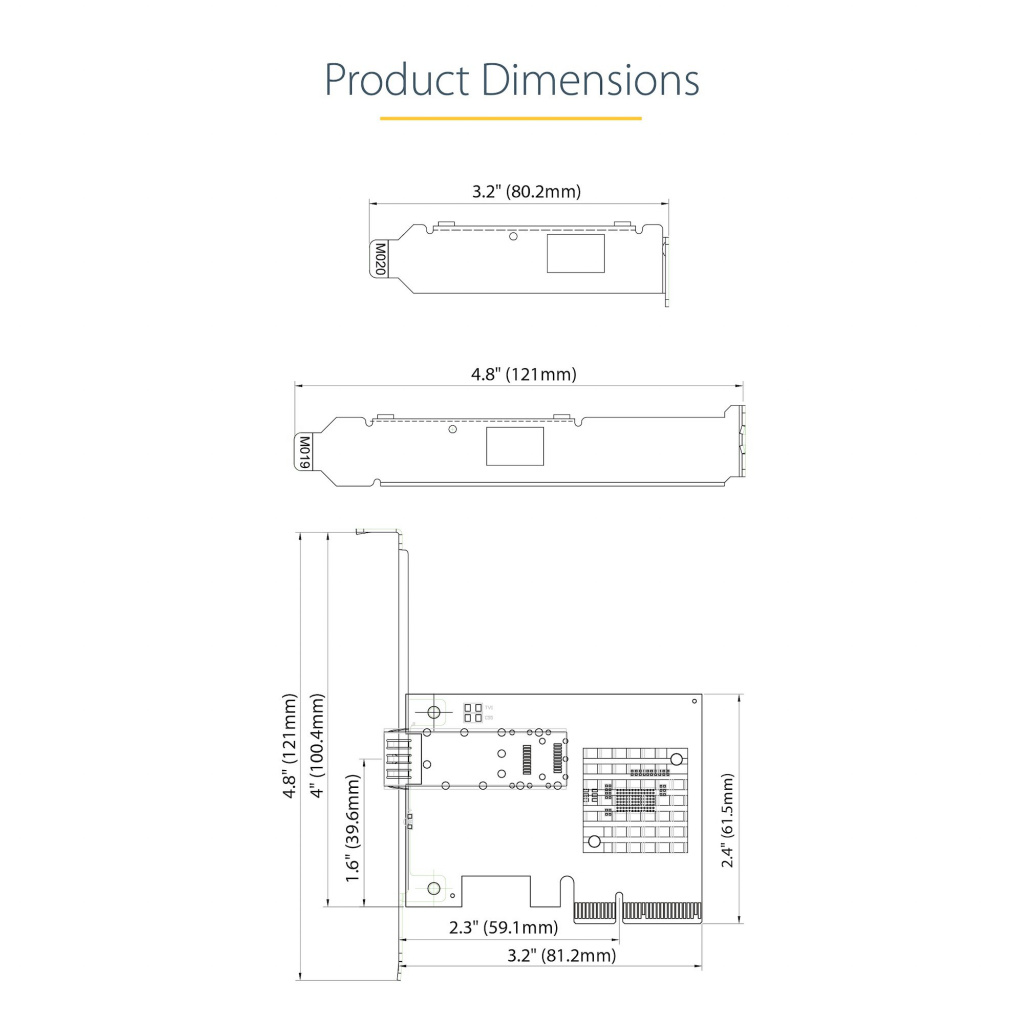

Width

18 mm

Depth

94 mm

Height

121 mm

Weight

55 g

Package width

210 mm

Package depth

145 mm

Package height

35 mm

Package weight

145 g

Storage temperature (T-T)

-20 – 60 °C

Harmonized System (HS) code

85176990

Product colour

Black

Flow control support

Yes

Fiber optic connector

SFP+

Fiber mode structure

Multi-mode, Single-mode

Jumbo frames support

Yes

Jumbo frames

9000

Mounting brackets included

Yes

Quick installation guide

Yes

Master (outer) case width

310 mm

Master (outer) case length

355 mm

Master (outer) case height

235 mm

Products per master (outer) case

20 pc(s)
